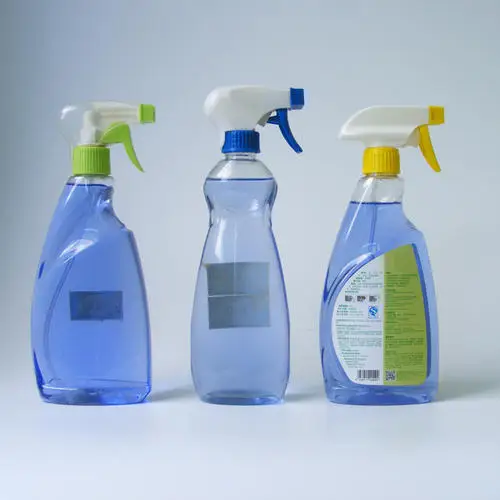

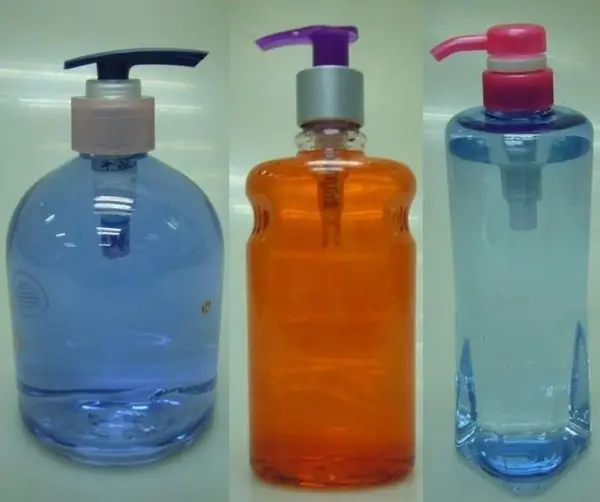

100ml 250ml 500ml hands sanitizer gel washing liquid soap pet bottle making stretch blowing molding moulding machine
- Category: >>>
- Supplier: Zhangjiagang Ostar Machinery Co. Ltd.
Share on (62598072673):
Product Overview
Description
Machine Details

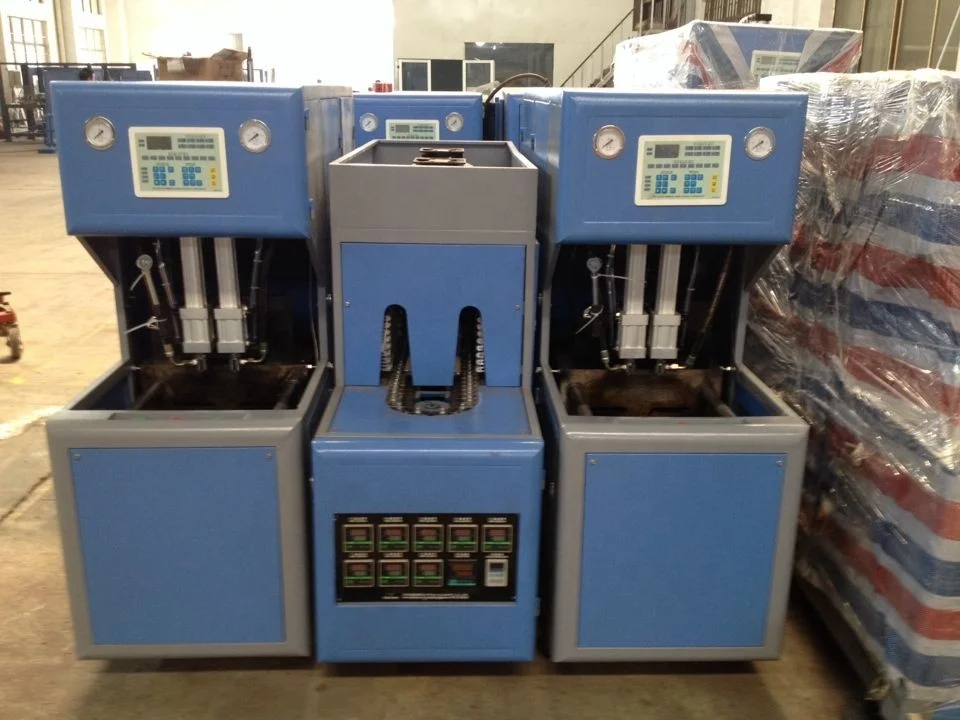

Semi Automatic Bottle Blowing Machine
Semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100ml-2000ml(2cavities) or 2.5-3L(1cavity), it has 1 infrared heater+1 blower and 1 infrared heater+2 blowers, depend on your budgets and production speed requirement.
It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics bottle, medical bottles, wide-mouth jar, etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics bottle, medical bottles, wide-mouth jar, etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
Mineral water bottles
Carbonate drinks bottle&Juice Bottles
3L 5L big pure water bottles
Edible oil bottles
Wide mouth/neck Jar Containers
5Gallon/20L water bottles
Machine Paramenters
ITEM | UNIT | 1 heater+1 blower | 1 heater+2 blower | ||
Cavities Numbers | Cavities | 2&1 | 2 | ||
Theoretical Ouput per hour | BPH | 600-800 | 1200-1600 | ||
Max Bottle Volume | L | 2/3L | 2 | ||
Bottle Neck Size | mm | 18-100 | 18-100 | ||
Max Bottle Diameter | mm | 105/130 | 105 | ||
Max Bottle Height | mm | 340 | 340 | ||
Mold Thickness | mm | 70-230 | 70-230 | ||
Mold Open Stroke | mm | 160 | 160 | ||
Power | KW | 22 | 26 | ||
Heater Size | mm | 1700*600*1350 | 2200*600*1350 | ||
Blower Size | mm | 1600*600*1550 | 1600*600*1550 | ||
Weight | Kg | 850 | 1550 | ||
Machine Components
Heating Lamp
We using high efficiency infrared lamps, evenly heating preform, to make sure every section of preform.
The power saving lamp help you save up to 40% energy
Blowing Cylinder
The high pressure blowing cylinder, we choose high capacity
cylinder, stable working for any size of customer botttle type
durable use and more powerful.
Mold&Auxilary

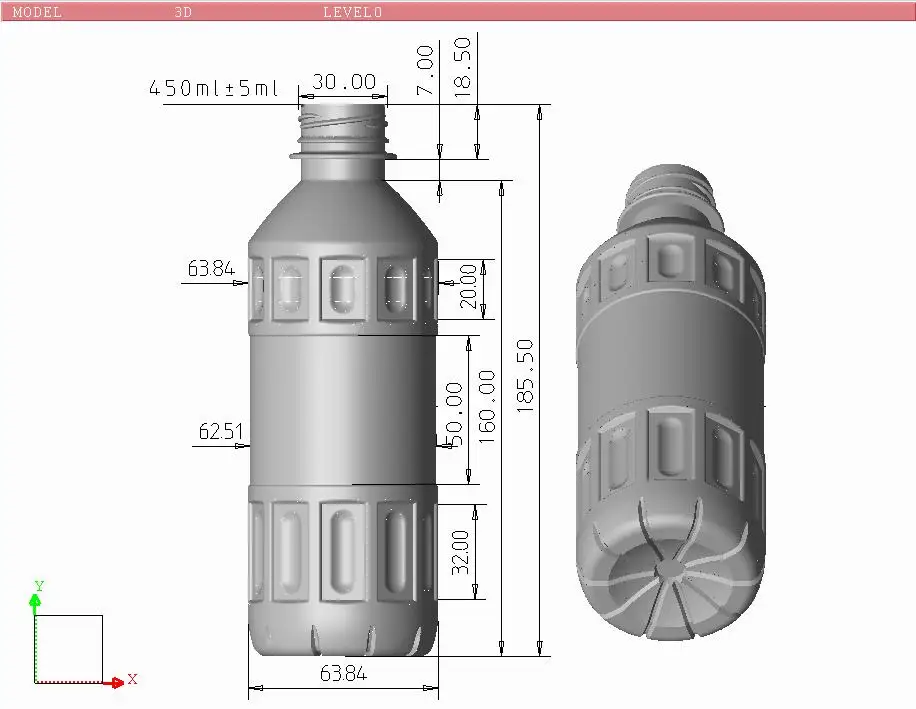

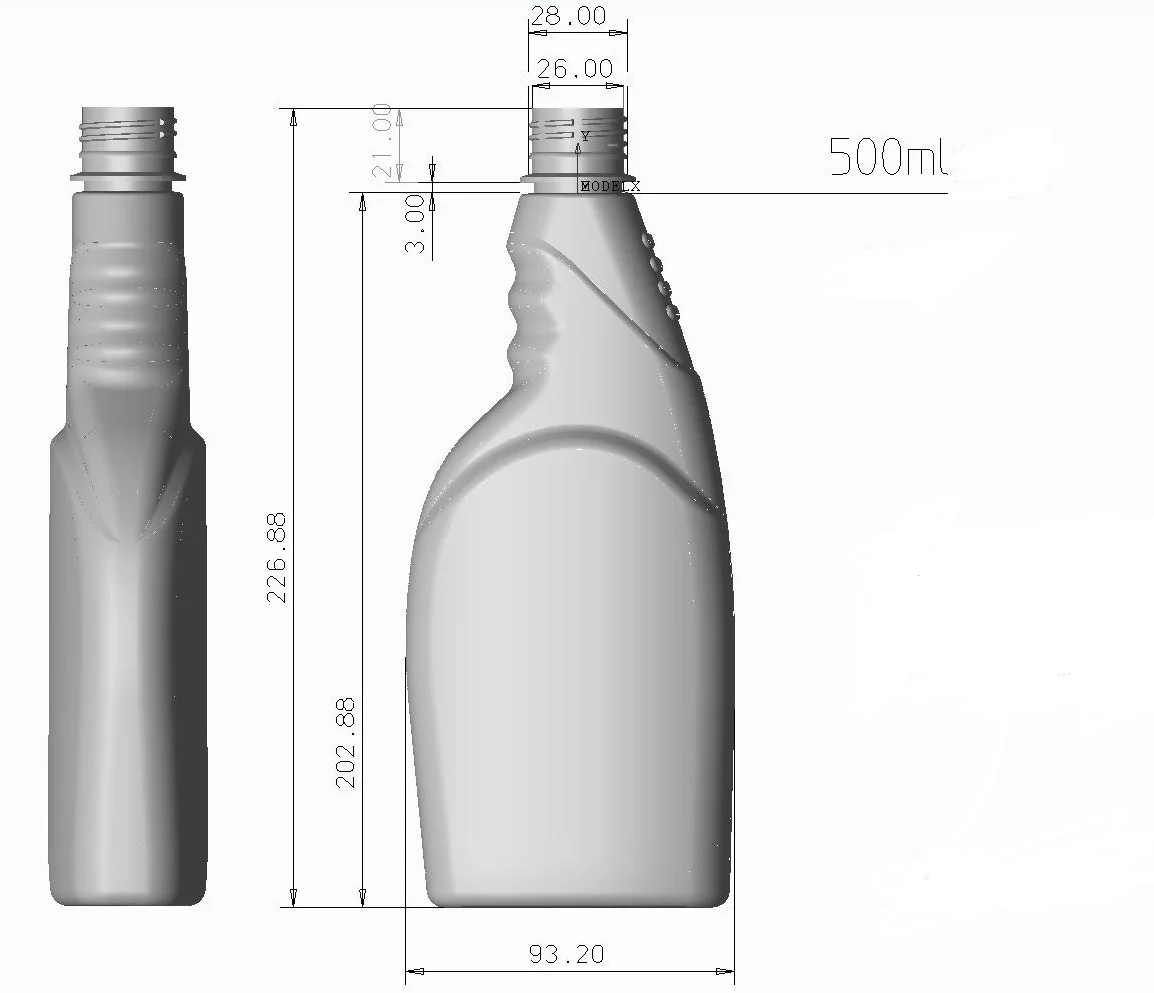

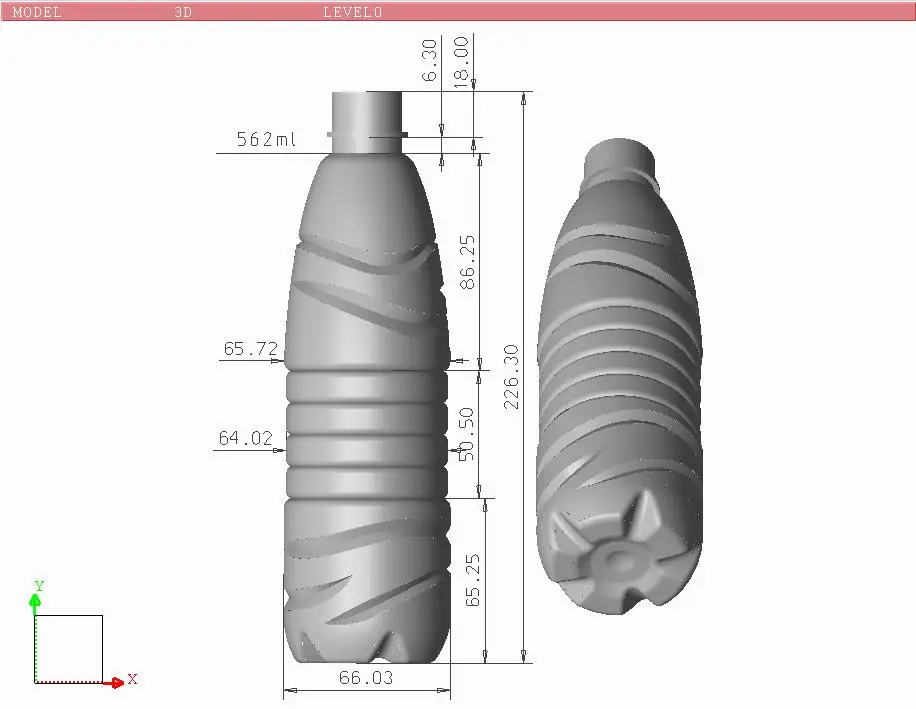

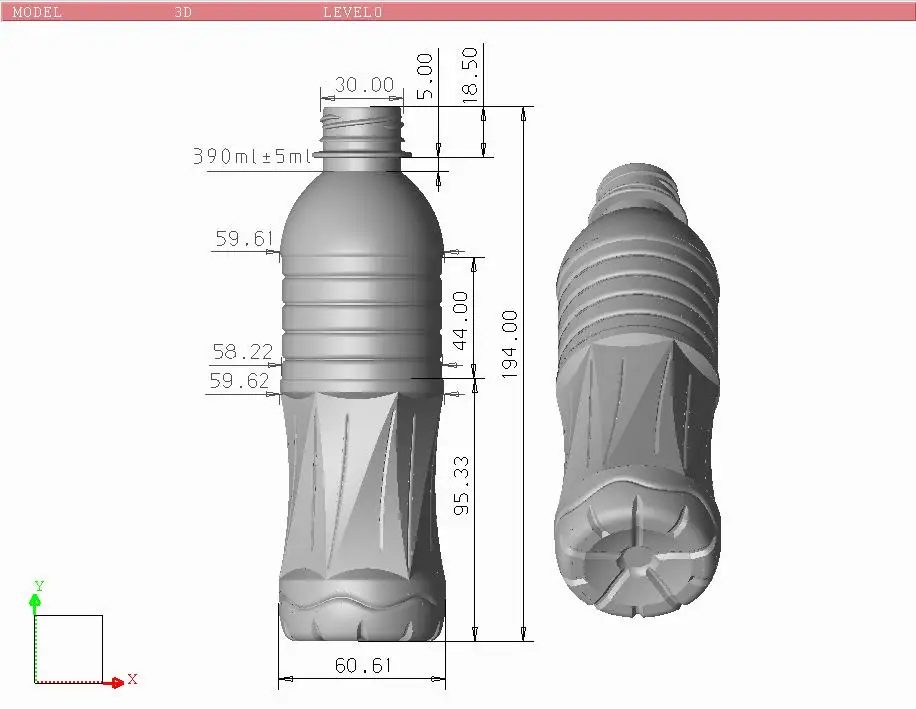

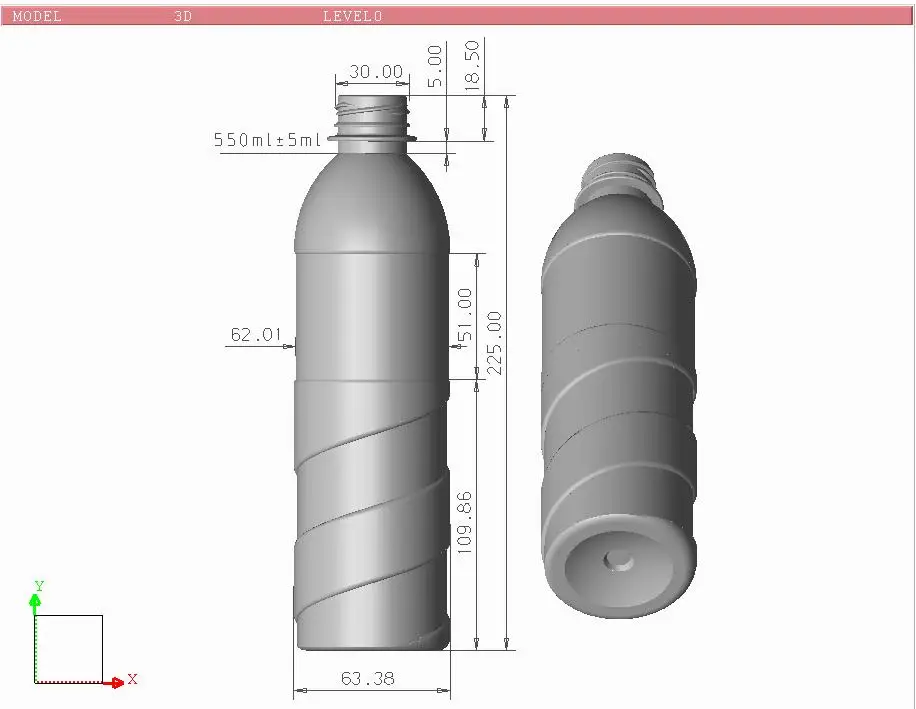

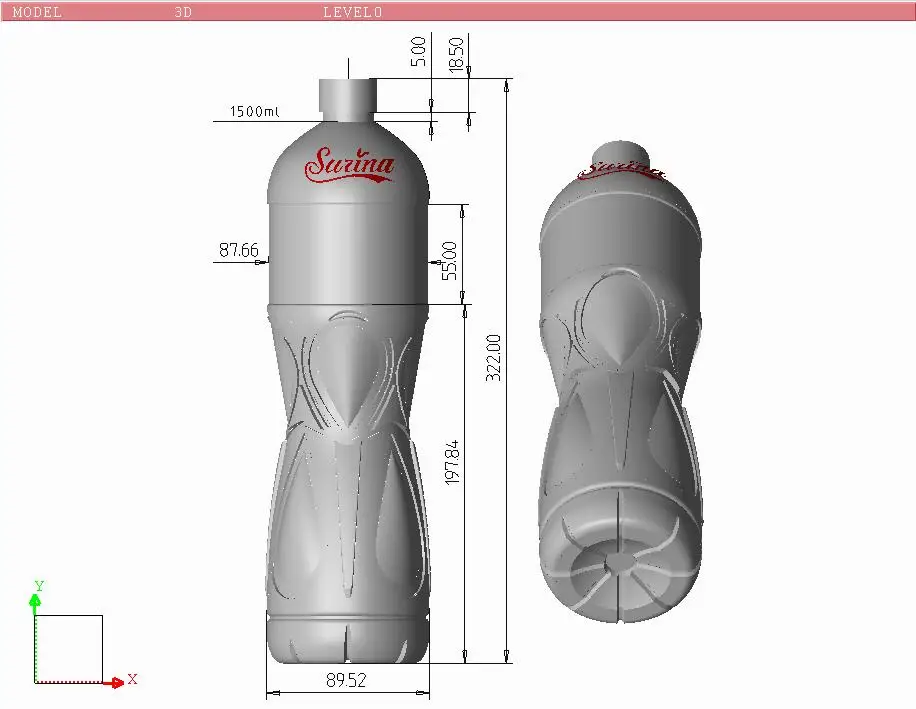

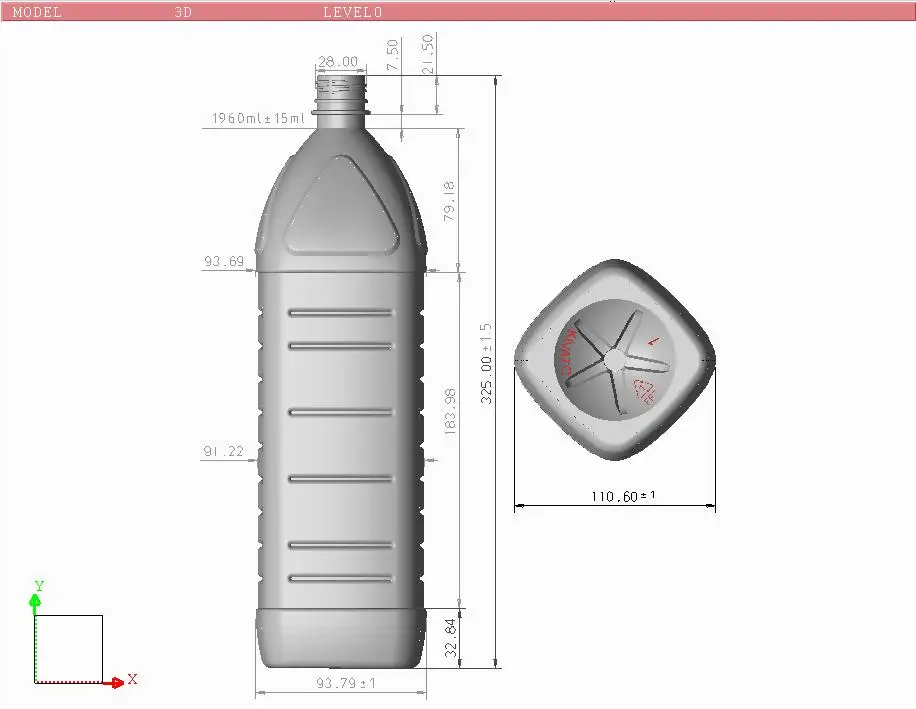

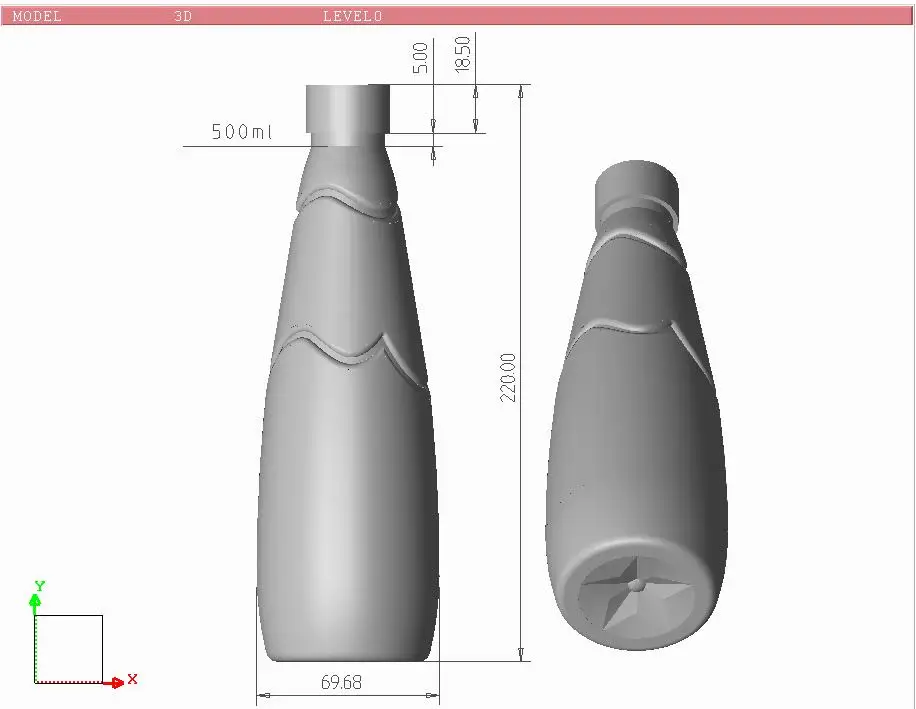

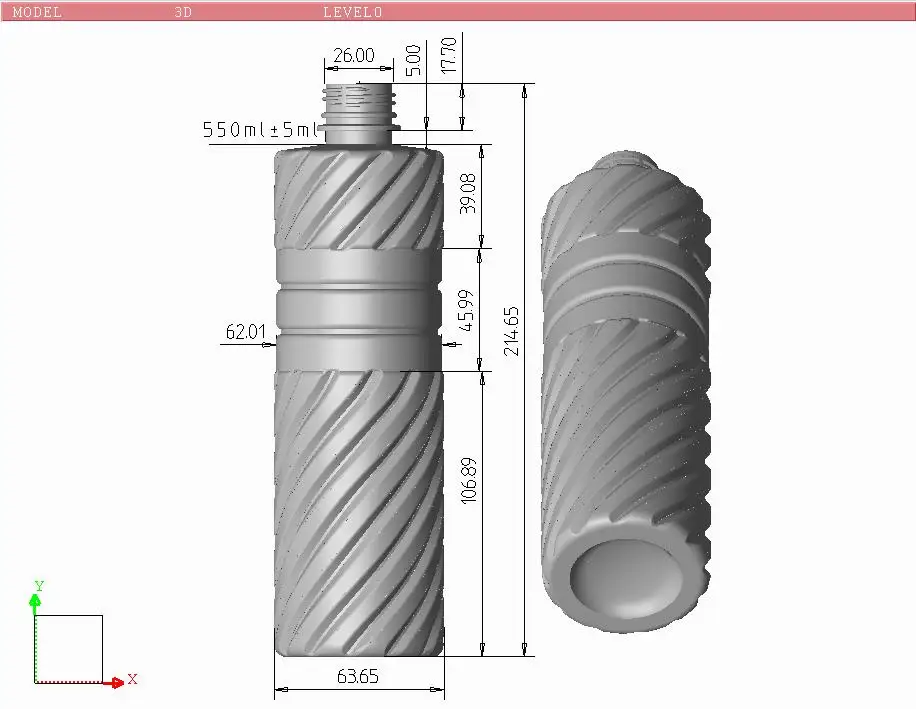

We are professional on bottle design, we could make the bottle design fastly according to your bottle sample, or improve from your samples.
We use durable mold material, top hardness, design with good cooling chance, to make bottle good cooling and good blow
mold surface with chrome, shining and never rust even after you use for a long time.

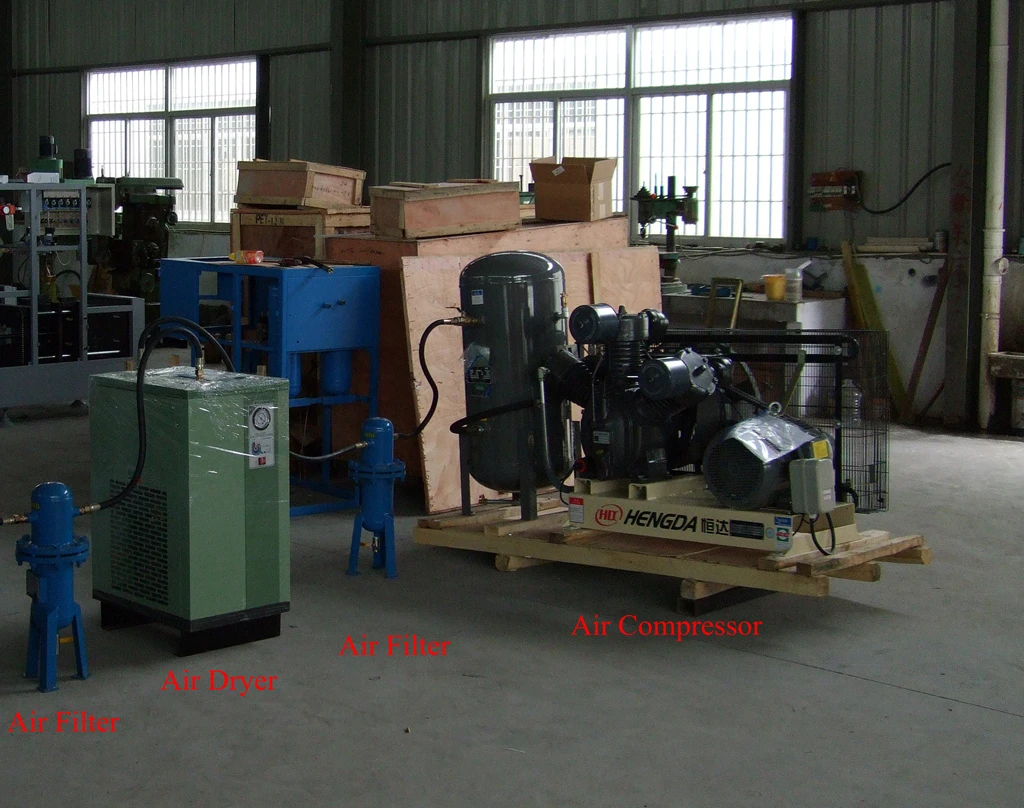

The Auxiliary of blowing machines, including HP air compressor, LP air compressor, air dryer, air tanker and air fliters, they provide the clean and cool air source for machine running and bottle blowing. good quality auxiliary are very important for
bottle production. it help to make sure blowing machine running stable and high efficiency. we supply the top quality auxiliary with machine, mold, A-Z solution for your bottle blowing factory.
