New 2020 High speed Automatic Log Saw Machine for Toilet Paper and Kitchen Towel
- Category: >>>
- Supplier: Foshan Nanhai Meijing Machinery Manufacture Co. Ltd.
Share on (62598127829):
Product Overview
Description

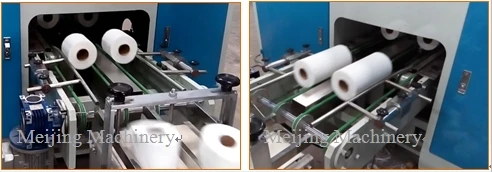

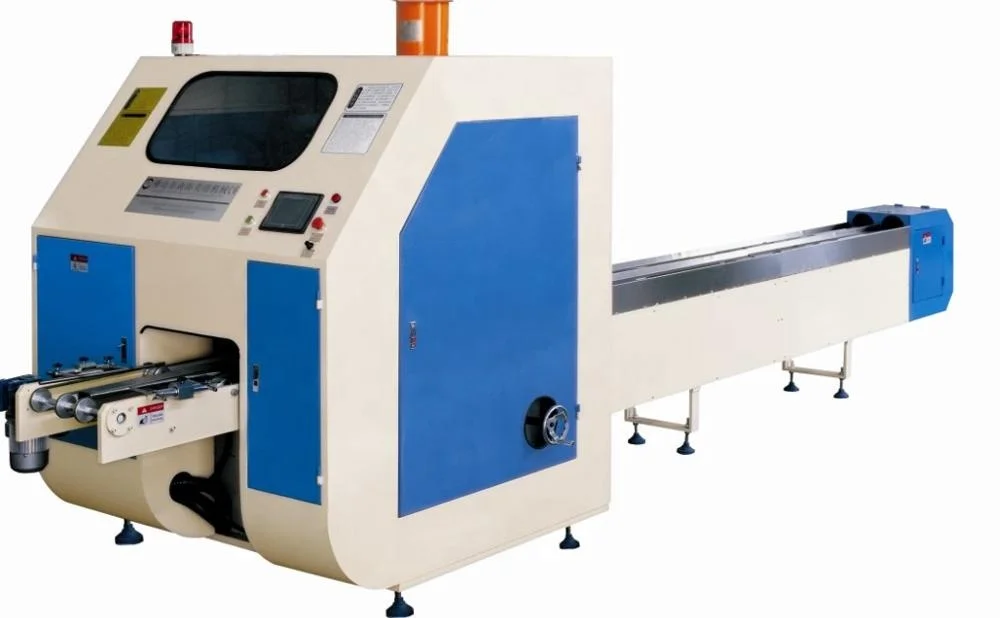

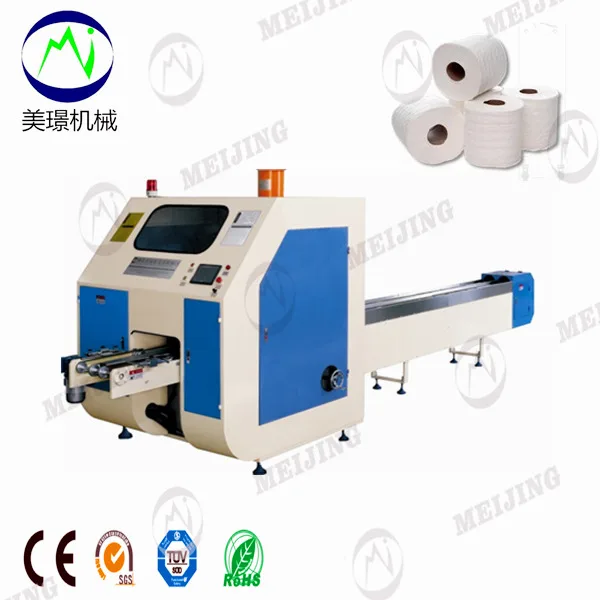

New 2020 High-speed Automatic Log Saw Machine for Toilet Paper and Kitchen Towel
Products Description
Model | FJ-DH1092 | ||||||
Machine Speed | 100-150 cuts/min, 2 roll/cut | ||||||
Operation speed | 120cuts/min,2 rolls/cut | ||||||
Function model | Movement of round blade in revolved swing and continuous and onward movement of paper roll with control | ||||||
Finished products diameter | 105±5mm(Other Size:90-150mm, to be specified) | ||||||
Programmable controller | PLC | ||||||
Installed power | 10kw | ||||||
Blade grinding | Pneumatic grinding wheel, | ||||||

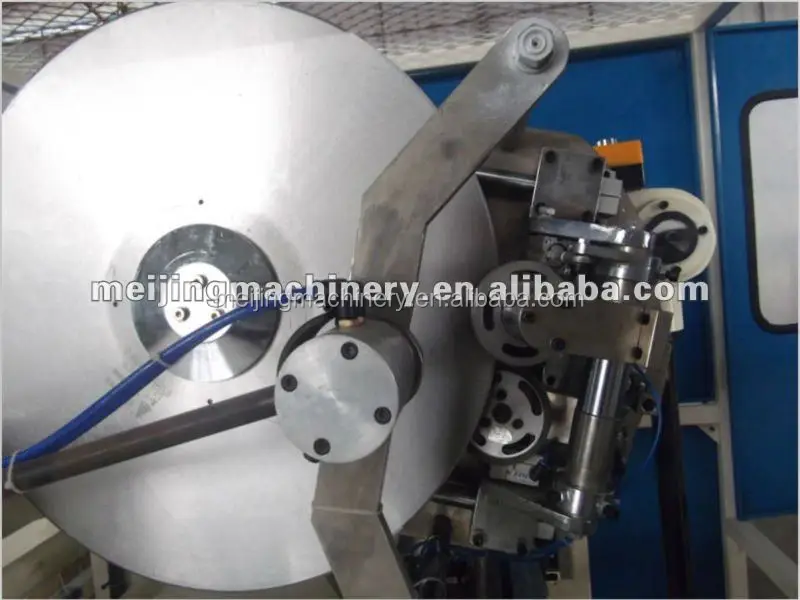

Round blade outer diameter | 610mm | ||||||
Driving controller | Servo motor driving | ||||||
Outer dia. of paper roll | 90mm-150mm | ||||||
Slitting length | 50mm-300mm | ||||||

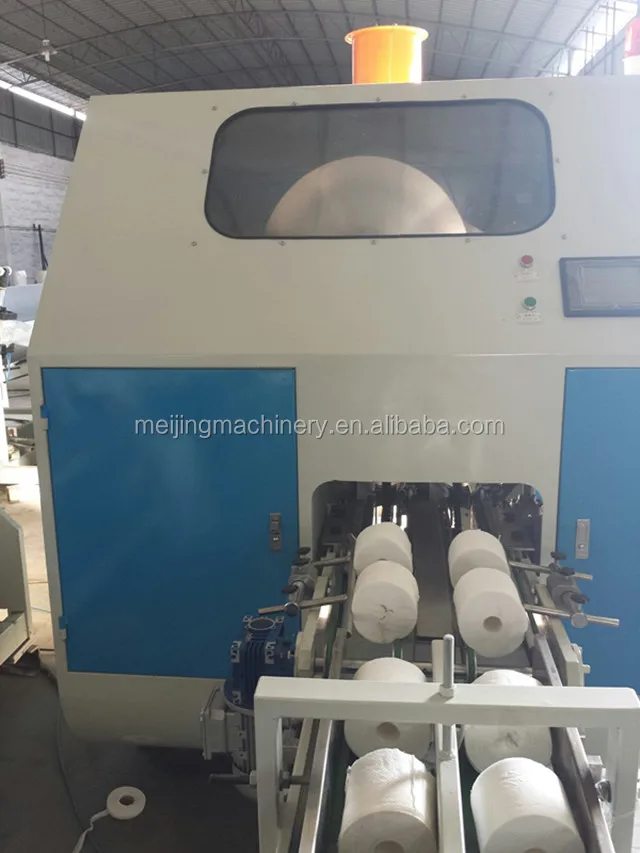

High-speed Toilet paper Log Saw Machine and the max speed can reach 100-150 cuts/min & running in 120 cuts/min stably.
1.Easy operation and maintenance, save space, need only one operator transfer tissue log after running machine
2.Customer can select our automatic tissue log separator so that greatly improve production efficiency and ensure tissue without secondary pollution by human hands
3. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.
Packing&Shipping
Exhibition
Our service

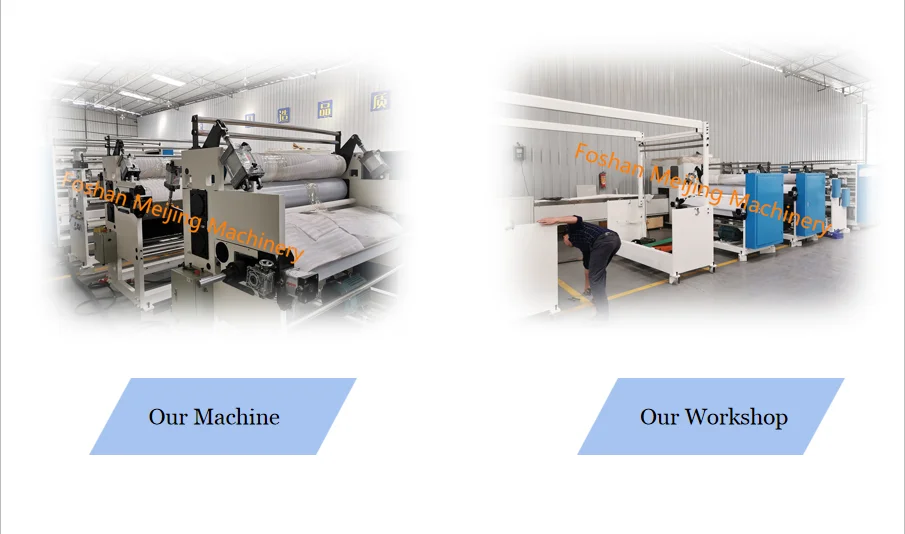

Company Profile
