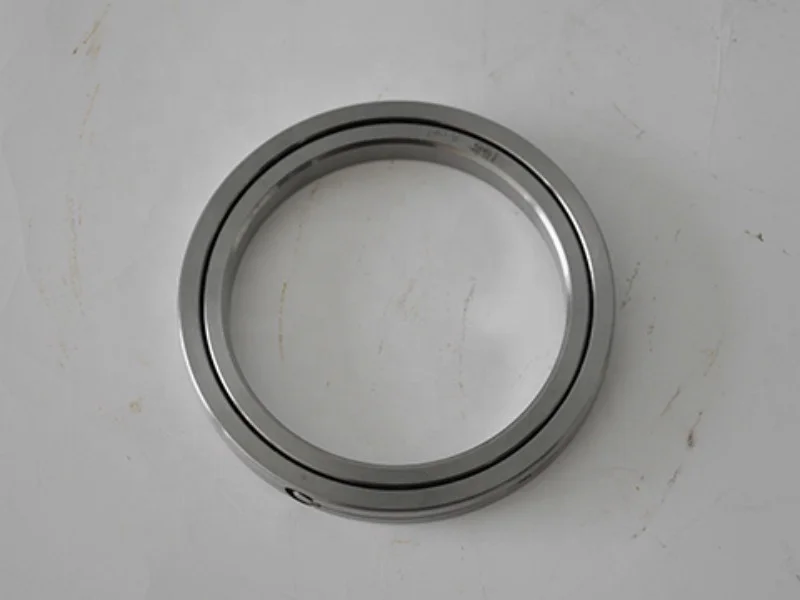

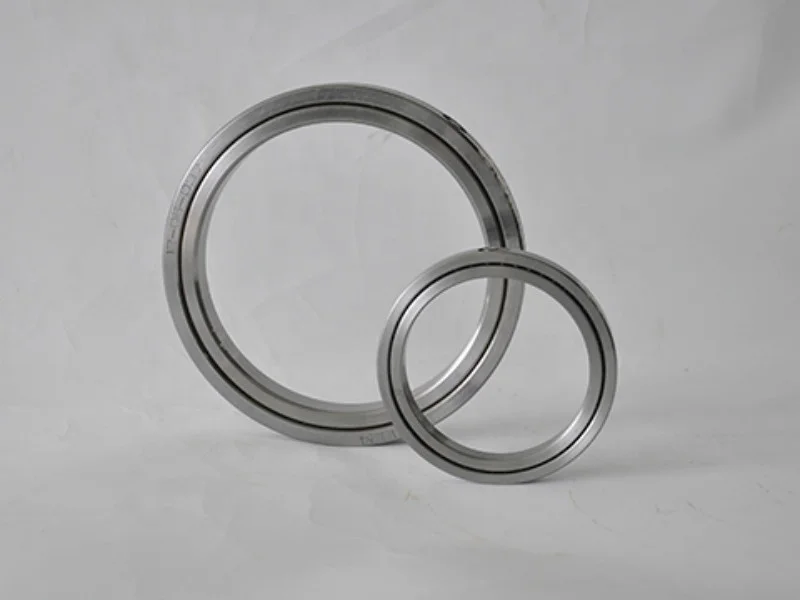

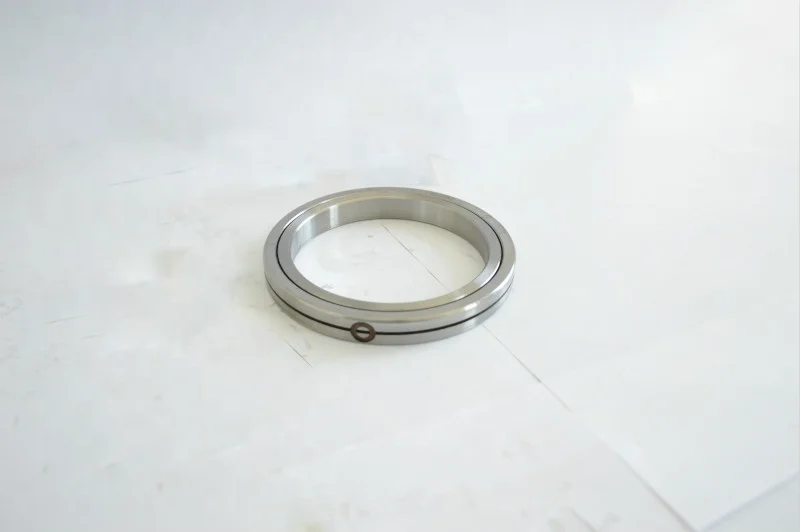

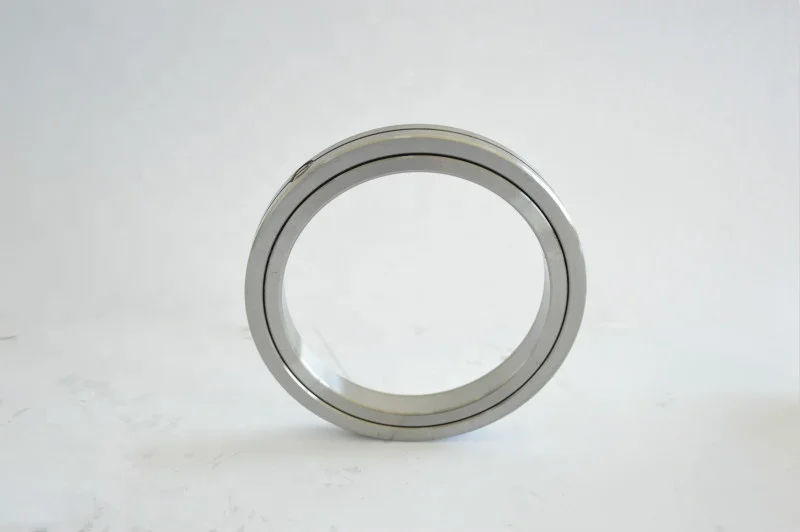

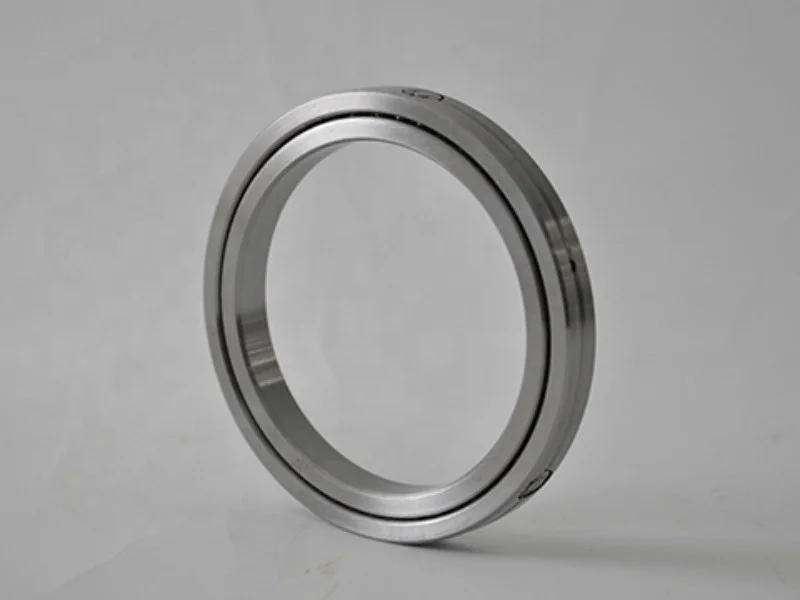

SX011828 crossed roller bearing (Inner ring integrity, outer ring division, thin section)(HONBbearing06)

Bearing characteristics:
1. High precision: P4 precision, P2 precision
2. High rigidity: This series bearing have preload
3. High load:This series bearing can bear double-direction axial load, radial load and tilting moment
4. Small size: This series bearing can save space for machine tools

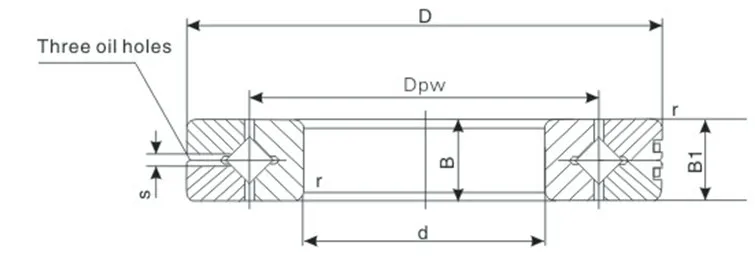

Main dimensions: ID: 140   OD: 175   B: 18

Clearance: Blank: Normal clearance   RLO: Small clearance   VSP: Negative clearance(Preload)

Basic load rating(axial/radial direction): Ca=64KN   Coa=237KN

                                                               Cr=41KN    Cor=116KN

Mass:1.1kg

According to customer needs, we can produce:SX011828, SX011828 RLO, SX011828 VSP

APPLICATION:

widely used on high precision rotary table, robot joints, rotating units, sophisticated medical equipments, and measurement instruments.

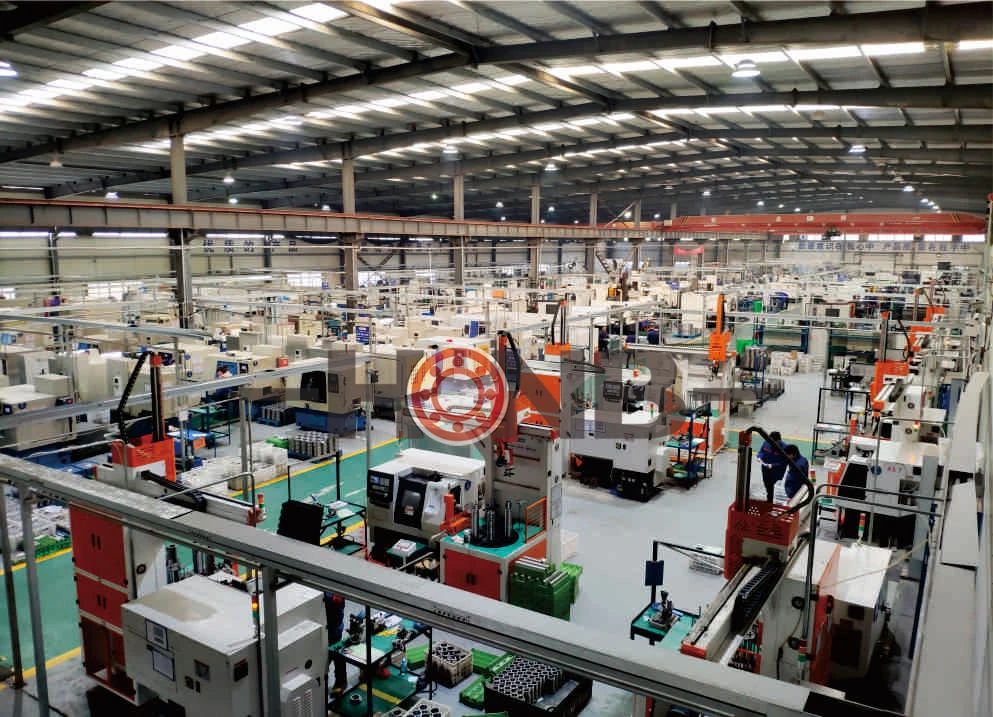

    Luoyang Hongyuan Bearing Technology Co., Ltd. was established in December 2005, located in the Luoyang Airport Industrial Cluster, with more than 300 employees. With the development of precision bearings as the development direction, the company specializes in the research and development and manufacture of three series of precision rotary table bearings, cross roller bearings and robot reducer bearings. The precision grades are P2, P4 and P5, and the size range is φ20mm -φ2000mm.

    Continuous improvement and breakthrough in technology research and development and processing technology, improve the comprehensive performance of bearings, and break the long-term monopoly of similar foreign products in China. At present, it has occupied 80% of YRT rotary table bearing market and precision cross roller bearing market in China, 90%. The domestic harmonic reducer bearing market, 30% of the domestic Rv reducer bearing market; 50% of the products are exported to Europe, North America, India, South Korea, Taiwan and other countries and regions.

    HONB is the largest manufacturer of YRT rotary table bearings ,crossed roller bearings and ball screw support bearings in China.50% of our products are exported to Germany, Italy, Spain, Japan ,Korea, India etc.
