110HSG Nema 42 Planetary Geared Stepper Motor
- Category: >>>
- Supplier: Changzhou Jinsanshi Mechatronics Co. Ltd.
Share on (62598542849):
Product Overview
Description
Product Description

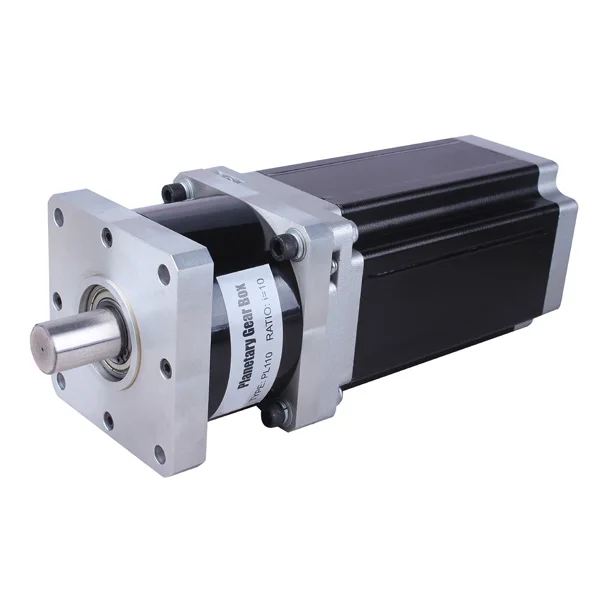

Nema 42 110mm Planetary Geared Stepper Motor
Geared stepper motors are perfect solutions for low speed and high torque positioning applications. JSS provide NEMA size stepper motors that are paired with planetary gearbox and spur gearbox.
The Spec as below.
| Specifications | First Stage | Second Stage | |
| Gear Ratio | 4.5.8 | 16.20.25.32.40.64 | |
| Length | mm | 90 | 1180 |
| Rated Load | N.m | 230 | 260 |
| Max Load | N.m | 460 | 520 |
| Effiency | % | 96 | 94 |
| Blacklash | arcmin | ≤15 | ≤25 |
| Weight | Kg | 2 | 2.5 |
| Rated Input Speed | RPM | 3000 | 3000 |
| Max Input Speed | RPM | 5000 | 5000 |
| Protection Class | IP | 65 | 65 |
| Lubrication | Grease | Grease | |
| Noise | dB | ≤45 | ≤45 |
| Life | h | 20000 | 20000 |
Stepper Motor Applications
- CNC machines
- Precise control machines
- 3D printer/prototyping machines(e.g.RepRap)
- Laser cutters
- Pick and place machines
Packaging & Shipping
Packing Details
- Shockproof, anti-damage
- Layer3 protection
Delivery
- Shipment by Express need 3-10 days (Such as Fedex, DHL, UPS. TNT)
- By sea needs around 15-30days.
- And we also can ship it by train or truck for fast and cheap.
Our Services
Our Service
1. OEM & ODM service is welcome.
2. less than 24h feedback after receiving your inquiry
3.Technical support anytime
4. Your logo design is OK.
5. Sunny and timely after-sales service
Exhibition
Every year we attend Germany HANNOVER MESSE and other exhibition in India, Brazil,Russia.Hope we have a face-to-face meeting and build a good business relationship.
My business name card
Maggie Bai
Phone/ Whatsapp/ Wechat :0086-13585318579
Email: sales04(at)jss-motor.com
Skype: maggiebetter
Company Information
Company Profile
Changzhou Jinsanshi Mechatronics Co.,Ltd is a comprehensive company which specializes in producing and researching stepper motor and motor driver. Now we have an excellent group with rich experience in manufacturing. We can solve the actual using problems for customers. Our products are hihgly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.
FAQ
1.Q:If I need a special motor , can you manufacture?
A:Certainly, you can. Please send us a drawing or sample and we will find a suitable replacement. Otherwise, our engineers will work together with you to find a solution tailor-made.
2.Q:Can I order sample order to test?
A:We stock many of our standard models. It can be sent you ASAP.
3. Q: How can I trust you to make sure my money is safe?
A: You can order via Alibaba to get Trade assurance from Alibaba to make sure your money is safe.
And we are certified by the third party SGS and we have exported to over 85 countries.
