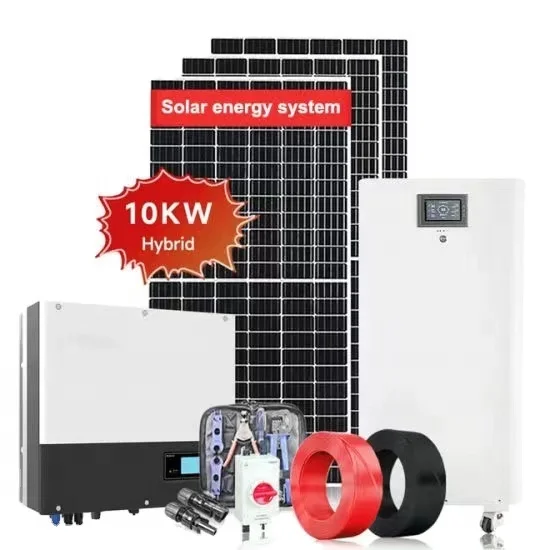

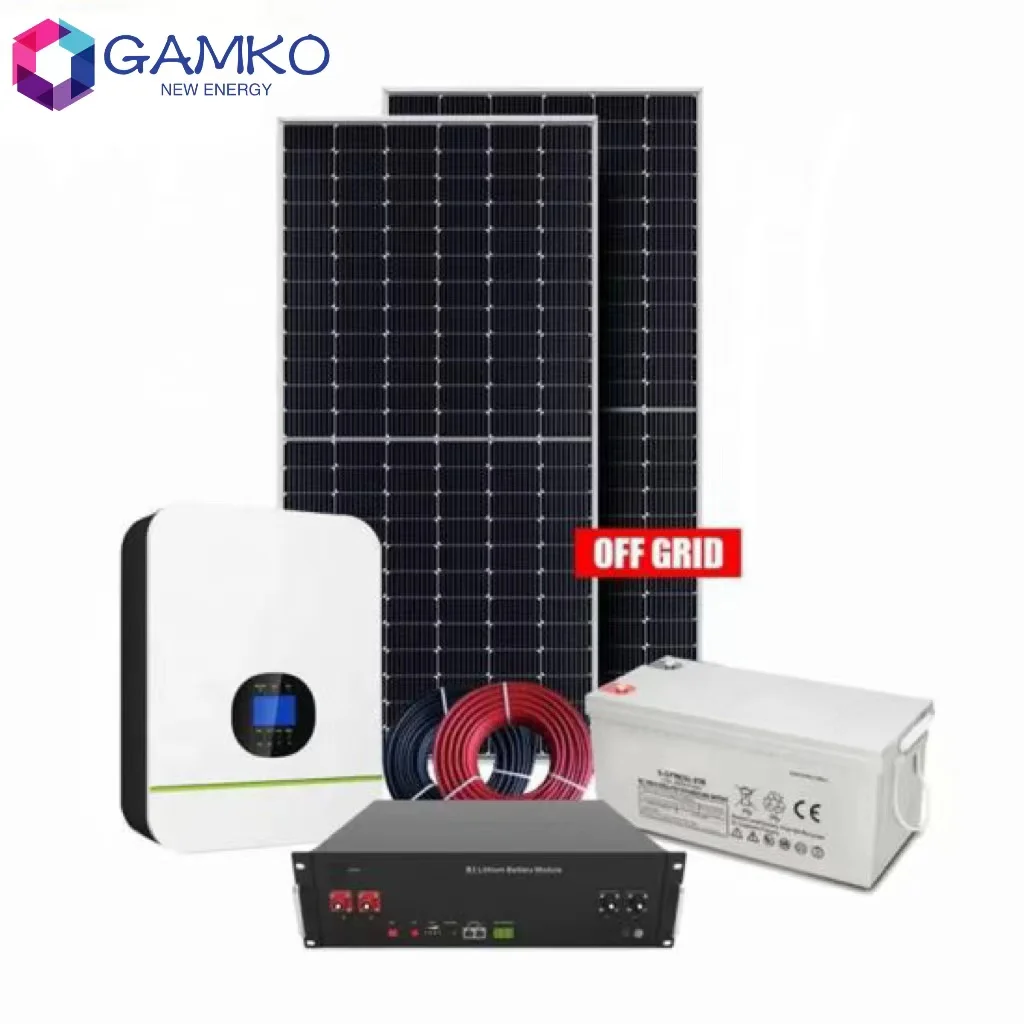

Solar energy system 10kw on grid solar system for home system use off grid hybrid available 1kw 2MW free design
- Category: >>>
- Supplier: Nantong Gamko New Energy Co. Ltd.
Share on (62598964942):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t
WHAT WE NEED FOR A SOLAR SYSTEM:
1,Roof or Ground size (Roof/ground surface which can set up the solar panel)Long, wide, slope angle,
Roof/ground material.photo of roof or ground.
2,Utility voltage and frequency. How many KW expect to build.
WHAT'S THE STEP FOR A SOLAR SYSTEM:
1,Pick up the model and type of solar bracket from our solar bracket catalogue.
2,Confirm with our design and quotation.
3,Pay by TT or Alibaba,then receive the solar system components.Build by experience workers.

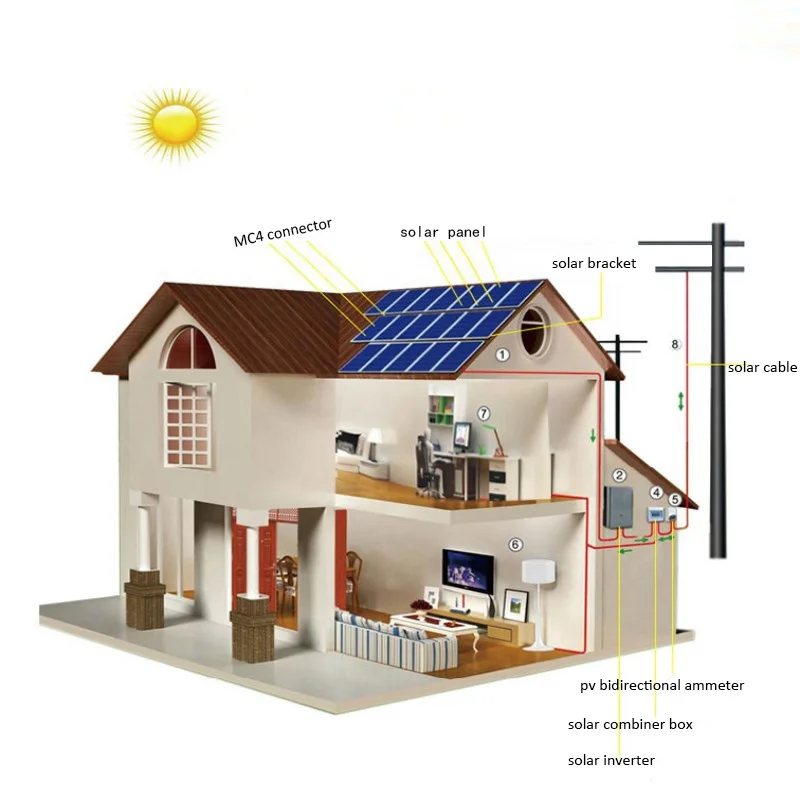

ON GRID SOLAR SYSTEM
home load use first
the excess power sell to the grid
OFF GRID SOLAR SYSTEM
home load use first
the excess power store in the batteries
grid power as back up
ON/OFF GRID HYBRID SOLAR SYSTEM
The hybrid solar system can be used as a grid-connected system or an off-grid system, supporting multiple usage modes.
Products Description

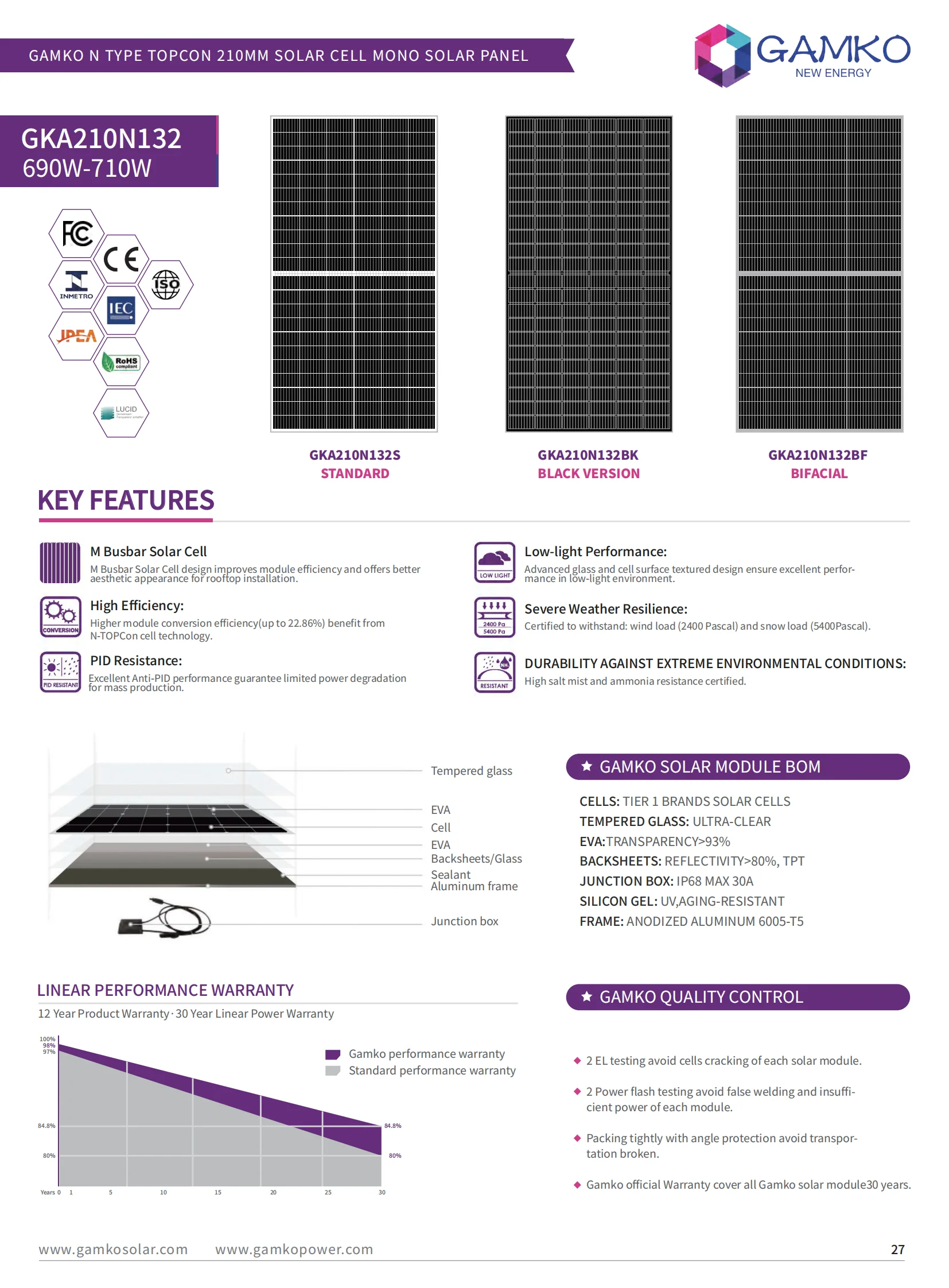

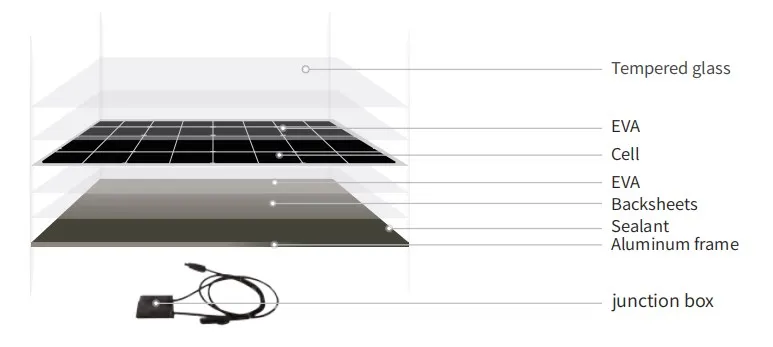

GAMKO SOLAR MODULE BOM
CELLS：TIER 1 BRANDS SOLAR CELLS
TEMPERED GLASS：ULTRA-CLEAR
EVA：TRANSPARENCY>93%
TEMPERED GLASS：ULTRA-CLEAR
EVA：TRANSPARENCY>93%
BACKSHEETS：REFLECTIVITY>80%, TPT
JUNCTION BOX：IP65/IP67 MAX 30A
SILICON GEL：UV, AGING-RESISTANT
FRAME：ANODIZED ALUMINUM 6005-T5
JUNCTION BOX：IP65/IP67 MAX 30A
SILICON GEL：UV, AGING-RESISTANT
FRAME：ANODIZED ALUMINUM 6005-T5
GAMKO QUALITY CONTROL
2 EL testing avoid cells cracking of each solar module.
2 Power flash testing avoid false welding and insufficient power of each module.
Packing tightly with angle protection avoid transportation broken.

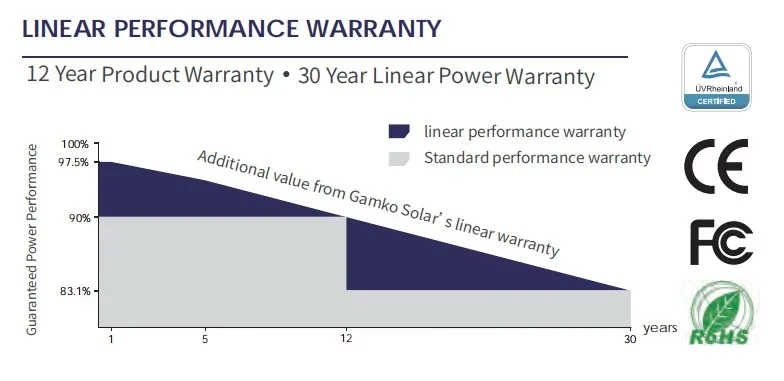

Gamko Offcial Warranty cover all Gamko solar module 30 years.

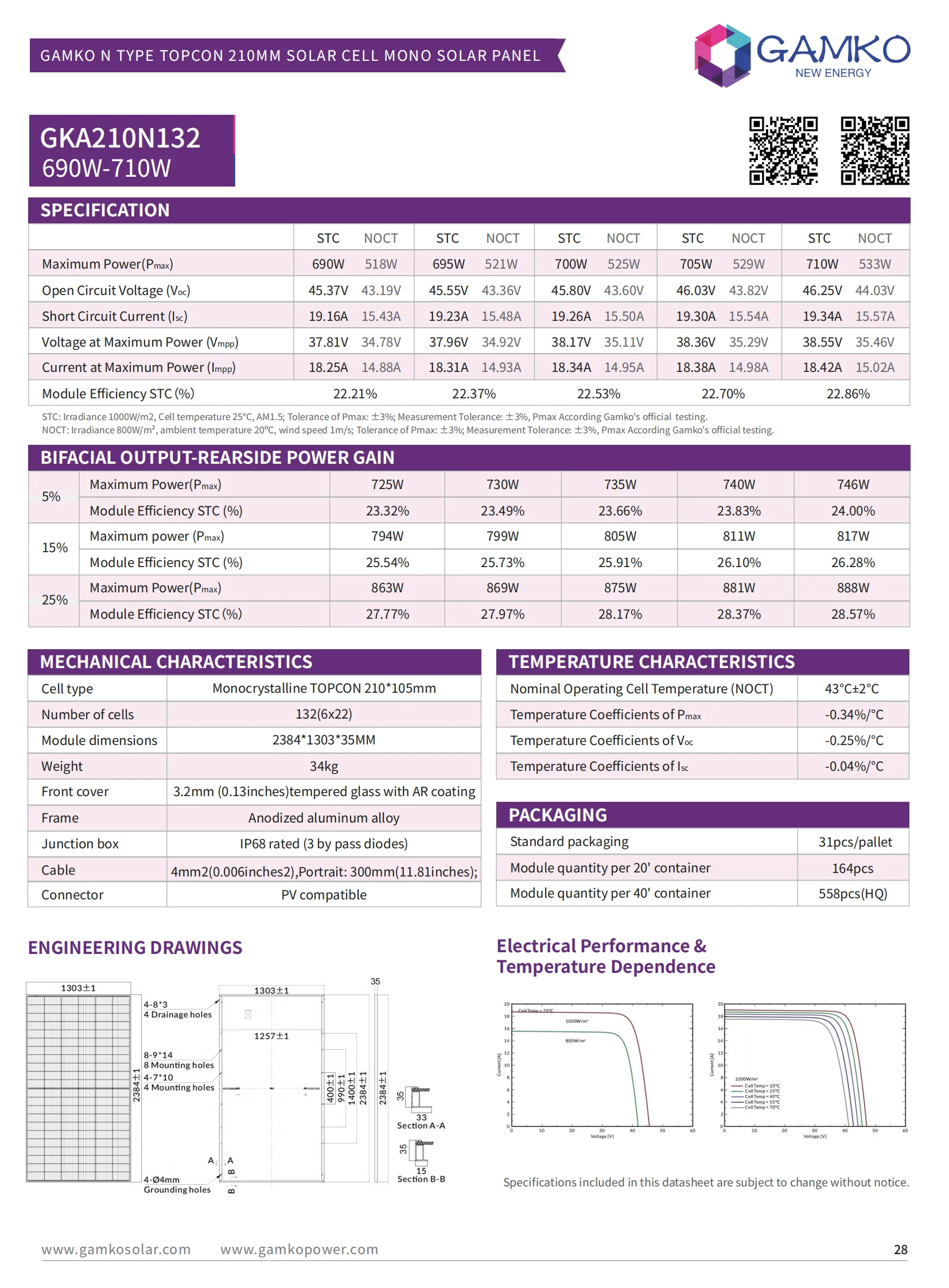

ELECTRICAL CHARACTERISTICS AT STC | ||||||||
Maximum power(Pmax) | 690W | 700W | 705W | 710W | ||||
Open Circuit Voltage(Voc) | 45.37V | 45.80V | 46.03V | 46.25V | ||||
Short Circuit Current(Isc) | 19.16A | 19.26A | 19.30A | 19.34A | ||||
Voltage at Maximum power(Vmpp) | 37.81V | 38.17V | 38.36V | 38.55V | ||||
Current Maximum power（Impp） | 18.25A | 18.34A | 18.38A | 18.42A | ||||
MODULE EFFICIENCY(%) | 22.21% | 22.53% | 22.70% | 22.86% | ||||
Operating Temperature | -40°C to +85°C | |||||||
Maximum System Voltage | 1500VDC (IEC) | 369W | 373W | 377W | ||||
Fire Resistance Rating | Type 1(in accordance with 1703)/Class C(IEC61730) | |||||||
Maximum Series Fuse Rating | 30A | |||||||
MECHANICAL CHARACTERISTICS | ||||||||
Cell type | N type | |||||||
Number of cells | 132(6x22) | |||||||
Module dimensions | 2384x1303x35mm | |||||||
Weight | 34kg | |||||||
Front cover | 3.2mm,Anti-Reflflection Coating,Tempered Glass | |||||||
Frame | Anodized Aluminium Alloy | |||||||
Junction box | IP68 Rated | |||||||
Cable | TÜV 1×4.0mm2,Length:300mm or Customized Length | |||||||
Connector | PV Connector (compatible) | |||||||
TEMPERATURE CHARACTERISTICS | ||||||||
Nominal Operating Cell Temperature (NOCT) | 45°C±2°C | |||||||
Temperature Coeffiffifficients of Pmax | -0.38%/℃ | |||||||
Temperature Coeffiffifficients of Voc | -0.31%/℃ | |||||||
Temperature Coeffiffifficients of Isc | 0.06%/℃ | |||||||
PACKAGING | ||||||||
Standard packaging | 31pcs/pallet | |||||||
Module quantity per 20’container | 164pcs | |||||||
Module quantity per 40’container | 558pcs(HQ) | |||||||
\t\t\t\t\t\t\t\t\tCompany Profile \t\t\t\t\t\t\t
COMPANY PROFILE
Gamko Energy, Solar panel manufacturer. Produce 5W-800W mono and poly solar panel, flexible solar panel, bi-facial solar panels.
As a professional solar module manufacturer, Gamko with 7 years experience in production and quality control since 2017.
Gamko also a provider of technical services for solar power plant (on-grid and off-grid), including technical design, transport,
installation and maintenance. In 2023, Gamko annual capacity 1.2GW. Gamko modules have been certified by CE-EMC, CE-LVD, INMETRO,
ROHS, JPEA, FCC, IEC61215,IEC61730, IEC62321,IEC61000, ISO9001, ISO14001, German EPR,France EPR.
KEY FEATURES OF GAMKO SOLAR PANEL:
1, High performance in Low light condition , stable output from 6am until 6pm. High voltage.
2, High efficiency, solar module up to 23% efficiency.
3,Top-corn and Perc technology.
4,Three steps quality control of EL testing, Flash testing. Automatic production line to avoid hidden cracks.
5, Warranty cover all the solar panel 30 years.
If you need the best price, the best quality, the most secure payment method, GAMKO is your best choice.
GAMKO QUALITY CONTROL:
As a professional solar module manufacturer, Gamko with 7 years experience in production and quality control since 2017.
Gamko also a provider of technical services for solar power plant (on-grid and off-grid), including technical design, transport,
installation and maintenance. In 2023, Gamko annual capacity 1.2GW. Gamko modules have been certified by CE-EMC, CE-LVD, INMETRO,
ROHS, JPEA, FCC, IEC61215,IEC61730, IEC62321,IEC61000, ISO9001, ISO14001, German EPR,France EPR.
KEY FEATURES OF GAMKO SOLAR PANEL:
1, High performance in Low light condition , stable output from 6am until 6pm. High voltage.
2, High efficiency, solar module up to 23% efficiency.
3,Top-corn and Perc technology.
4,Three steps quality control of EL testing, Flash testing. Automatic production line to avoid hidden cracks.
5, Warranty cover all the solar panel 30 years.
If you need the best price, the best quality, the most secure payment method, GAMKO is your best choice.
GAMKO QUALITY CONTROL:
*2 EL testing avoid cells cracking of each solar module.
*2 Power flflash testing avoid false welding and insufficient power of each module.
* Packing tightly with angle protection avoid transportation broken.
*Zurich Quality Insurance cover all Gamko solar module 30 years.
*2 Power flflash testing avoid false welding and insufficient power of each module.
* Packing tightly with angle protection avoid transportation broken.
*Zurich Quality Insurance cover all Gamko solar module 30 years.
Packing&Shipping
FAQ
Q: Can I arrange personnel to stay in the factory or inspect the goods before shipment, and then pay the final payment after passing the inspection?
A: Yes, our customers often to use BV, SGS and other third-party companies to carry out on-site testing and inspection services.
Our company will fully cooperate with the third-party company, We hope to form a long-term and stable cooperative relationship in the case of customer recognition.
Besides, for the value of goods exceeding two containers, we will bear the inspection cost of the third-party company.
For some countries that need CQC certification, we will also cooperate to provide.
Q: If the solar panels have problems after 10 years, how can I apply for compensation?
A: First of all, we will provide warranty and flash test report with product barcode when we ship out, During the warranty period, you can submit the claim sheets with the flash test report and warranty, we will provide after-sales service.
Q: Can you provide PV system design and package sale service of the whole system? Can you provide installation guidance and door-to-door installation service?
A: Yes, we have professional engineers for preliminary design on grid,off grid and hybrid systems, but the largest system, we have designed overseas is 1.27MW. If there is a larger system, we suggest that the customer can seek the design of the local power company, and we will provide quotations according to the material list, and we will provide transportation service to the port.
For the system design, we will provide the data collection form for the customer to fill in, including land information, grid voltage, etc. During the quotation process, we will also provide the bracket drawings for the customer's reference.
For the installation part, our company can provide remote and online guidance service. If needed, we also can provide at site installation guide service.
A: Yes, our customers often to use BV, SGS and other third-party companies to carry out on-site testing and inspection services.
Our company will fully cooperate with the third-party company, We hope to form a long-term and stable cooperative relationship in the case of customer recognition.
Besides, for the value of goods exceeding two containers, we will bear the inspection cost of the third-party company.
For some countries that need CQC certification, we will also cooperate to provide.
Q: If the solar panels have problems after 10 years, how can I apply for compensation?
A: First of all, we will provide warranty and flash test report with product barcode when we ship out, During the warranty period, you can submit the claim sheets with the flash test report and warranty, we will provide after-sales service.
Q: Can you provide PV system design and package sale service of the whole system? Can you provide installation guidance and door-to-door installation service?
A: Yes, we have professional engineers for preliminary design on grid,off grid and hybrid systems, but the largest system, we have designed overseas is 1.27MW. If there is a larger system, we suggest that the customer can seek the design of the local power company, and we will provide quotations according to the material list, and we will provide transportation service to the port.
For the system design, we will provide the data collection form for the customer to fill in, including land information, grid voltage, etc. During the quotation process, we will also provide the bracket drawings for the customer's reference.
For the installation part, our company can provide remote and online guidance service. If needed, we also can provide at site installation guide service.
