E71T 1 Flux Cored Welding Wire welding

Product Overview

Description

1. Specification Conformance

AWS A5.36 E71T-1 GB/T10045-2001 E501T-1

2.Description

AWS A5.36 E71T-1 is a kind of TI type flux cored wire for CO2 welding ,it has high cladding efficiency, good welding technical performance in all-position welding, apply for low carbon steel and 500MPA grade strength steel welding, such as ships, pressure vessels, mechanical equipments and bridges.

3. Chemical Composition of Deposited Metal (%)

C≤0.18, Mn≤1.75, Si≤0.90, P≤0.03, S≤0.03, Cr≤0.20, Ni≤0.50, Mo≤0.30, V≤0.08, Cu≤0.35

4.Mechanical Properties of Deposited Metal

Yield Point≥480 Mpa, TensileStrength≥400 Mpa,

Elongation≥22%, Test Temp -20°C, Impact Energy ≥27 J

5. AVAILABLE DIAMETER

0.8MM/0.9MM/1.0MM/1.2MM/1.4MM/1.6MM

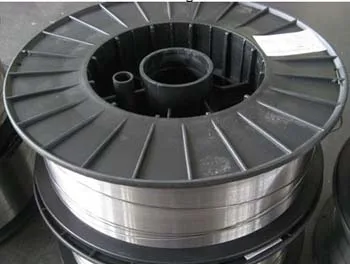

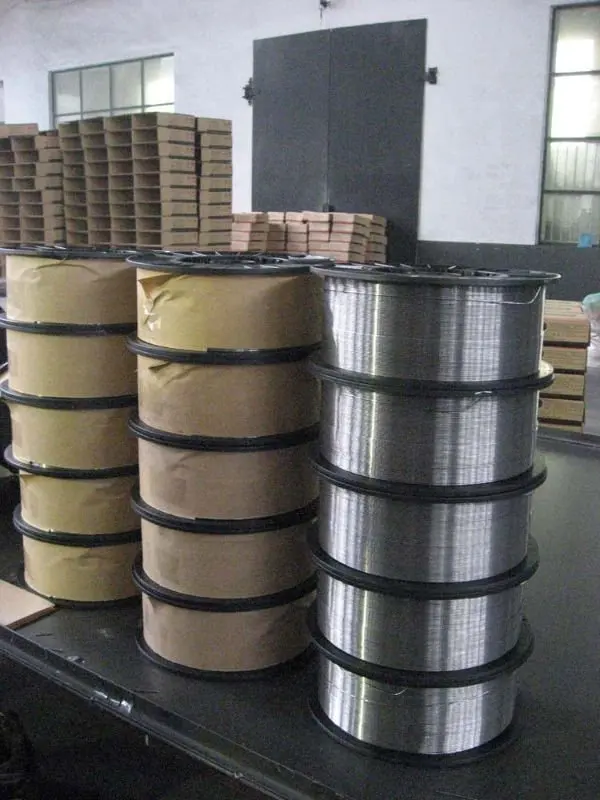

6. PACKAGE

 0.45kgs/spool, 0.9kgs/spool, 1kgs/spool: 40spools / box, 32boxes/ pallet

5kgs/spool : 5kgs/carton, 200cartons/pallet

15kgs/spool :72cartons/pallet, 22pallets/20'container

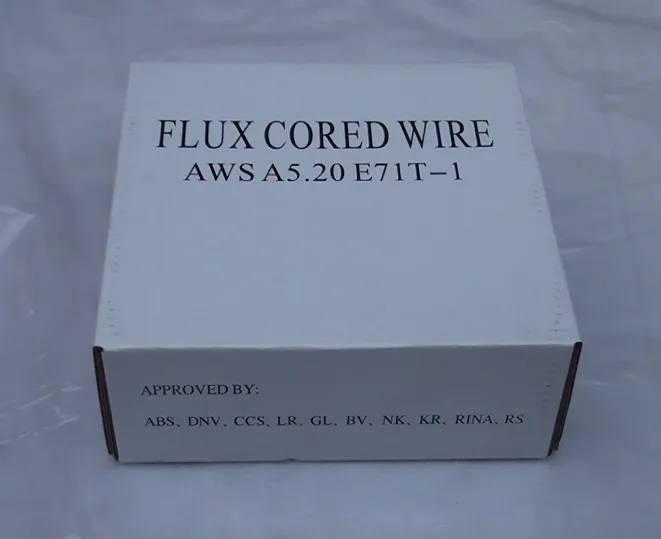

One spool is vacuum packed by aluminum film and then one carton outside

7. Shielding Gas

100% CO₂

8. Recommended Current (DC+) and Voltage Range





Weld Position	1.2mm			1.6mm
	Current range	Voltage range	CO2 Flow	Current range	Voltage range	CO2 Flow
Flat	120-320A	16-34V	15-25L/Min	180-400A	22-42V	15-25L/Min
Horizontal	120-280A	16-30V	15-25L/Min	180-400A	22-42V	15-25L/Min
Overhead	120-240A	16-28V	15-25L/Min			15-25L/Min
Vertical UP	120-240A	16-27V	15-25L/Min	180-260A	23-30V	15-25L/Min
Vertical Down	120-260A	16-29V	15-25L/Min	180-260A	23-30V	15-25L/Min
