top quality water jet loom and parts

Product Overview

Description

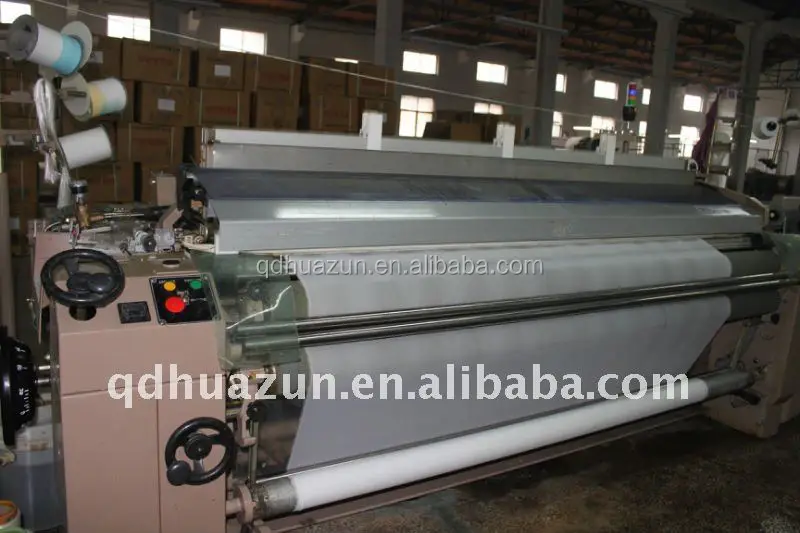

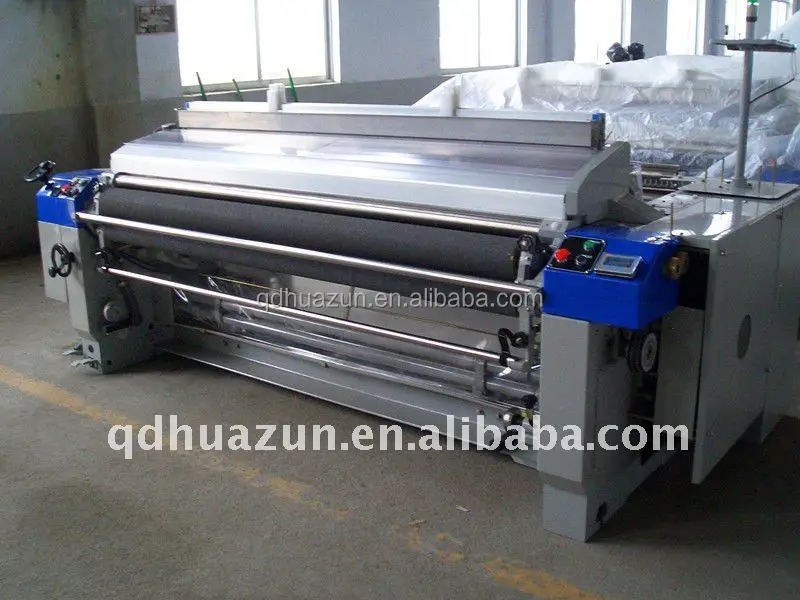

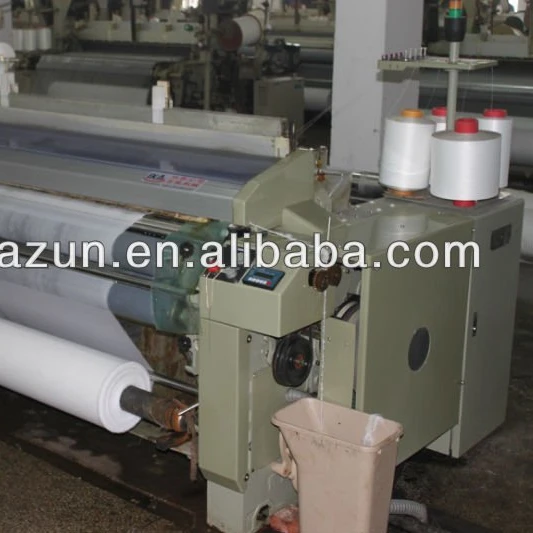

     RJW 851 IS NEW STYPE WATER JET LOOM ,WICH HAVE GOT WHOLE IN NOVATION APLICABLE TO WEAVING HIGH WEIGHT AND HIGH DENSITY CLOTH ,THE GREAT IMPROVEMENT OF VIBRATION REDUCTION, THE EXCELLENT STABILITY ,THE SPEED AND HIGH EFICIENCY CAN BE SUITABLE FOR WEAVING MEDIUM AND PREMIUM CLOTH.

      THE OPTIONAL MECHANICAL WEFT STORAGE SYSTERM ,2NOZZLE AND 3 NOZLLE ELECTRNNIC WEFT STORAGE,DOBBY SHEDDING AND TAPPET SHEDDING CAN BE MOUNTED ON THIS TYPE OF LOOM.

1.Products details:
1). Name: RJW series of water jet loom
2). Introduction:Main products: Two series of RJW851 and RJW408, including more than 20 kinds of water-jet looms. To meet production of various fabric, the loom can be mounted with crank shedding device, cam shedding device, dobby shedding device, jacquard device and vertical double beam, meanwhile the loom can also be designed specially in terms of customer special requirements



3). Products specifications:



Specifications of RJW  of water jet loom
Type		RJW851	RJW408
Reed space		135, 150, 170, 190, 210, 230, 260, 280, 300, 320, 340, 360 (cm)
Useful reed space		Nominal R/S minus 2 cm to 50cm
Frame		Box frame type( Driving section is in an oil bath)
Driving	Brake	Direct stop mechanism by an electromagnetic brake
	Control	Push and touch button(Arrange, run, stop, forward inching, reverse inching, one step reverse)
	Motor	Rush start motor
	Motor capacity	1.5KW, 1.8KW, 2.2KW, 2.8KW, 3.2KW, 3.7KW, 4.5KW.
Beating		Crank beating
Let-off	System	Automatic mechanical and continuous let-off, or electronic let-off. One or vertical two roll
	Warp beam	800MMFlange,178MMbarrel
Take-up	System	Mechanical or electronic continuous take-up
	Pick density	Normal:5-60picks/cm,Special:3-70picks/cm
	Cloth wind-up diameter	420mm, 520mm, 600mm.
Shedding	Plain shedding	Crank shedding( heald frame number:2 to 6), 1/1 fabric
	Cam shedding	Cam shedding ( heald frame number:2-10),plain, twill, satin fabric
	Dobby shedding	Positive/negative Heald frame number:16(max),electronic and mechanical reading system, plain, twill, satin or complex design
	Jacquard	1408, 2688, 5120 lifting hooks, electronic jacquard device
Weft Insertion	Measuring & storage	300RDP type mechanical measuring turbo blower(single nozzle) or electronic weft feeder(1-4 nozzles)
	Pump	Type: M,L,H, single or double
	Piston of pump	32/17,32/18,32/20,36/22,36/24,36/26, 39/26,39/28,39/30,50/35,ceramic piston
	Nozzle needle	ST20/10, ST30/10, ST45/20, SD75/40.
	Weft filling	One, two, three, four nozzle
	Filling feeler	Electronic, optical, and self-control
Selvage		Twisting by star, planetary gears
Electrical Part	Made in China  import	Main control board, AC contactor, transformer, NC interface, selvage break system ,waste yarn break system, overheating and overload protection
	Electronic meter	.Count and display: rotational speed, total yield, team yield, total efficiency, team efficiency Cloth length auto control, Stopping analysis and display
Other devices	A cloth roller, a weft density gear, a trashcan ,a set of nozzle needle







4).Company List

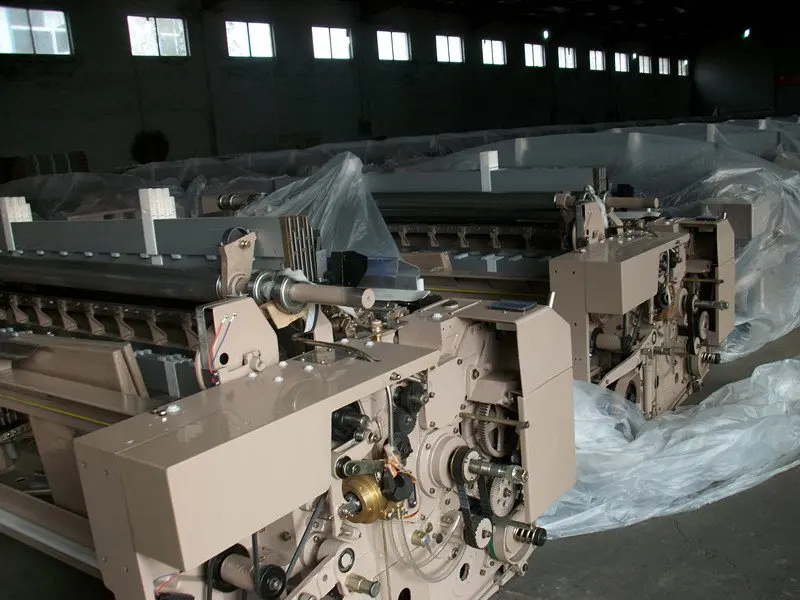

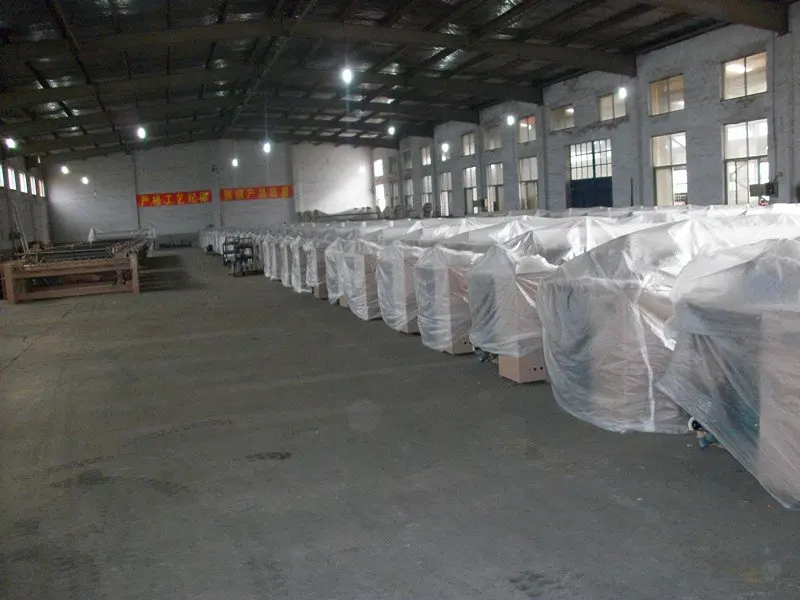

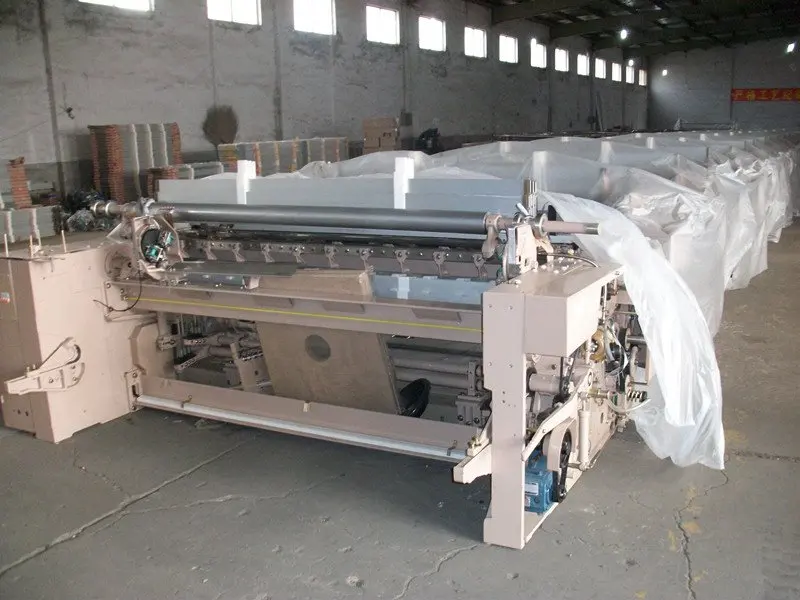

2. About our factory:
experience:We are the biggest manufacturer of all kinds textile machinery in China, specialized in the line of water jet loom and air jet loom more than ten years. We have exported our looms to many countries like Turkey, Syria, Egypt,  India, Malaysia and so on. With our competitive prices, experience, efficiency and reliability, we have won confidence and goodwill among our many business clients worldwide. Hereby, we would like to do our best to you with our best looms and service.





Service:The company attaches importance to after-sales service department all along, regard improving service quality and service level as the key of enterprise management to, take the product quality and service quality as the enterprise life, act for customer anxiously, consider about customer need, actively solving the problems in manufacturing process. Arranges skill training, technology communication, skill testing and ideological education for after-sales service staff regularly, and established and actualized strict management system and operating detailed rules. There are professional component warehouse and 8 special cars for after-sales service, which are more flexible and improving the efficiency of after sales service. The professional, excellent, prompt and active after-sales service team cleans up all customer trouble and win the customer’s appraise, at same time set up the advanced industrial benchmark.







Voice goes far in high place; ride on the crest of success !
