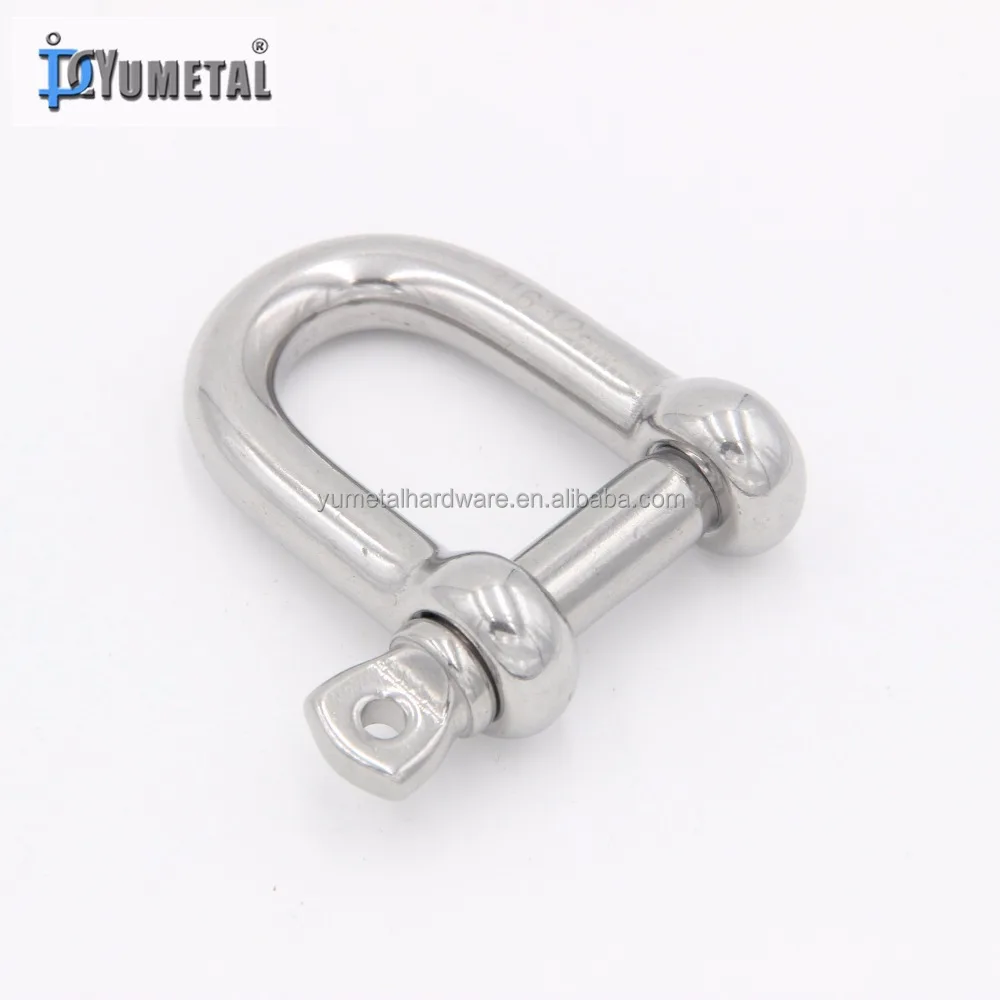

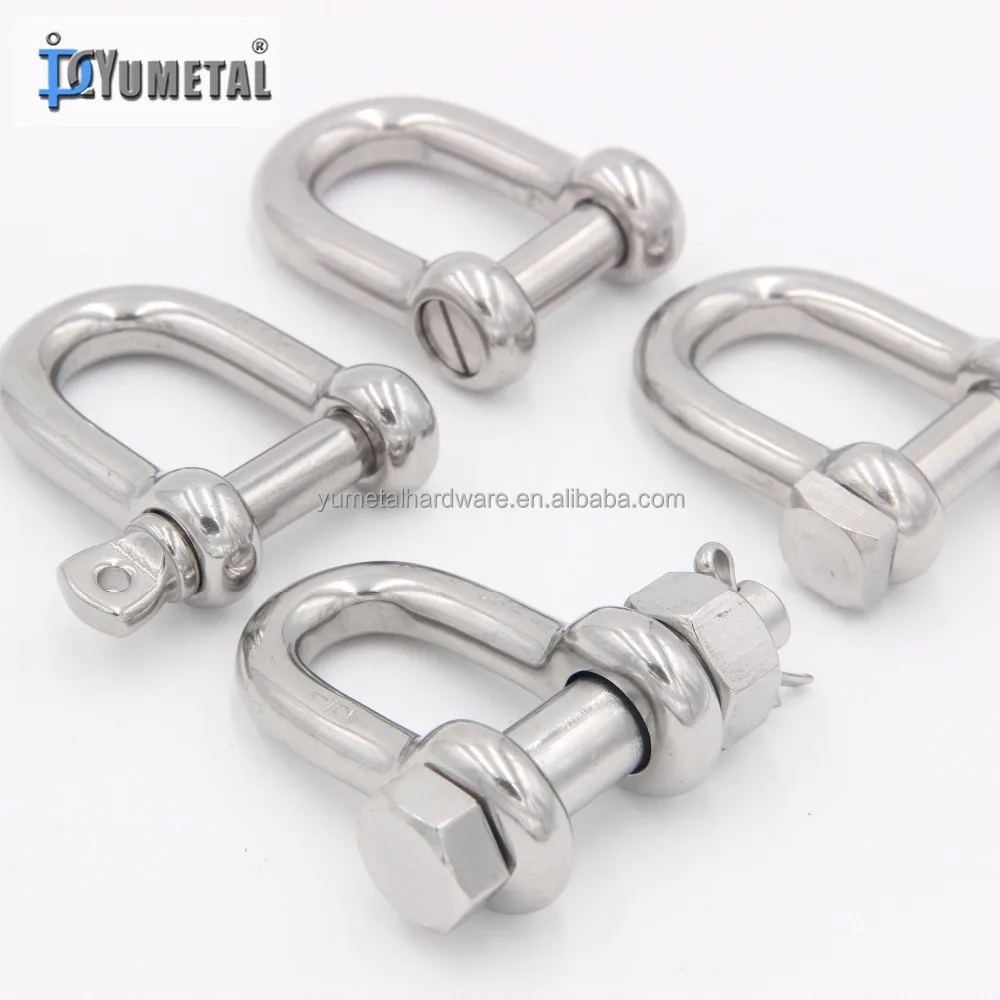

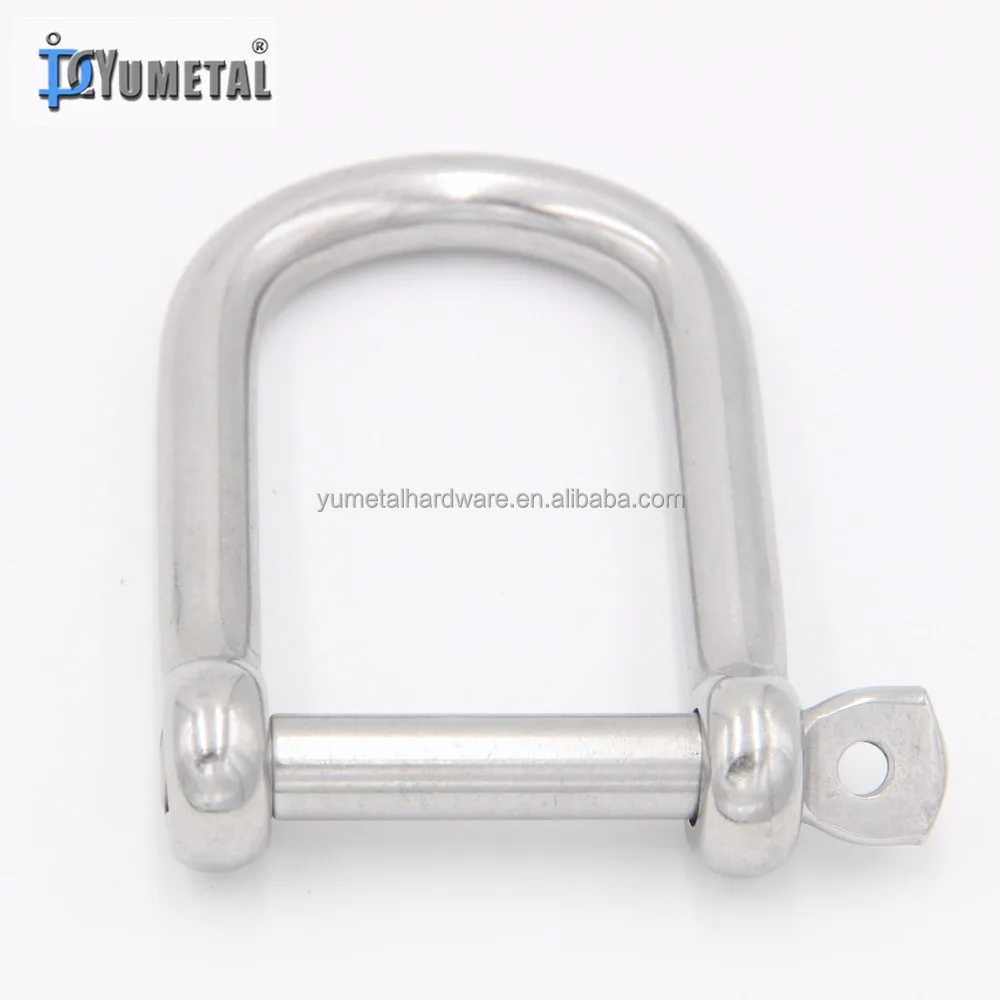

Stainless Steel304/316 European Type D Shackle In Fully Stock

Product Overview

Description

Stainless Steel304/316 European Type  D Shackle In Fully Stock

We stay fully stocked with stainless steel shackles, if you order we can delivery at once.

Art No.	SIZE	A	B	C	D	WLL	Weight
	mm	mm	mm	mm	mm	tons	kg/pc
S.SH01-04	4	4	4	8	16	0.09	0.008
S.SH01-05	5	5	5	10	20	0.10	0.014
S.SH01-06	6	6	6	12	24	0.15	0.027
S.SH01-08	8	8	8	16	32	0.20	0.064
S.SH01-10	10	10	10	20	40	0.50	0.120
S.SH01-12	12	12	12	24	48	0.60	0.210
S.SH01-14	14	14	14	28	56	0.90	0.350
S.SH01-16	16	16	16	32	64	1.10	0.500
S.SH01-18	18	18	18	36	72	1.40	0.700
S.SH01-20	20/19	20	20	40	80	1.60	0.930
S.SH01-22	22	22	22	44	88	2.50	1.400
S.SH01-25	25/24	25	25	50	100	3.00	2.080
S.SH01-28	28	28	28	56	112	3.50	2.500
S.SH01-32	32	32	32	64	128	4.50	3.750
S.SH01-36	36	36	36	72	144	5.50	5.400
S.SH01-38	38	38	38	76	152	6.50	6.280
S.SH01-42	42	42	42	84	168	7.50	8.500
S.SH01-46	46	46	46	92	184	8.50	11.200
