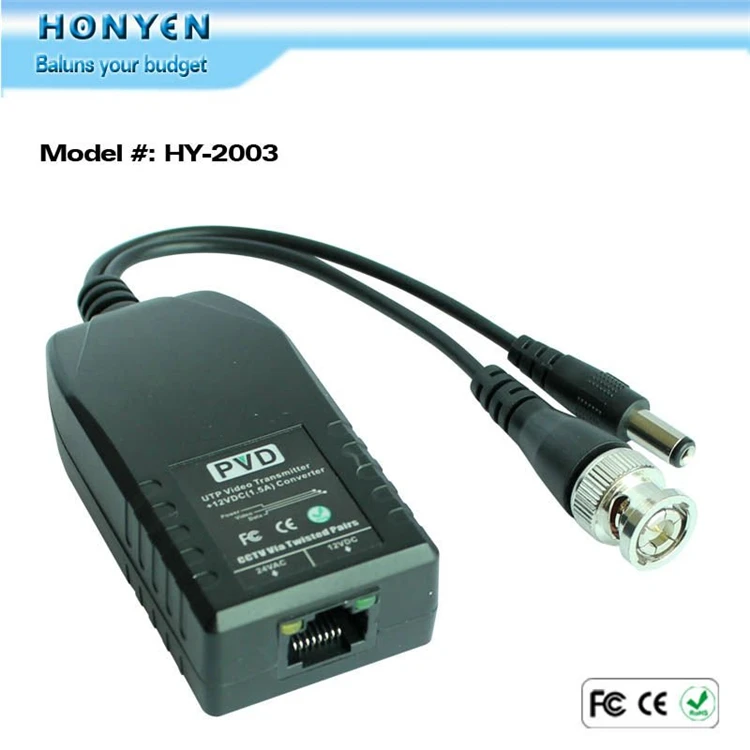

Built in AC24V to DC12V convertor PVD video balun connector

Product Overview

Description

HY-2003A is a new member in CCTV System. With a buit in AC24V  or DC36V to DC12V convertor, it can extend the remote power supply distance up to 700 mtrs in a CCTV System. With this function, it can make your structured CCTV System even more compact and working more stable.

Specification:



Item	HY-2003
Product Name	24 TO 12 PVD Video Balun Convertor
Video Format	NTSC, PAL, SECAM
Frequency	DC TO 8MHz
Impedance	Coax: 75Ohms    Twisted Pari: 100Ohms
CMMR	60dB
Connectors	Video: BNC,  UTP: RJ45
Max power	1A
Dimension	13.5 x 10 x 3
Gross Weight	0.064kg
Humidity	0 to 95%, Non-condensing
Working Temperature	-10°C to +70°C
