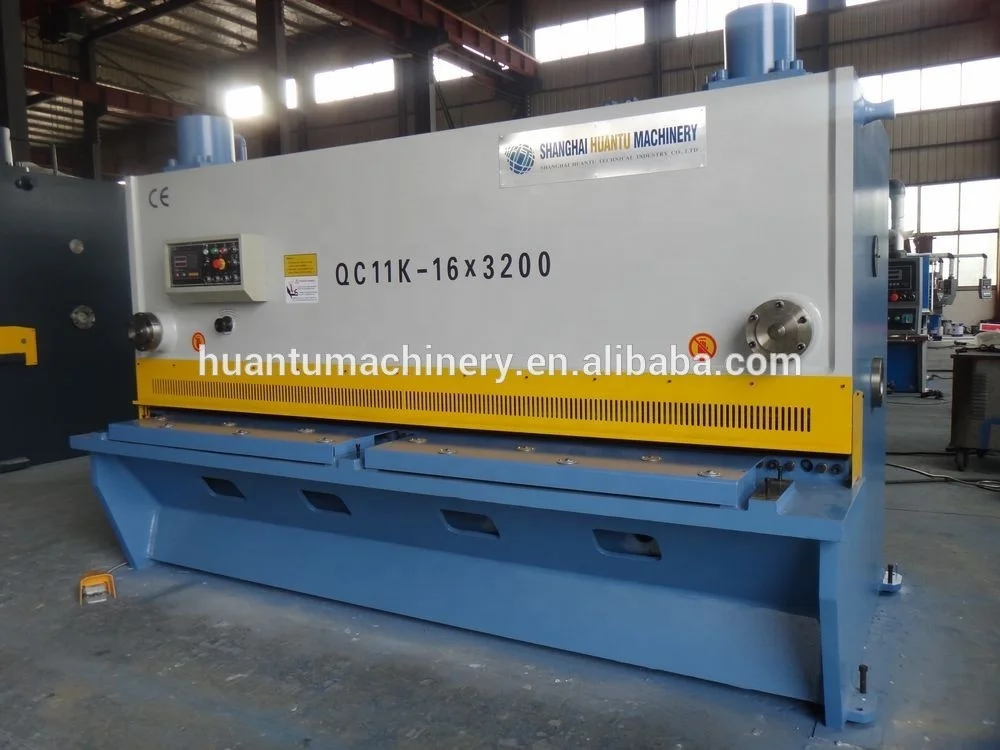

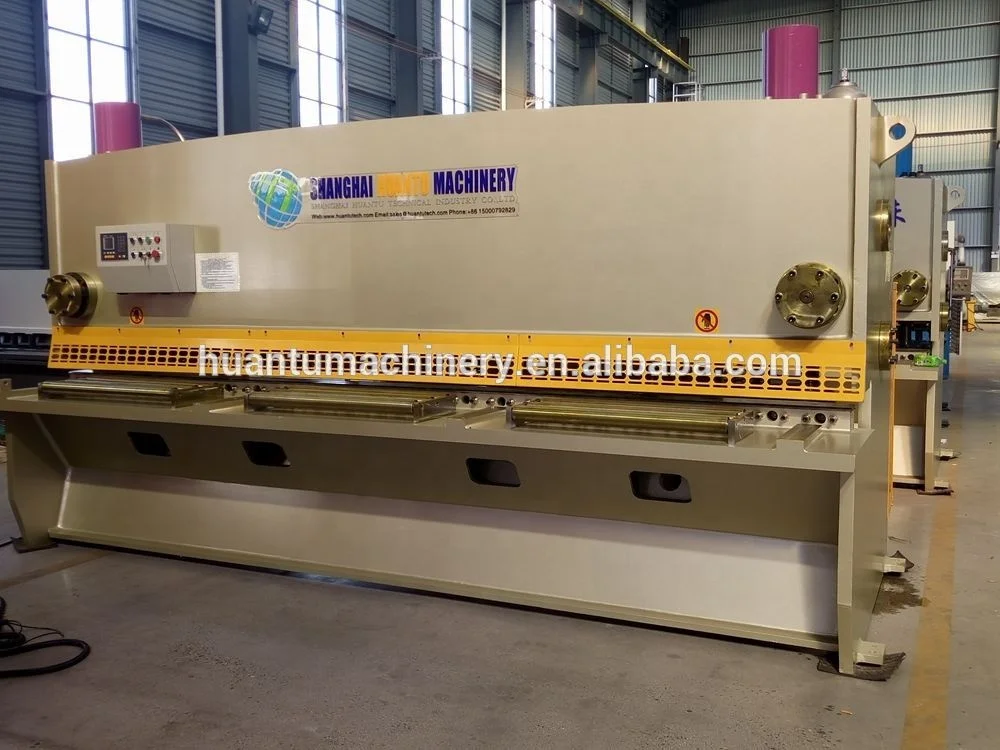

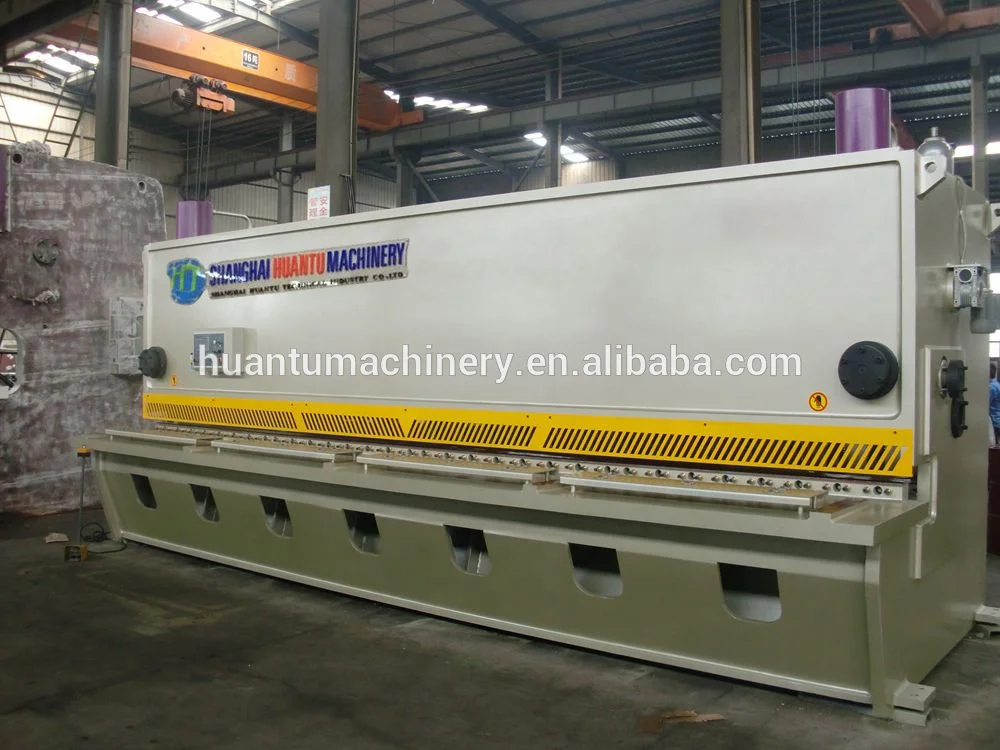

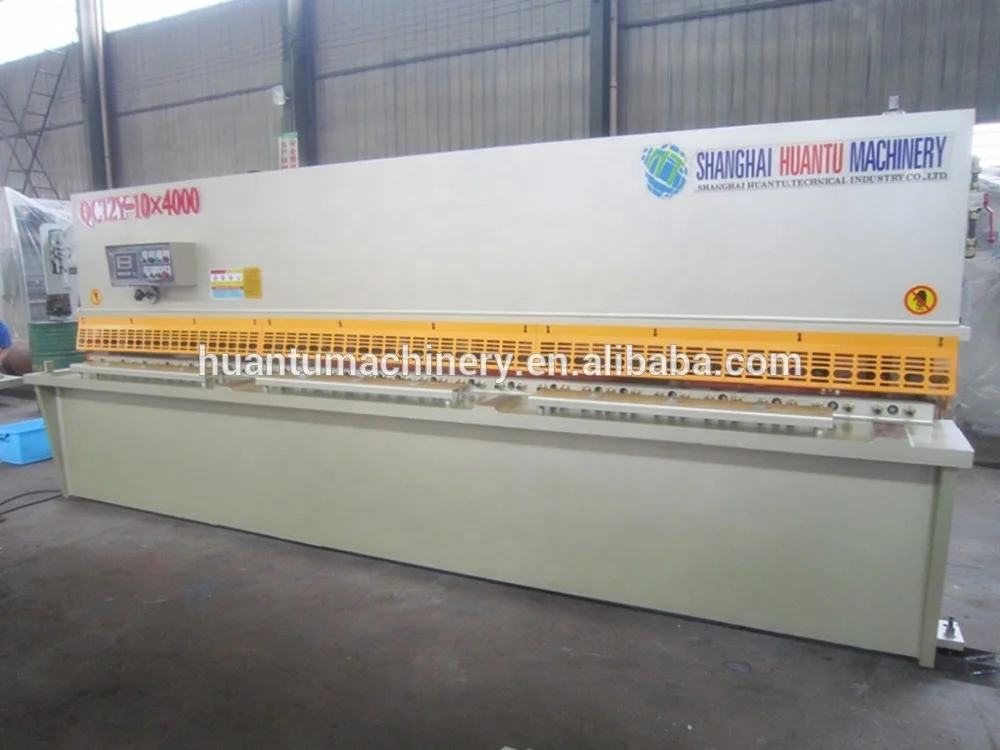

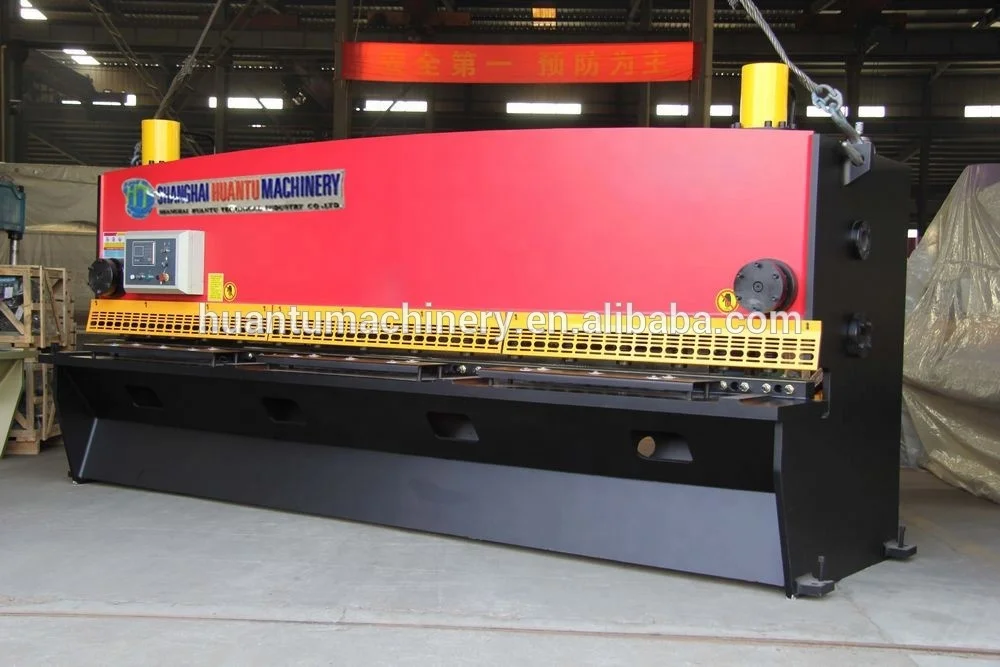

Metal cutting machine e10 manufacturers, guillotine shear

Product Overview

Description

Metal cutting machine e10 manufacturers, electic component, electric guillotine shear





Character

1. All welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity stability

2. Integrated hydraulic transmission system, with good reliability

3. Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality

4. Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers

5. Clearance between shearing blades adjusted by hand wheel to be quick, accurate and convenient

6. Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet

7. Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece

8. Function of shearing in sections, function of lamplight illume device

9. Optional rear material holding device

Metal cutting machine swing machine, steel plate cutting machine, cnc cutting

Metal cutting machine e10 manufacturers, electic component, electric guillotine shear





Major Elements

Hydraulic system: Omega  USA

Electro parts: Siemens Germany

Motors: Siemens Germany

Sealings: Valqua Japan

Oil pumps:From Shanghai.

Blades: From Shanghai.

Standards:According to GB/T14349-93.

NC Digital Display:  E10 From Estun

CNC Controller:  DAC310, DAC360 From Dellem Holland





Shipping Documents

1. Operation Manual(hydraulic diagram,electro diagram)

2. Foundation plans

3. Quality Certification

4. Packing list

5. Colors: According to Customer's requirements





Enclosed Accessory

Front arm support, 3 pieces

Anchor bolt, 4 pieces

Nut, some pieces

Washer, some pieces

Oil gun, 1 piece

Foot pedal 1 piece





After Sales Service

1. Our factory will supply easy worn parts free of charge to you within one year from ex-factory date, and the long term technical consultant service.

2. Once the serious quality problem is appeared due to the seller’s reason within one year since ex-factory date, the seller will supply parts free of charge. If necessary, the seller will send their engineer to repair it .

3. After one year warranty, we will provide long spare parts service at lowest cost price.

4. The seller can send 2 engineers (electrical & mechanical) to guide the installation & testing after the machine reaches the end-user.





Specification

Parameter   Specification	Shearing Thickness	Shearing Width	Back gauge Range	Shearing Angle	Throat Height	Main Motor Power
	(mm)	(mm)	(mm)	(.)	(mm)	(kw)
QC11Y-6*2500	6	2500	20-500	30’-1 30’	800	7.5
QC11Y-6*3200	6	3200	20-500	30’-1 30’	800	7.5
QC11Y-6*4000	6	4000	20-500	30’-1 30’	800	7.5
QC11Y-8*2500	8	2500	20-600	30’-2	800	11
QC11Y-8*3200	8	3200	20-600	30’-2	850	11
QC11Y-8*4000	8	4000	20-600	30’-2	900	11
QC11Y-8*5000	8	5000	20-600	30’-2	1000	15
QC11Y-8*6000	8	6000	20-600	30’-2	1050	15
QC11Y-2*2500	12	2500	20-600	30’-2	840	15
QC11Y-2*3200	12	3200	20-600	30’-2	900	15
QC11Y-2*4000	12	4000	20-600	30’-2	940	15
QC11Y-2*5000	12	5000	20-800	30’-2	1000	22
QC11Y12*6000	12	6000	20-800	30’-2	1060	30
