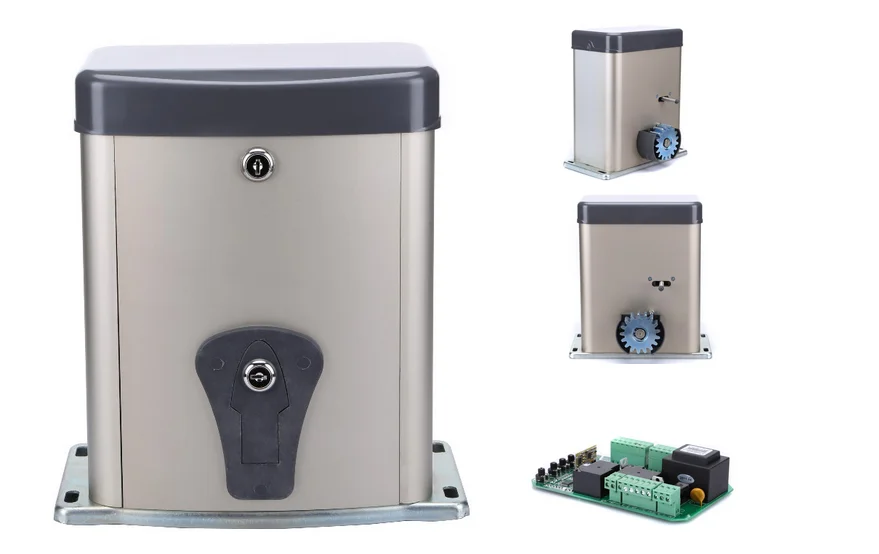

Automatic Door Opener DC 300kg Sliding Gate Operator Kit

Name: Automatic Door Opener DC 300kg Sliding Gate Operator Kit
SKU: 627695982
Availability: InStock

Price:

Quantity:

TECHNICAL PARAMETERS:

type	PY 500AC	PY 300DC
Power supply	220V/50Hz	220V/60Hz
Motor speed	42rpm	47rpm
Rated output power of motor	150W	100w
Output torque	14N.M	8N.M
Limit switch	Spring limit switch	Electronic limit
Max. Gate weight	500Kg	300kg
Gate move speed	12m/min	13m/min
Noise	≤60dB	≤60dB
Envirmental temperature	-20~+50°C	-20~+50°C
Duty cycle	S2, 15 minutes	S2, 30 minutes
Remote control	12V 23A (433.9MHz)	12V 23A (433.9MHz)
Remote control operating distance	30m~50m	30m~50m
		with back up battery

Specifications:

Powerful Motor opens gates up to 12 meters in length
Soft start and Soft stop function
2 Remotes included
RF hopping code technology prevents your remote code being accessible to others
Power Supply: AC 220V~240V
Operating Time: 0 - 44 seconds
For your safety, this model will stop and reverse if is encounters an obstruction on closing and stop when it encounters an obstruction on opening
Manual key release design for emergency purposes
1 year warranty

WHAT IS IN THE BOX?

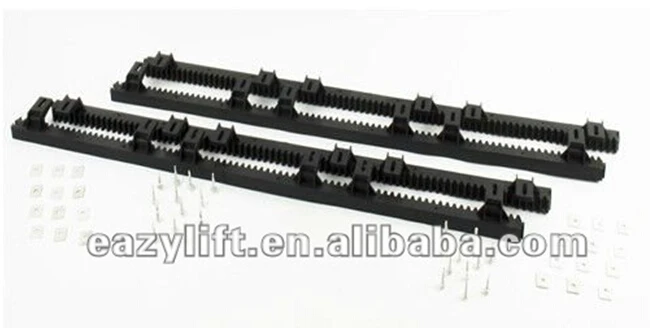

nylon rack.jpg

Packaging & Shipping

Packaging Details: Standard Exporting Packing
Delivery Detail: Shipped in 15 days after payment

Air shipping or sea transportation
