High quality horse floats china goosenecks to Australia market
US $14000-$20000
2 Horse Trailer Horse Float 4 Horse Cart
- Category: Other Trailers >>>
- Supplier: G & W World Trading Co. Ltd.
Share on (627711743):
Product Overview
Description

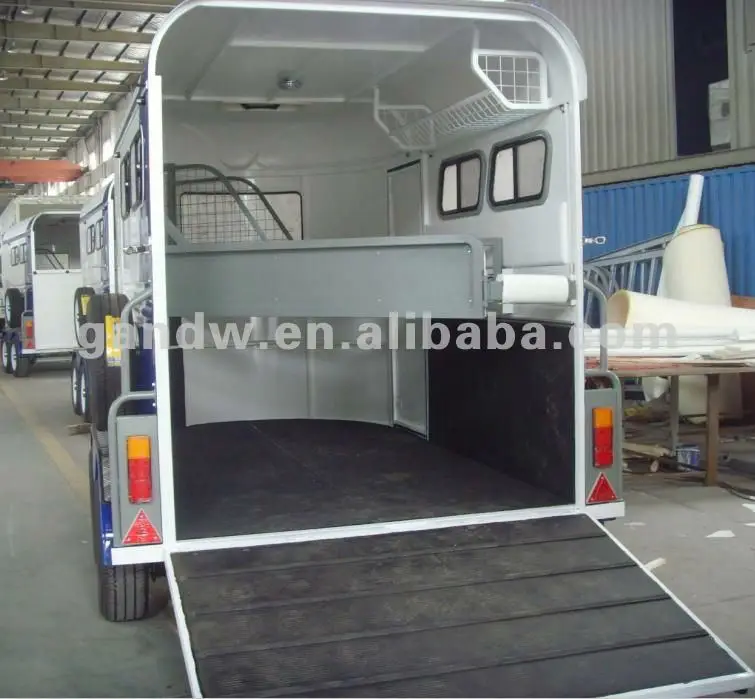

2 Horse Trailer Horse Float Horse Cart
| Over Dimension | (LxWxH:mm):4795x2290x2662 |
| External Dimension | (LxWxH:mm):3400x1830x2190 |
| Inner Dimension | (LxWxH:mm):3320x1780x2120 |
| Horse bay | (LxW:mm):2050x700 |
| Trailer Weight | 1240KGS |
| Max Payload | 1000 KGS |
| Body frame | Galvanised frame and chassis, galvanised sheet panels |
| Roof | 3-4mm thickness fiberglass |
| Side wall | 6mm thickness rubber matting |
| Floor | 18mm thickness rubber matting |
| Chain | Safety chain D-ring, welded chain |
| Coupler | Φ=50mm load 3500kg |
| Brake | Electric drum brake in one axle with hand brake system |
| Break away switch with 12V battery | |
| Suspension | 6 leaf spring |
| Axle | 2pcs, 840mm length |
| Axle distance | 840mm |
| Light | LED light, rear lights 2pcs, internal Roof light 1pc |
| Outer view width light 2pcs, licence board light 1pc | |
| Plug | 7 pin plug round or flat |
| Wheels & Tires | 5pcs 195/70R 15C, 15X5J, including a spare tire |
| Spare wheel Bracket | 1pc |
| Alu decoration | 1.5mm Alu decoration on front and on wheel |
| Button bar | Galvanised and powder coated button bar with soft pads, its tube 40x40x2mm |
| Hook | Galvanised hook for tighting the horse (inside 2pcs, outside 2pcs) |
| Vent | Roof vent with five opening ways |
| Front window | Mould alu alloy front window (950x500mm) |
| Side window | Mould alu alloy side window 4pcs (300x600mm) |
| Rear ramp door | Rear ramp door with spring support:1600x1220mm |
| Side door | 1650x600mm |
| Option | Pop up door |
| Barn door | |
| Break away switch with 12V battery | |
| Luggage shelf(Overhead rug rack) | |
| Front tack box | |
| Swing out tool box | |
| Alloy wheel | |
| Folded Awning | |
| Gas strut for rear door | |
| Extension size available |
