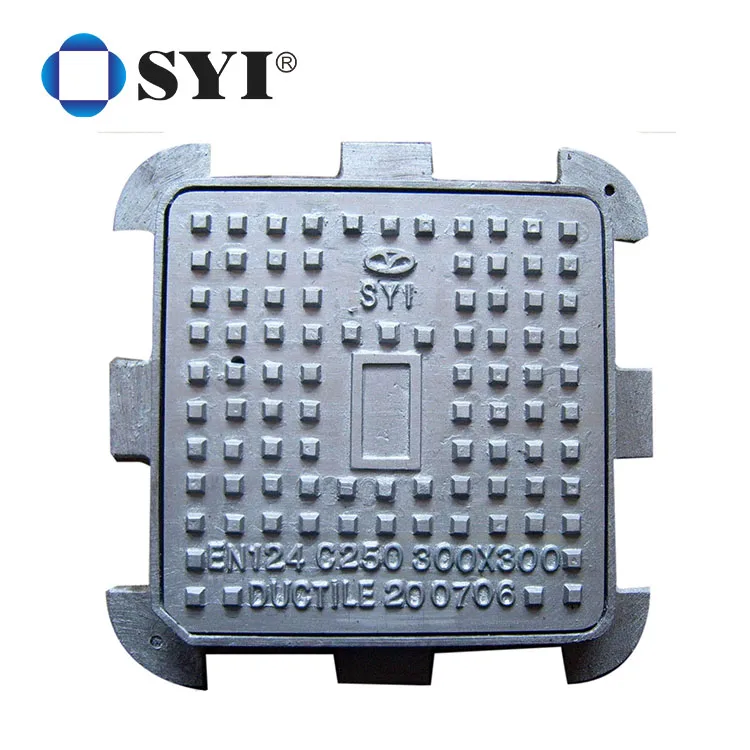

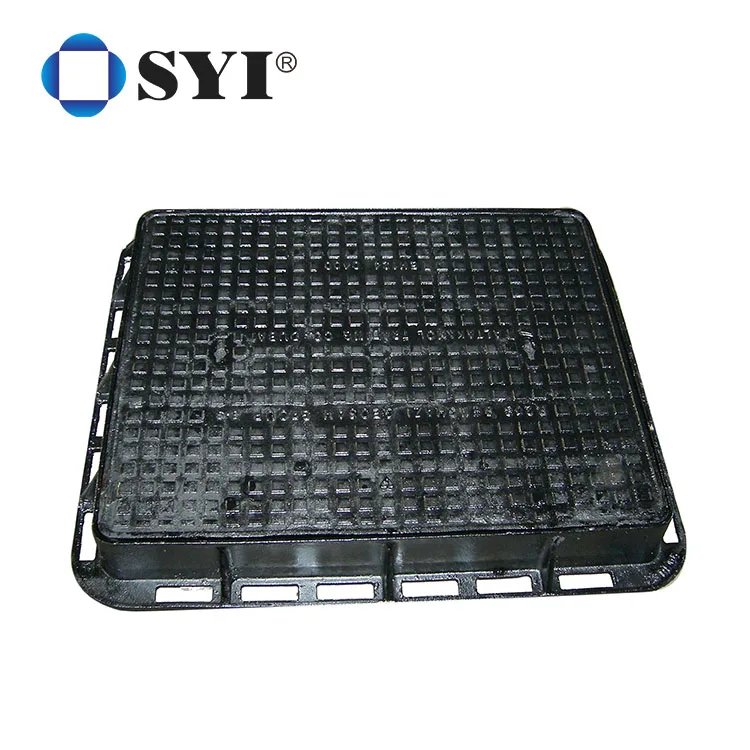

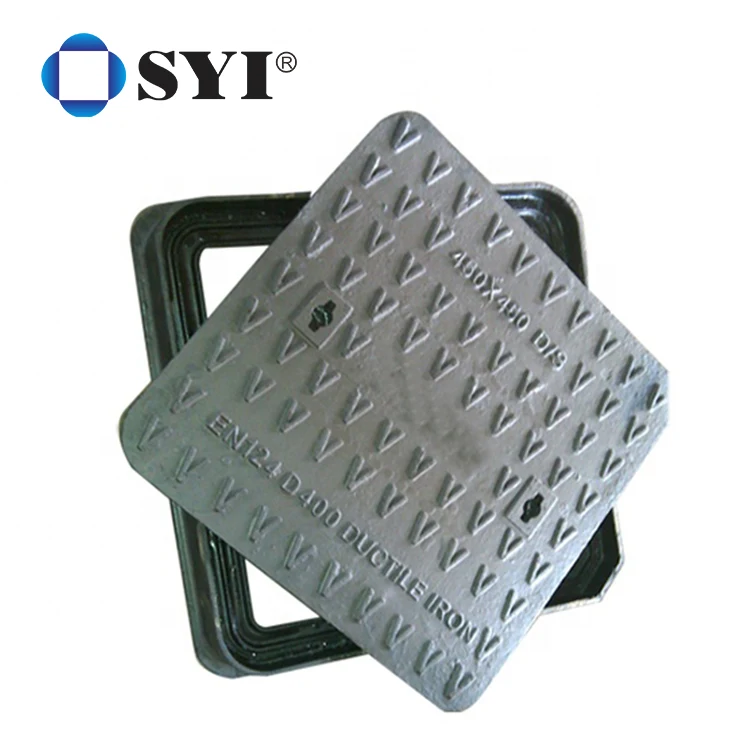

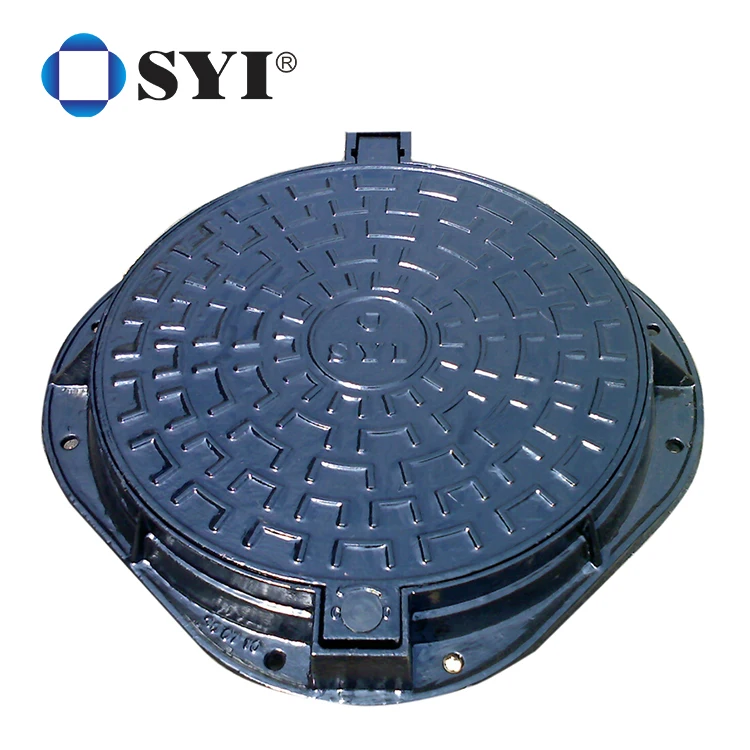

D400 Manhole Covers Suppliers Ductile Iron Round Manhole


Product Description


SYI can supply ductile iron Heavy duty D400 type Manhole Covers according to EN124, with different series of size, with or without hinge, single seal or double seal, square or rectangular or round, black bitumen or epoxy coating.




Ductile iron manhole cover is made from spheroidal graphite cast iron by machining hand moulding, solid top, recessed,double triangular, single seal or double seal, square or rectangular or round,with or without hinge. Very good quality, smooth and free from sand holes, blow holes, distortion or any other defects. Loading capacity is 40 tons. The normal coating is black bitumen 30 microns thickness, also can make the epoxy coating according to the customer’s demand.

Clear opening size is as below：


Class D400 specifications
Type
Dimensions (mm)
H
e
A X A
O X O
C X C
Single Sealed, Square
600X600
500X500
532X532
100
50
Single Sealed, Square
700X700
600X600
633X633
100
50
Single Sealed, Square
800X800
700X700
733X733
100
50
Single Sealed, Square
900X900
800X800
833X833
100
50
Single Sealed, Square
1000X1000
900X900
933X933
100
50
Single Sealed, Square
1100X1100
1000X1000
1033X1033
100
50
Single Sealed, Square
1200X1200
1100X1000
1133X1133
100
51
Single Sealed, Rectangular
600X800
500X700
558X762
80
72
Single Sealed, Rectangular
750X550
600X450
636X486
75
69
Single Sealed, Round cover, Round Base
Ф850
Ф600
Ф646
95
49
Single Sealed, Round cover, Rectangular Base
850X850
Ф600
Ф645
100
49
Single Sealed, Round cover, Rectangular Base
700X700
Ф600
Ф645
100
49
Single Sealed, Round cover, Rectangular Base
900X900
Ф710
Ф734
102
41
Single Sealed, Round cover, Rectangular Base
1000X1000
Ф710
Ф734
102
41
Single Sealed, Round cover, Rectangular Base
1050X1050
Ф850
Ф835
100
46
Single Sealed, Round cover, Round Base
Ø750
Ø600
Ø660
100
29
Single Sealed, Round cover, Round Base
Ø780
Ø600
Ø660
100
29
Double Sealed, Square, Recessed Cover
750X750
600X600
694X694
100
29
Double Sealed, Square, Solid Top
750X750
600X600
694X694
100
29


The marks including the customer’s logo can be changed.
We have a strong R&D team, can design and make the new mould for you.
The special epoxy coating can be supplied in SYI also, please consult us if any request.




Besides the standard products, SYI can be the specialist of your Personal Tailor also!
A group of highly experienced technical engineers are right here waiting for any of your request.
We are able to use most of the world-wide engineering software, including AUTO Cad, Pro Engineer, Solid Works and etc.
Professional software used for design and test.


A group of highly experienced technical engineers are right here waiting for any of your request.
We are able to use most of the world-wide engineering software, including AUTO Cad, Pro Engineer, Solid Works and etc.




Professional software used for design and test.


Packing & Delivery




The package: iron or plywood or fimugated wooden pallet, wrap film to keep the clean, the pallet
should be enough strong, and it is suitable for the long time sea transportation, and bear with the bumps in transit.

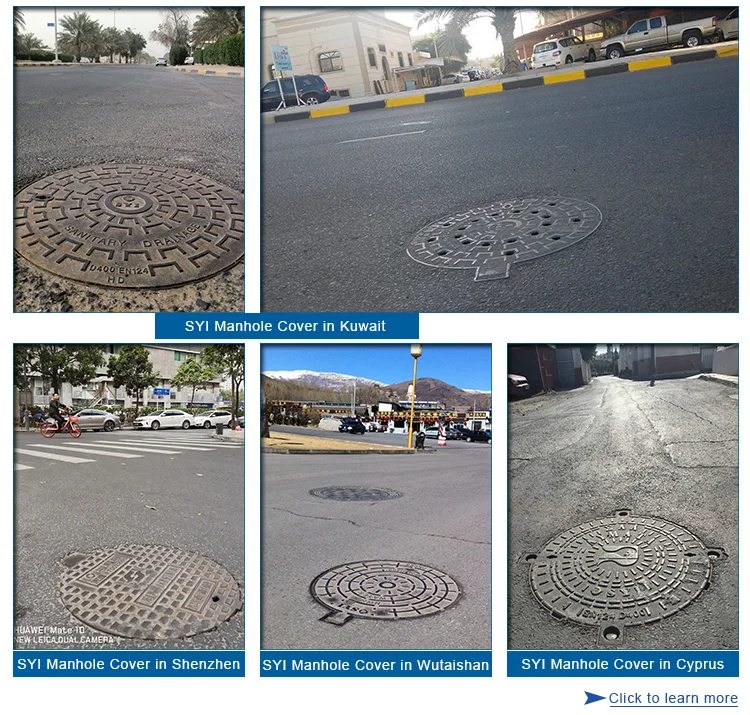

Project




Company Profile

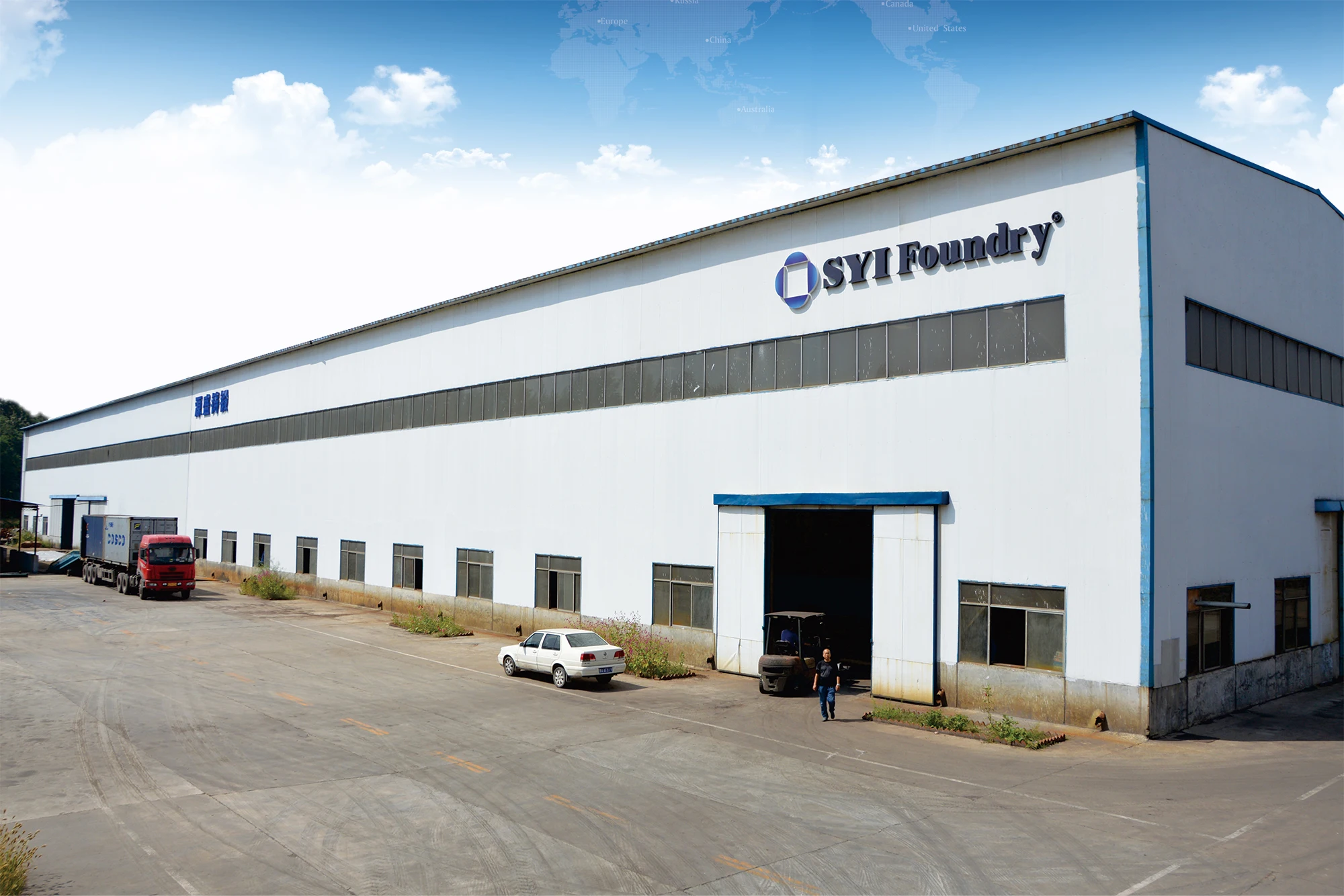

SYI Foundry is a Professional Supplier of the Municipal, Drainage & Machinery Products & Services!

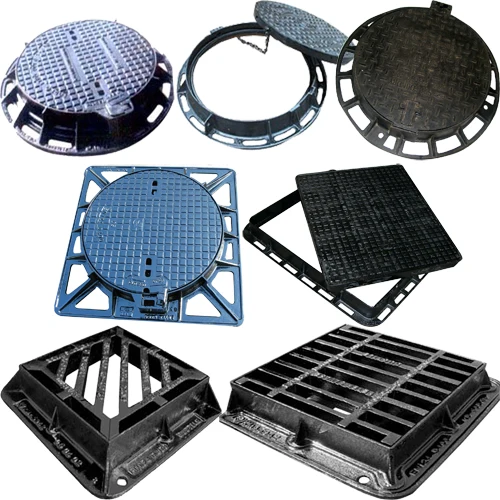

SYI Foundry ( Shanxi Yuansheng Casting & Forging Industrial Co., Ltd. ) – a Proud Member of SYI Group- manufactures Manhole Covers, Gully Gratings, Surface Boxes, Tree Gratings, Bollards, Garden Benches, Cast Lamp Posts & Bases and all types of OEM/ODM municipal products and Outdoor Furnitures.

With annual production capacity of 35,000 tons, our major equipments include 2 sets of automatic moulding lines, 4 sets of 5-tons cupola and furnaces, 2 sets of load testing machines, 1 epoxy coating machine, 5 sets of core-shooting machines, 3 set of shot blasting machines, 4 set of water pressure machines, 2 machining workshops and all necessary chemical and physical test facilities.












FAQ


1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6.Do you accept custom design on size?
A: Yes, if the size is reasonable

7.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
