Series 21 Anti Mis insertion Pneumatic quick couplings

Product Overview

Description

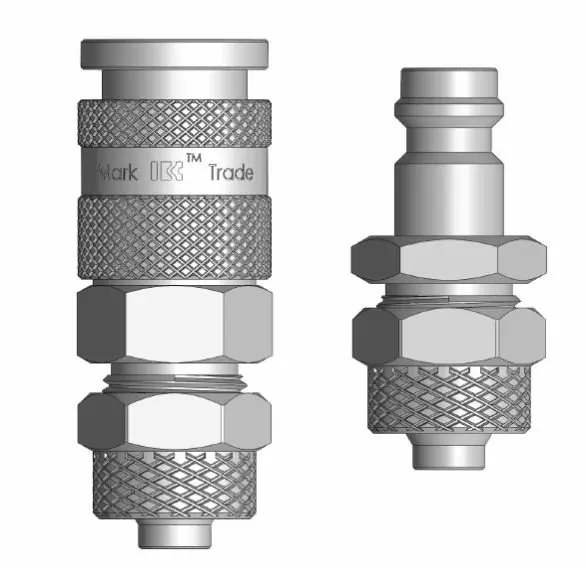

Series 21 Anti-Mis-insertion -Pneumatic quick coupings

Flow Capacity:   530L/Min

Nominal flow dia: 5 mm

 Material:

    Socket :  Nickel-plated brass

       Plug:   Nickel-plated brass

Temperature range(NBR):     -20°C ~ 80°C

 Max.working pressure:     35 Bar

Standard and Compatibility:

            Rectus 21,90 ,Legris series 21

             Camozzi,Bosch size 2,

Feature:

             One-hand operated

             Mini size

           Optional double shut-off

SF Type--Female	PART NO.		D2	L1	CH
	Info	Thread
	21-SF	G1/8	16	36	14
		G1/4	16	38	17
SM Type--Female	PART NO.		D2	L1	CH
	Info	Thread
	21-SM	G1/8	16	36	14
		G1/4	16	38	14
SH Type--Hose Barb	PART NO.		D2	L1	CH	D1	CH2
	Info	Hose
	21-SH	6	16	46	14
		8	16	46	14
		10	16	46	14

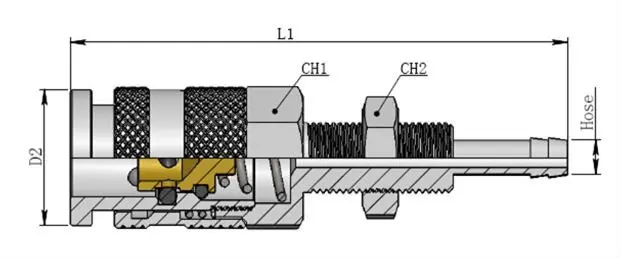

SHB Type--Bulkhead	PART NO.		D2	L1	CH	D1	CH2
	Info	Hose
	21-SHB	6	16	60	17	M12*1	17
		8	16	60	17	M12*1	17
		10	16	60	17	M14*1	17

PM Type	PART NO.		L1	CH		PF Type	PART NO.		L1	CH
	Info	Thread					Info	Thread
	21-PM	G1/8	25	12			21-PF	M5*0.8	16	9
		G1/4	28	14				G1/8	19	14

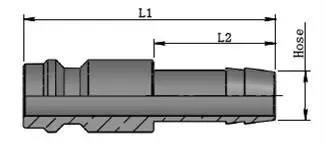

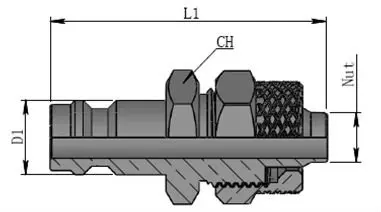

PH Type	PART NO.		L1	L2	CH2	PN Type	PART NO.		L1	CH	d1
	Info	Hose					Info	Nut
	21-PH	6	32	17			21-PN	6*4	32	14
		8	32	17				8*6	32	14
		10	33	17				10*8	36	17

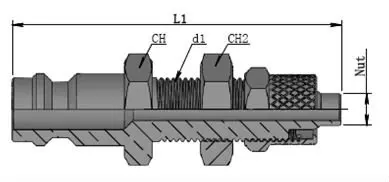

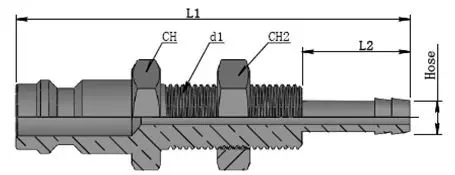

PHB Type	PART NO.		L1	L2	CH2	PNB Type	PART NO.		L1	CH	d1
	Info	Hose					Info	Nut
	21-PHB	6	50	17	17		21-PNB	6*4	43	14	M10*1
		8	50	17	17			8*6	43	14	M12*1
		10	50	17	19			10*8	50	17	M14*1
