2 wire Manual Call Point with pull down plate without breaking glass used for fire alarm system

Product Overview

Description

2 wire Manual Call Point with pull down plate without breaking glass used for fire alarm system

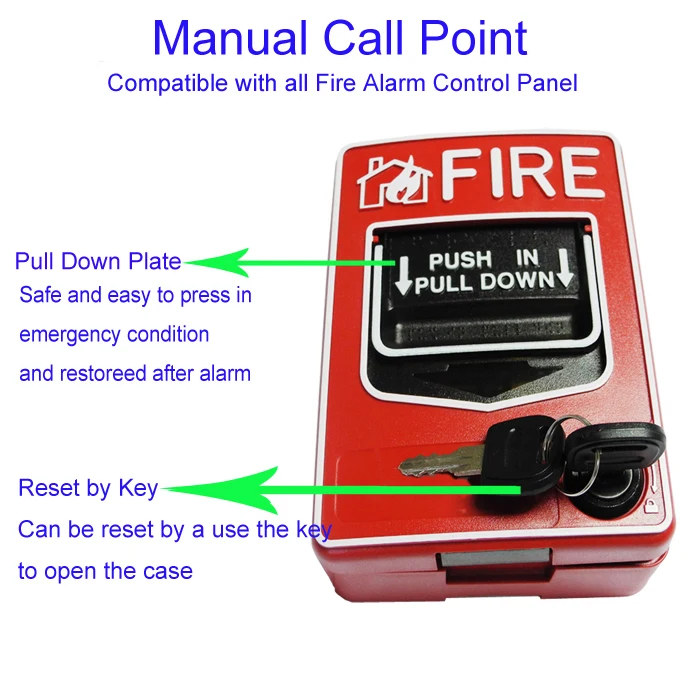

PY-SG116 designed for conventional fire alarm system for reporting fire or emergency condition by pull down the plate. The manual call point can be reset by a special key without breaking the glass.

Features:

Compatible with all the conventional fire alarm control panel
Can be reset by key without use a new glass
470 Ohm resistance
Easy surface mounting Base included



Technical Specification:

Latching Alarm: Reset by momentary power interruption
System Voltage (nominal): 24 VDC (9V~ 28VDC)
Standby Current: 60 μA @ 24VDC
Alarm Current: 10~30 mA @ 24VDC
Operating Temperature Range: -10°C to 50°C
Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
Dimension: 140mmX105mm
Height: 45 mm
Weight: 220 g



If you want to know more about us, welcome to visit our website: www.smart-home-security.cn

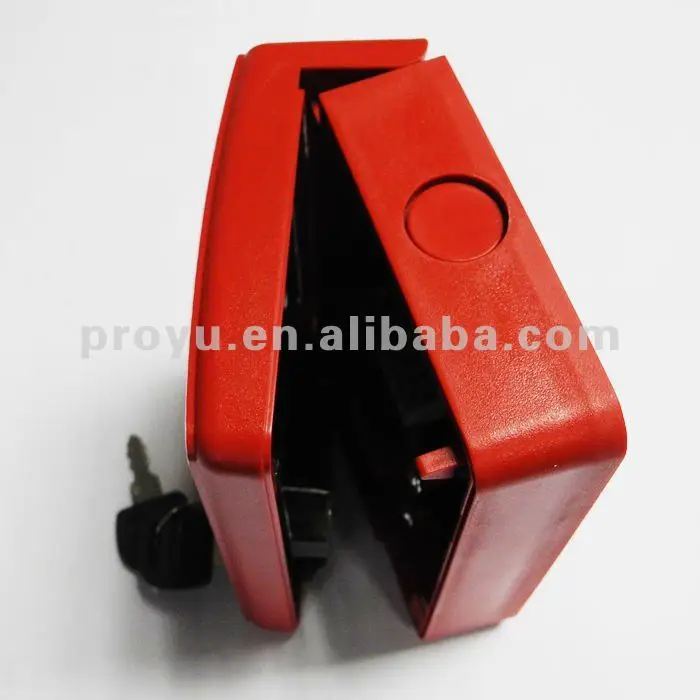

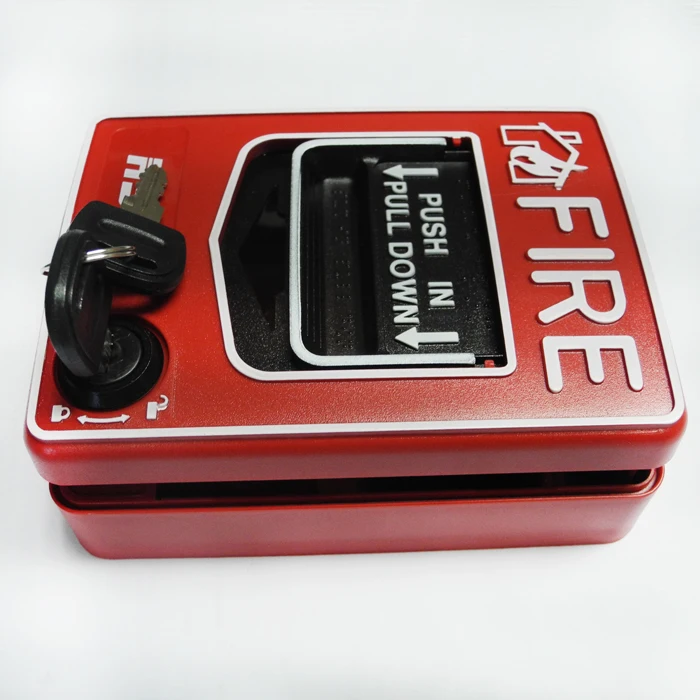

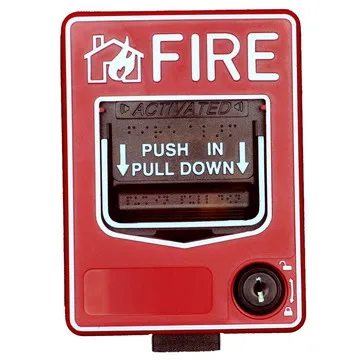

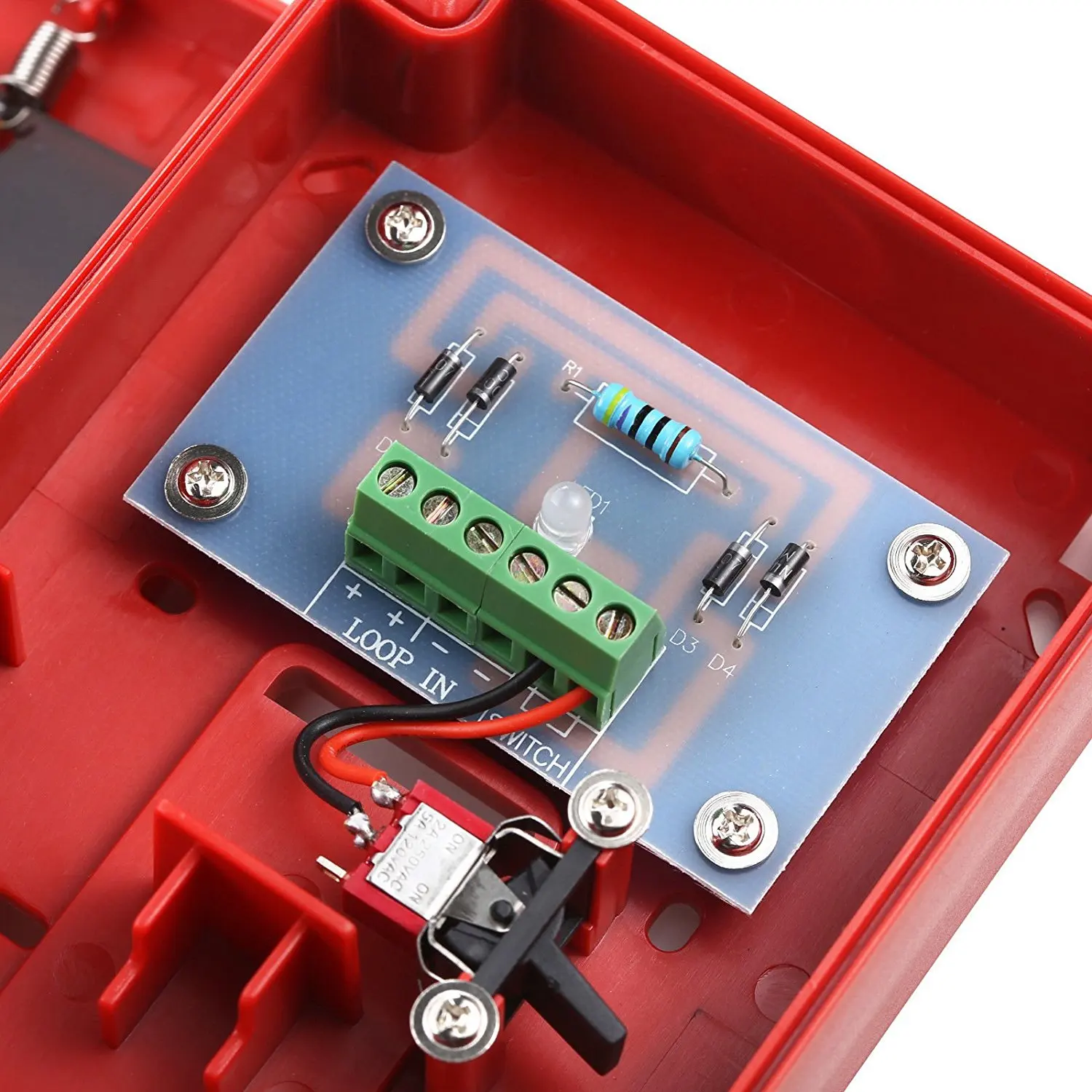

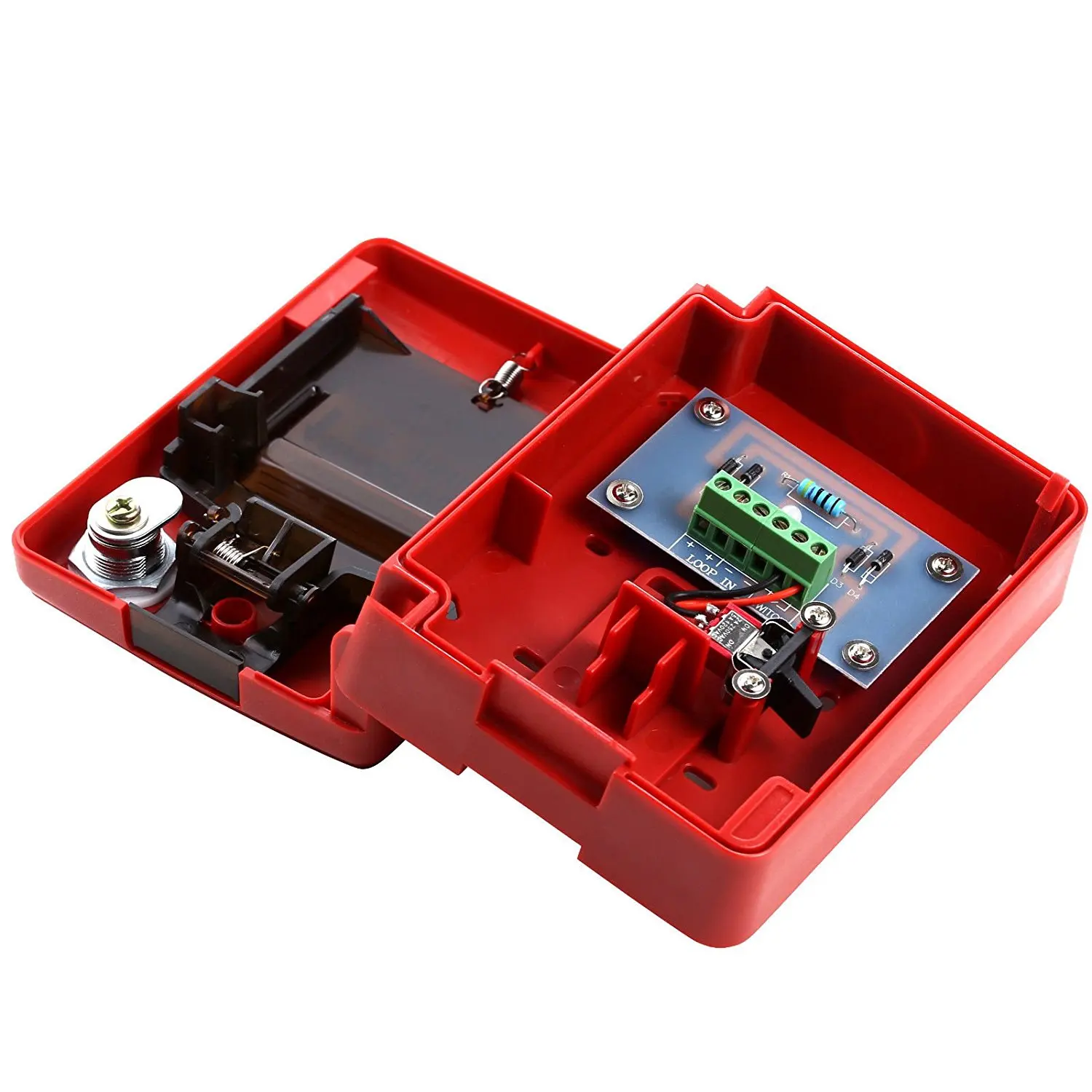

Wiring diagram and products photo as below:
