Japanese standard 34 frame Mini belt conveyor JS type34 MI

Product Overview

Description

Japanese standard 34 frame Mini belt conveyor JS type34-MI

>>Type:JS TYPE34-MI

The use of 34mm aluminum alloy stent, precision small linear conveyor, easy to install.
Variable speed: 2.8 ~ 10m/min
Width: 20mm~50mm
Transfer capacity: Max about 3~5kg
Power: 15W 6W
Captain: L250~1200*W60~90*H145
Voltage: AC100V

>>Size:



>>DWG:

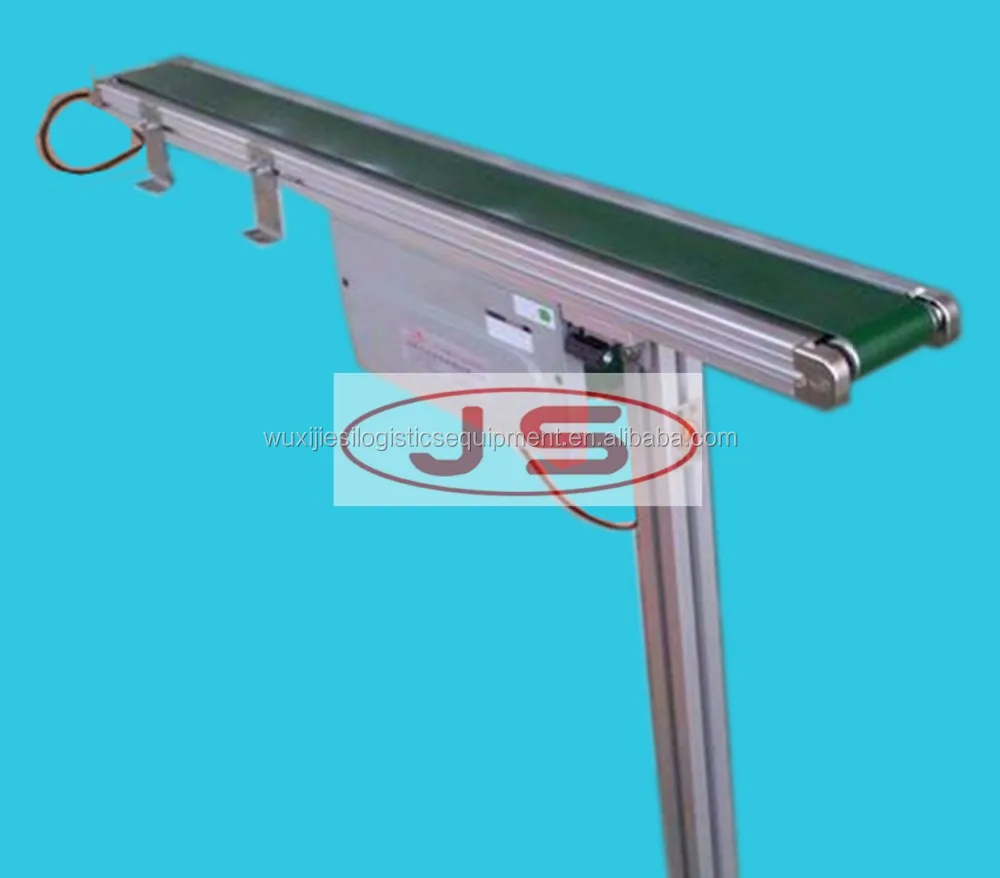

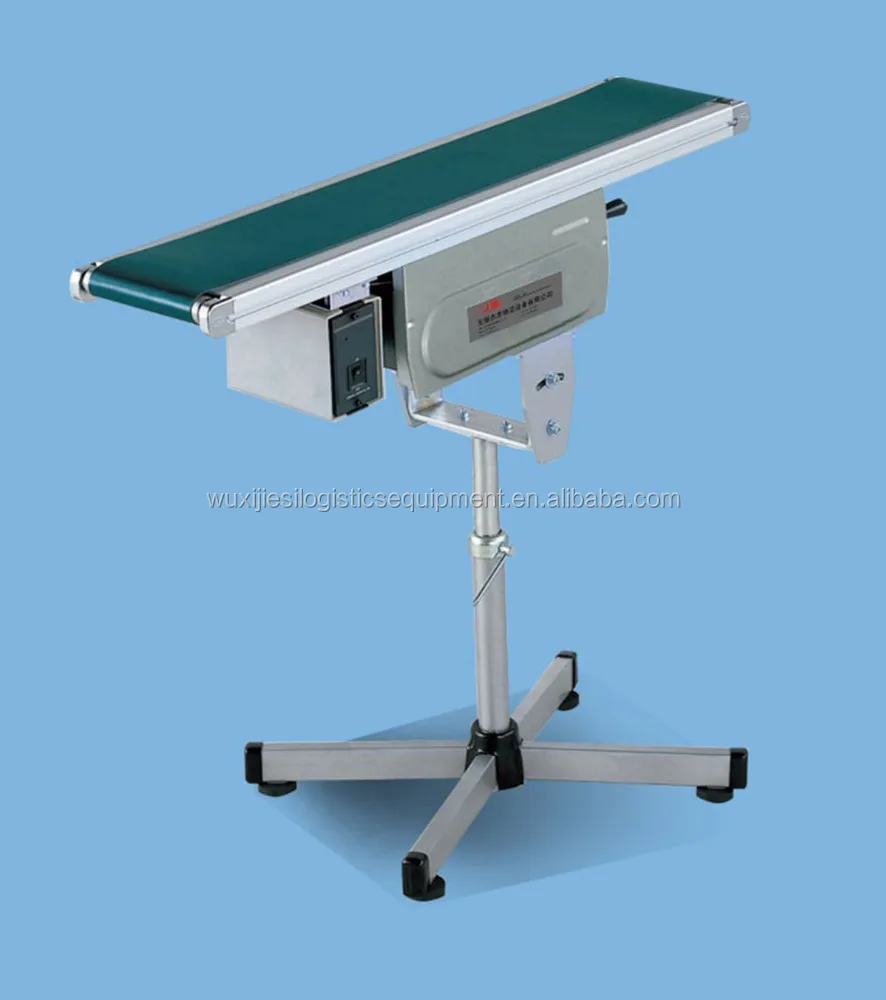

>>Picture:





Supporting AC standard small motor, speed regulating motor. In addition, can be combined with the brake or speed control circuit products, or with the reducer, linear reducer mechanical products. So it has a wide range of uses.
Variable speed motor generally adopts embedded type installation controller or frequency converter and motor combination product.
The main brands are Oriental Motors, Panasonic, Taiwan , refined research, etc..
>>Knowledge of supply
Type selection of belt conveyor, please carefully determine the following technical conditions and technical parameters:
1 physical properties of conveying articles;
2 belt conveyor working environment;
3 belt conveyor power status;
4 belt conveyor transport path;
5 belt conveyor required load and speed;
6 belt conveyor electrical control requirements;
7 other special requirements for belt conveyors.
