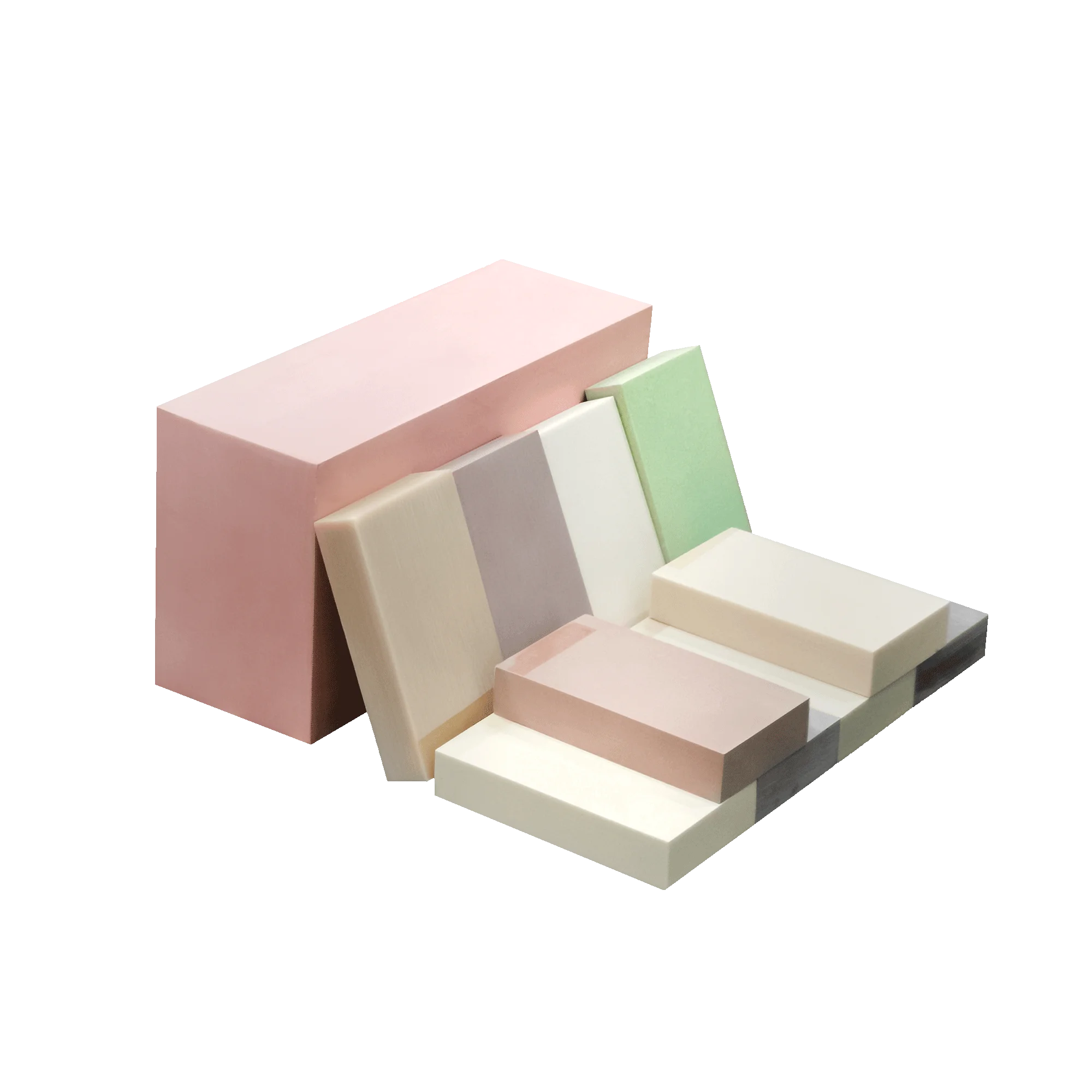

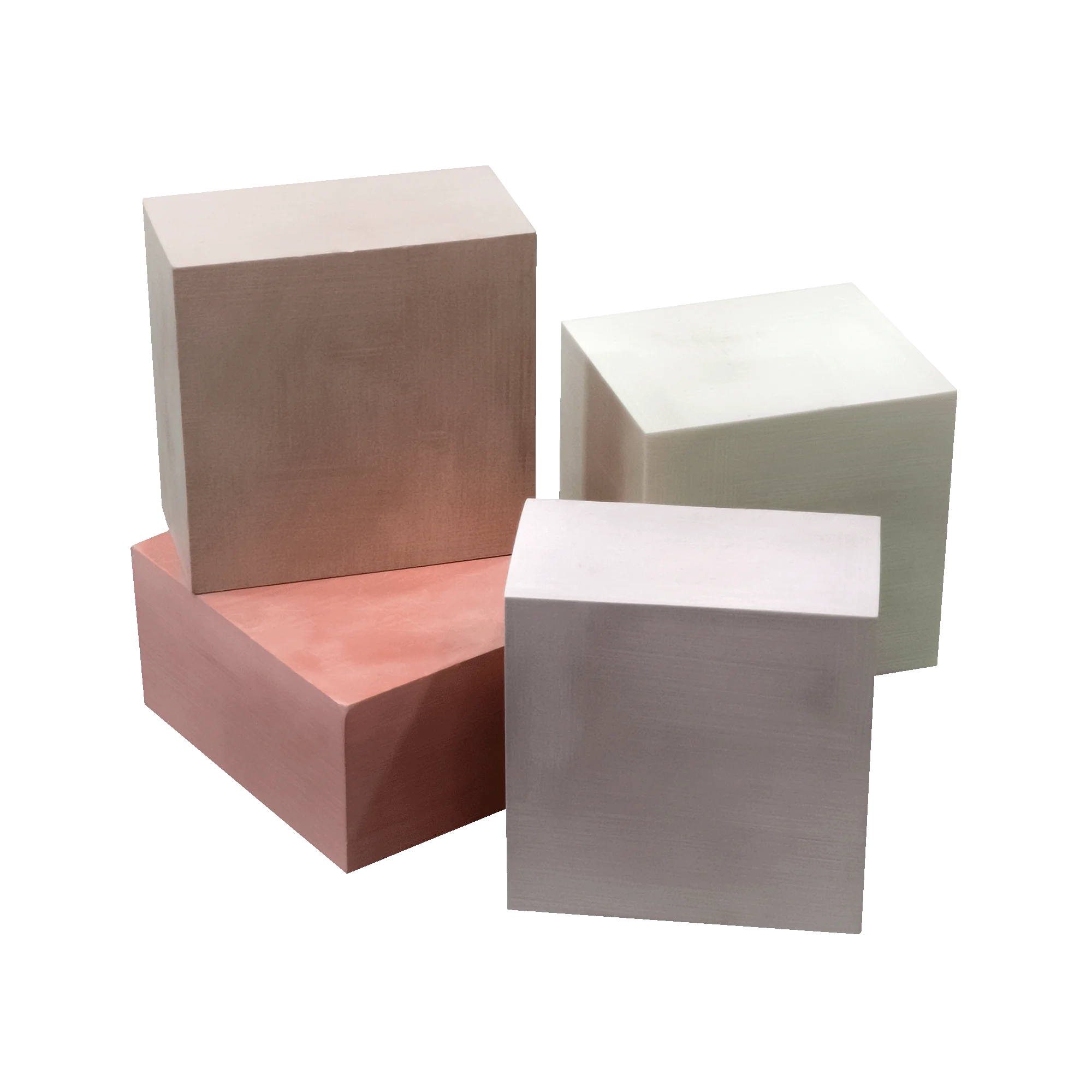

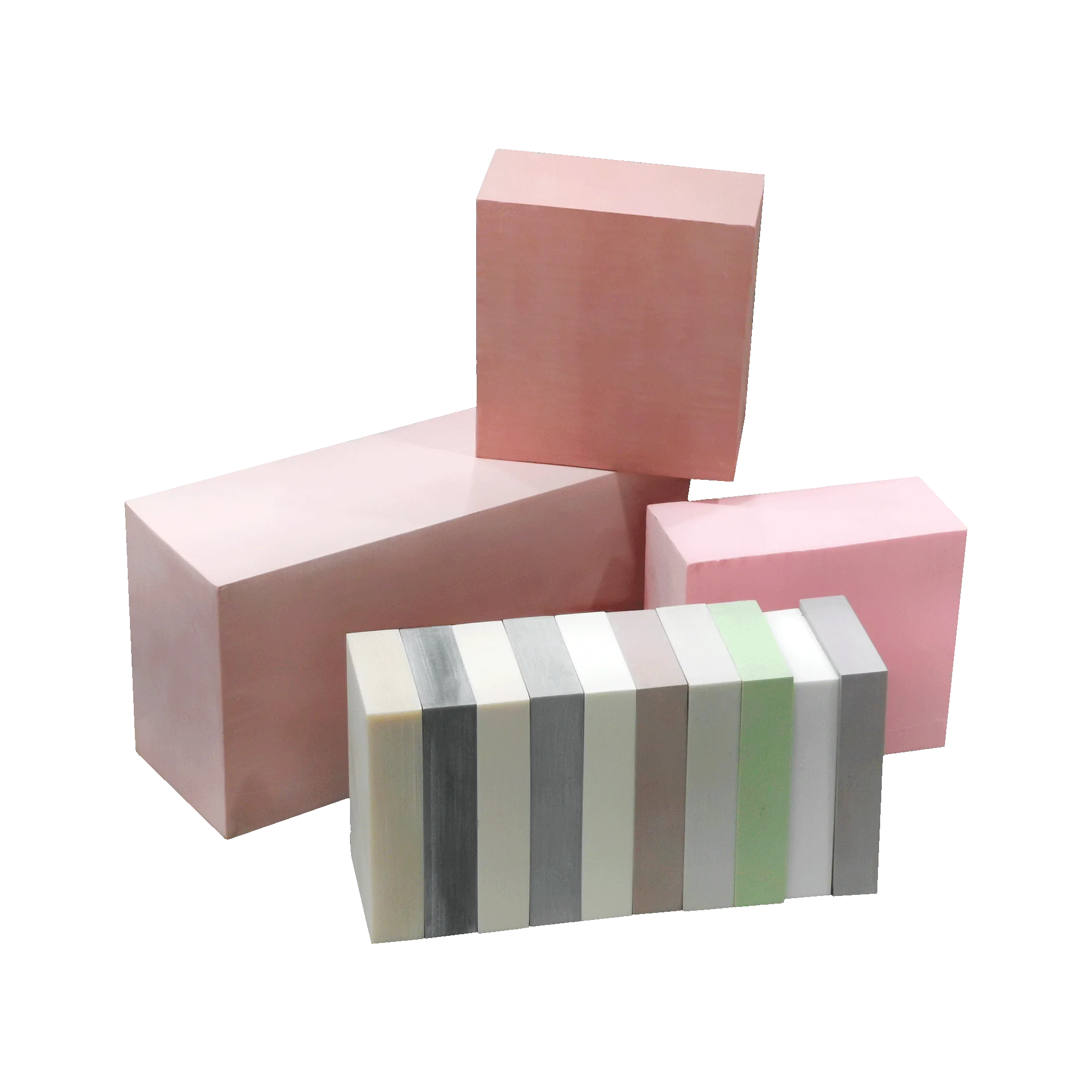

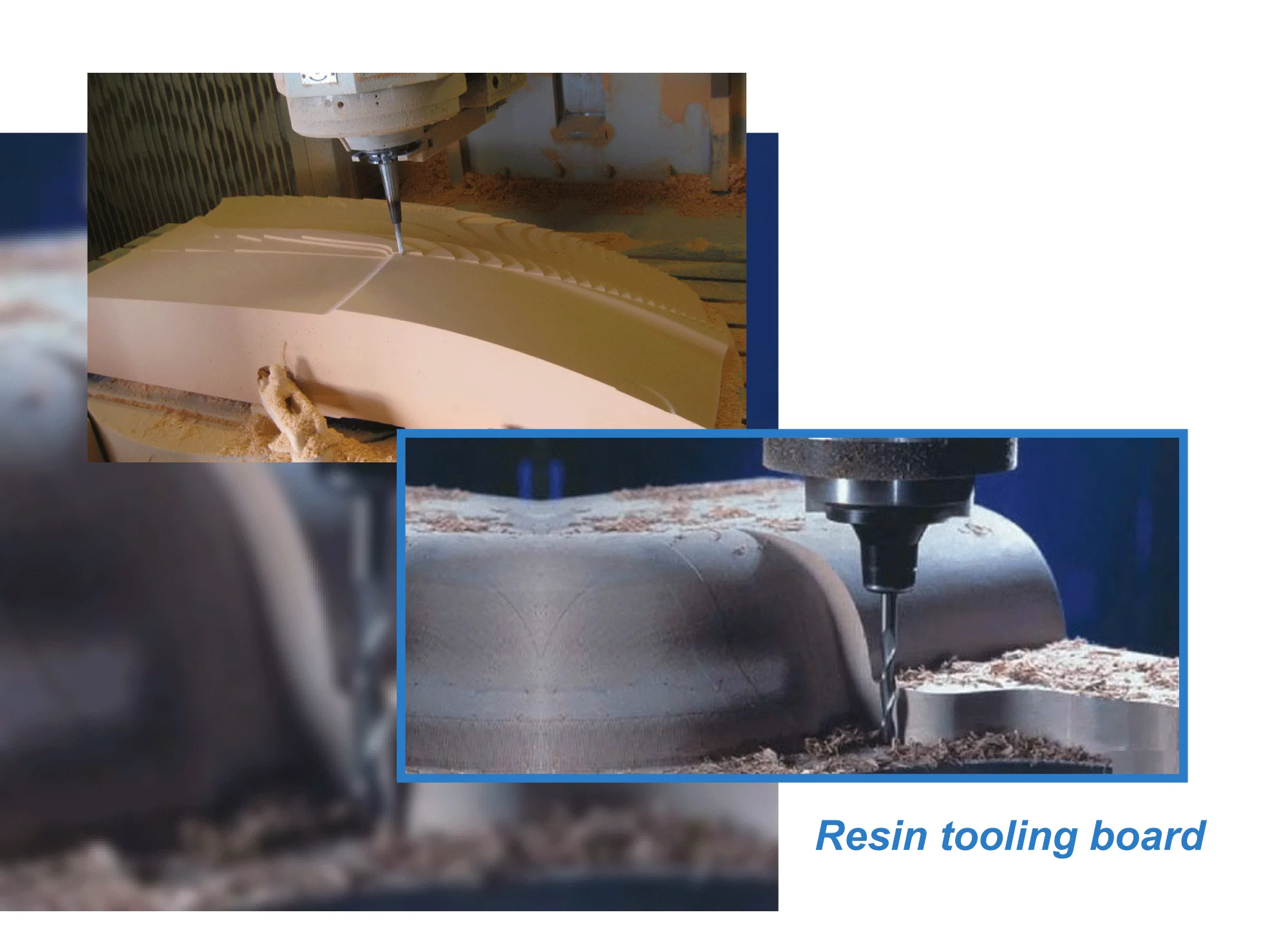

Resin Tooling Board used for sole mold pattern on the CNC machine

Product Overview

Description

High quality Resin tooling board used for shoes sole mould pattern on the CNC machine

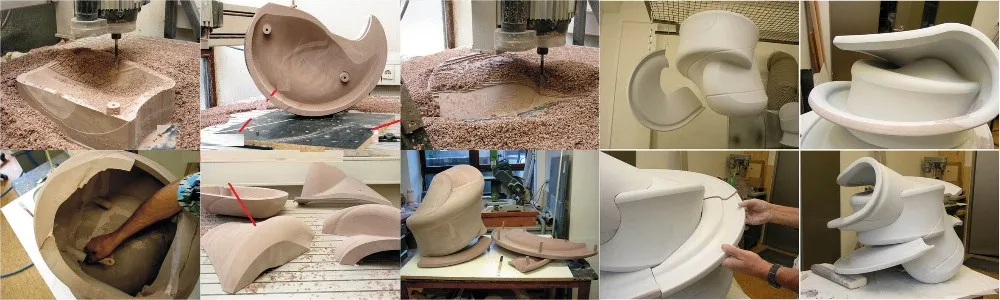

We are manufacturer of Resin Wood/ CNC Tooling Boards are used to make sole mould pattern, Automobile Designs  on the CNC machine. Our product is high quality with very competitive in China. If you are interesed in it, just feel free to contact us any time, we can send the free samples for you!

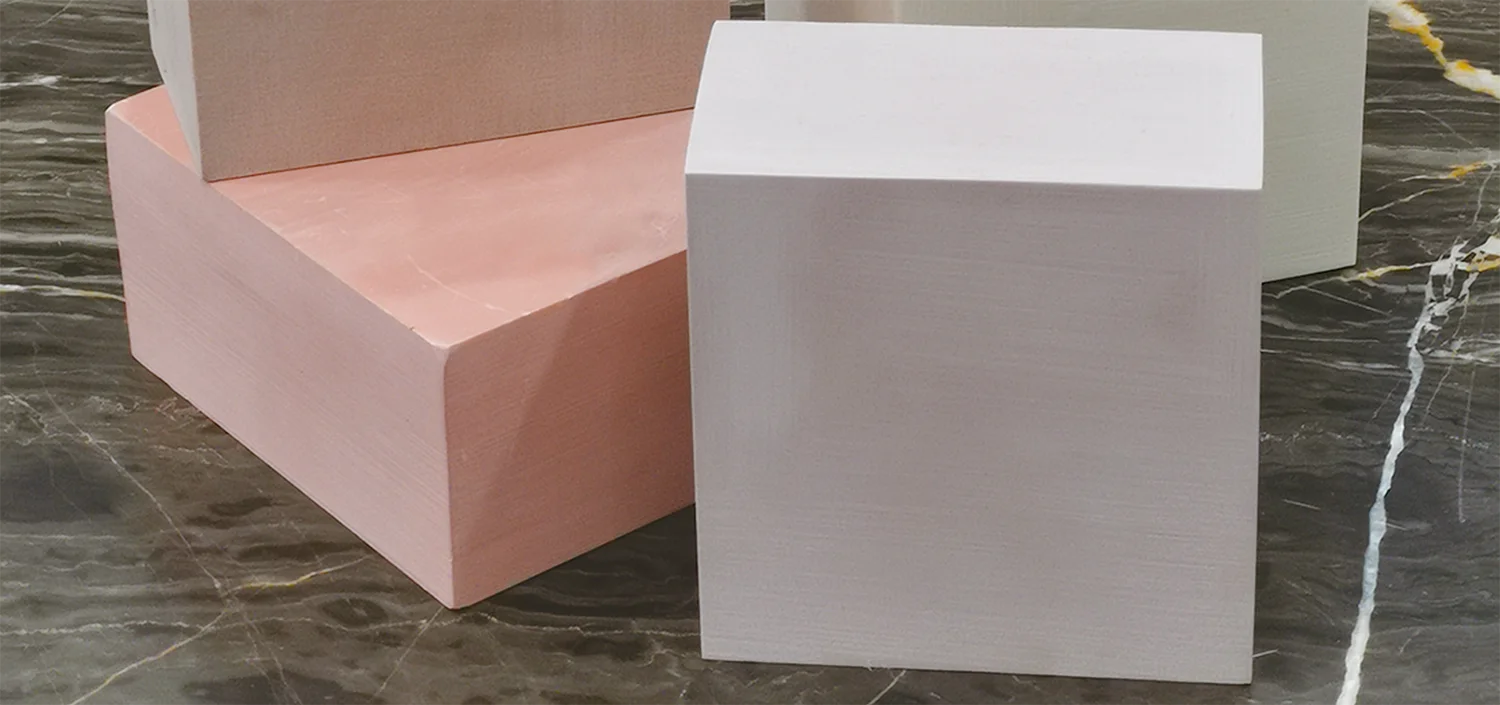

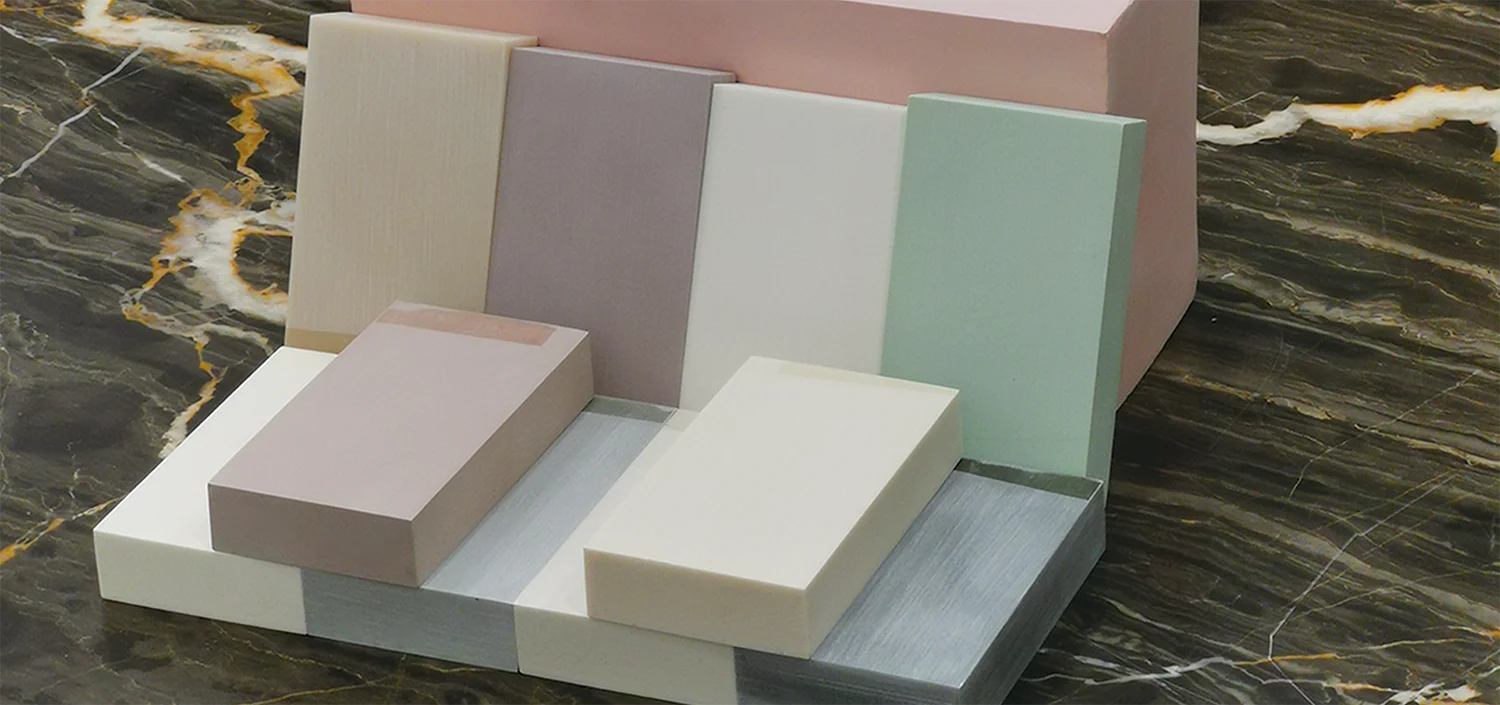

Resin tooling board
Physical performance	Testing standard	A-620B	A-700B
Thermal expansivity (1/K)	GB-1034	4.32 x 10-5	6.74 x 10-5
Heat distortion temperature (℃)	(ISO 75)℃	66.21	72.83
Hardness(Shore D)	(ISO 868)Shore D	55	65
Compressive strength(N/mm2)	(ISO 604)Mpa	15-20	20-25
bending strength(N/mm2)	(ISO 178)Mpa	_	_
Density(g/cm3)	(ISO 1183)g/cm3	0.58-0.60	0.68-0.70

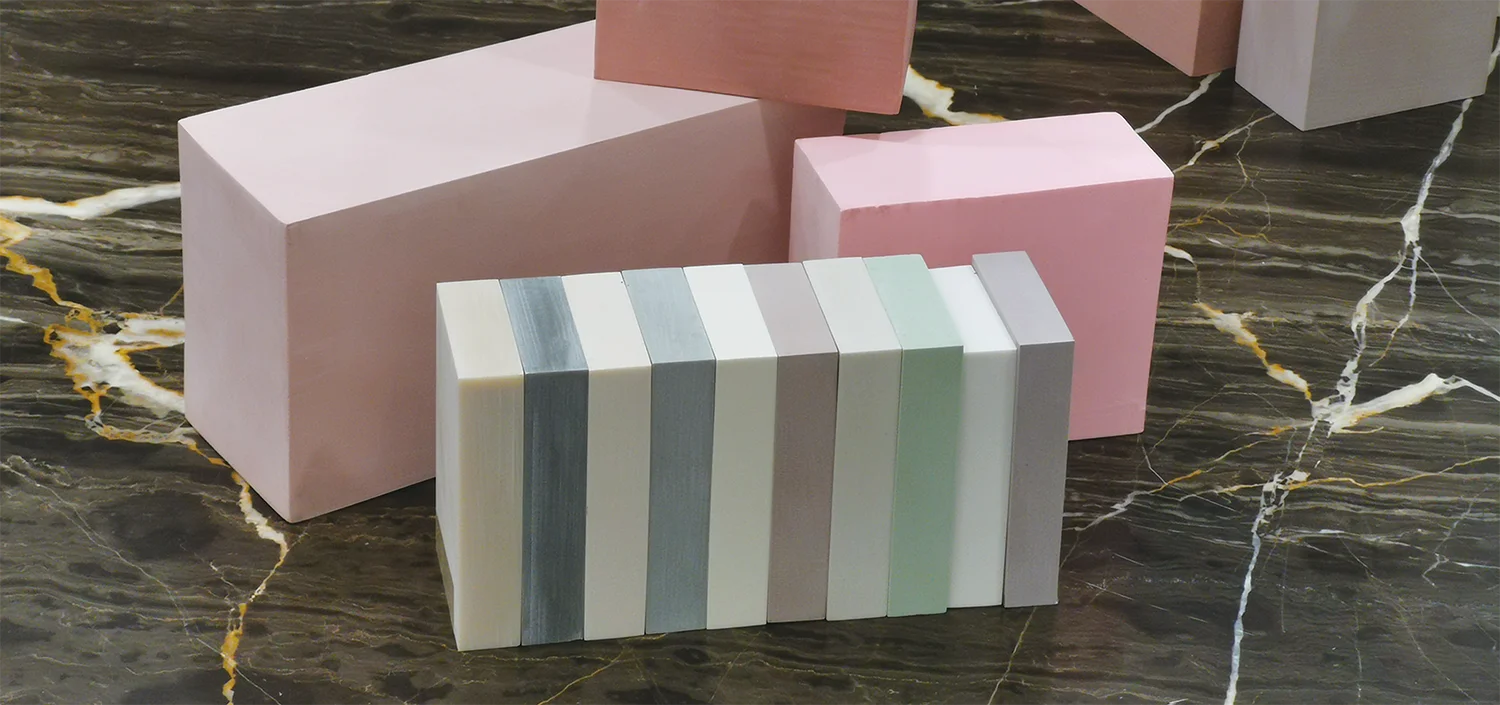

Color	Make as request	Pink/ Brown/ white/ yellow	Pink/ Brown/ white/ yellow
Sheet size (mm)	Also can make the special size as the customer request	680×430×30/50/75/100	680×430×30/50/75/100
		690×440×30/50/75/100	690×440×30/50/75/100
		700×450×30/50/75/100	700×450×30/50/75/100
		700×500×30/50/75/100	700×500×30/50/75/100
		750×500×30/50/75/100	750×500×30/50/75/100
		1000×500×30/50/75/100	1000×500×30/50/75/100
		1500×500×50/75/100	1500×500×50/75/10













       Asfrom Certificate

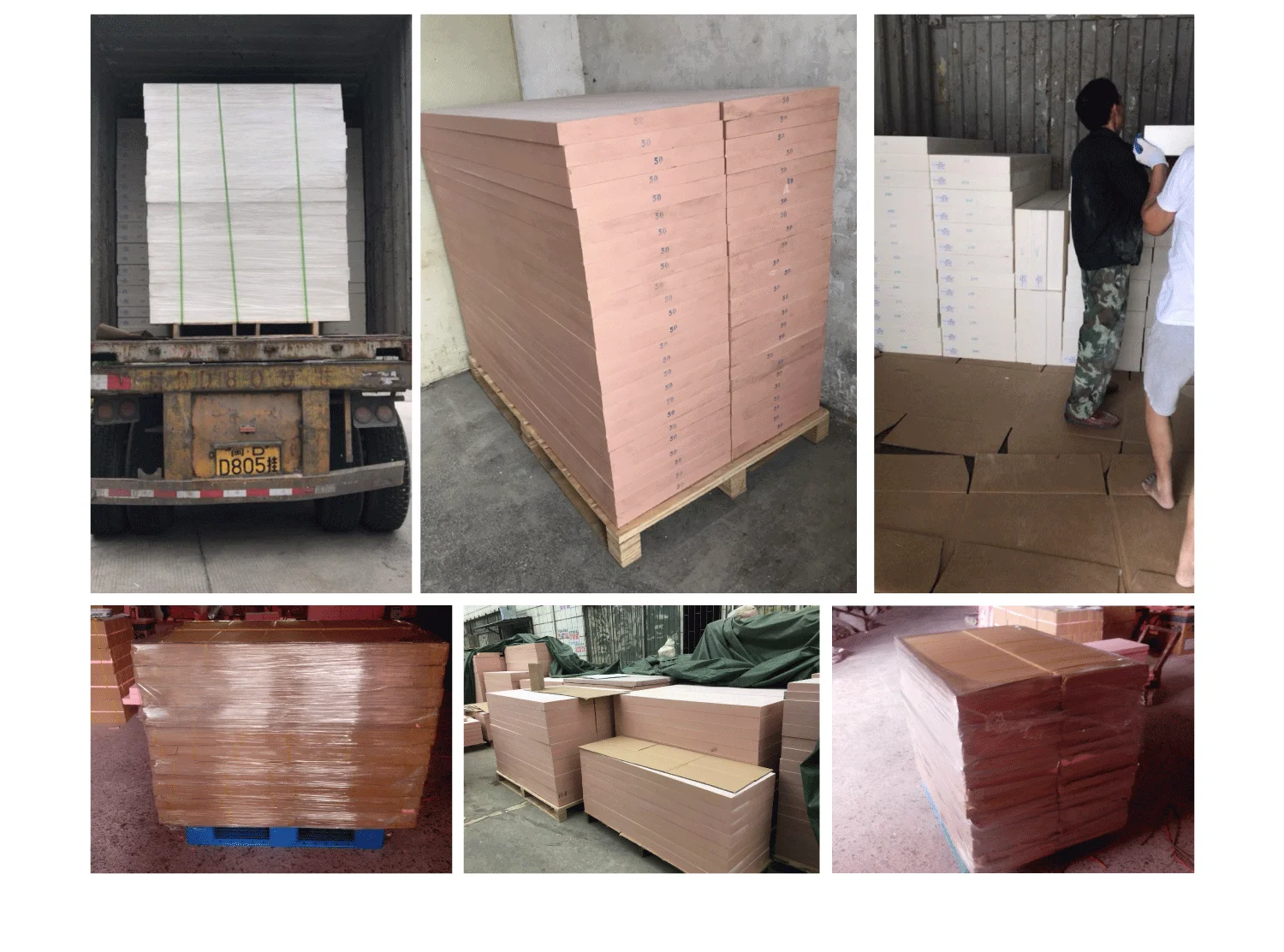

       Asfrom Packing & Shipping



       Asfrom Clients



       Asfrom Exhibitions

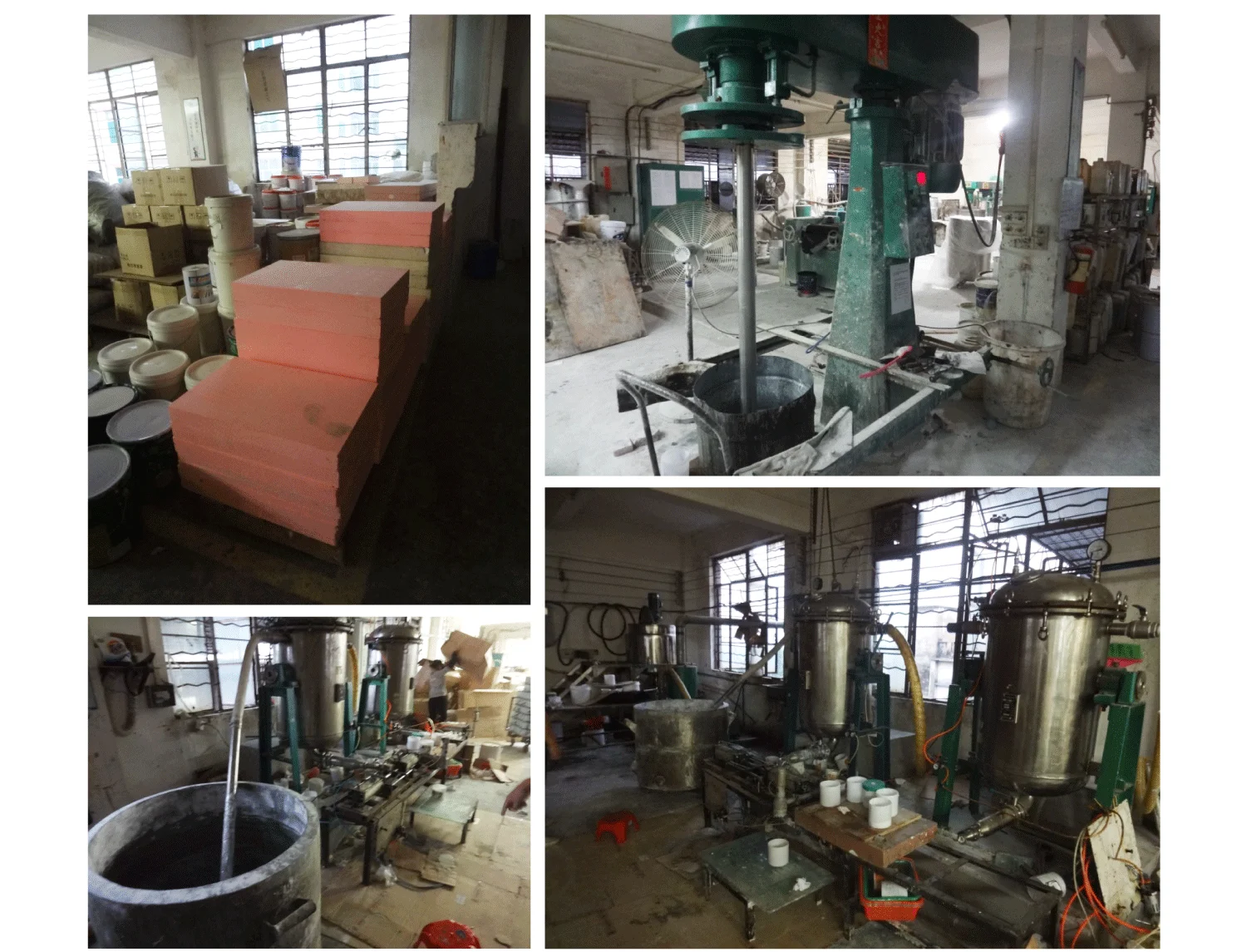

ASFROM GROUP   has been specializes in machinery and mold business in China for many years. Under our group, we have our own factories as follows:

1. Mould factory for Eva foaming and Rubber sheet.

2. Rubber sheet factory for High quality rubber product and Crepe Rubber Sheet.

3. R & D center of automatic customized equipment for Big Brand.



Our comprehensive experience and professional team can provide you with complete solution support for the following production lines:

1. EVA foaming sheet production line.

2. Sport shoes production line

3. Flip-flop whole production line.

4. Silkscreen automation equipment and technical support

5. 5G Technology

6. Solar power technology



We have already acted as a professional agency here for all kinds of shoes material collection for some oversea big factories, help to collect all of the shoe materials and control the quality, arranging the shipment by FCL or LCL as the order quantity, The most important thing is that we can make a very careful inspection before shipment. We are willing to offer you our excellent service for the shoes material business.



We hope that we can do better in the future with sticking to the principle of "Honesty as basis". Welcome customers from all over the world to cooperate with us and look forward to your visit. Really hope that we can build up mutual beneficial relatio ships together, we believe, Right beginning from ASFROM right solution!
