High speed Robot 180 Laser welding system for hot sale

Product Overview

Description

SPECIFICATION

Technical parametersMax. laser power: 180W Laser wave-length: 1064nm Single pulse energy: 100J Welding depth: 0.1 - 3.3mm(silver, gold and so on) Welding wire: 0.6mm, 0.8mm and more Pulse width: 0.3 - 20ms Welding frequency: 0.5 - 20Hz Adjustable facula size: 0.2-2mm Contral system: micro-computer Power consumed: ≤4KW Electrical source: 220V±10%/50Hz/30A Laser medium

Laser spot welding is use high energe impulse laser to weld the material. It through laser power discharge to Xe lamp impulse to form light wave. The light wave radiate to Nd3+:YAG crystal through gather ray cavity, crystal send 1064nm im pulse laser through resonance, then it weld the materials through echo and focus.Commonly used in the jewelry industry this is known as jewelry laser spot welding.

The laser spot welding machine designed for jewelry industry. It can be used to repair the holes on the jewelry; spot weld the blisters weld borders and so on. The series is improved from advanced design technology imported from Germany.
It uses kinesiology design and produced with international top-grade accessories so the machine is more reliable, more durable, more convenient and effective. Besides, laser spot welding can be used to group weld tiny components, for example, weld motor electrode and optical components in greenhouse or special condition.

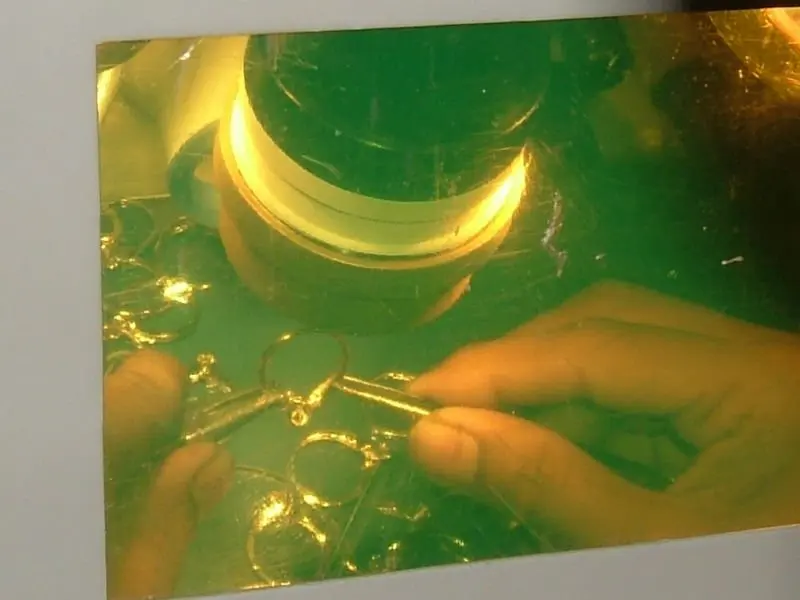

Observing system:It's equipped with special-purpose microscope observing
system with cross cursor. It has high speed electron flitting device to
protect the operator's eyes from being hurt.

Laser spot welding is use high energe impulse laser to weld the material. It through laser power discharge to Xe lamp impulse to form light wave. The light wave radiate to Nd3+:YAG crystal through gather ray cavity, crystal send 1064nm im pulse laser through resonance, then it weld the materials through echo and focus.Commonly used in the jewelry industry this is known as jewelry laser spot welding.

The laser spot welding machine designed for jewelry industry. It can be used to repair the holes on the jewelry; spot weld the blisters weld borders and so on. The series is improved from advanced design technology imported from Germany.
It uses kinesiology design and produced with international top-grade accessories so the machine is more reliable, more durable, more convenient and effective. Besides, laser spot welding can be used to group weld tiny components, for example, weld motor electrode and optical components in greenhouse or special condition.
Observing system:It's equipped with special-purpose microscope observing
system with cross cursor. It has high speed electron flitting device to
protect the operator's eyes from being hurt.

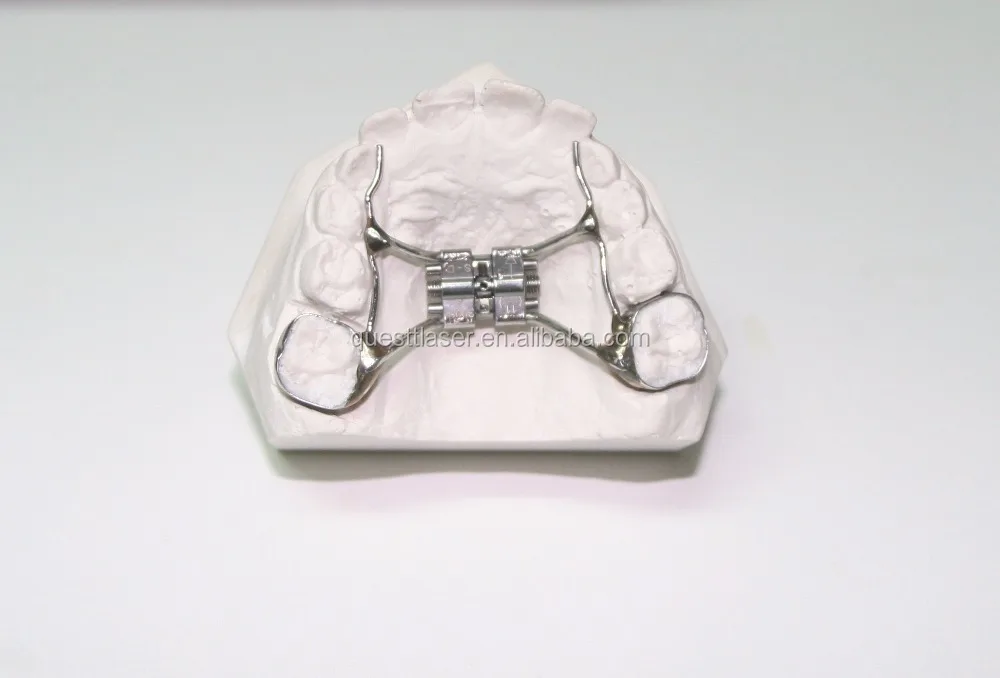

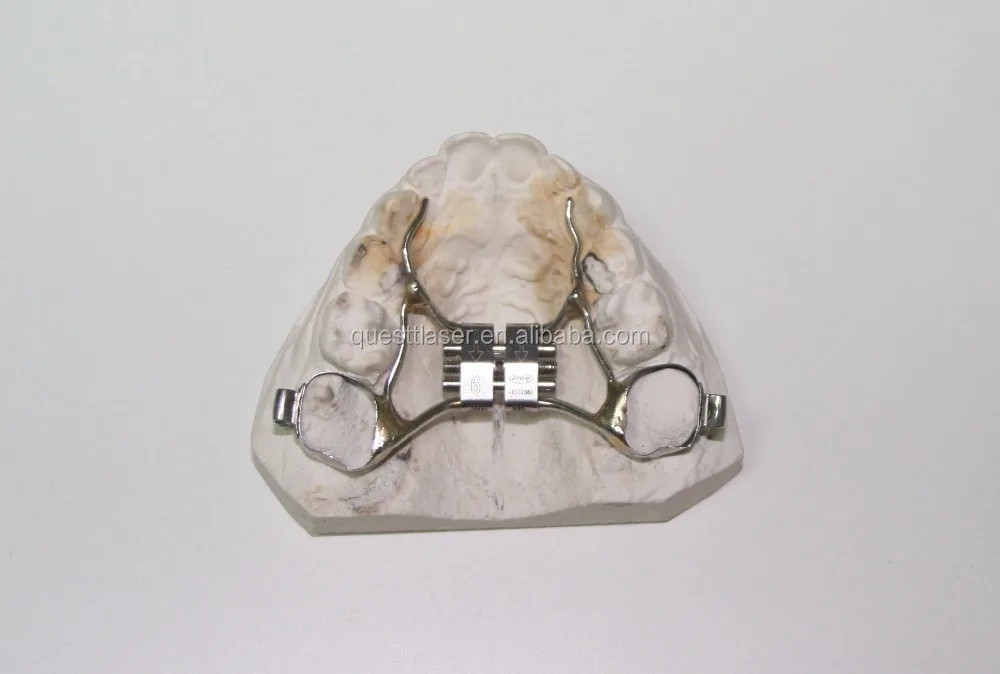

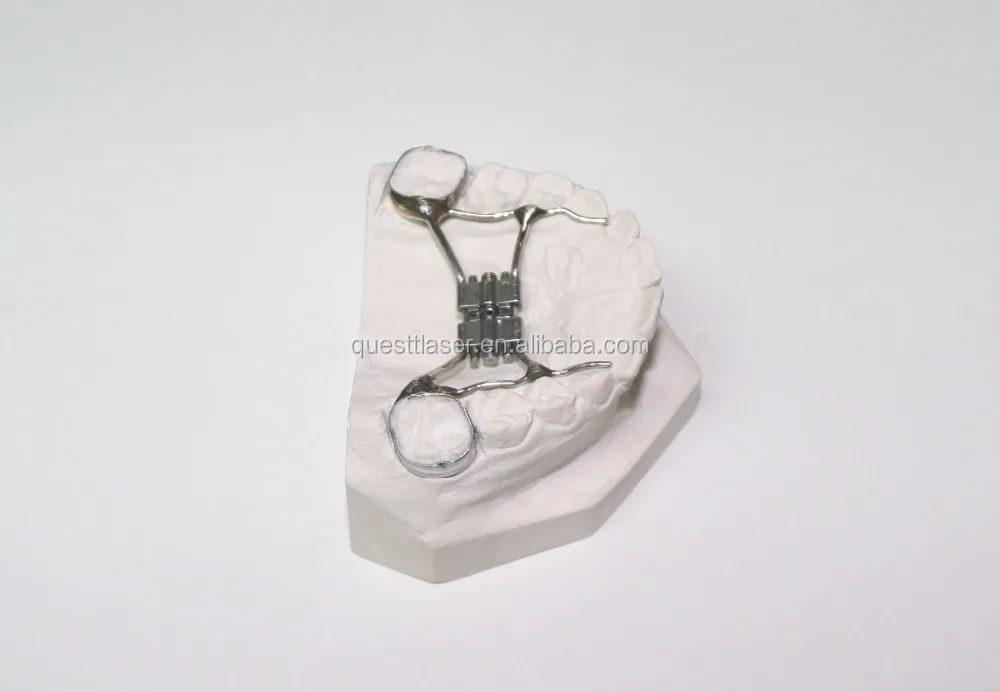

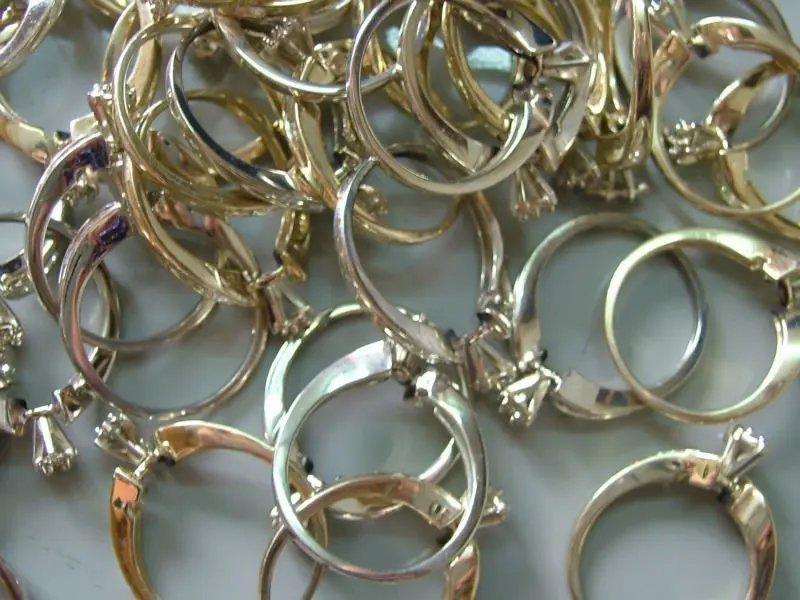

 It can be used to repair the holes on the jewelry; spot weld the blisters weld borders and so on

sample
