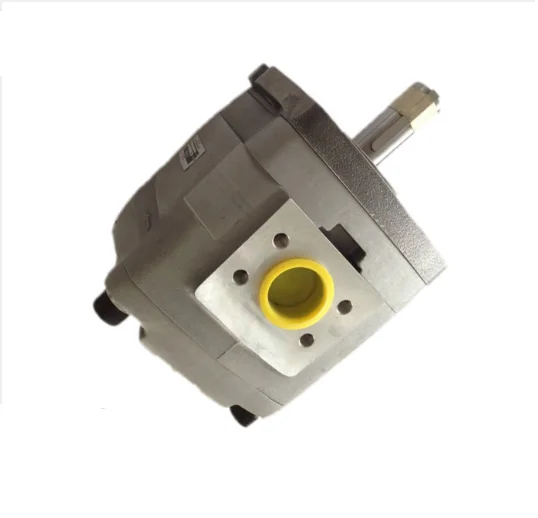

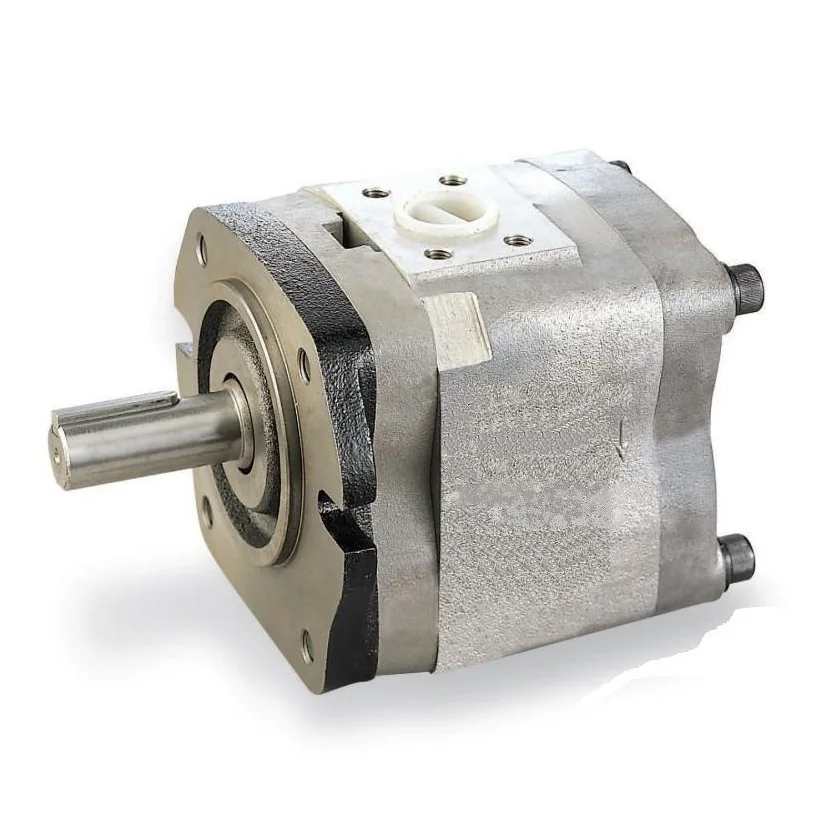

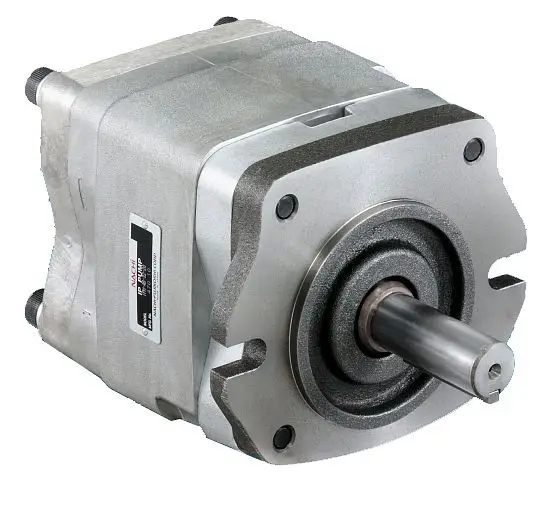

DAESUNG IPH of IPH 2A,IPH 2B,IPH 3A,IPH 3B,IPH 4A,IPH 4B,IPH 5A,IPH 5B,IPH 6A,IPH 6B hydraulic internal gear pump
- Category: >>>
- Supplier: Ningbo Associated Hydraulic Components Co. Ltd.
Share on (630346387):
Product Overview
Description
Hot sales DAESUNG-NACHI IPH of IPH-2A,IPH-2B,IPH-3A,IPH-3B,IPH-4A,IPH-4B,IPH-5A,IPH-5B,IPH-6A,IPH-6B hydraulic internal gear pump
1. Aamazing low power loss, energy saving
2. Completely interchangeable with original
3. High efficiency, low noise and long service life
4. Patented technology of axial and radial pressure forcing type, pressure up to 30Mpa(306kgf/cm3)
5. Designof revised involute and short internal gear, to reduce pulse and noise
6. For engineering machinery and industrial machinery and automobile industry etc.
7. Easy structure and maintenance
8. Very competitive price
9. 1 year of warranty
10. Short delivery time
Some models for your reference:
IPH-2A-3.5-11 | IPH-2B-3.5-11 | IPH-2A-5-11 | IPH-2B-5-11 |
IPH-2A-6.5-11 | IPH-2B-6.5-11 | IPH-2A-8-11 | IPH-2B-8-11 |
IPH-3A-10-20 | IPH-3B-10-20 | IPH-3A-13-20 | IPH-3B-13-20 |
IPH-3A-16-20 | IPH-3B-16-20 | IPH-4A-20-20 | IPH-4B-20-20 |
IPH-4A-25-20 | IPH-4B-25-20 | IPH-4A-32-20 | IPH-4B-32-20 |
IPH-5A-40-21 | IPH-5B-40-21 | IPH-5A-50-21 | IPH-5B-50-21 |
IPH-5A-64-21 | IPH-5B-64-21 | IPH-6A-80-21 | IPH-6B-80-21 |
IPH-6A-100-21 | IPH-6B-100-21 | IPH-6A-125-21 | IPH-6B-125-21 |
IPH-22B-3.5-3.5-11 | IPH-23B-3.5-10-11 | IPH-22B-3.5-5-11 | IPH-23B-3.5-13-11 |
IPH-22B-3.5-6.5-11 | IPH-23B-3.5-16-11 | IPH-22B-3.5-8-11 | IPH-23B-5-10-11 |
IPH-22B-5-5-11 | IPH-23B-5-13-11 | IPH-22B-5-6.5-11 | IPH-23B-5-16-11 |
IPH-22B-5-8-11 | IPH-23B-6.5-10-11 | IPH-22B-6.5-6.5-11 | IPH-23B-6.5-13-11 |
IPH-22B-6.5-8-11 | IPH-23B-6.5-16-11 | IPH-23B-8-10-11 | IPH-23B-8-13-11 |
IPH-23B-8-16-11 | IPH-55B-40-40-11 | IPH-55B-40-50-11 | IPH-55B-40-64-11 |
IPH-55B-50-50-11 | IPH-55B-50-64-11 | IPH-55B-64-64-11 | IPH-56B-40-80-11 |
IPH-56B-40-100-11 | IPH-66B-80-100-11 | IPH56B-40-125-11 | IPH-56B-50-80-11 |
IPH-66B-100-100-11 | IPH-56B-50-100-11 | IPH-56B-50-125-11 | IPH-66B-125-125-11 |
IPH-56B-64-80-11 | IPH-66B-80-125-11 | IPH-66B-100-125-11 | IPH-8-8-11 |
IPH-56B-64-100-11 | IPH-56B-64-125-11 |
|
Technical Specifications:
| Model | Displ. ml/r | Rated pressure Mpa | Max. working press. Mpa | Min. speed rpm | Max. speed rpm | Weight kg | |
| Type A | Type B | ||||||
| IPH-2A(B)-3.5-11 | 3.60 | 25 | 30 | 600 | 2000 | 4.4 | 2.4 |
| IPH-2A(B)-5-11 | 5.24 | 4.5 | 2.5 | ||||
| IPH-2A(B)-6.5-11 | 6.55 | 4.6 | 2.6 | ||||
| IPH-2A(B)-8-11 | 8.18 | 4.8 | 2.8 | ||||
| IPH-3A(B)-10-20 | 10.20 | 25 | 30 | 600 | 2000 | 10.5 | 4.8 |
| IPH-3A(B)-13-20 | 13.30 | 10.7 | 5 | ||||
| IPH-3A(B)-16-20 | 15.80 | 11 | 5.3 | ||||
| IPH-4A(B)-20-20 | 20.70 | 25 | 30 | 500 | 2000 | 15.2 | 9.5 |
| IPH-4A(B)-25-20 | 25.70 | 15.7 | 10 | ||||
| IPH-4A(B)-32-20 | 32.30 | 16.2 | 10.5 | ||||
| IPH-5A(B)-40-21(11) | 40.80 | 25 | 30 | 400 | 2000 | 32 | 19 |
| IPH-5A(B)-50-21(11) | 50.30 | 33 | 20 | ||||
| IPH-5A(B)-64-21(11) | 63.90 | 34 | 21 | ||||
| IPH-6A(B)-80-21(11) | 81.30 | 25 | 30 | 300 | 2000 | 68 | 39 |
| IPH-6A(B)-100-21(11) | 101.60 | 70 | 41 | ||||
| IPH-6A(B)-125-21(11) | 125.90 | 72 | 43 | ||||

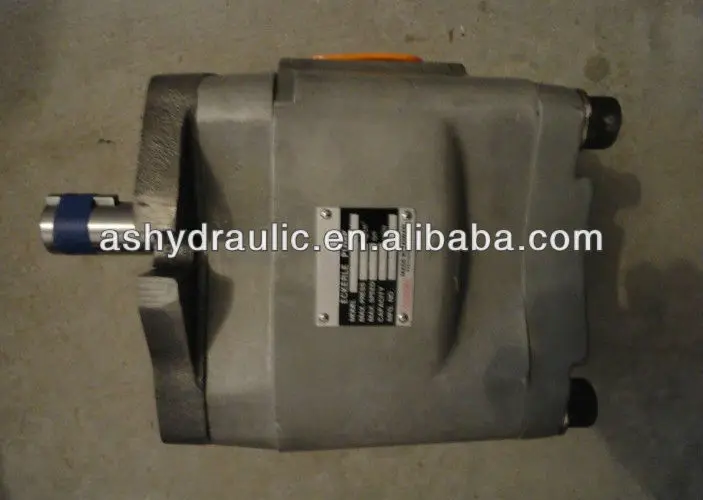

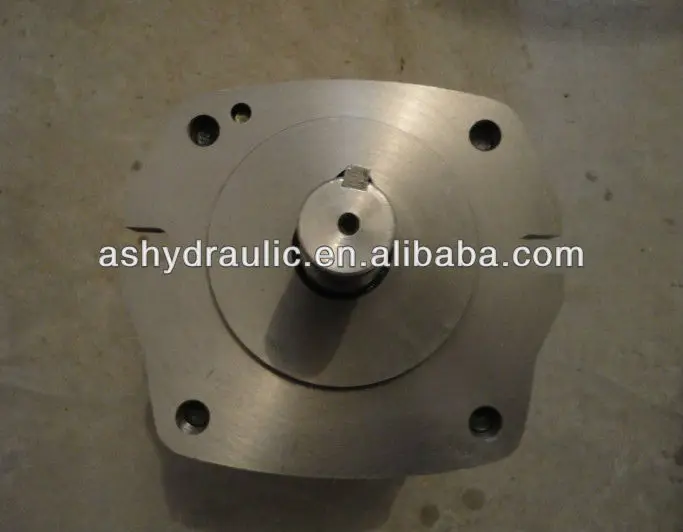

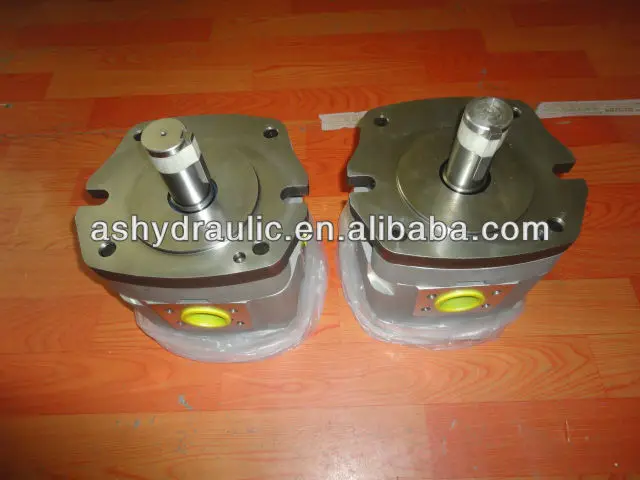

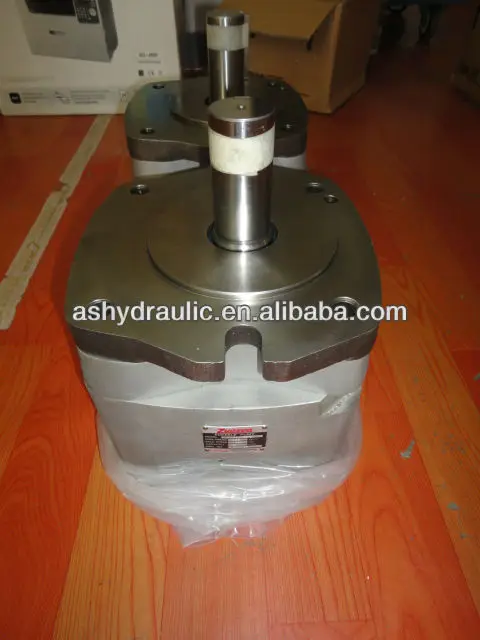

Real photos bought by the importer frin UAE and manufacturer from Serbia:
