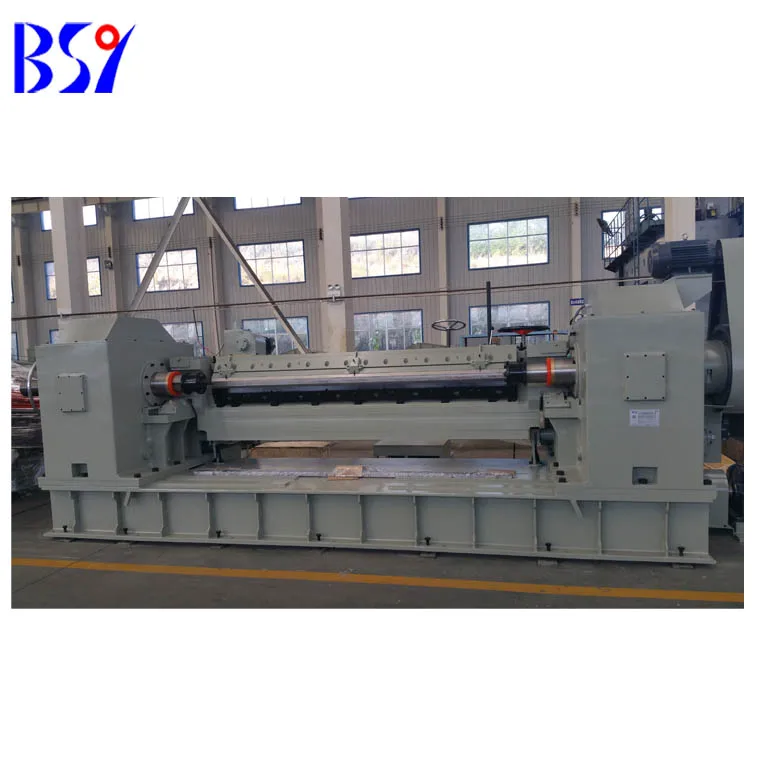

BQ1326/11 Mechanical Single chuck Rotary Lathe
- Category: >>>
- Supplier: Shandong BSY Group Co. Ltd.
Share on (630379782):
Product Overview
Description
Mechanical Single-chuck Rotary Lathe
This machine is mechanical single spindle rotary peeling lathe. With simple structure, it is easy to operate
MODEL | BQ1326/5 | BQ1326/11 | BQ1326/13 | BQ1326/15 |
Max.cutting diameter (mm) | Φ 125-500 | Φ 135-1100 | Φ 135-1300 | Φ 280-1500 |
Max.cutting length (mm) | 2100-2700 | 2100-2700 | 2100-2700 | 2100-2700 |
Thickness range of veneer (mm) | 0.3-3.25 | 0.3-3.25 | 0.3-3.25 | 0.3-3.25 |
Chuck diameter (mm) | Φ 100 | Φ 130 | Φ 130 | Φ 160 |
Max.rotating speed of spindle (rpm) | 43-131 | 16-96 | 16-96 | 0-80 |
Quick forward and backward speed of cutting machine (m/min) | 1.37 | 1.32 | 1.32 | 2.35 |
Main motor power (kw) | 55 | 55 | 55 | 55 |
Rapid feed motor power (kw) | 3 | 3 | 3 | 3 |
Nose bar lifting motor power(kw) |
| 1.5 | 1.5 | 1.5 |
Clamping motor power (kw) | 3 | 4 | 4 | 4 |
Grinding angle of appropriate tool cartridge | 18°-20 ° | 18°-20 ° | 18°-20 ° | 18°-20 ° |
Overall dimensions (mm) | 6990×2120×1325 | 8340×2290×1945 | 8340×2290×1945 | 8340×2296×2161 |
Weight (kg) | 15000 | 17000 | 18000 | 19000 |

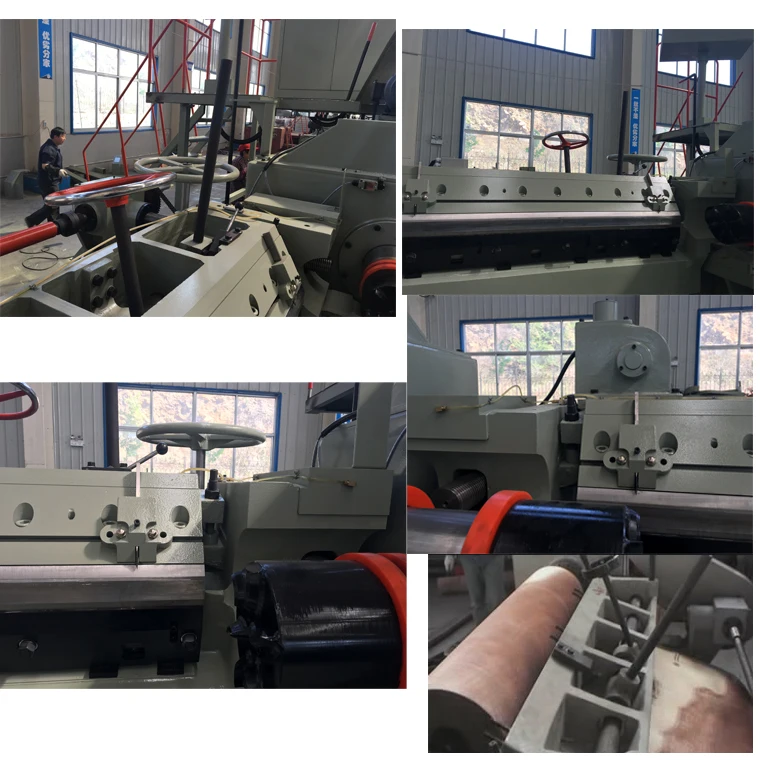

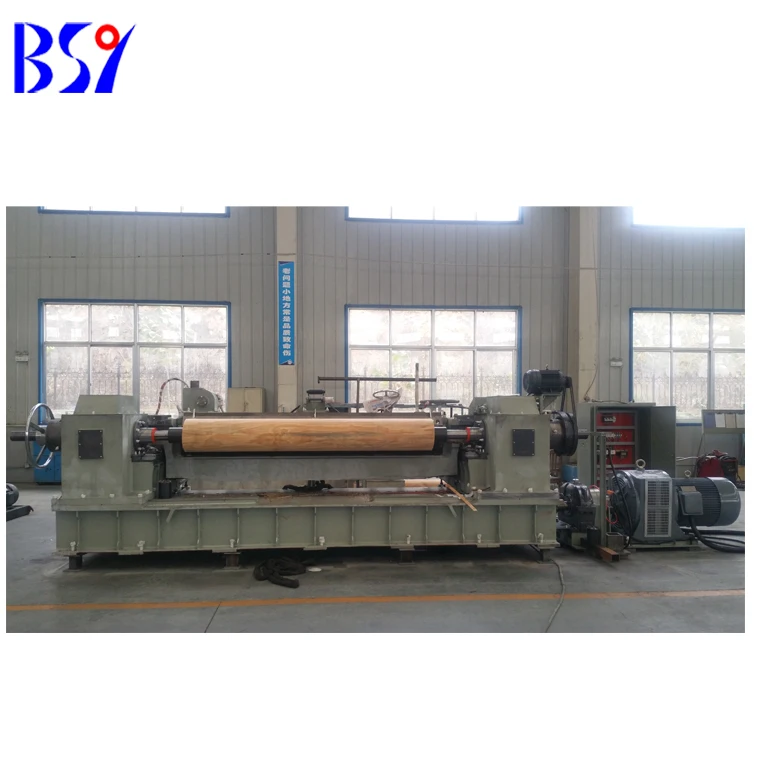

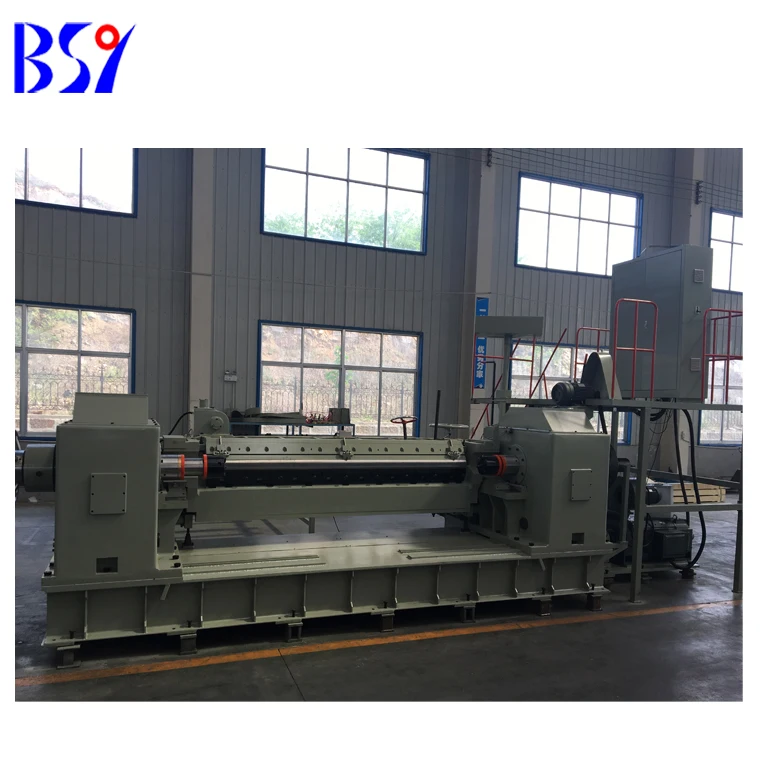

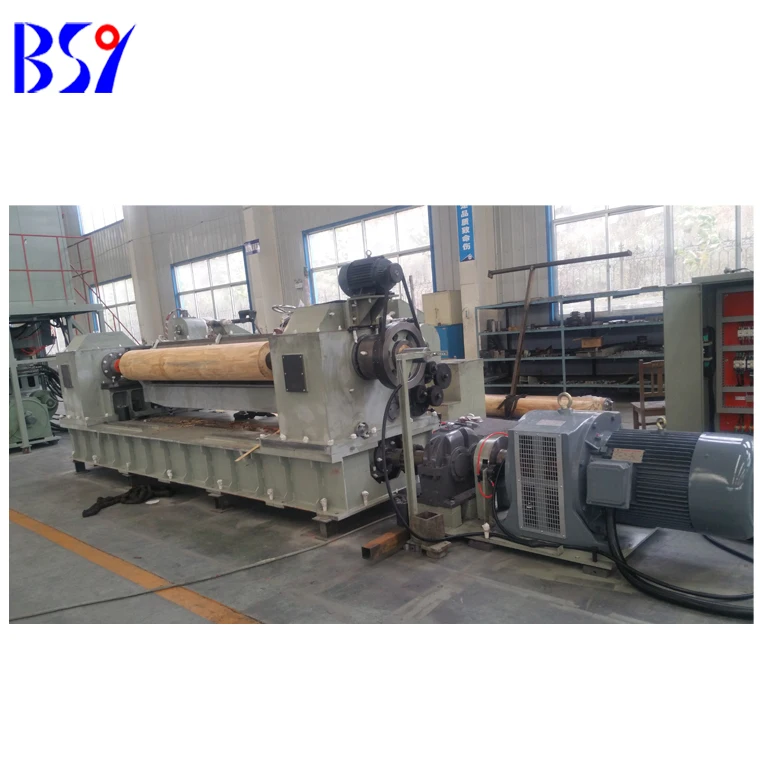

Detailed Images
Company Information
1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.
2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.
3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
The main productions include: log debarker, log charger, double-spindle veneer peeling lathe, single-spindle veneer peeling lathe, CNC non-spindle veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, Four-Side Moulder , sanding machine etc.
