For Linotronic Machine, HNS Recording Film, Image Setter Film

Product Overview

Description

For Linotronic Machine, HNS Recording Film, Image Setter Film







Key benefits



• Delivers consistent, high-quality results.


• Wide exposure latitude increases productivity and results in fewer remakes.


• Easy to handle for fewer remakes and wasted materials.

+Model: HNU ( ISO 9001:2008, SGS REPORT)

Used for offset printing





[ Do not expose film to white light ]





Type: LP6328-II



*Application
HN Laser Imagesetter film LP-6328II is designed for Helium Neon laser or red laser imagesetters with light sources for 632.8nm to 670nm and suitable for text and line as well as image.





*Characteristics
1.Extra-hard contrast, high resolution and excellent dot sharpness.
2.High maximum density, moderate sensitivity.
3.Wide exposure and developing latitude, suitable for rapid access at high temperature.
4.The base is a specially-made polyester with good flatness and dimensional stability.

*Sizes

In roll:  1.27m*30m/roll     0.30m*30m/roll
           0.76m*30m/roll     0.25m*30m/roll
           0.42m*30m/roll     0.19m*30m/roll
           0.39m*30m/roll     0.15m*30m/roll

             0.55m*60m/roll   0.66m*60m/roll

           0.71m*60m/roll     0.76m*60m/roll

           0.78m*60m/roll     0.80m*60m/roll

           0.813m*60m/roll   0.85m*60m/roll

           0.914m*60m/roll   0.95m*60m/roll

           1.10m*60m/roll     1.13m*60m/roll

           1.0m*60m/roll       0.838m*60m/roll



*Other sizes can be produced according to customers requested.



*They are widely used in textile printing= dyeing.





+ We have imagesetter films for offset printing.

Model: HNU



Sizes

     356mm×60m         406mm×60m          457mm×60m

     508mm×60m         558mm×60m          610mm×60m

     660mm×60m         710mm×60m          762mm×60m

     813mm×60m         838mm×60m          914mm×60m

     1130mm×60m

     Other sizes are also available as required.

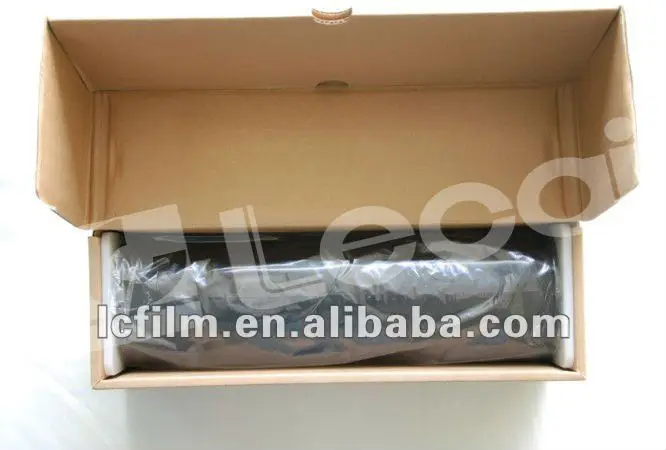

Package

The package of these three kinds of room light films can be selected according to the type of machine.

The films can be loaded under room light conveniently and rapidly.

1. Room light film-feeder can be used as one-time cartridge.

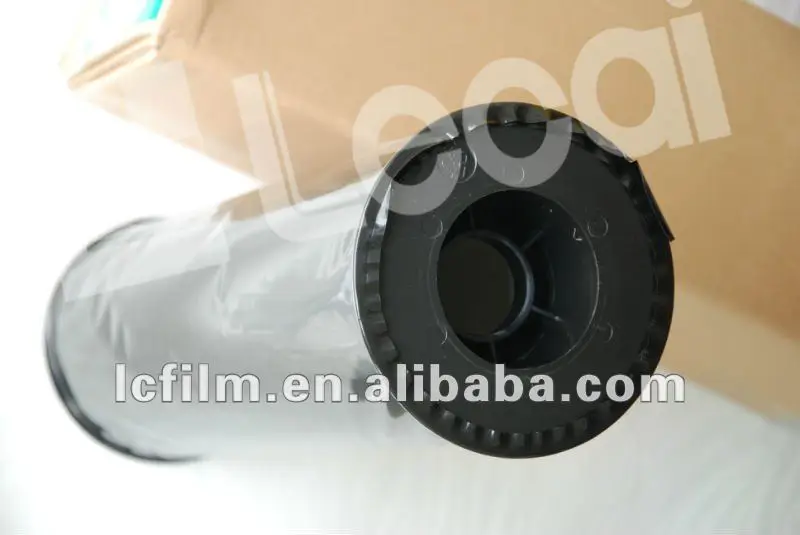

2. Soft flange package can be easily placed in the special cartridge of the machine.

3. Hard flange package is suitable for machine with axis of 71.9mm diameter.

Regular diameter: 28.6mm, 50.8mm, 71.9mm

Surface of emulsion layer: inward or outward



2. Explanation of codes

The first: “6” means codes of Huaguang laser imagesetting film and phototypesetting film.

The second: “0” means emulsion layer faces inward.

          “1” means emulsion layer faces outward.

The third, fourth: “51” means axis diameter: 50.8mm

              “72” means axis diameter: 71.9mm

The fifth: “B” means soft flange

        “C” means hard flange

The sixth: “D” means room light loading

        “E” means loading in the darkroom.



3. Examples of codes

“6051BD” means emulsion layer faces inward, axis diameter: 50.8mm, soft flange, room light loading.

“6172BD” means emulsion layer faces outward, axis diameter: 71.9mm, hard flange, loading under room light.

“6051AE” means emulsion layer faces inward, axis diameter: 50.8mm, plastic holder, loading in the dark-room.



Unpacking

 .Room light loading film can be put into a special cassette of the imagesetter under room light.

 .Darkroom loading films should be put into a special cassette of the imagesetter under dark green light

or total darkness.

 .Handle with care to prevent from damage of friction, folding oil sludge and finger prints.



Exposure

 .Correct exposure conditions should be finalized by tests according to the different types of machines

and age conditions of diodes.



Processing

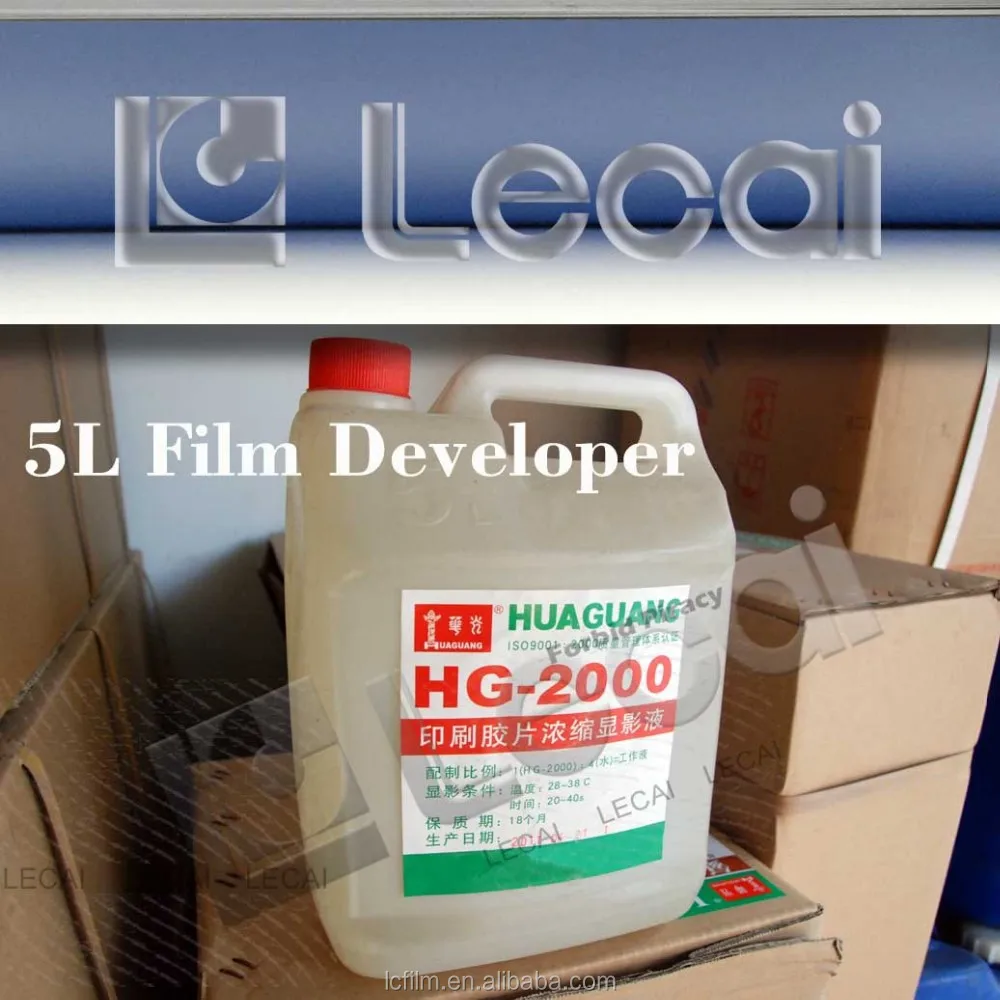

 .Chemicals of HuaGuang HG-2000 is recommended, other similar chemicals can also be used.

 .Recommended developing conditions as follows.

Developing Tem.	30-36°C	*35°C
Developing Time	30-40 sec.	*35sec.







*Would be the first option of development conditions for customers.

Fixing time: 32°C

Storage

 .Store it cool and dry. Storage temperature should be lower than 20°C and RH less than 65%.

If it is too humid and warm, the film shelf life would be shortened.

 .Avoid sunlight, radioactive or harmful substances.



Guarantee Period

18 months.
