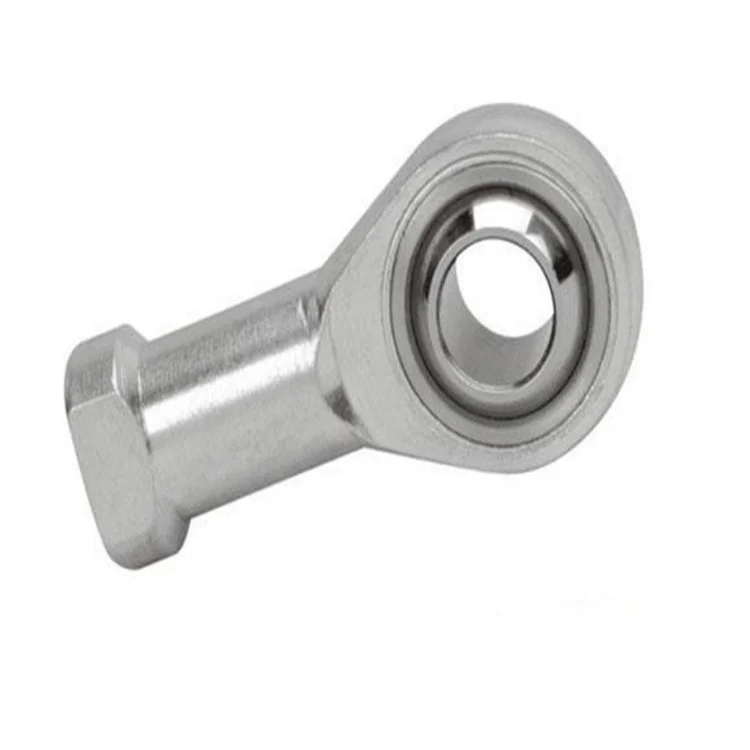

Высокая точность шаровой шарнир рулевой тяги подшипники Серия pos pos5 pos8 pos10 для велосипедного колеса
- Category: >>>
- Supplier: Tianjin Deina Bearing Sales Co. Ltd
Share on (631212339):
Product Overview
Description
High precision ball joint rod end bearings pos series pos5 pos8 pos10 for bicycle wheel
Product Description
Features of ball joint rod end bearing pos series pos5:
1) Can bear high load. According to its different types and structures, rod end bearing can bear radial load, axial load as well as two kinds of loads together.
2) Spherical outside surface of inner ring is lined with composite, so it is self-lubricating.
3) Rod end bearings has shock resistance, because of its spherical sliding large contact area, large dip angle and special craft processing method, such as lamenting, zincing, chroming or lining of outside sliding surface, spraying and so on.
4) Rod end bearing has the resistance of corrosion, abrasion. It also can be self-aligning, self-lubricating, so it can work normally even though installed improperly.

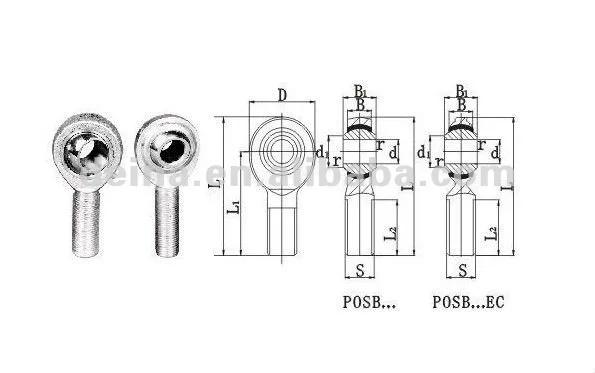

Drawing of ball joint rod end bearing pos series pos5:
Bearings number | Dimensions (mm) | Load ratings | a° | Weight (kg)
| ||||||||||
d | B | r1 | C1 | d1 | d2 | d3 | h1 | L3 | L4 | Dynamic | Static | |||
POS5 | 5 | 8 | 0.3 | 6 | 7.7 | 16 | M5×0.8 | 33 | 20 | 41 | 3.3 | 3.9 | 13 | 0.016 |
POS6 | 6 | 9 | 0.3 | 6.75 | 9 | 18 | M6×1 | 36 | 22 | 45 | 4.3 | 5.3 | 13 | 0.026 |
POS8 | 8 | 12 | 0.3 | 9 | 10.4 | 22 | M8×1.25 | 42 | 25 | 53 | 6.8 | 8.5 | 14 | 0.044 |
POS10 | 10 | 14 | 0.6 | 10.5 | 12.9 | 26 | M10×1.5 | 48 | 29 | 61 | 10 | 11 | 14 | 0.072 |
POS12 | 12 | 16 | 0.6 | 12 | 15.4 | 30 | M12×1.75 | 54 | 33 | 69 | 13 | 14 | 13 | 0.108 |
POS14 | 14 | 19 | 0.6 | 13.5 | 16.9 | 34 | M14×2 | 60 | 36 | 77 | 17 | 20 | 16 | 0.161 |
POS16 | 16 | 21 | 0.6 | 15 | 19.4 | 38 | M16×2 | 66 | 40 | 85 | 21 | 25 | 15 | 0.225 |
POS18 | 18 | 23 | 0.6 | 16.5 | 21.9 | 42 | M18×1.5 | 72 | 44 | 93 | 26 | 30 | 15 | 0.295 |
POS20 | 20 | 25 | 0.6 | 18 | 24.4 | 46 | M20×1.5 | 78 | 47 | 101 | 31 | 35 | 15 | 0.382 |
POS22 | 22 | 28 | 0.6 | 20 | 25.8 | 50 | M22×1.5 | 84 | 51 | 109 | 38 | 43 | 15 | 0.488 |
POS25 | 25 | 31 | 0.6 | 22 | 29.6 | 60 | M24×2 | 94 | 57 | 124 | 47 | 65 | 15 | 0.749 |
POS28 | 28 | 35 | 0.6 | 25 | 32.3 | 66 | M27×2 | 103 | 62 | 136 | 59 | 77 | 15 | 0.949 |
POS30 | 30 | 37 | 0.6 | 25 | 34.8 | 70 | M30×2 | 110 | 66 | 145 | 63 | 86 | 17 | 1.13 |
ball joint rod end bearing pos series pos5 all kinds of dimensions:
supply all kinds of rod end bearings with all dimensions as customers require, such as: SI...E, SI...ES, SA...E, SA...ES, SI...T/K, SA...T/K, SI...B/K, SA...B/K. GIR...UK, GAR...UK, PHS...., POS...., SIZP...S, SAZP...S, SIZJ...., SAZJ...., GIHR...DO, GIHR...K...DO, SIQG...ES, GK...DO, GF...DO, ect. The material of the bearings can be steel/steel, steel/PTFE bronze composite, steel/bronze

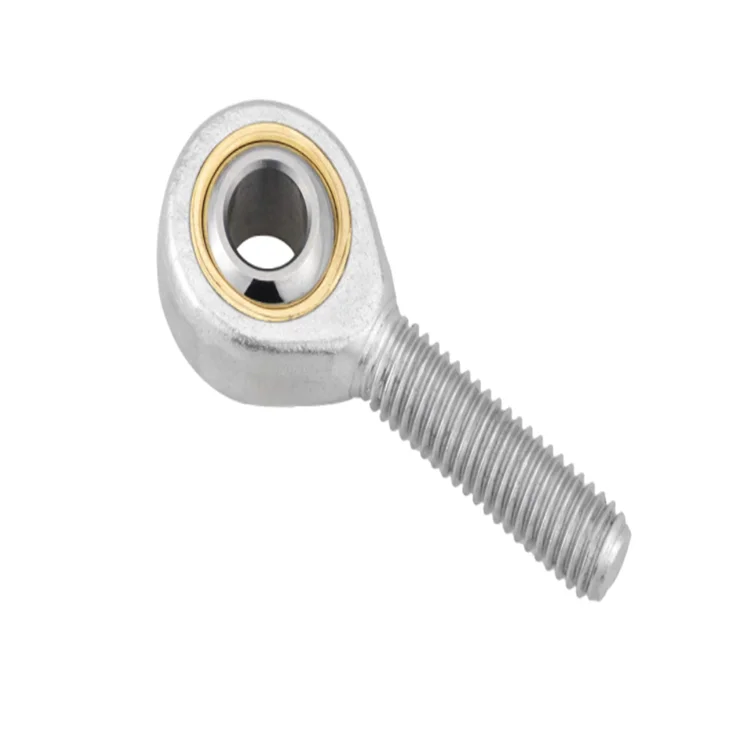

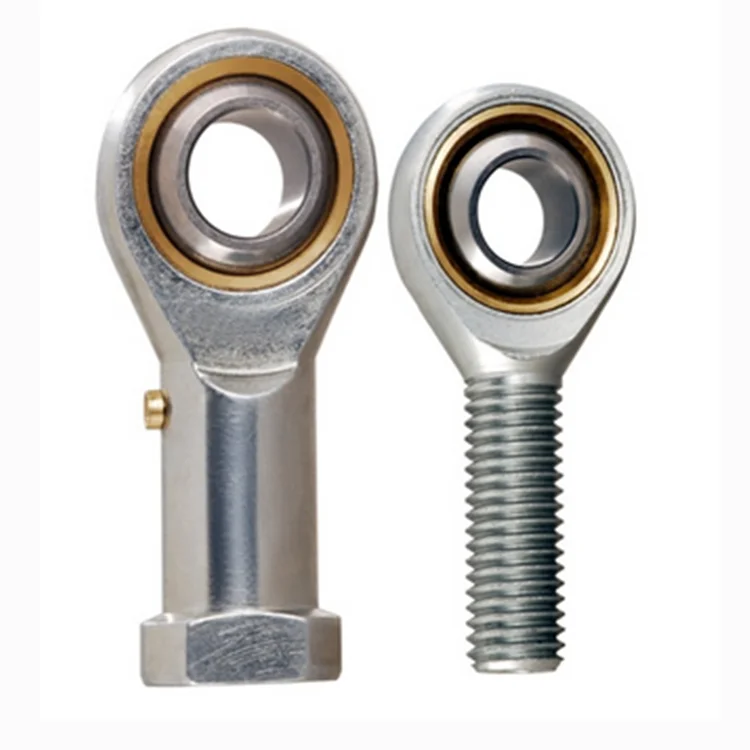

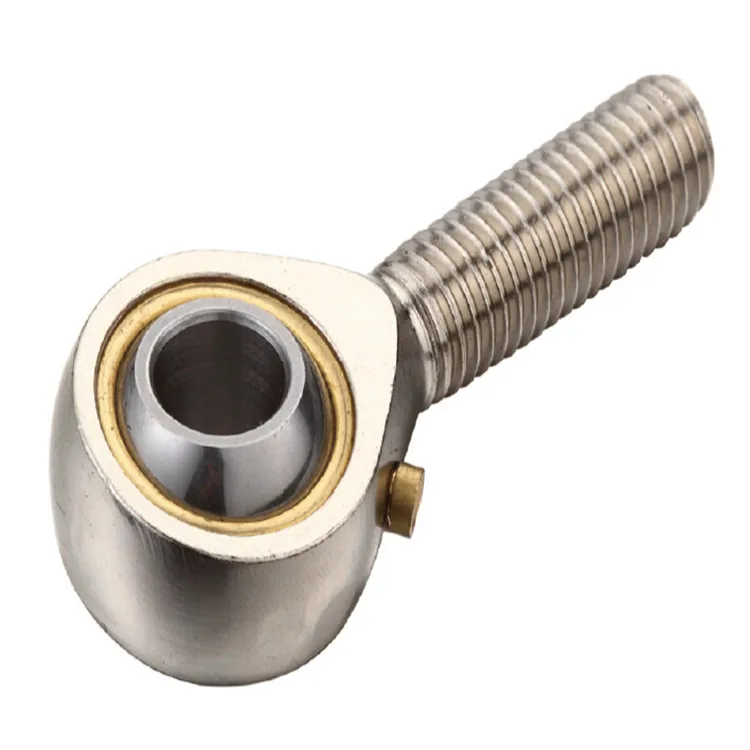

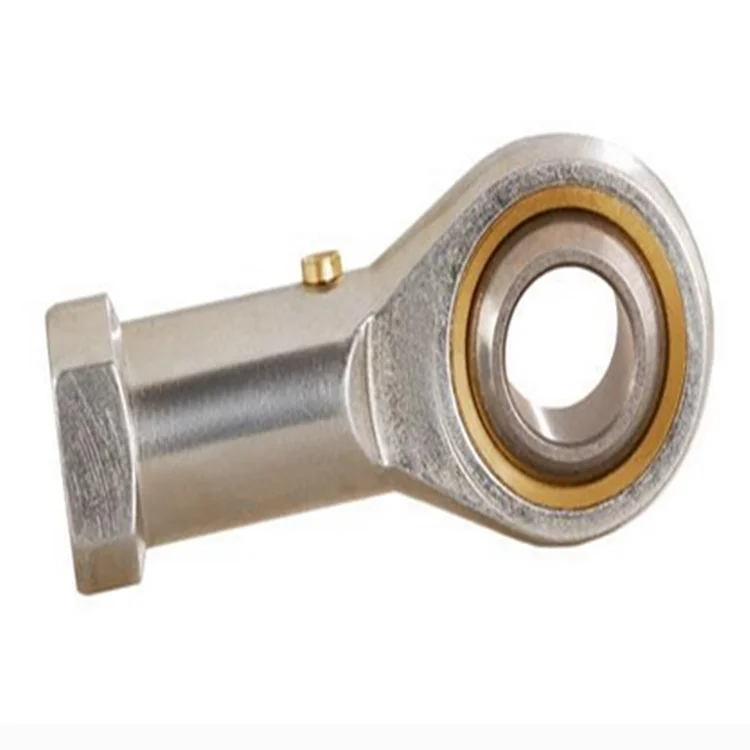

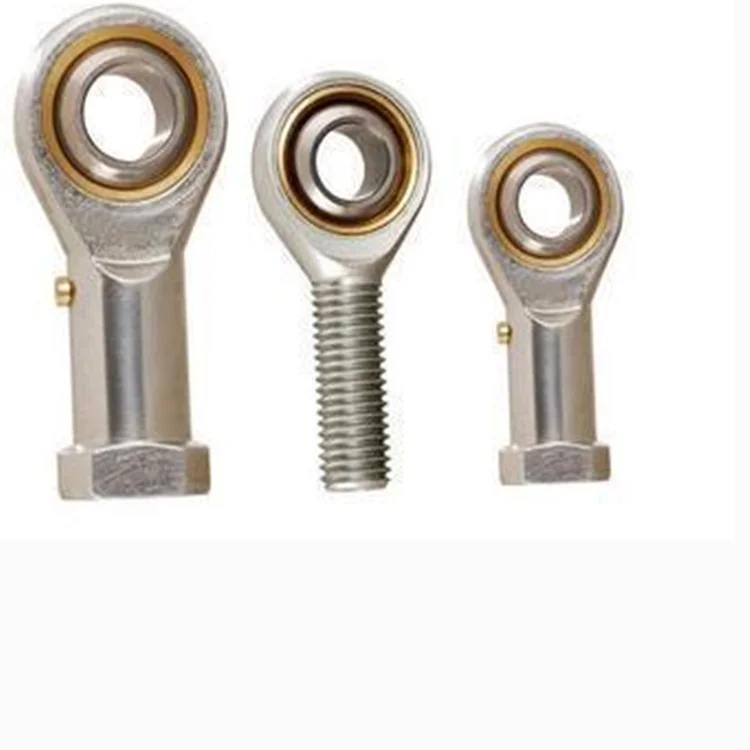

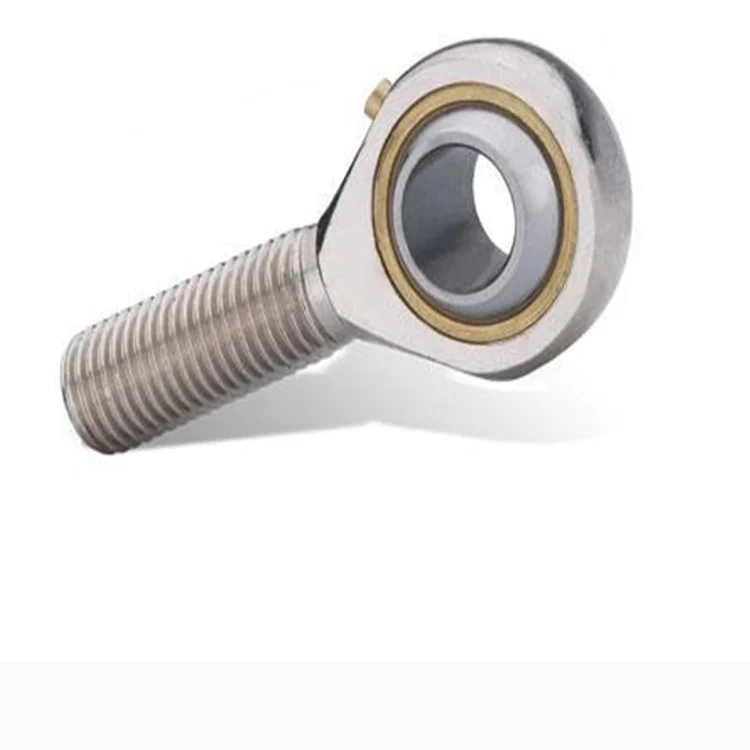

photos of ball joint rod end bearing pos series pos5:
Customer Feedback:
Why choose us?
1.Before-sale service
We have professional technical engineer who can provide customers with necessary drawing or technical service.
2. Strong Suppling Capacity
We are direct factory in China for 20 years that produce Several hundreds of bearing types. Our common goal is that 5billion sets items as produced year and the output value more than 5 billion US dollars in the past year.
We can complete excellently all the items about orders with some advanced equipments in China.
3. Know the market very well
Cooperating with the customers all over the world and knowing the markets very well
4.Strict Quality Control System
We have very strict quality control systems and testing equipments and experienced engineers
We have professional QC worker to inspect the goods one by one before the goods leave the factory. We make sure each products that is qualified before leaving our factory.
5.After-Services
After-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.
Any problems and feedbacks will be answered in a short of time.

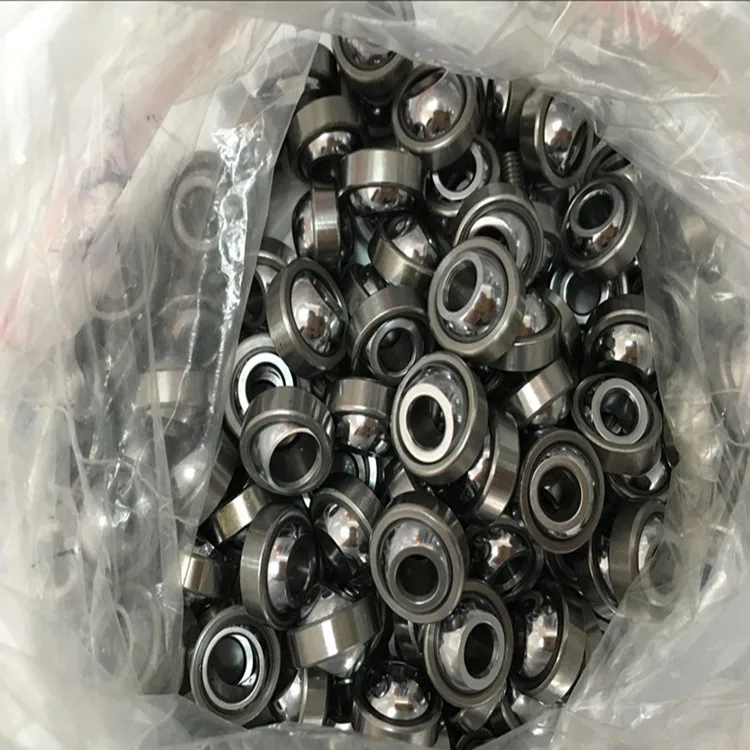

Packaging & Shipping
Packaging:
single box+outer carton+pallets or as per your request
Shipping:
1.For small order,we suggest that send the goods to you by express. Such as UPS,DHL,FEDEX,TNT OR EMS.
2.If your order is big,we will advise you use Air Freight or Sea Freight. It depends on your order quantity.We will calculate the charges which one is suit for you that transport these goods.
3.In generally,we delivery the goods within 3-7days or based on your order quantity.
Company Information
Tianjin Deina Bearing Sales Co.,Ltd has established in 1999. We are a professional supplier of rod end bearing and other accessories.We have been in this line for 19 years. We are mainly export Europe,North and South Africa, East Middle, Asia and so on.
Our products mainly include rod end bearings,ball bearings, roller bearings, combined bearings, bearing units and so on. Besides, we are also one of Authorized Distributors of some World-famous Bearing Brand such as SKF, FAG, NSK, Timken and so on.
What’s more, we have very strict Quality Control. After the goods produce well, they will inspect them. When it is qualified, we will provide them to our customers. Pls be assured that the quality of our bearings. As the goal of our company is quality is the first.
FAQ
1. Could you provide OEM service?
Yes, we can provide OEM service, do as your size packing and other requirements
2. Could you supply samples to us?
Yes, If the sample is simple and of little valve, then free samples are provided,but the buyer need to bear the freight charges.
If the samples need to be ordered, the buyer must bear the sample fee and the freight charges.
3. Could you tell me how is the packaging?
Our normal packaging is PE bag+paper carton,if your order quantity is large, the packaging is PE bag+paper carton+wooden carton.We also can pack the products according to your requirements.
4. How is your bearings’s life time?
The life time is from 6 months to 36 months for different products.
5. Are you a factory or trader? why do you choose us?
We are a direct factory. Pls be assured that we have been in this line for 20 years. Our type is factory +trade. As we are a geninue linear guide supplier and we are really factory, you do not need to pay the profit for middleman.Pls be assured that we offer you the lowest and competitive price.
6.Could you tell me what's your payment terms of your company?
Bank Transfer TT, Western union, Alibaba trade assurance by Credit Card and so on
7.How about the quality of our product? 100% inspection during production. After the goods prepare well, our QC will test the goods one by one. When the goods is not qualified, we will pick up the defective one from the goods.
Certificate
Contact information
If you have any requirements for ball joint rod end bearing pos series pos5, welcome to inquiry.
Pls be assured that we will do our best to cooperate with you.
