silicone rubber extrusion and vulcaniztion production line ,used for silicone rubber profile ,hoses.

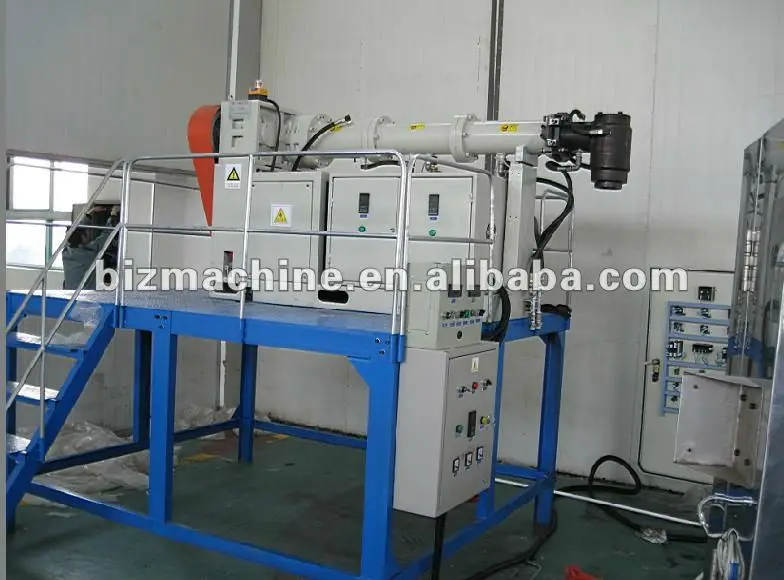

vertical type extruder equipped with 90 degree corner head and platform.

technical specification:

1 90 silicone rubber Extruder

Model                               XJP90×14D

2.General Spec:

2-1· Outlet direction: Right in and left out facing the device

2-2.Screw diameter:               90mm ( max. extrusion diameter tube 150mm)

2-3. screw speed (r/min)          0 to 55

2-4 .L/D:                         14:1

2-5.Capacity(kg)                 320kg/h

2-6· Central height of extruder:       1050mm±20mm

2-7· Feeding mode:           Active feeding with side roller

2-8.External dimensions         3200(L) ×1200(W) ×1620(H)MM

2-9 weight:                       3800Kg
