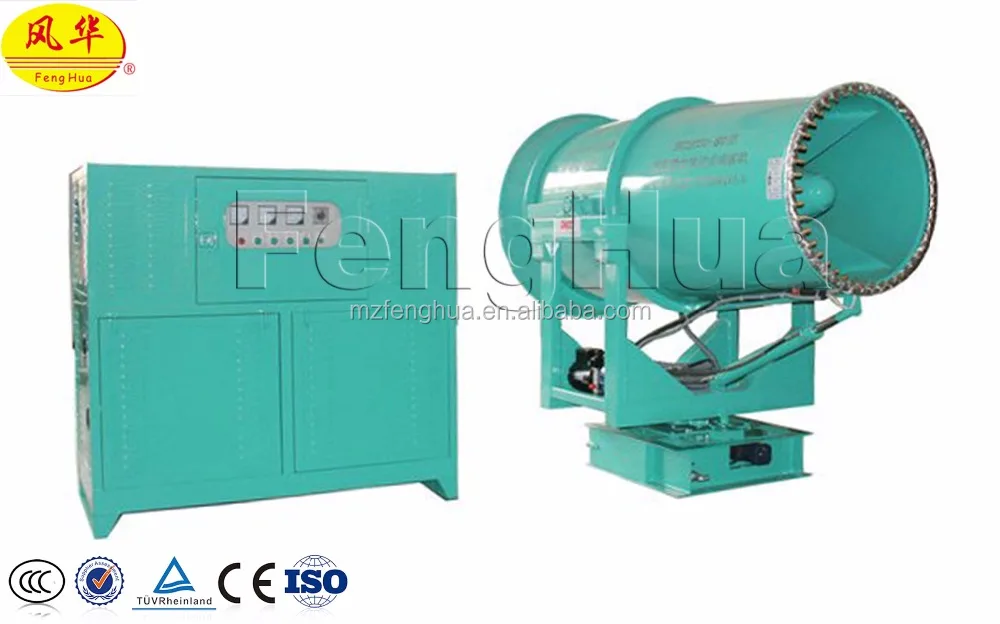

China factory produced wide coverage DS 80 Quarry Mining Coal Industry Dust Suppression Equipment for Dust Control Project

Product Overview

Description

!!!Safety First!!!   !!!Beware of Copy!!!

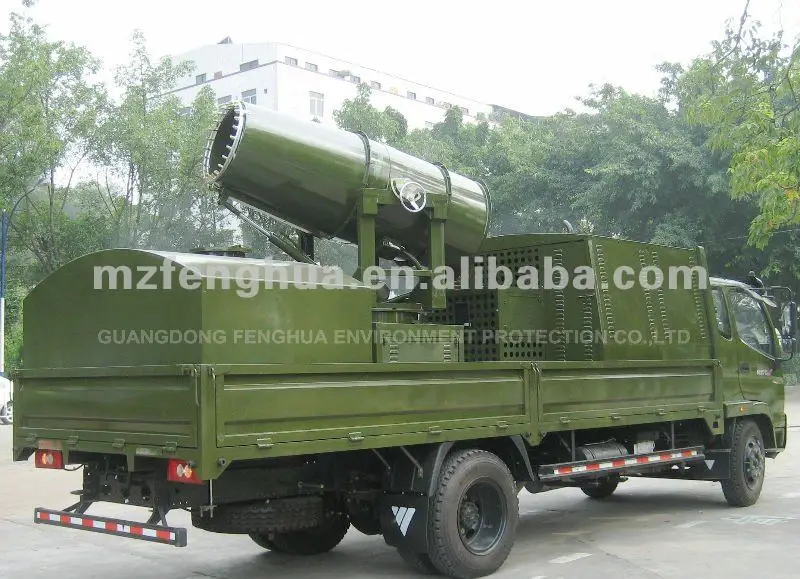

DS-80 Mining, Coal yard, Docks, Steel mill Dust Control Equipment,Truck mounted



Features of Product



1. Strong capability, high & far throw range, wide coverage area, achieve precise volume spraying, high efficiency and spray speed.

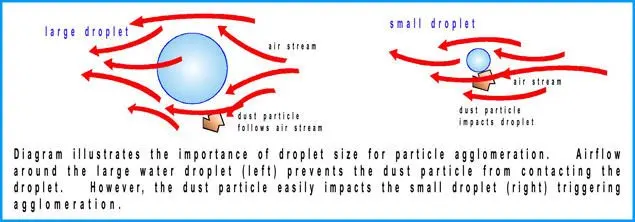

2. Micro fog droplet, form a wet mist touching the floating dust, high speed knock down the dust.

3. Flexible power: three-phase 380V and diesel generator power supply optional.

4. High work efficiency, wide application, micro-motor control the horizontal rotation angle, water pressure system control the pitching angle, high speed change the angle.

5. Flexible, safe & reliable to use. Remote control & manual control operation.

6. Compare to tank car, water consumption save 70% ~ 80%, cost effective.



Scope of Application



1.Disinfection at city streets, stations, ports, schools, airports, public places, landfills, health & epidemic prevention, etc.

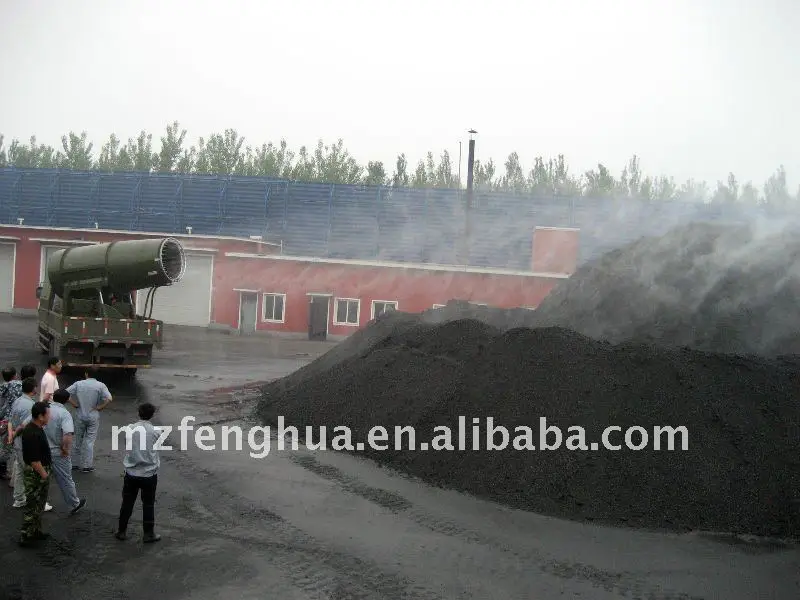

2.Environmental protection, mining, coal yard, docks, steel mill, and other large construction site, etc



Main Technical Parameters

Model	DS-80
Throw (m)	70-80
Volume flow (L/min)	105~118
Water Pressure (MPa)	2.5~3.5
Fog Droplet Size ( um )	50-300
Horizontal Rotation Angle (Remote Control)	350°
Pitching Angle     (Remote Control)	-10°~45°
Power Unit (Optional) Diesel Generator Set	150Kw
Fan Pressure (Pa)	1300
Fan Flow (m³/min)	1800
Degree of Protection	Not less than IP55
Dimensions (L*W*H)	L241*W153*H250cm
