non alloy A1200 O aluminum coil HS code 7606 aluminium 99%
- Category: Aluminum Strips >>>
- Supplier: Guangdong Huayun Aluminium Industrial Co. Ltd.
Share on (632297506):
Product Overview
Description
ALUMINIUM COIL
Aluminium coil | |||
Aluminium Alloy | Thickness |
Width | Temper |
A1050,A1060,A1070,A1100,A1200 | 0.15-200 | 20-2620 | O,H12,H14,H16,H18,H22,H24,H26,etc |
A3003,A3105,A3004 | 0.15-200 | 20-2620 | O,H12,H14,H16,H18,H22,H24,H26,etc |
A5052 ,A5005,A5083,A5754 | 0.15-200 | 20-2620 | O,H18,H14,H32,H34,H111,H112 ,etc |
A6061,A6082,A6063 | 0.15-200 | 20-2620 | T4,T6, T651,etc |
A8011 | 0.15-200 | 20-2620 | O,H12,H14,H16,H18,H22,H24,H26,etc |
Packing : Export seaworthy wooden pallet ,and standard pallet about 2.5 tons Coil ID : 508MM ,packing eye to wall or eye to sky according to client requirement Coil weight can be as per client requirement from 50kgs to 80,00 kgs per coil | |||
Standards:ASTM-B209. EN573-1 | |||
Quality of material: free from defects like oil stain , roll marks, waves ,dents, scratches etc,A+ quality | |||
Application : Construction ,Decoration ,curtain wall ,oil tank ,mould ,marine grade ,industry,Building etc | |||
MOQ: | 3 tons | ||
Payment term: | T/T,L/C | ||
Delivery Time: | within 25 days after receipt the deposit or lc | ||
Kind attention : Size can be produced as the customer’s requirements. Surface treatment :Mill finish ,stucco embossed ,Color coated ,perforation ,bright polished ,brushed ,mirror reflective ,anodised ,five bar ,etc | |||

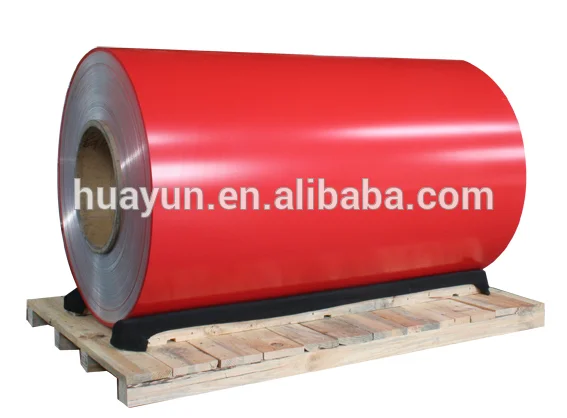

Color coated aluminium coil: PE & PVDF
Main side: 7~38microns,most coat by 15 mic/18 mic/25 mic/38 mic
Back side: no coating ,or premier coating or same with main side Main side covered with protection pe film coating color as per international RALXXXX color . | |||
CERTIFiCATE : ISO9001 ,BV ,SGS | |||

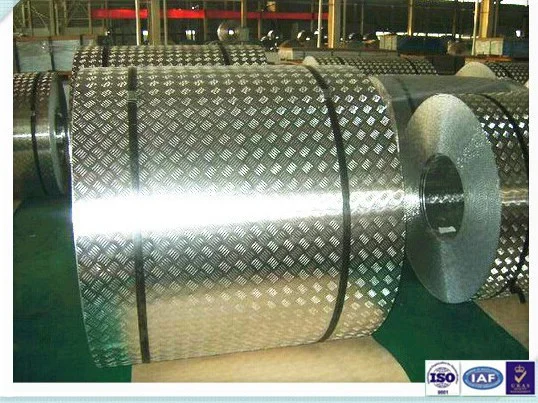

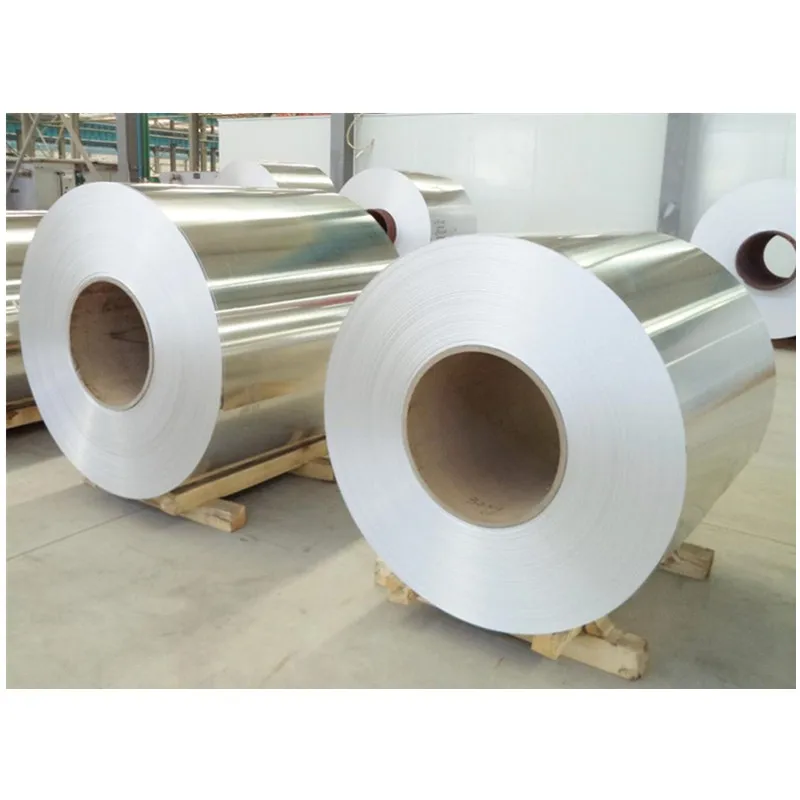

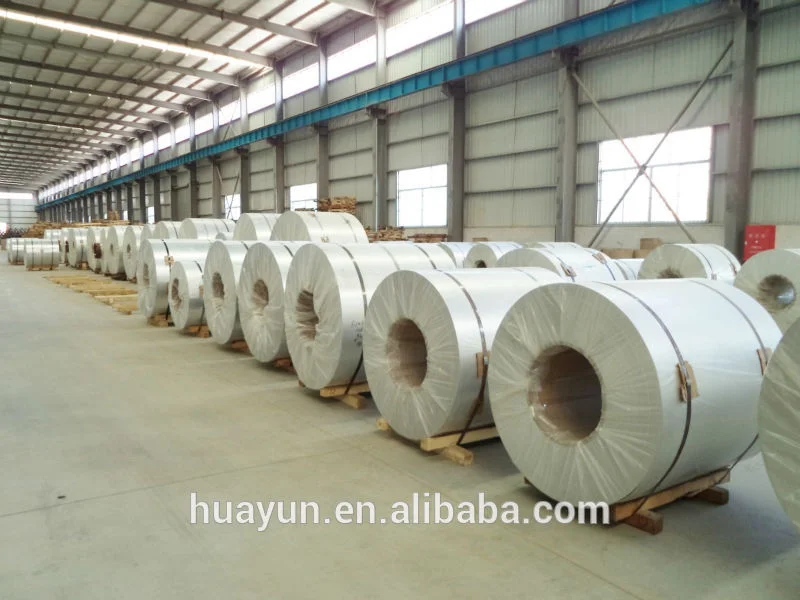

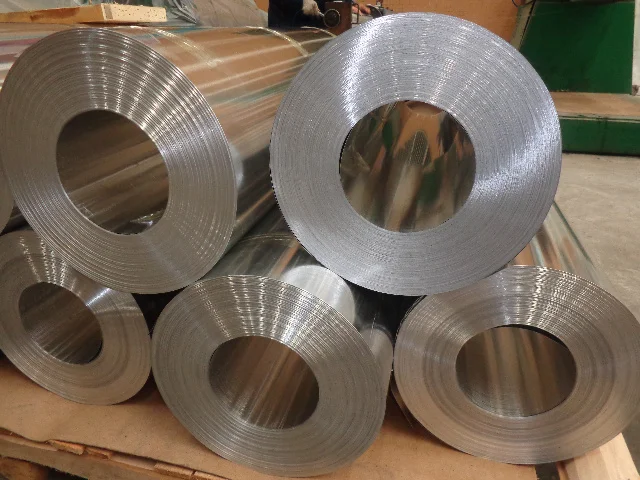

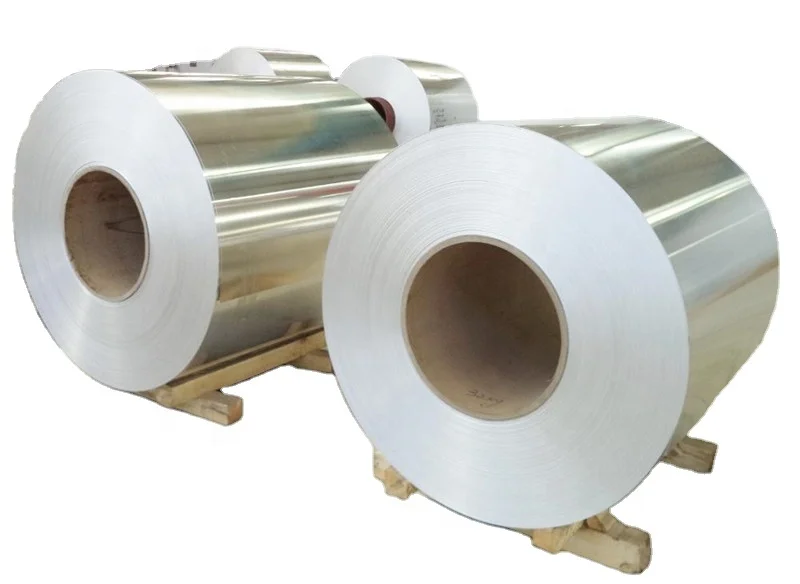

ALUMINIUM COIL PICTURES:
Product Description
Chemical Compostion :
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al | |
| Single | Total | ||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | 0.05 | 0.03 | 0.03 | _ | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | _ | 0.05 | 0.03 | 0.03 | _ | 99.6 |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | 0.04 | 0.03 | 0.03 | 99.7 | ||
| 1100 | Si+Fe:0.95 | 0.05~0.40 | 0.05 | _ | _ | 0.1 | _ | 0.05 | 0.15 | 99 | |
| 1200 | Si+Fe:1.00 | 0.05 | 0.05 | _ | 0.1 | 0.05 | 0.05 | 0.15 | 99 | ||
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | _ | _ | 0.1 | _ | 0.05 | 0.15 | Remainder |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | _ | 0.25 | _ | 0.05 | 0.15 | Remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.20~0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Remainder |
| 3105 | 0.6 | 0.7 | 0.3 | 0.30~0.8 | 0.20~0.8 | 0.2 | 0.4 | 0.1 | 0.05 | 0.15 | Remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50~1.1 | 0.1 | 0.25 | _ | 0.05 | 0.15 | Remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | _ | 0.05 | 0.15 | Remainder |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
| 5086 | 0.4 | 0.5 | 0.1 | 0.20~0.7 | 3.5~4.5 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
| 6061 | 0.4~0.8 | 0.7 | 0.15~0.40 | 0.15 | 0.80~1.20 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
| 6063 | 0.2~0.6 | 0.35 | 0.1 | 0.1 | 0.45~0.90 | 0.1 | 0.1 | 0.1 | 0.05 | 0.15 | Remainder |
| 6082 | 0.7~1.3 | 0.5 | 0.1 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.2 | 0.1 | 0.05 | 0.15 | Remainder |
| 8011 | 0.5~0.9 | 0.6~1.0 | 0.1 | 0.2 | 0.05 | 0.05 | 0.1 | 0.08 | 0.05 | 0.15 | Remainder |
Product Description of aluminium sheet/coil/foil:
| Division | Description | Application | Feature |
| 1000 SERIES | 1050 1060 1070 1100 1235representative series aluminum plate is also known as pure aluminum, in the series in 1xxx series belongs to all the alumina quantity of a maximum number of series. Purity can achieve 99.00% above | Utensil, decoration, Reflecting plate, printing plate, heatproof plate,cookware | Easy to process and weld,resistant to rust,high,conductibility of electricity and heat,low strength |
| 3000 SERIES | 3xxx series aluminum represents 3003 3004,3005, 3 A21 primarily. And can be called in the 3xxx series aluminum antirust aluminum production process more outstanding. The 3xxx series aluminum plate is by manganese as the main component. Content at 1.0-1.5 between. Is a rust-proof function better series. Conventional application in the air conditioning, the refrigerator, such as car in damp environment | Utensil(F/P, inside of rice cooker), aluminum can,material for interior and exterior of building,chemical equipment,Cellular Phone | 20% higher strength than the 1100 series, easily welded and brazed, good antirust,ability Non-heat treatable |
| 5000 SERIES | 5xxx series representatives 5052 5005 5083,5754. The 5000 series aluminum alloy aluminum belong to the more commonly used series, the main elements for magnesium, with magnesium in the amount between 3-5%. And can be called aluminum magnesium alloy. Key features for low density, high tensile strength, elongation rate is high. In the same area under the weight of the magnesium alloy aluminum less than other series. | Ship board heatproof apparatus, material for interior and exterior of building, Parts of Electronic tools.Automobile Components | Excellent corrosion resistance andweld ability together with Easy to process and weld and superior hardness &heatproof Can be anodized for increased corrosion resistance |
| 6000 SERIES | 6xxx series represents 6061 mainly contain magnesium and silicon of two elements, so focused on the 4000 series and the advantages of the 5000 series 6061 is a cold treatment aluminum forging products, apply to fight against corrosion, oxidizing demanding applications. | IT equipment & facility, Mould material, motor material, automatic line, machine & plant etc | Easy to process , good corrosion resistance, high toughness and processed without distortion after heat-treatable, superior surface treatment |
| 8000 SERIES | 8xxx series is relatively commonly used for 8011 belongs to other series. It is for major function cap of aluminum, also used in the radiator, most applications for the aluminum foil | Kitchen utensils,Bottle cap | 8000 series is durable to process with special alloy |
Our Products
Company Information
Guangdong Guangyun New Material Co., Ltd. is a hi-tech enterprise, specializing in the area of aluminium sheet, strip and foil, which is located in Yunfu High-Tech Development Zone, Guangdong Province, with perfect infrastructure and pleasant environment. Our main products include aluminium sheet,aluminium coil,aluminium circle, aluminium embossed sheets and coils,aluminium foils,household aluminium foil,aluminium tread plate, etc.
At present, the company has a group of high-quality management and technical personnel, equipped with strong technical force.It adheres to the idea of health and safety, energy saving and environmental protecting, vigorously promotes the international standardized management model, and has passed the ISO9001 international quality management system and ISO14001 international environmental management system certification successively, to achieve the harmonious development of economic efficiency of enterprises and environmental protection.
Packaging & Shipping
FAQ
Q1:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q2:How can I get an accurate quote?
A:Please provide the information of prodcuts standard, material, size and quantity.
Q3:Will you delivery the goods on time?
A:Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q4:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.We accept the third party inspection absolutely.
Q5:What about the payment terms ?
A: We accept different payment terms like T/T, L/C , Cash, Western Union, Alibaba online paying etc .
