Product Overview

Description

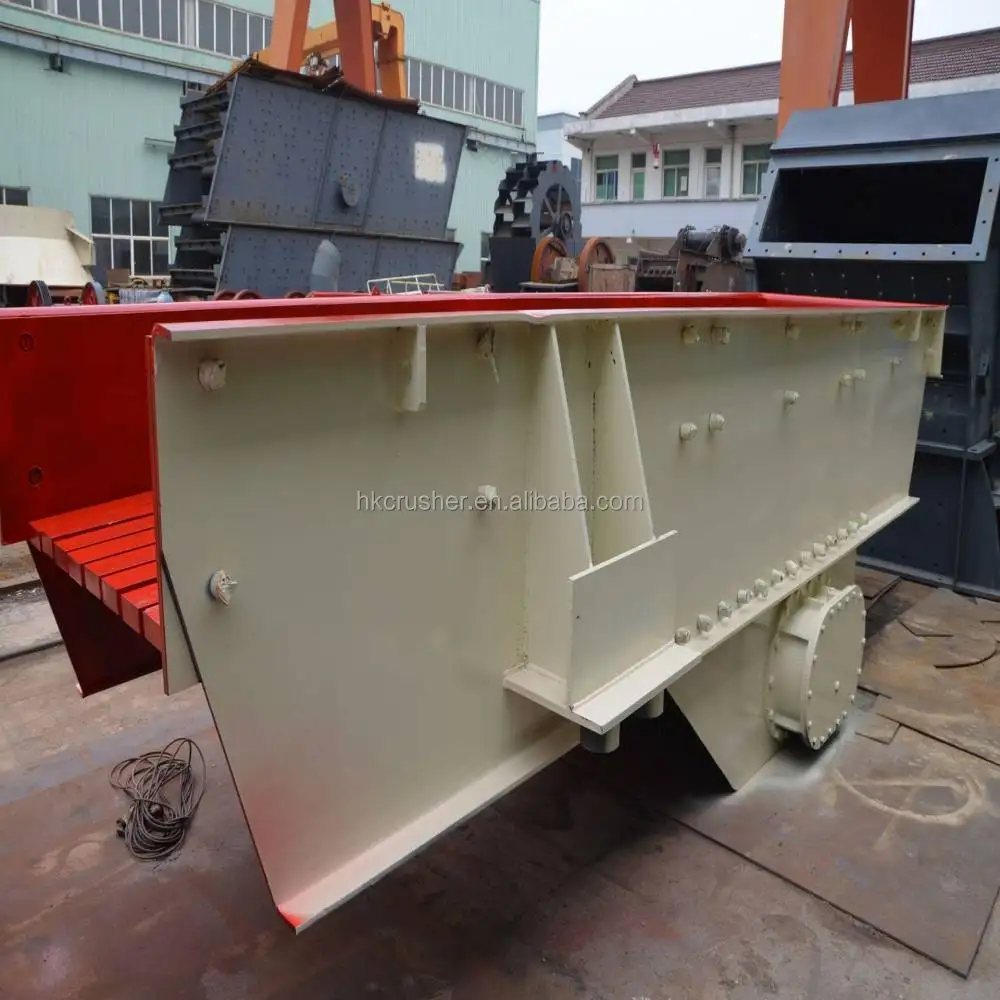

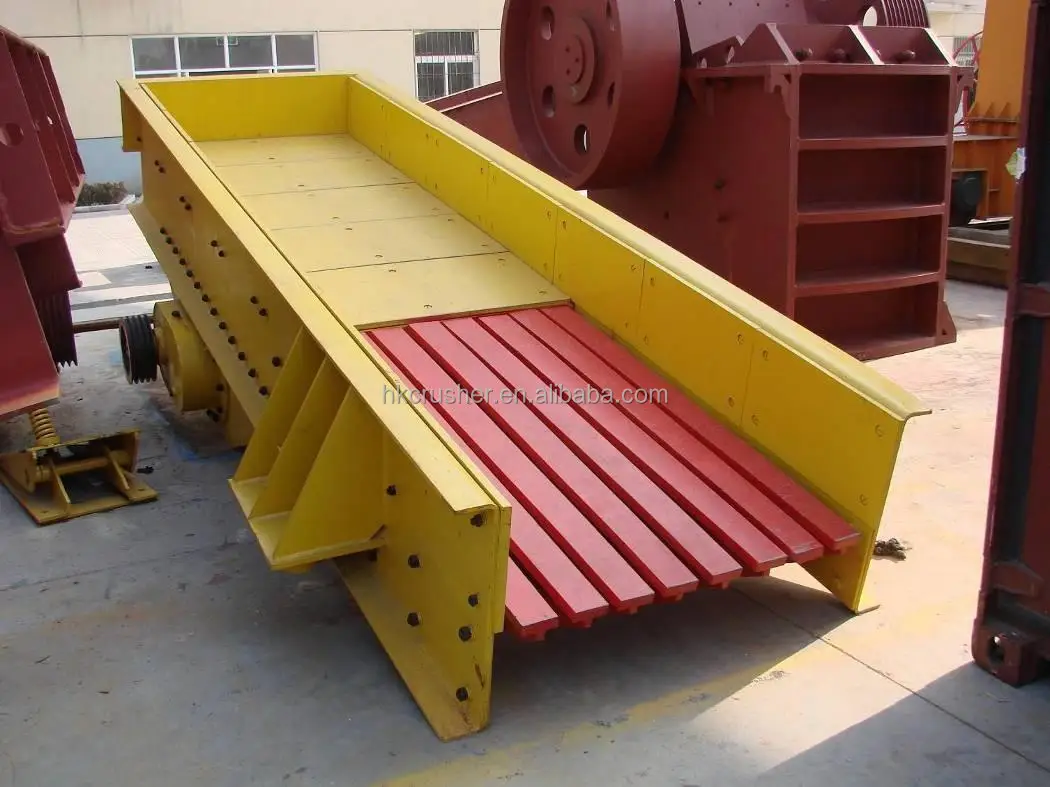

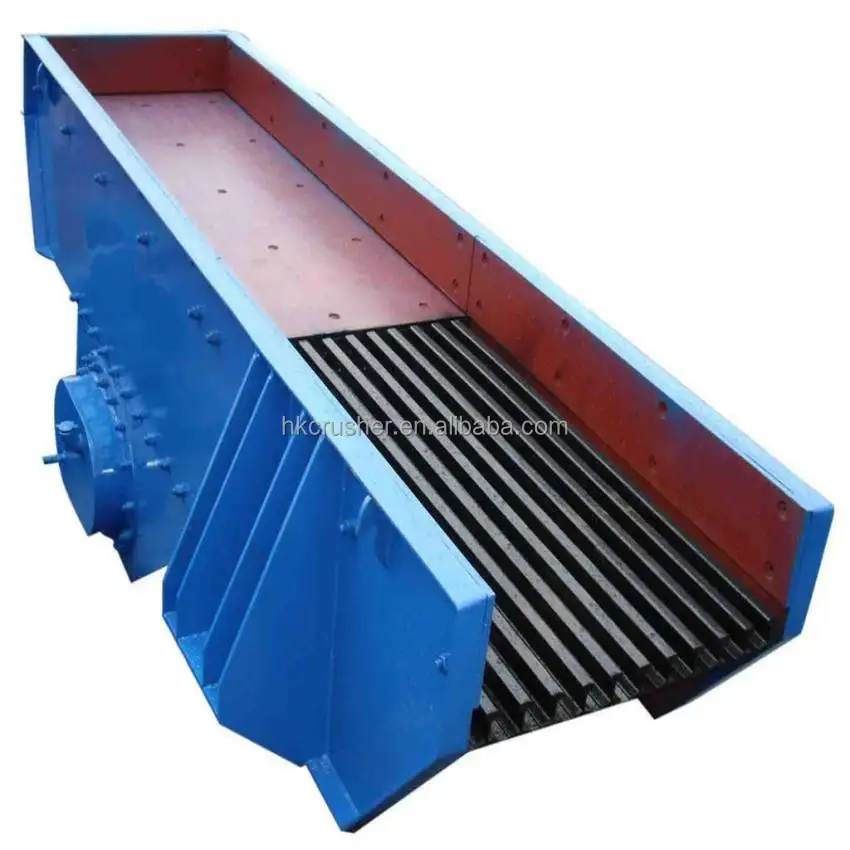

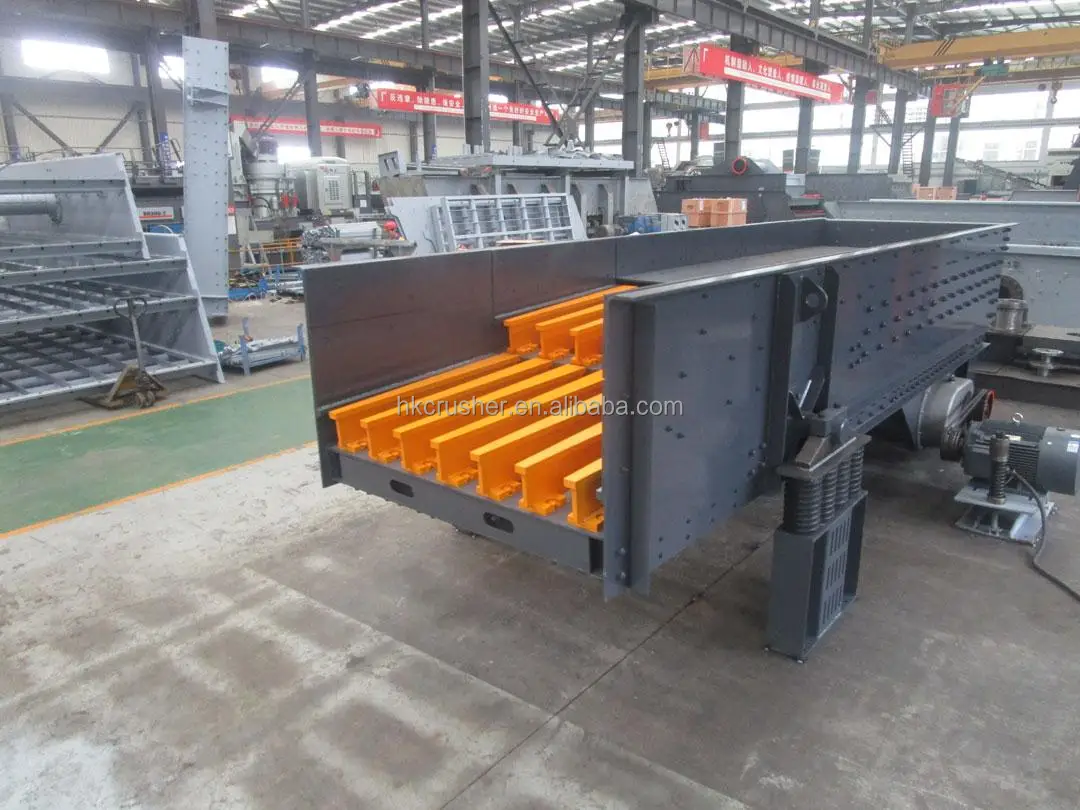

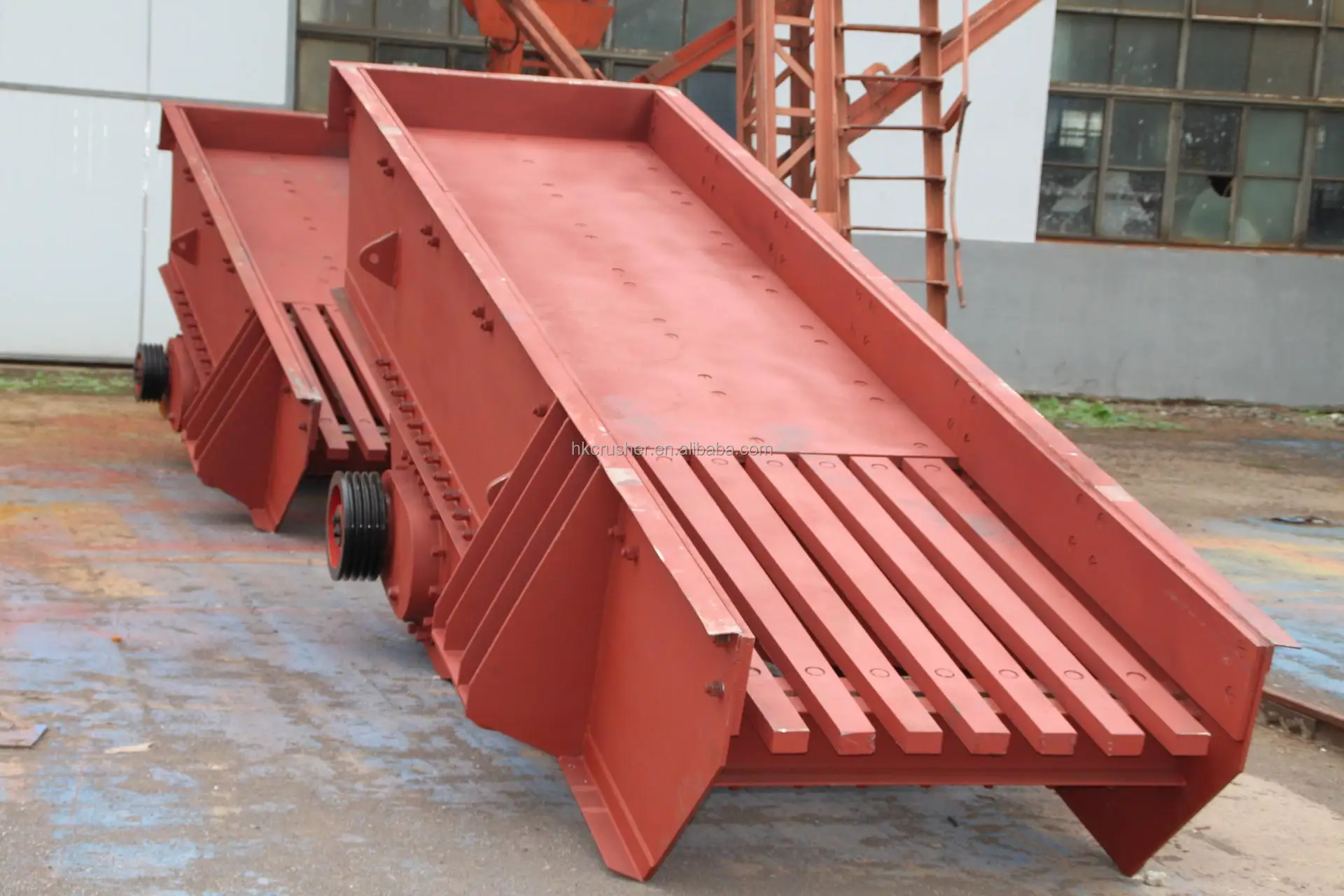

Vibrating grizzly feeder

vibrating feeder is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow.

It is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.

Characteristics of vibrating feeder

It vibrates calmly, works reliably with a long life-span; its stimulating vibrancy power can be adjusted, while the flux can be changed and controlled, it is convenient and stable to adjust;

Vibrating feeder's vibrating electrical engine is stimulating vibrancy fountain, with low noise, low cost of electricity, and good adjusting capability, without rushing phenomenon.

Its structure is simple and works stably, and easy to adjust and install, and it is convenient to maintain and take care for its light weight and small size, and it can avoid powder and dust pollution when using the closed structural body.

Working principle of vibrating feeder

When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate.

Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

.

Characteristics of vibrating feeder

Smooth vibration, reliable operation, long service life, low noise, low power consumption, easy to adjust, simple structure, easy to install, light weight, small volume, simple maintenance.

Technical parameter of vibrating feeder

Model	Feed chute size (mm)	Max. feeding size (mm)	Handling capacity (t/h)	Power (kW)	Overall dimension (mm)	Weight (including motor) (kgs)
GZD-960×3800	960×3800	500	120-210	11	3880×2240×1880	3980
GZD-1100×4200	1100×4200	580	200-430	15	4300×2450×2010	4170
GZD-1100×4900	1100×4900	580	280-500	15	4980×2450×2030	4520
GZD-1300×4900	1300×4900	650	450-600	22	4980×2705×2050	5200

Notice: Any change of vibrating grizzly screen feeder technical data shall not be advised additionally.
