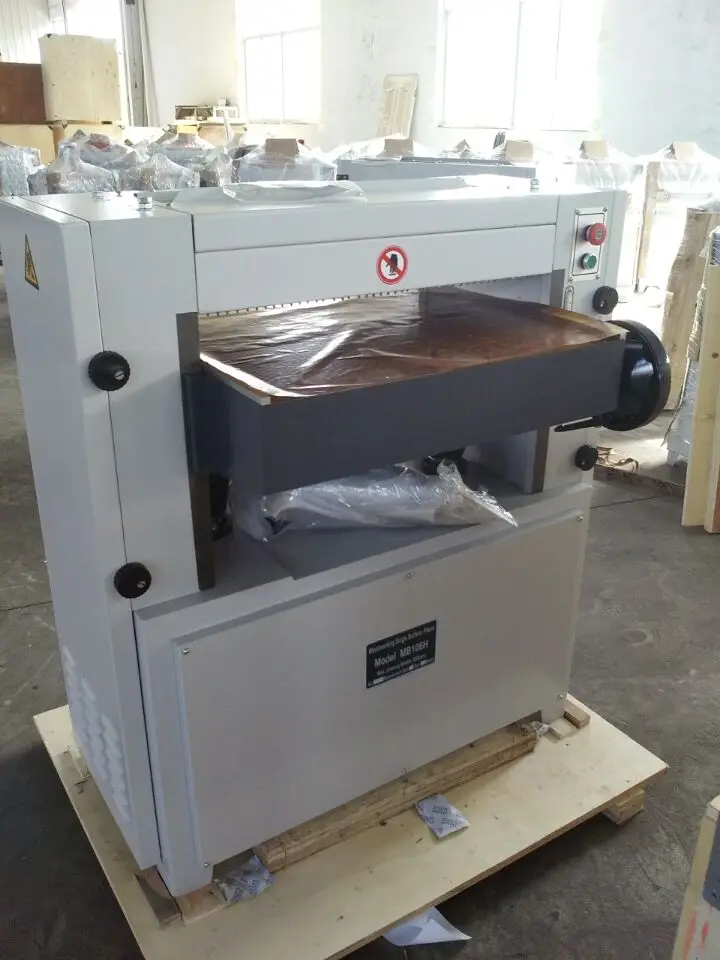

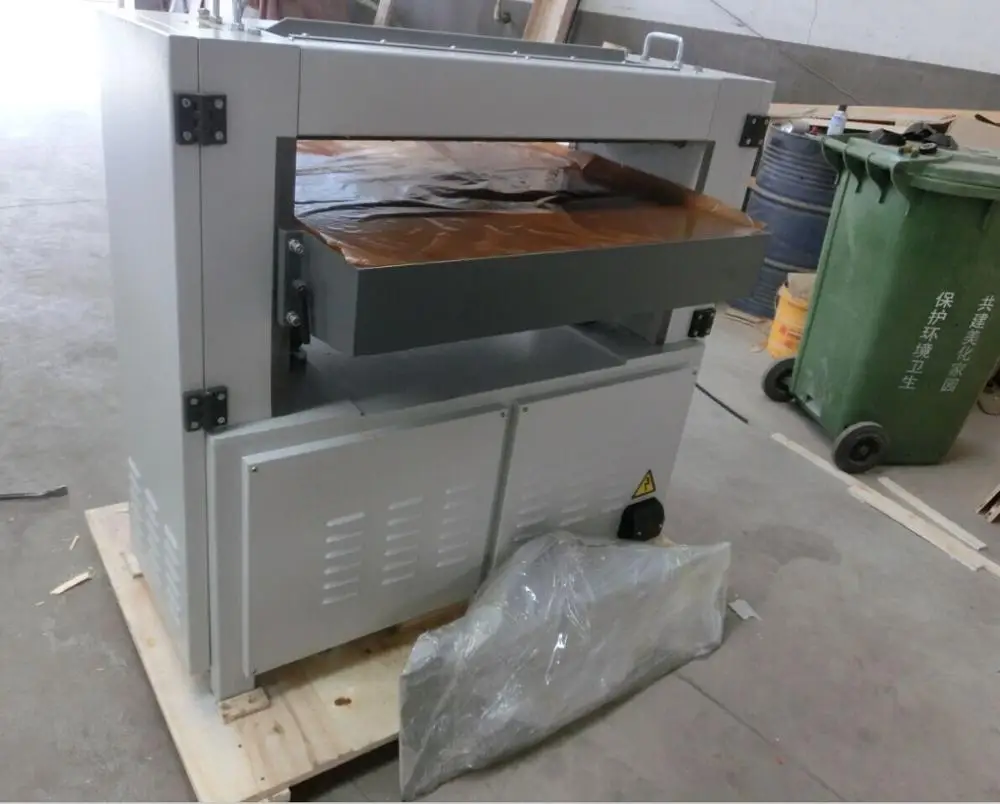

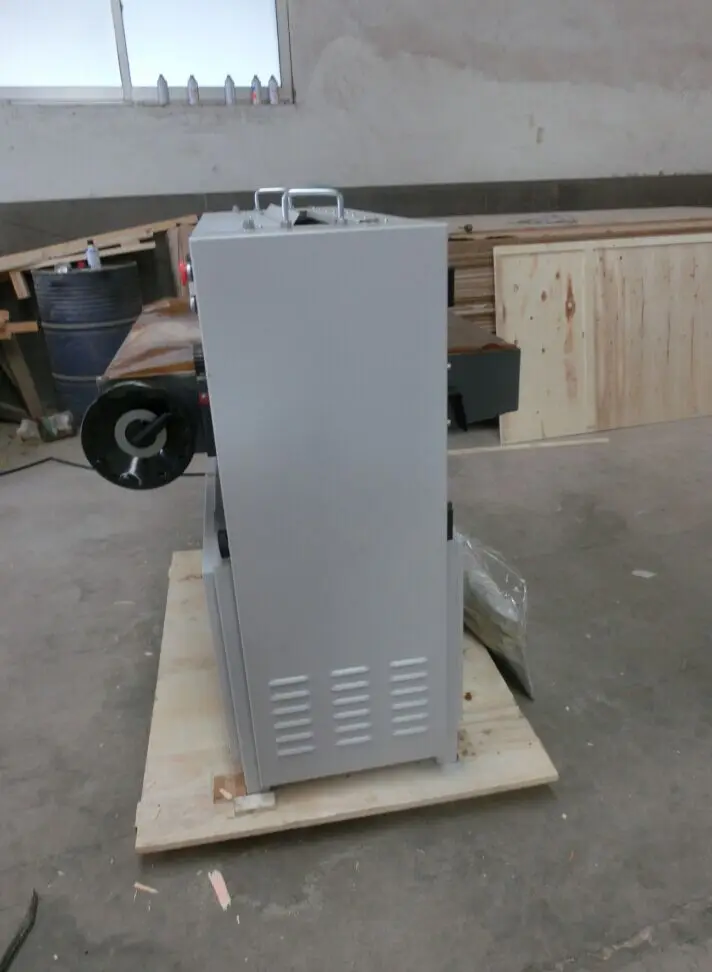

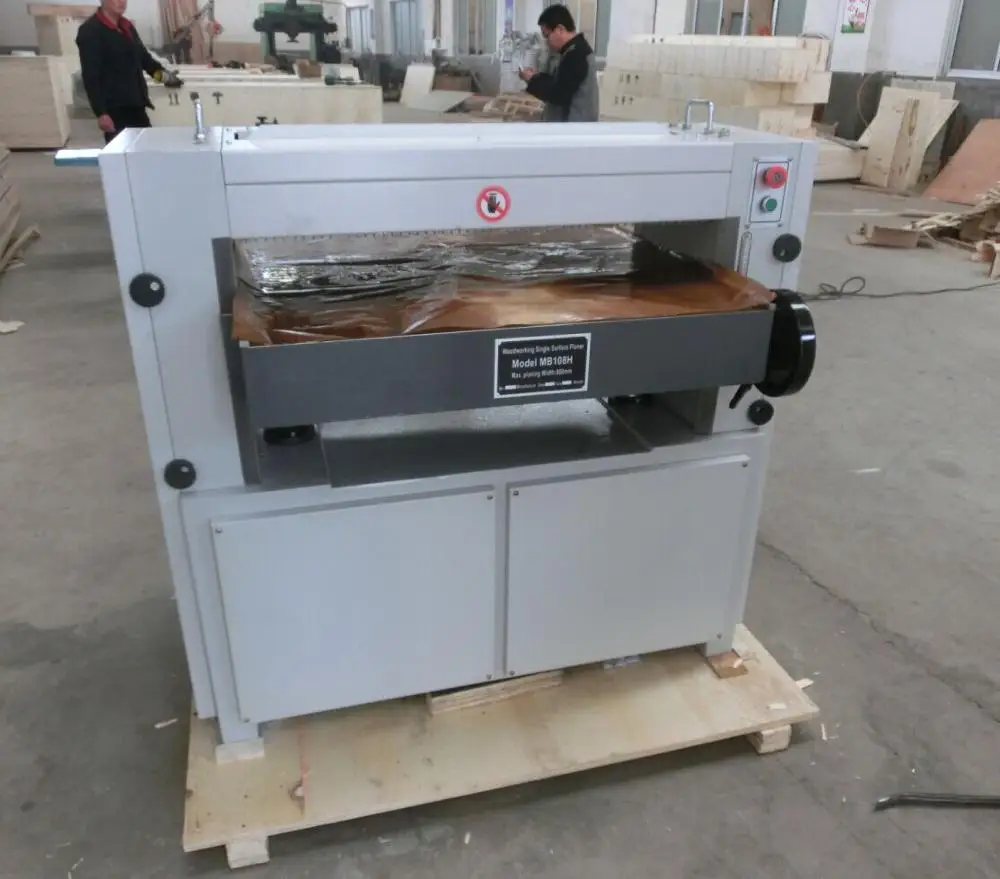

MB104H High-speed One-sided Planing Machine For Wood

Features:
1. The body is composed of the welding machine seat and cast iron,better stability and lower noise.
2. With crawler flexibility paw automatic feeding system,curved wood and wood with different height(a difference of 10mm) can be processed for datum plane.
3. The work table is with special treatment process,better durability and no deformation.
4. High speed spindle equipped with high-speed bearing,more smooth rotation.
5. The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
Main Technical Data | |||||
Type | MB104H | MB105H | MB106H | MB108H | MB1010H |
Max. Planning width | 440mm | 540mm | 640mm | 840mm | 1040mm |
Planing thickness | 210mm | 210mm | 210mm | 210mm | 210mm |
Min.planning length | ≥ 220mm | ≥ 220mm | ≥ 220mm | ≥ 220mm | ≥ 220mm |
Max.planing amount | ≤ 5mm | ≤ 5mm | ≤ 5mm | ≤ 5mm | ≤ 5mm |
Feeding speed | 8,10,12m/min | 8,10,12m/min | 8,10,12m/min | 8,10,12m/min | 8,10,12m/min |
Spindle speed | 5000r/min | 5000r/min | 5000r/min | 5000r/min | 5000r/min |
Motor power | 4KW/380V | 5.5KW/380V | 7.5KW/380V | 7.5KW/380V | 11KW/380V |
Spindle diameter | Φ 108mm | Φ 108mm | Φ 108mm | Φ 108mm | Φ 108mm |
Overall dimensions | 800*830*1050mm | 800*930*1050mm | 800*1030*1050mm | 800*1230*1050mm | 800*1430*1050mm |
Net. Weight | 450kg | 480kg | 550kg | 700kg | 980kg |



Related products:

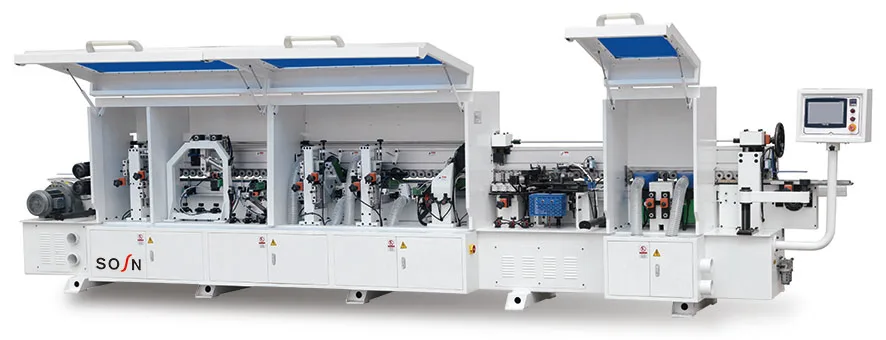

2. SOSN Edge Banding Machine FZ-450DJ

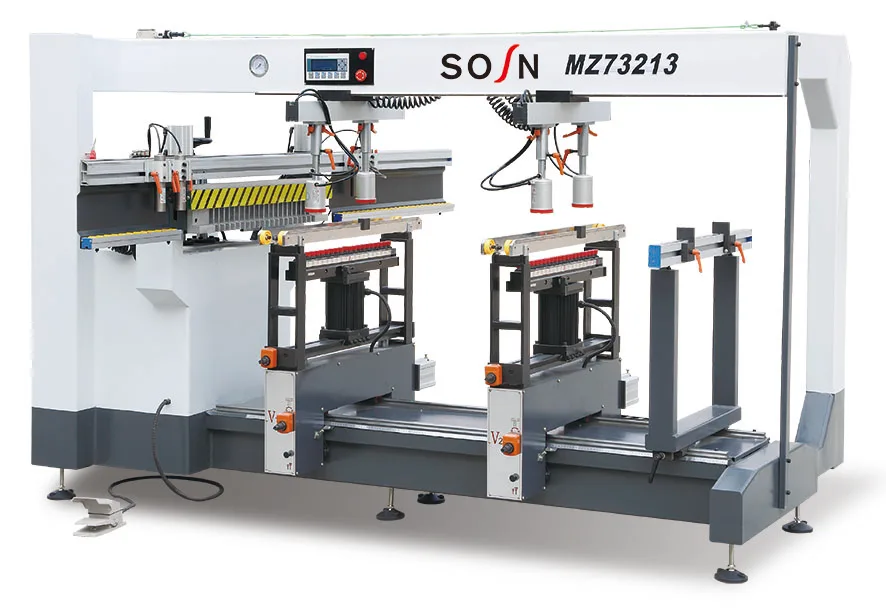

3. SOSN Three Lines Drilling Machine MZ73213


Q: How to get the most suitable machine and best price?
A: Please tell us the material you want to working on? How to work on it Engraving Cutting Or other? What's the MAX size of these material ? length? Width Thickness?
Q: If we donot know how to use the machine, can you teach us?
A: Yes, we will, if you come to China. we will offer you free training until you can use machine freely. And if you are busy we will have the special engineer to your country, but you need tobear some fee like tickets, hotel and meal.
Q: Can you promise to deliver the machine in time?
A: Yes, we can.
Q: How about your guarantee period?
A: Once you have any questions during this time, we will solve it for free.
