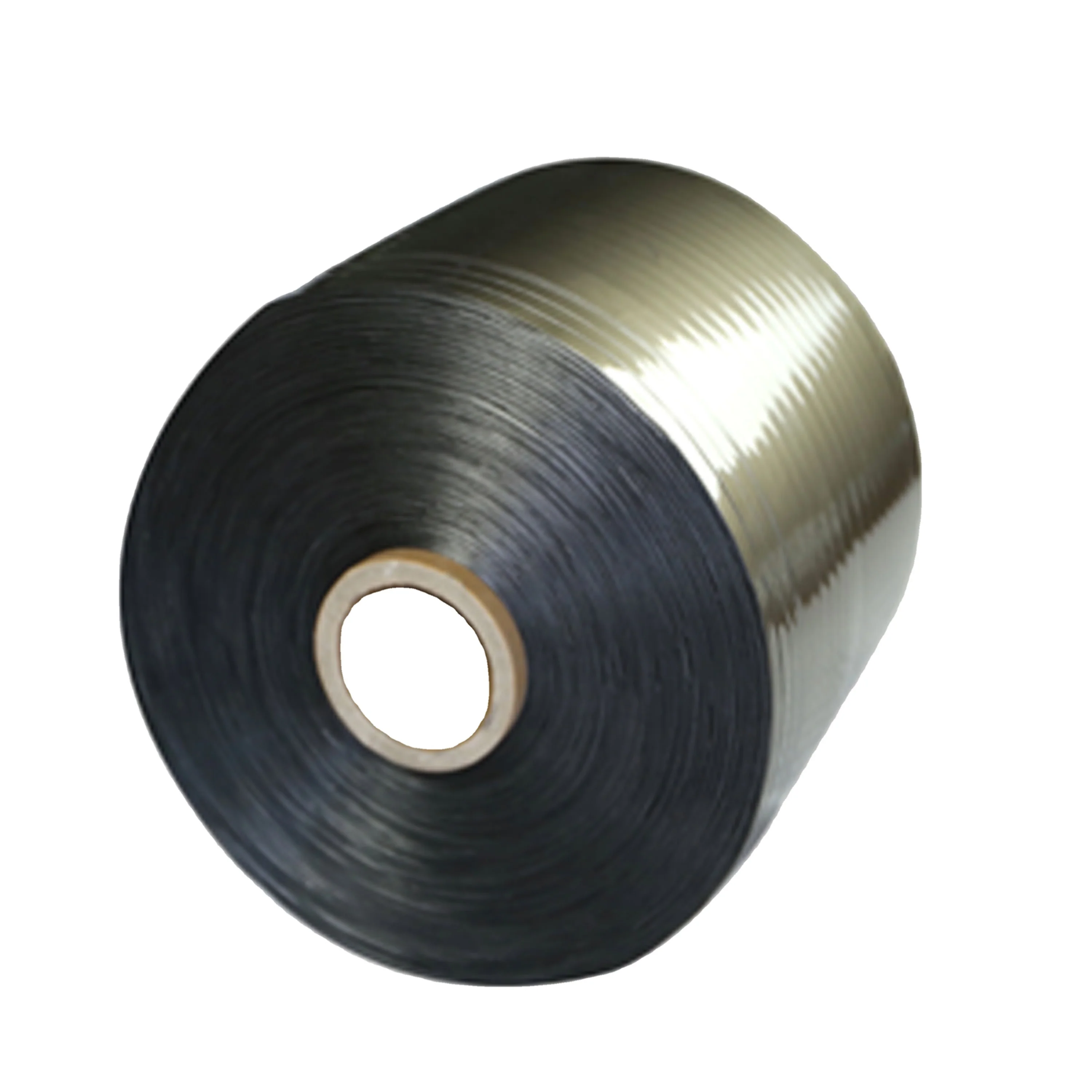

Mylar Sheet 0.5mm AL/PET Mylar Tapes for cable
- Category: >>>
- Supplier: Hangzhou Linan Tianhong Telecommunication Material Co. Ltd.
Share on (633067668):
Product Overview
Description
Feature
Good insulativity and shielding effectiveness to reduce attenuation, complying with RoHS standard.
Dimensions
Name | Aluminium Polyester Foil(Polyester=Mylar=PET) |
Thickness | 20u-150u |
Width | 5mm-1000mm |
Inner diameter | 38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in) |
Outer diameter | 250mm-650mm |
Color | Silver,Blue,Golden |

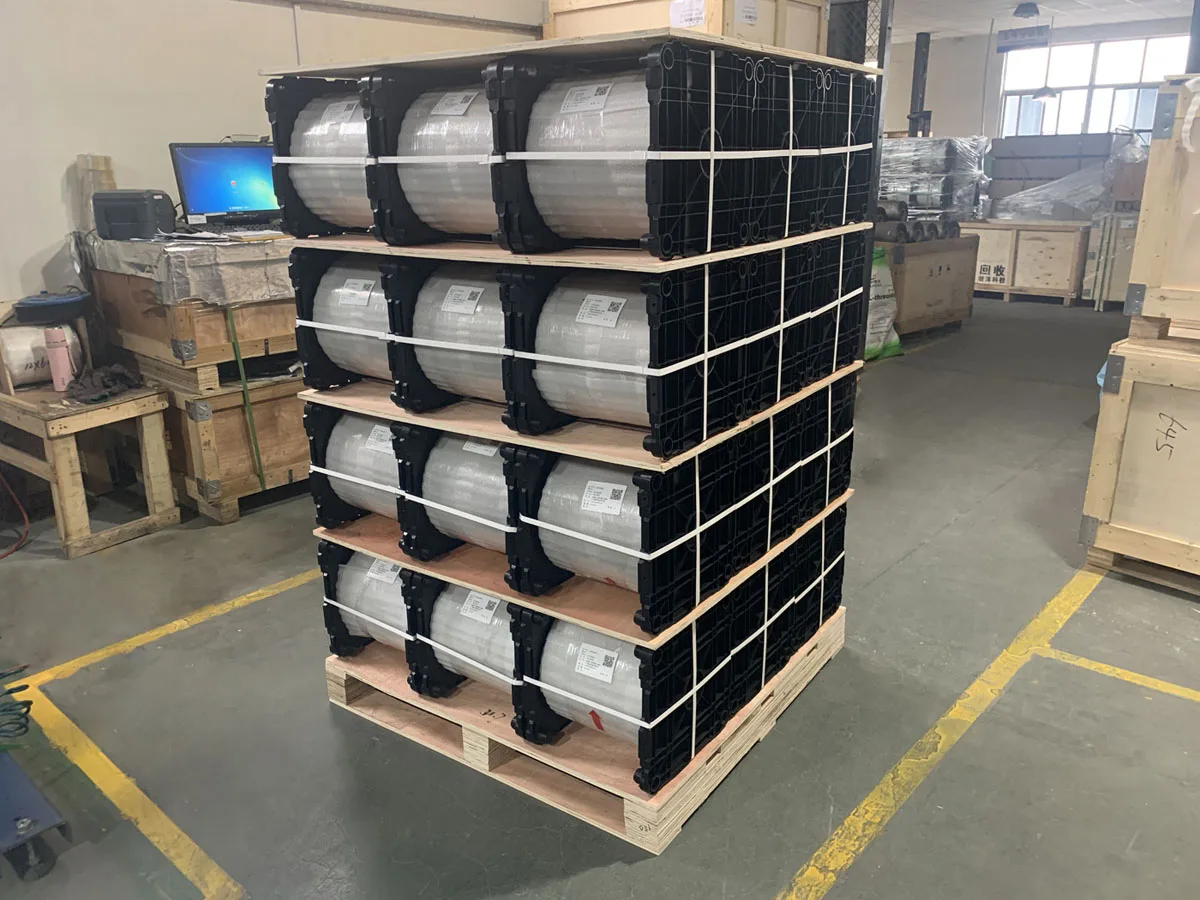

Packaging | 1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box |
Name:AL+PET |
|
|
|
Structure | Thickness(mic) | Weight(g/m2) | Yield(m2/kg) |
AL9+ PET12 | 23mic | 43 | 23 |
AL9 +PET15 | 26mic | 48 | 21 |
AL9 +PET19 | 30mic | 54 | 19 |
AL9 +PET23 | 34mic | 60 | 17 |
AL12 +PET12 | 26mic | 52 | 19 |
AL12 +PET15 | 29mic | 56 | 18 |
AL12 +PET19 | 33mic | 62 | 16 |
AL12 +PET23 | 37mic | 67 | 15 |
AL12 +PET36 | 50mic | 87 | 12 |
AL15 +PET19 | 36mic | 70 | 14 |
AL25 +PET12 | 39mic | 87 | 12 |
AL25 +PET23 | 50mic | 102 | 10 |
AL40 +PET12 | 54mic | 127 | 8 |
AL40 +PET15 | 57mic | 131 | 8 |
AL40 +PET23 | 65mic | 143 | 7 |
AL40 +PET36 | 78mic | 161 | 6 |
AL50 +PET12 | 64mic | 154 | 6 |
AL50 +PET15 | 67mic | 158 | 6 |
AL50 +PET23 | 75mic | 170 | 6 |
AL50 +PET36 | 88mic | 188 | 5 |
Note
Accept orders of foils with different thickness, length and width.

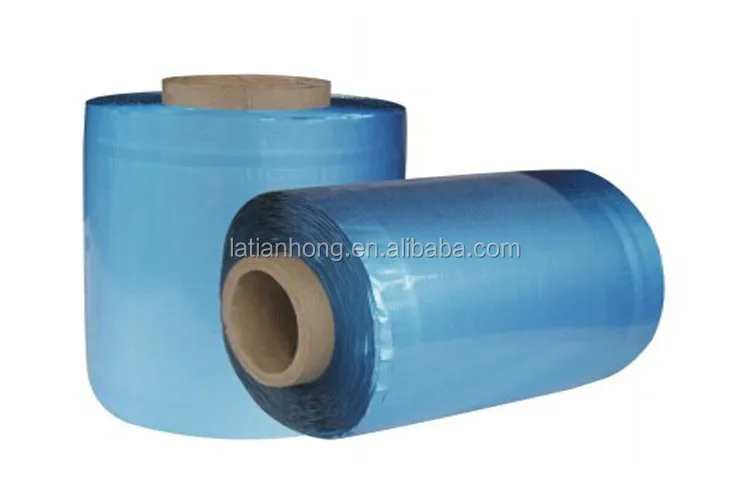

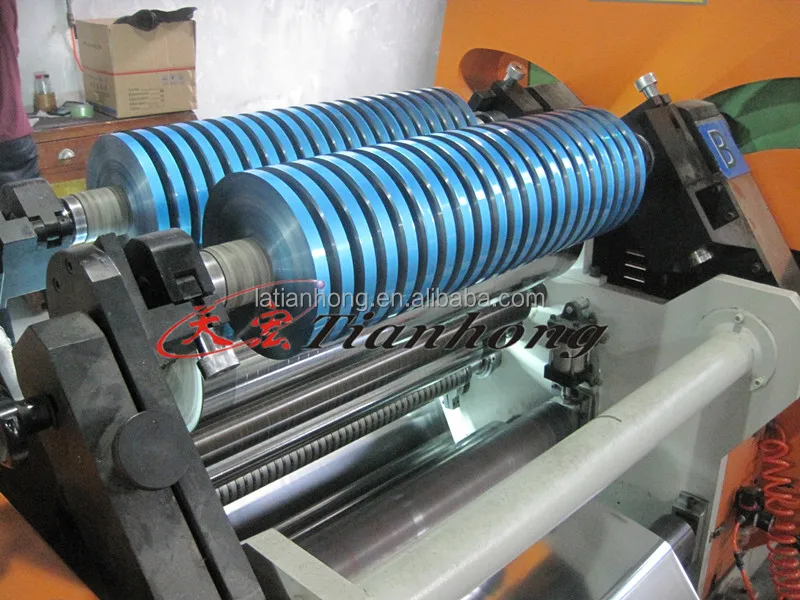

Blue color

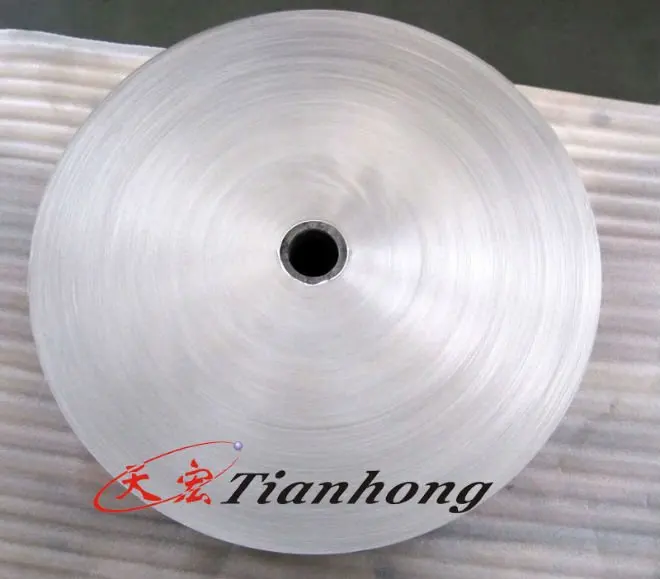

Silver color

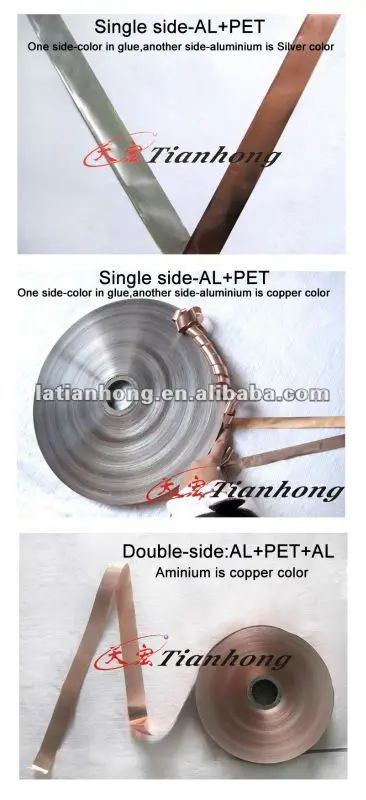

Copper color

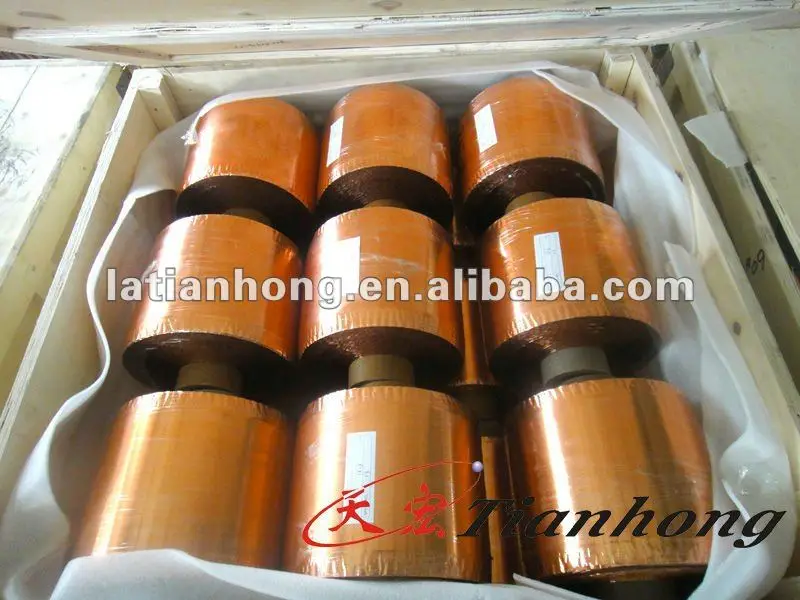

Packaging
