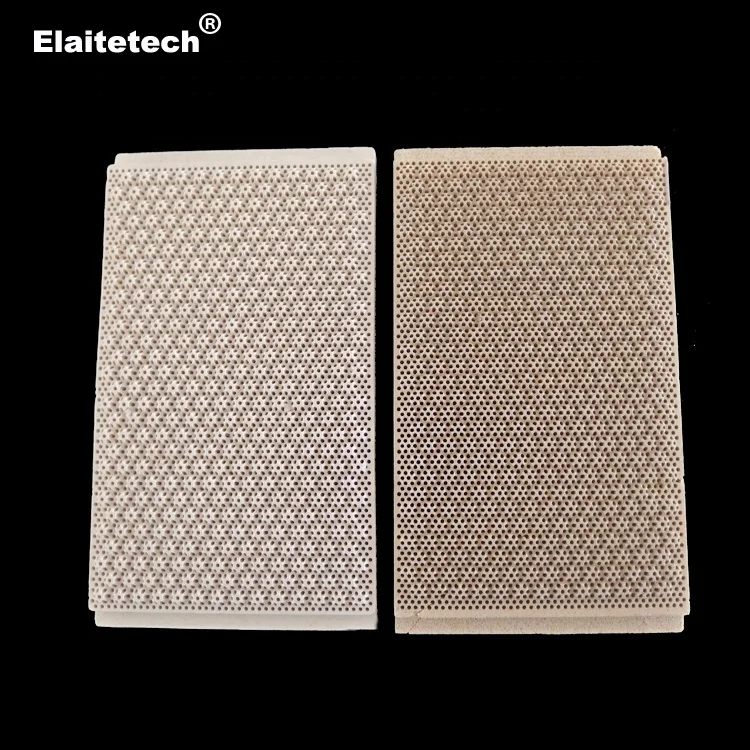

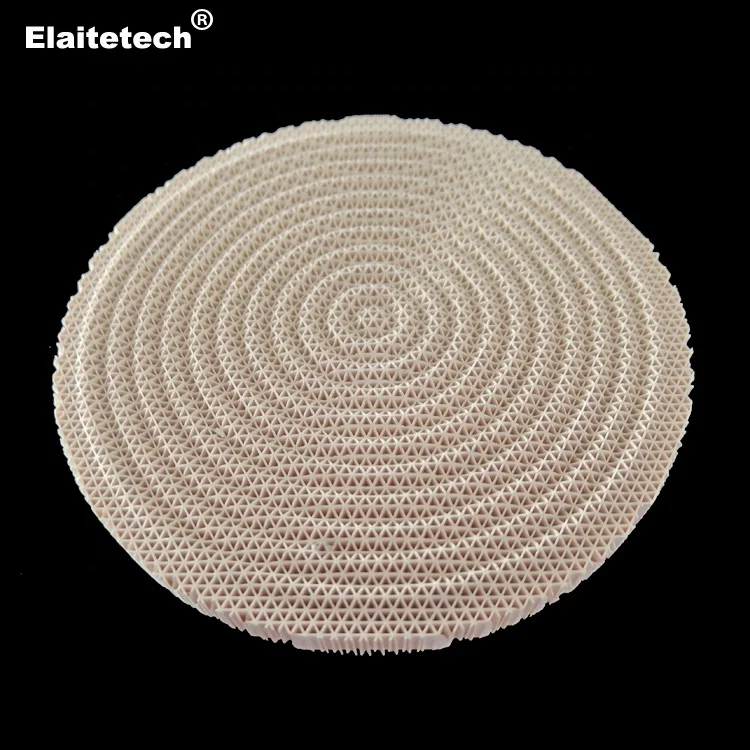

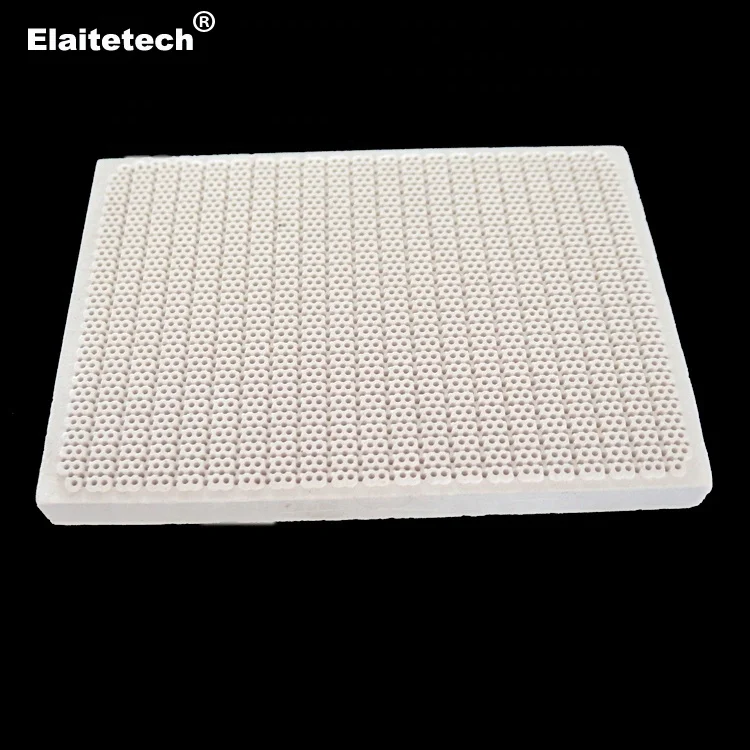

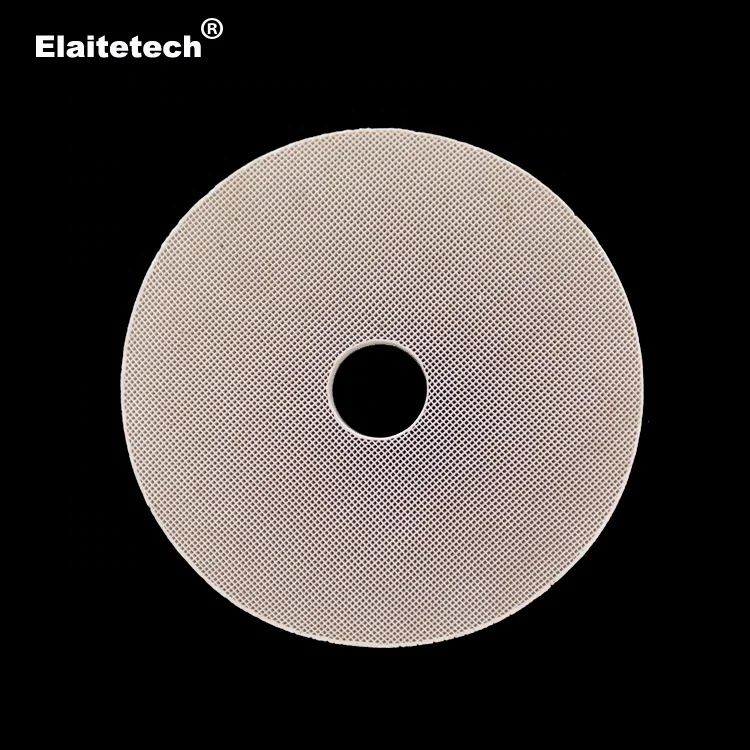

Ceramic burner stone & ceramic cordierite infrared combustion plate/plaque for gas heater
- Category: >>>
- Supplier: Nanning Elaiter Environmental Technologies Co. Ltd.
Share on (633660867):
Product Overview
Description
Product Description
We can offer natural gas (NG) and liquefied petroleum gas (LPG) fuel gas on high quality ceramic plate, which coating catalyst achieve no flame catalytic combustion and heat release. In catalytic combustion process, heat mainly infrared radiation, the efficient way to avoid the loss caused by light and reaching the highest heat energy utilization. Effectively restrain the formation of the poisonous and harmful material, rarely produces NOx, CO and CH pollutants. It is mainly used in gas-infrared burners, infrared gas stoves, infrared heaters, gas water heaters, gas burner, oven, BBQ and so on.
Dimension & Shape
Item | Technical Data | ||
Dimension & Shape | Shape | Round (Diameter) | 50-200 mm |
Square (Length × Width) | ≤200×140 mm | ||
Sector (Radius) | 50-200 mm | ||
Thickness | 8-15 mm | ||
Hole Diameter | 1.1-1.8 mm | ||
Hole Interval | 1.65-2.1 mm | ||

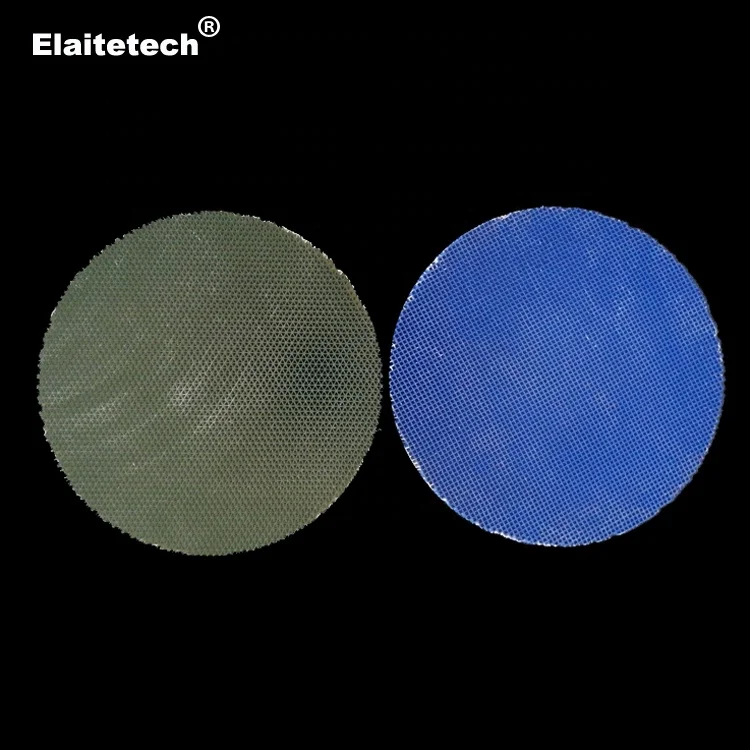

Color | Black, coffee, brown, yellow, etc. | ||

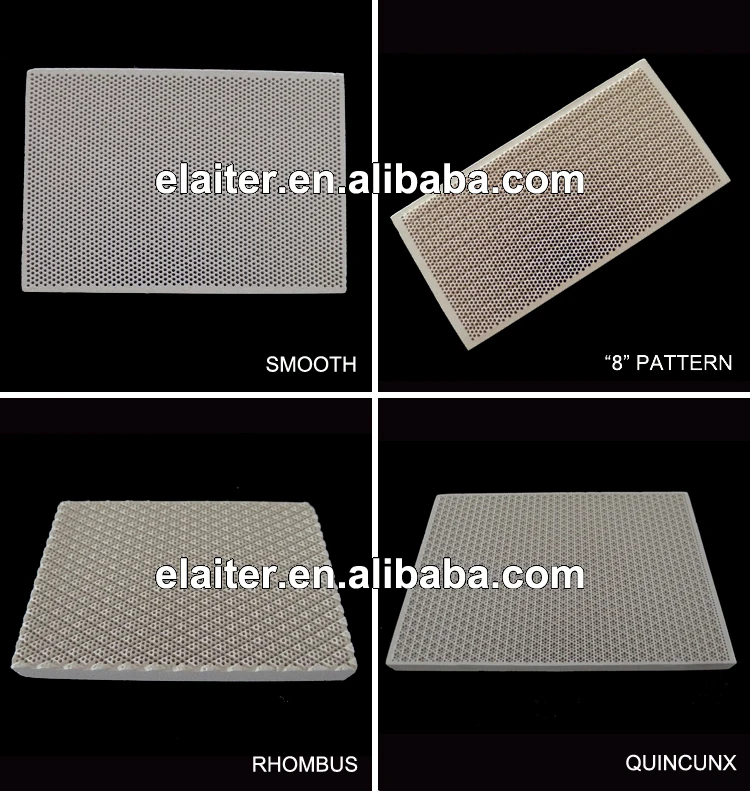

Surface Shape | Smooth, rhombus, wave, quincunx, “8” pattern | ||
We are also able to produce according to drawings or a sample. | |||
Applications
Barbecues | Gyro Cookers | Evaporators | Ranges |
Broilers | Pizza Ovens | Gas Ovens | Rotisserie Ovens |
Convection Ovens | Pressure Fryers | Griddles | Space Heaters |
Deep Fat Fryers | Process | Greenhouse CO2 | Sear Cookers |
Bake Out Furnace | Cassette Stove | Grill Cooker | Roaster |
Product Advantages
1. Save up to 40-50% energy consumption.
2. Completely burning, no flame burning, low noiseburning.
3. Reduce harmful exhaust gas (CO, NOx, etc) more than 90%.
4. High hardness, no easy crack and long life-span.
5. Efficient and safe gas burning, uniform and no shadow.

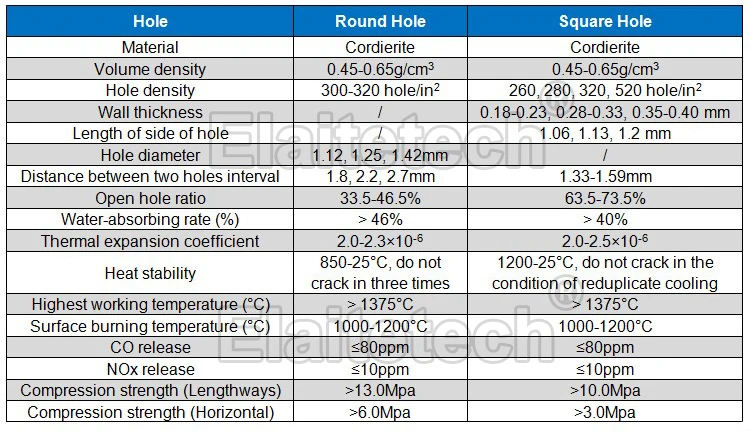

Technical Data

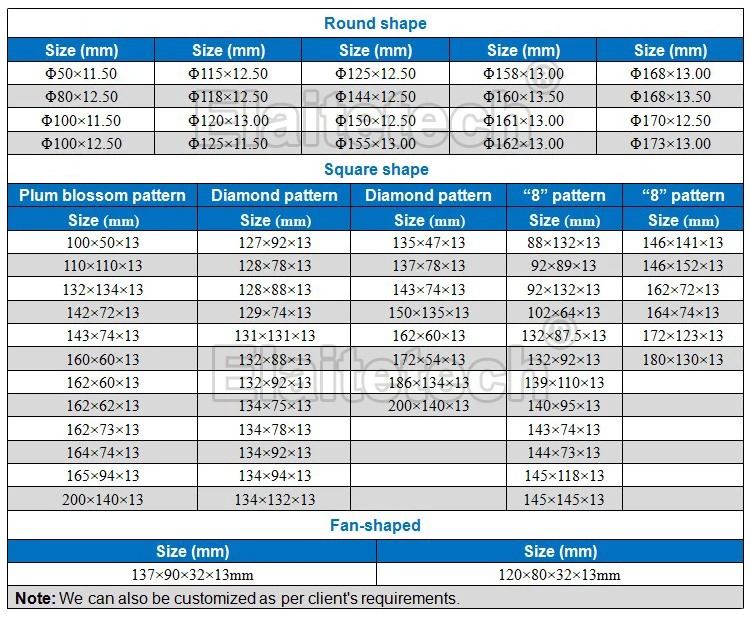

Common Size

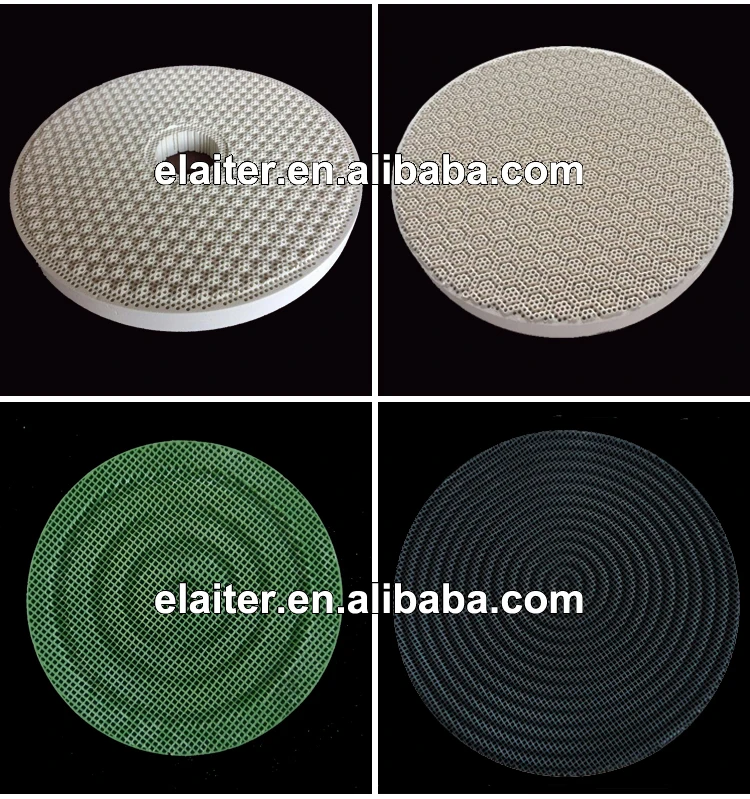

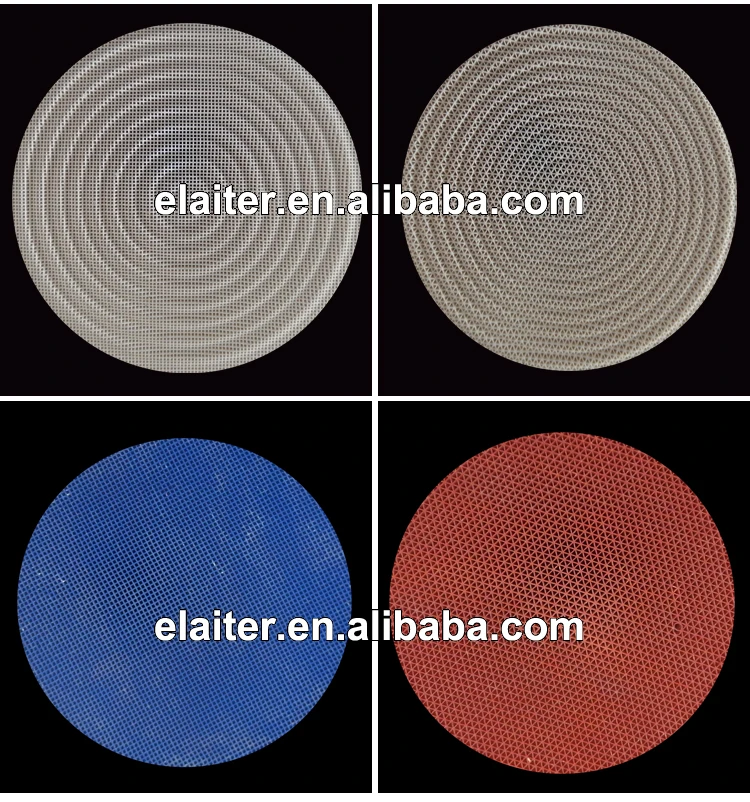

Products show

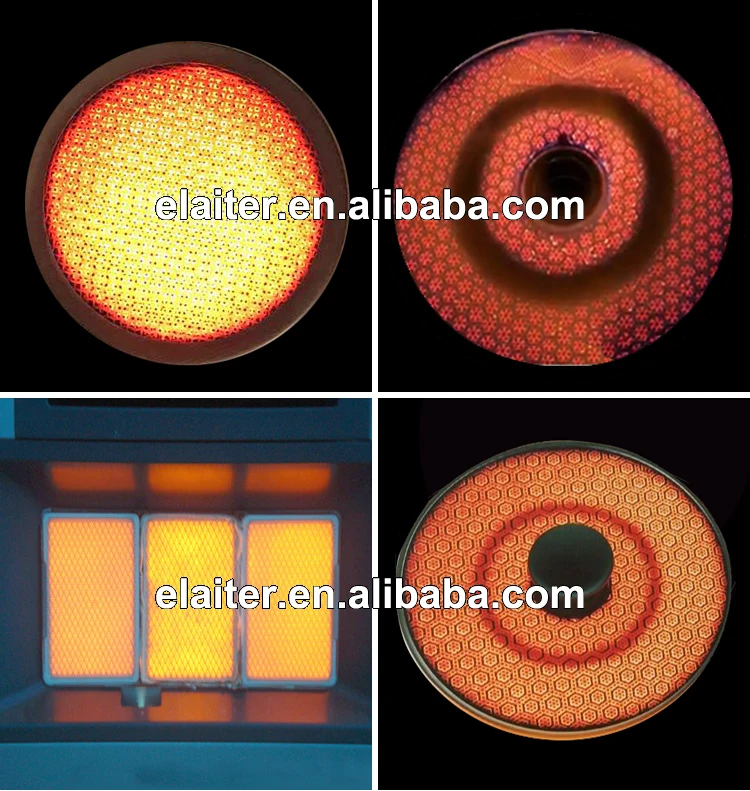

Burning Show
Packaging & Shipping
