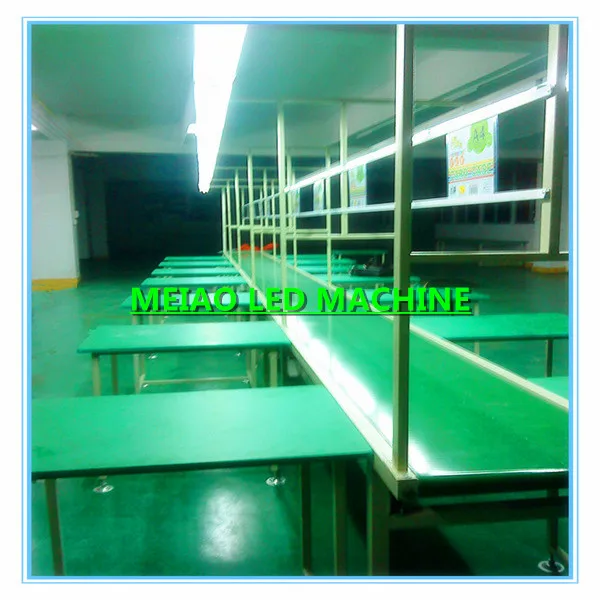

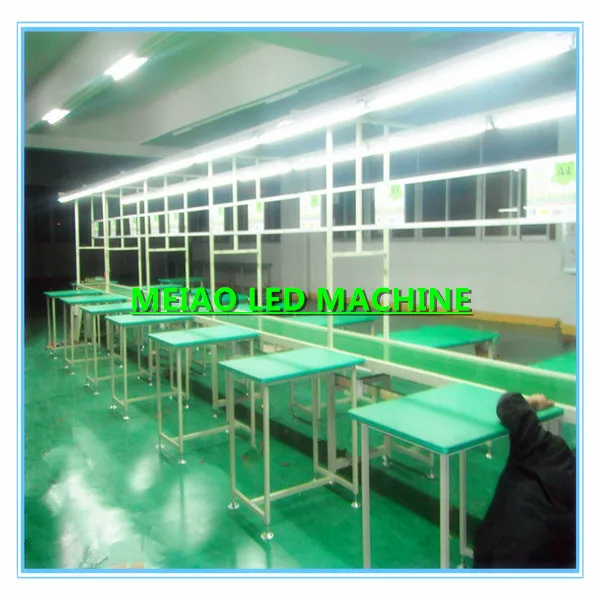

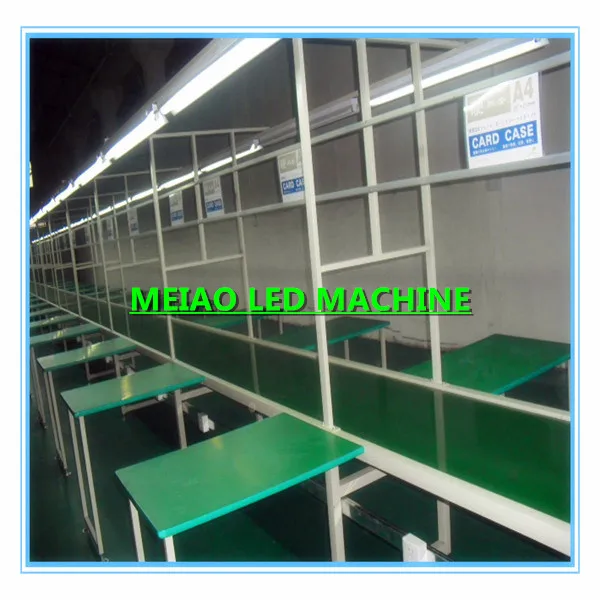

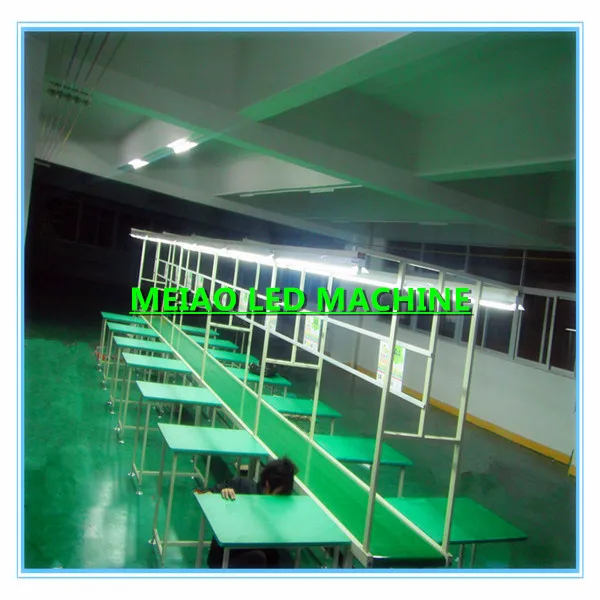

electronic products PVC assembly line(with independent working station)

Product Overview

Description

                         We are the factory !!!

Description & specifications:

 1 Model type:12000L×400W×2000H(mm)

 2 Single way PVC belt conveyor, galvanized roller transfer,

    independent frequency control of motor speed.

 3 Stable performance, safety and reliability, simple operation.



Inverter and reduction motor		Adopt Taiwan brand East Cropland 750w motor, WPS 60 type 1:6 0 of the speed reducer, the Chinese famous brand SONDAO 1 HP's frequency multiplier, frequency conversion stepless speed regulation, linear speed 2-6 m/min can be adjusted.
Machine body & frame :		Frame made by 40 x 40 square tube, stand by the same 40 x 40 square pipe production and become, below the belt by four points galvanized drum retainer and transfer; machine supported by galvanized adjustable foot cups; Head plate with 1.2 mm cold plate bending rolling forming, body 2 meters one paragraph.
Transmission belt:		Using the Netherlands imported high quality green light delivery special PVC belt, thickness of 2 mm, width of 400 mm, belt total length is 24000 mm, ring seamless pyrocondensation connection.
Independent working station :		Independent table, specifications for 600 long x 800 wide x 730 mm high, bilateral arrangement, the 25x 25 rectangular steel tube welding and become, 30L Angle retainer; Bedplate using 18 mm quality compression plate, fastening fuselage both sides arrangement. Surface stick green antistatic soft rubber, green T strip edge; Fastening fuselage both sides arrangement.
Power arrangement:		1.0 galvanized sheet bending and become, 2000x50x25 galvanized wire slot, is located under the  belt, on both sides installation three, two square socket (every 1 m/workstation install one, bilateral installation). Each station power (including lighting, instrument inserted board power supply and etc.) can be under centralized control by assembly line network control system, the teacher click on each station control button of the assembly line network
Lamp lighting:		H type light fixtures are located in the belt on both sides, choose 40 x 20 square tube welding production, connection on the machine body every 2m a frame with cold plate bending a 2000 x 50 25 plastics sprayed slot connection power, makes workers operating space more open, lighting choose 40 w single belt cover fluorescent lamp, bilateral along the line arrangement. (light stand and lighting can according to the customer circumstance whether to need )
