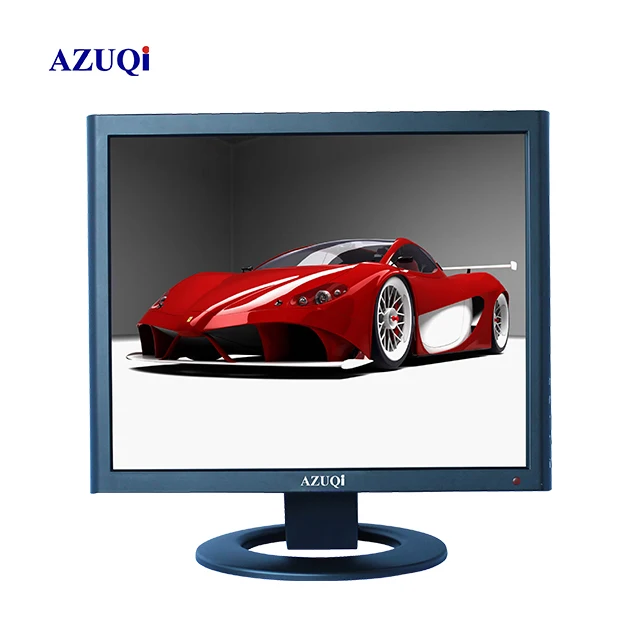

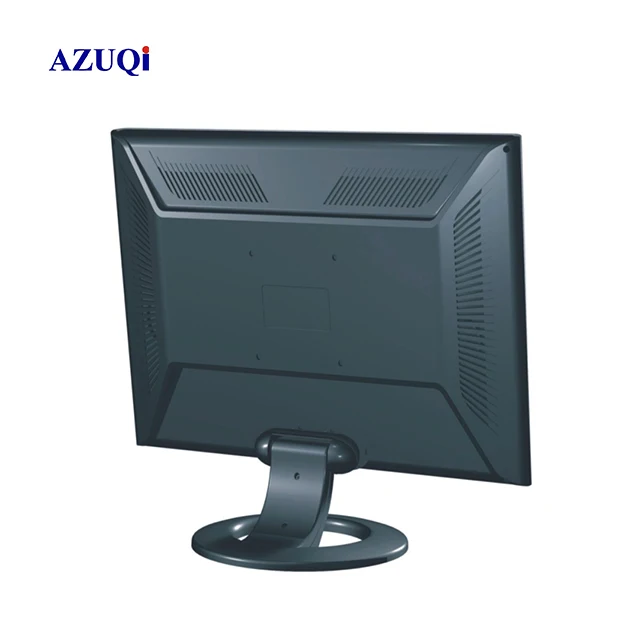

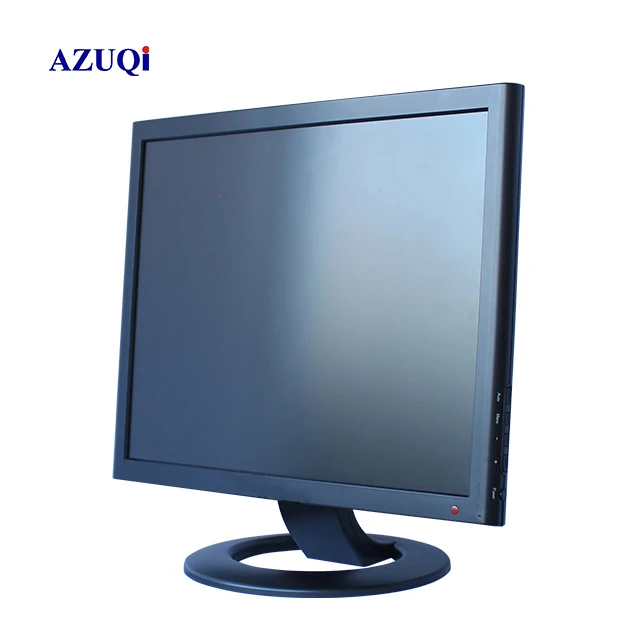

19 inch professional tft cctv lcd/led monitor
- Category: >>>
- Supplier: AZUQI INTERNATIONAL LIMITED
Share on (634743220):
Product Overview
Description
19 inch professional tft cctv lcd monitor
Product Description
| Specification for 19 inch lcd monitor | ||
| Model No. | AKA-1918MA | |
| Display | Screen size | 19 Inch |
| Panel type | TFT LCD Display | |
| Max. Resolution | 1280 x 1024 | |
| Pixel Pitch | 0.294 mm | |
| Brightness | 300 cd/square meter | |
| Contrast ratio | 1000:1 typical | |
| Aspect Ratio | 5:4 | |
| Viewing Angle(H /V) | 160 / 160degree | |
| Display color | 16.7 Million | |
| Response Time | 5ms | |
| Power Consumption | Approx. 23 Watts | |
| Video system | NTSC / PAL | |
| Interface | Solution No. | M2(Economic Style) |
| Video 1 Input | CVBS Input(BNC type)x1 | |
| Video 2 Input | CVBS Input(BNC type)x1 | |
| Video 2 Output | CVBS Output(BNC type)x1 | |
| PC-RGB Input | VGA (15Pin D-Sub)x 1 | |
| Audio Input | Stereo 3.5mm input x1 | |
| Audio Output | Stereo 3.5mm Output x1 | |
| HDMI Input | 1 | |
| DC 12V Input | 1 | |
| Features | Built in Comb Filters | 2D |
| Built in De-interlace | 3D | |
| Source | PC / Video1 / Video2 / HDMI | |
| Multi-Language | English, Chinse,French ,German, | |
| Italian , Portuguese , Spanish | ||
| Audio | Built in Speakers(Option) | 2 |
| Cabinet | Color | Black |
| Material | ABS Plastic | |
| Wall Mount | VESA | |
| Base Stand | Desktop Stand | |
| Circumstance | Operating Temperature | 0°C ~ 50°C / 32°F~122°F |
| Storage Temperature | 20°C~60°C / 4°F~140°F | |
| Packings | Unit N.W./G.W. | Approx. 5.5KG/6.5KG |
| Gift Box Dimension | 490x185x490 mm (LxWxH) | |
| Regulations | RoHs , FCC , CE , C-tick , and so on. | |
| Specification are subject to change without notice | ||
Interface for reference:

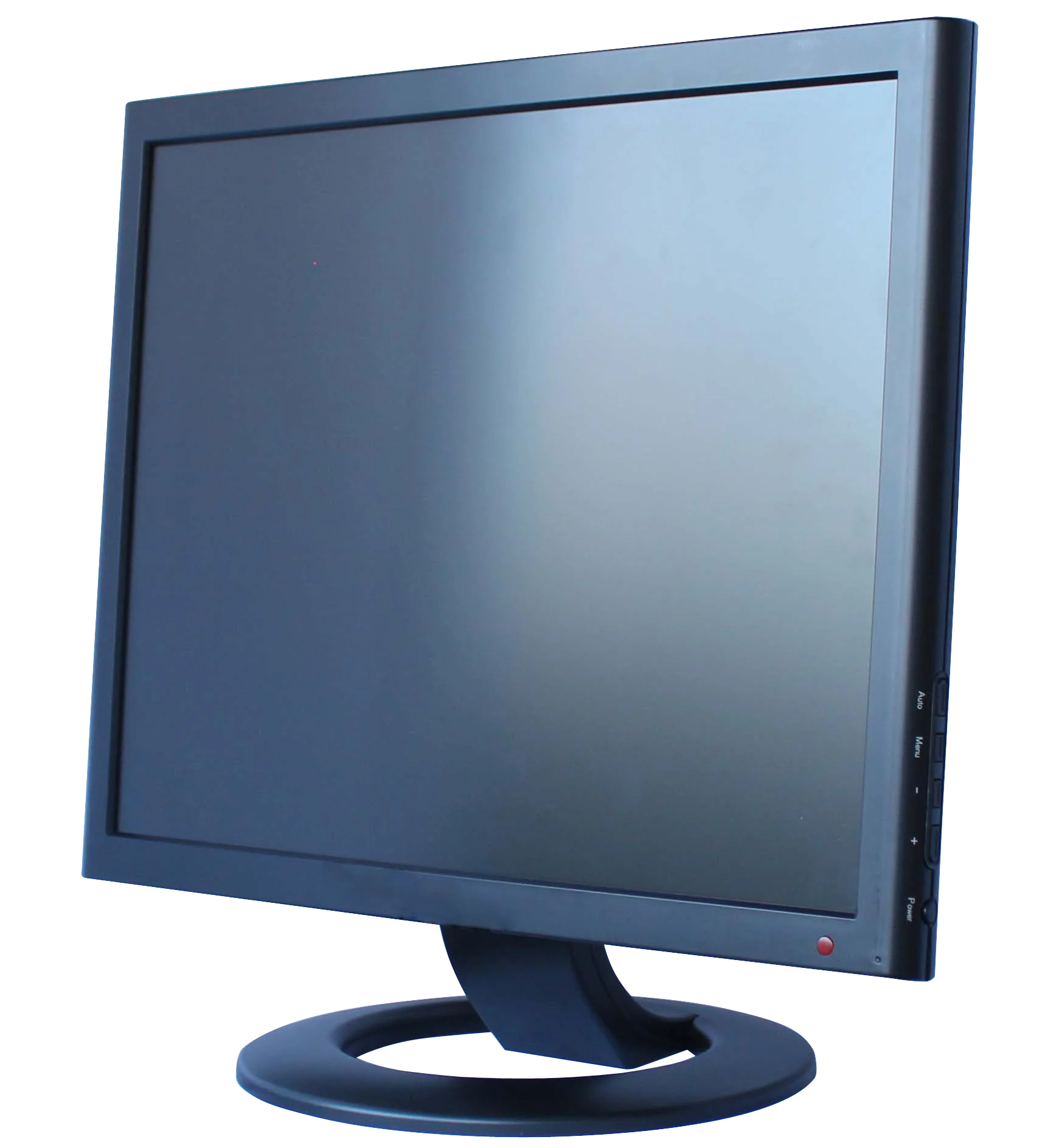

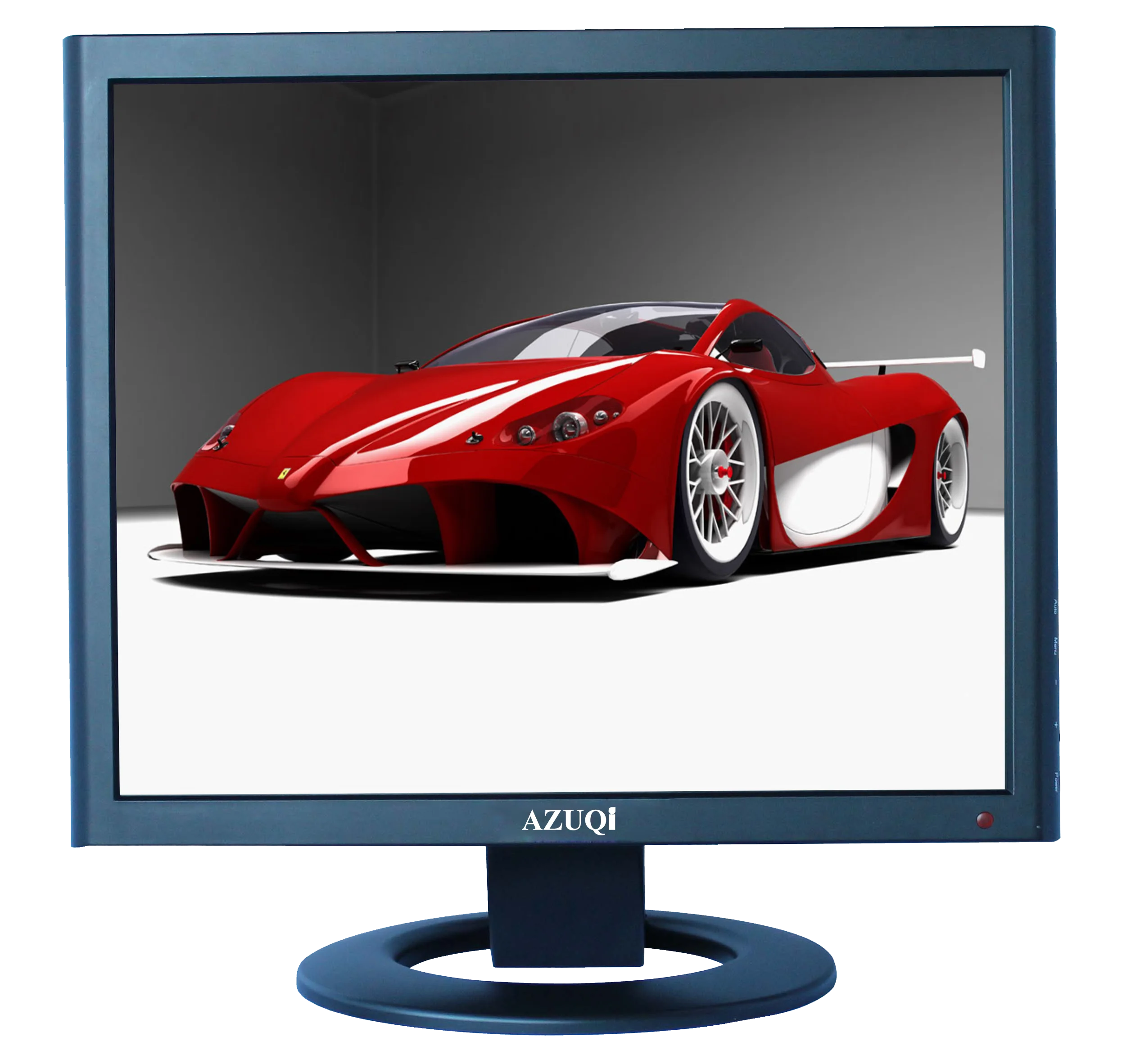

19 inch monitor AKA-1918MA picture for reference:
Company Information
Azuqi International Limited is alibaba 4th year gold supplier , we have been in this cctv security line for 8 years, specialized in the R&D, production and sale of CCTV video surveillance products, TFT LCD monitors/TVs, DVR systems and security accessories
Company overview:

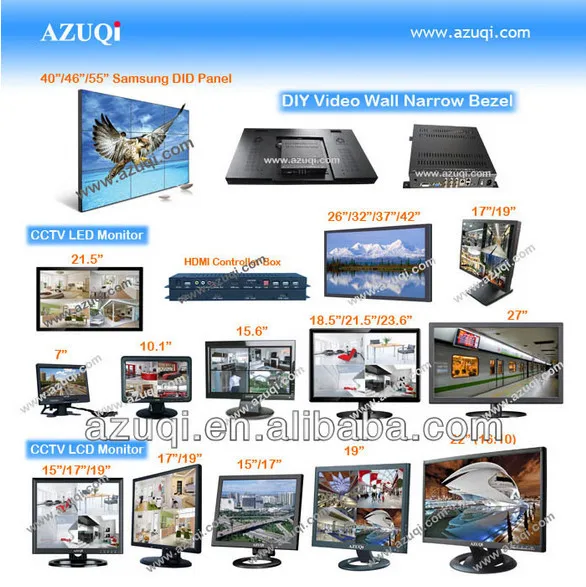

more products picuture for your reference:

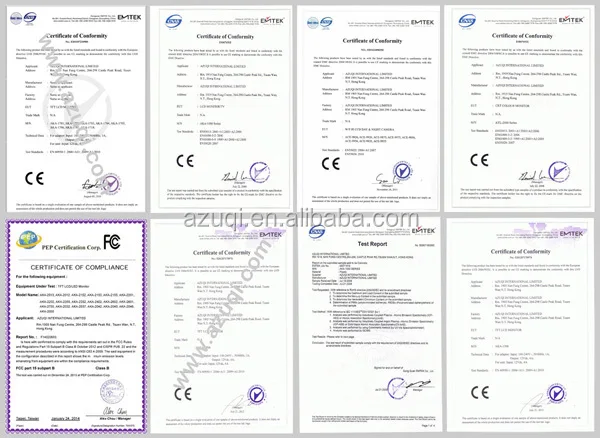

Monitor certification for your breif view:
exhibition for view:
Packaging & Shipping

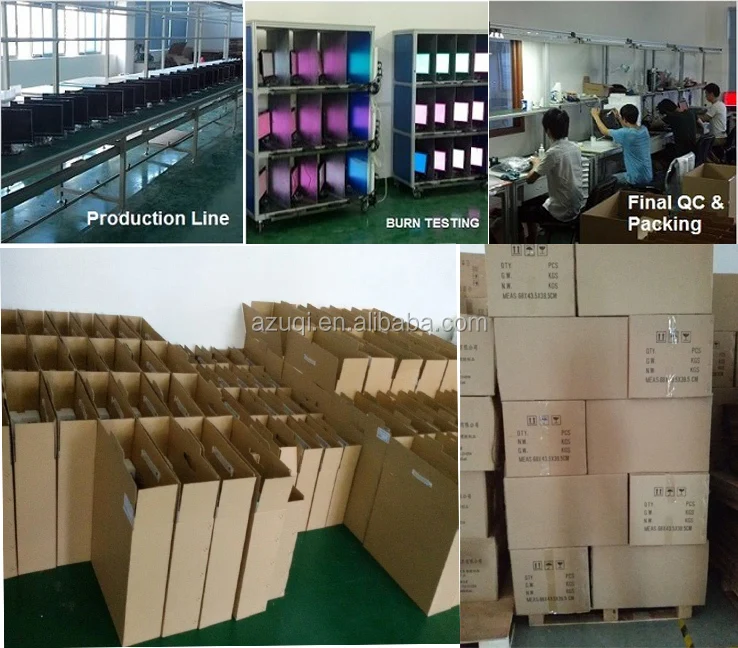

monitor burn-in test and packaging for breif view:
Long cooperation logistic company information for brief view :
Our Services
We not only do our own brand "AZUQI" , but also do OEM & ODM service , any requirements , please feel free to contact us .
