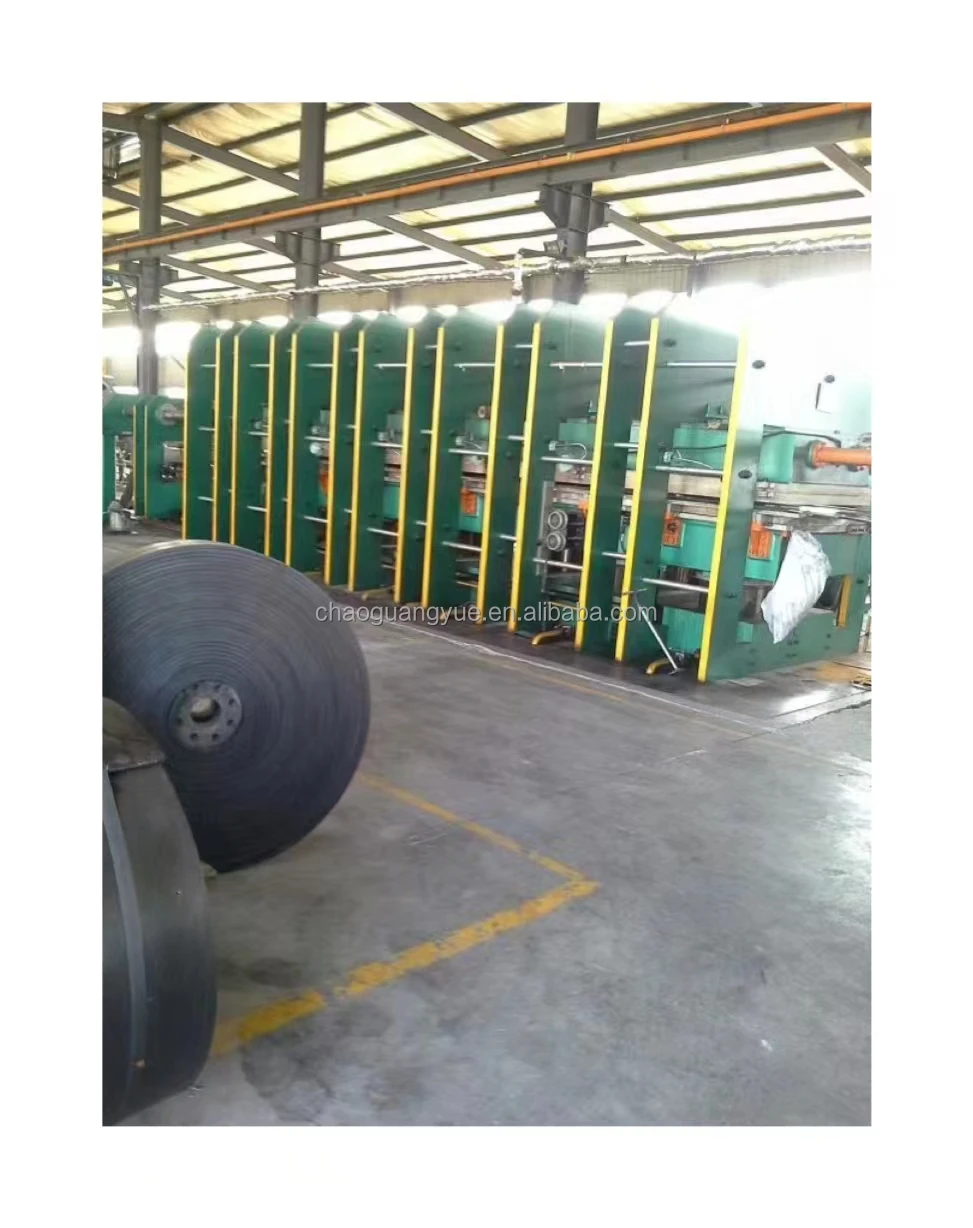

XLB1400x5700 rubber conveyor belt making production vulcanizing vulcanization curing hydraulic hot heat press machine
- Category: >>>
- Supplier: Qingdao Chaoguangyue Industry Co. Ltd.
Share on (634962040):
Product Overview
Description
Promotion!

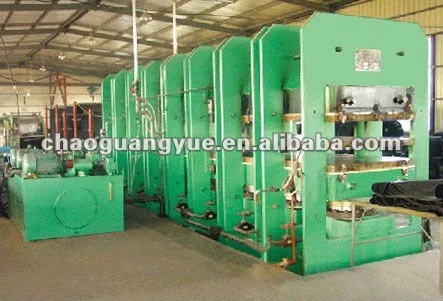

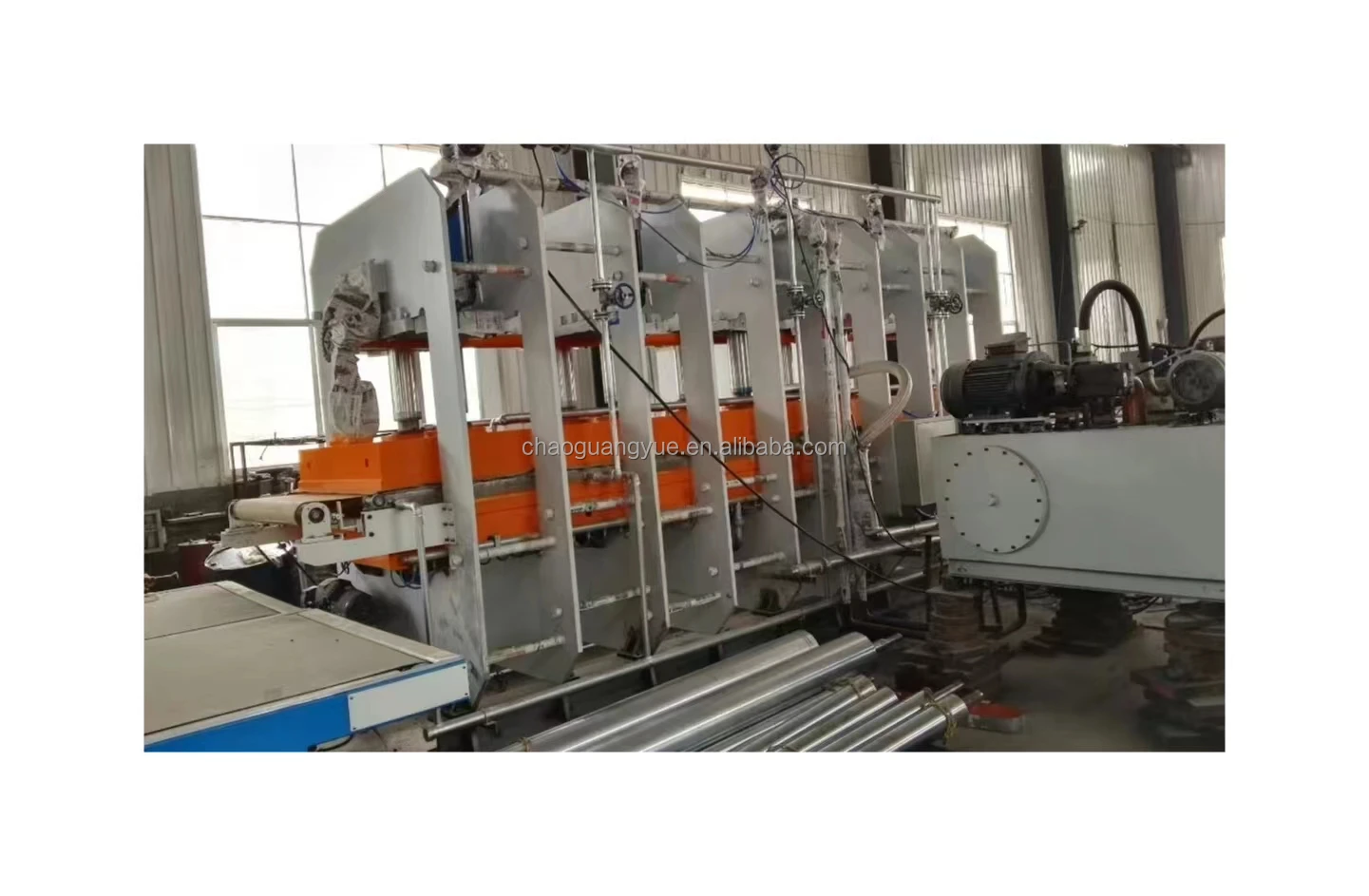

XLB1400x5700 rubber conveyor belt making production vulcanizing vulcanization curing hydraulic hot heat press machine
1. CE, ISO, SGS, excellent seal and long life.
2. High production efficiency, low mold-locking speed, protect mold.
3. Less energy consumption, low noise, without oil spilling or off pressure.
4. Reliable structure, easy to be operated.

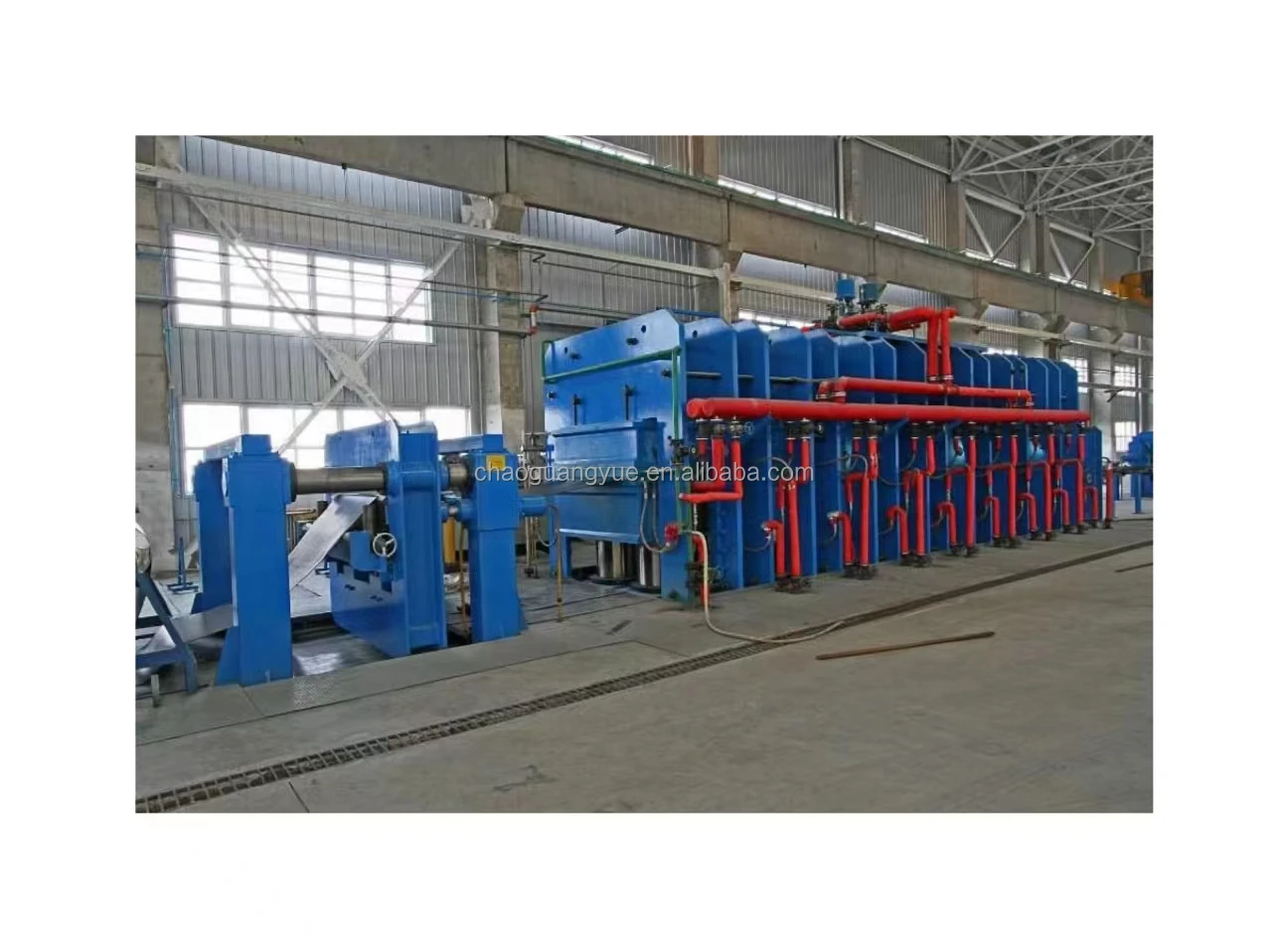

1. Main use
The Muliti-Unit Press works for the vulcanization of the fabric coin conventional conveyor belt,nylon conveyor belt,PVG conveyor belt,anti-flammability conveyor belt,wirerope conveyor belt ,and conveyor belt of textile construction etc.PLC is used in the control system of mainframe that can meet multi-progtam automafic control,and platen temperature can be measured and adjusted automatically during the course of curing.
2. Advantages
1. PLC control, high level automatic.
2. New heating insulation material, withstand pressure, high heat resistance.
3. Equipped with hydraulic auto guard device so ensure of the quality of belt edges, and improve the working efficiency.
4. The vulcanizing press can distribute the pressure averagely.
5. Equipped with a unique heat balance system; it can control the deformation and improve the belt quality.
3. Technical parameter
Parameters/version | XLB1200*1200*2 | XLB-Q1200*2700*1 | XLB-Q1400*8000*2 | XLB-Q1400*2500*1 | XLB-Q2000*2500*1 |
Mould closing force(MN) | 3.15 | 850 | 3400 | 1200 | 1800 |
Plunger stroke (mm) | 400 | 250 | 400 | 500 | 250 |
Platen unit area pressure (Mpa) | 2.18 | 2.6 | 3.1 | 2.4 | 2.88 |
Hot plate layer | 2 | 1 | 2 | 1 | 1 |
Main motor power (kw) | 7.5 | 5.5 | 37.5 | 19 | 22 |
Daylight (mm) | 200 | 250 | 200 | 500 | 250 |
Size (length*width*height) (mm) | 2600*1340*2400 | 2700*1860*2600 | 8000*2400*3800 | 2500*3100*3600 | 3520*2900*3550 |
Weight (kg) | 9500 | 20000 | 121000 | 22000 | 55000 |
Hot platen size (mm) | 1200*1200 | 1200*2700 | 1400*80000 | 1400*2500 | 2000*2500 |
Customer Visit
Delivery
Why Choose Us?
-Qingdao Chaoguangyue Industry Co.,Ltd established in 1971,we are specializing in producing rubber machines,and we had a great feedback from our customers.
-Our company can produce products of various non-standard specifications according to customer's requirement.
-Superior quality:we have obtained ISO9001,CE,SGS certification,we can guarantee the quality of the machines.
-Fast delivery time:within 20 working days.
-Competitive price compared with others with the same quality.
-Comfortable after-sales service:Quality problems of our machines will be attached high attention,we will response within 24 hours and we will solve the problem ASAP.
-Great supports for marketing.
Business FAQ
1.Q:Are you a trading company or a factory?
A:We are 100% real manufacturer,we have more than 30000 square meters of factory buildings and workshops for producing machines,welcome to visit our factory.
2.Q:Do you have machine warranty?
A:Yes,we have 2 years warranty,however,the using life of our machines is usually more than 10 years.
3.Q:I have special requirement about machines,such as length,diameter,or others,can you meet it?
A:Yes,we can manufacture various non-standard specifications of machines,if you have special requirement,please contact us.
4.Q:I want to purchase your company's machine,can you send me a quotation?
A:Sure,please tell me the model of the machine that you need,I will provide you a suitable price.If you don't know which model suits you,contact me,I will recommend a suitable machine to you.
5.Q:What's your payment term?
A:30% of total value in advance by TT,a further 70% will be paid before loading.
6.Q:What's your MOQ?
A:The MOQ is 1 set,but if you order more than 1 machine,you will get different discounts according to the quantity.
