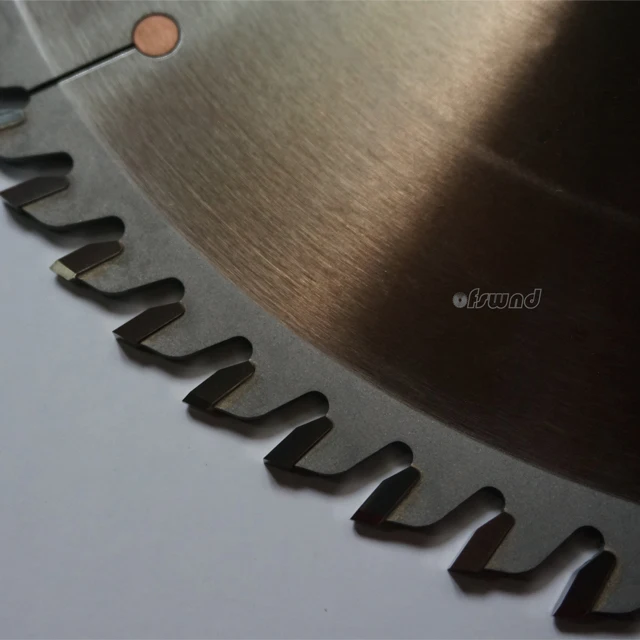

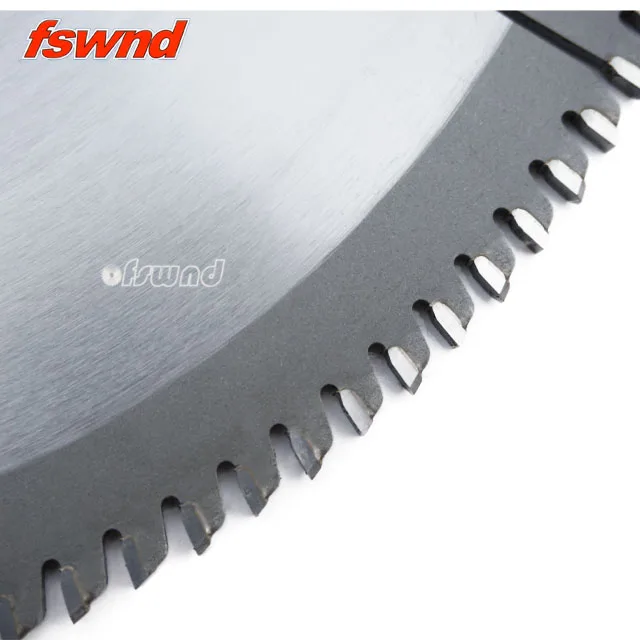

tungsten carbide tipped circular saw blade Adjustable Slot Scoring TCT Circular Saw Blade wood cutting disc

Product Overview

Description

tungsten carbide tipped circular saw blade Adjustable Slot Scoring TCT Circular Saw Blade wood cutting disc



Material

1,Body material: SKS-51,which is imported from Japan,The body is treated in special heat treatment,so it has high precision and good balance.

2,The alloy is imported from Luxemburg,and hard enough to bear high pressure.





Advantage

1,Adiustable Slot Scoring Saw Blade,with left/right composite tooth,it can reduced the surface crack,and keep the surface with excellent smooth and edge.

2,It should be used together with the main saw blade of the Plate cutting machine

3,Less chipping,help you save material





Teeth feature

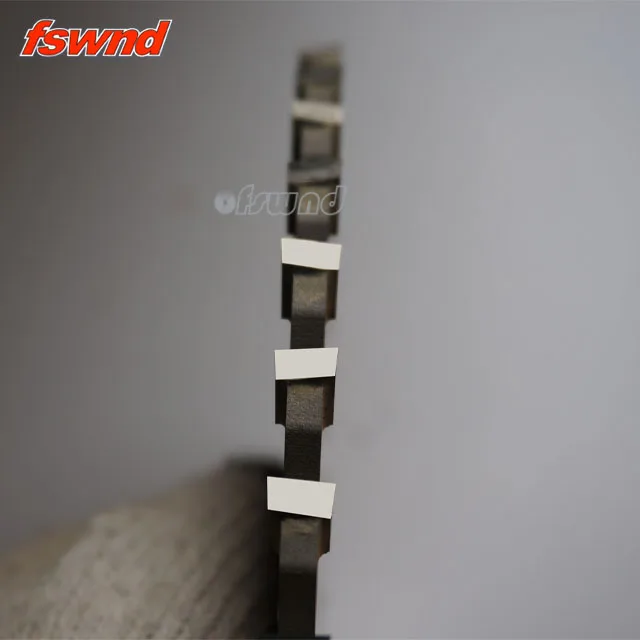

With left/right composite saw tooth,has a efficient cutting speed and simple grinding.





The commonly used sizes



outer diameter(ΦD)mm	Tooth WIdth(B)mm	Inner diameter(Φd)mm	Tooth Number(Z)	Tooth Type(C)	Use(U)
80	2.8-3.6	20	10+10
100	2.8-3.6	20	12+12
100	2.8-3.6	22	12+12
120	2.8-3.6	20	12+12	left/right composite saw tooth	used for cutting patch panel
120	2.8-3.6	22	12+12
125	2.8-3.6	20	12+12
125	2.8-3.6	22	12+12





Some model
