Product Overview

Description

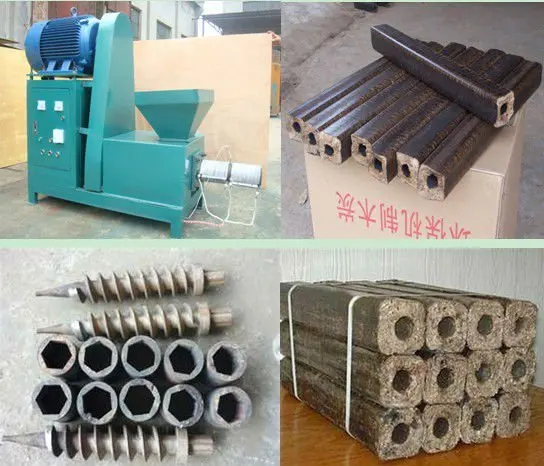

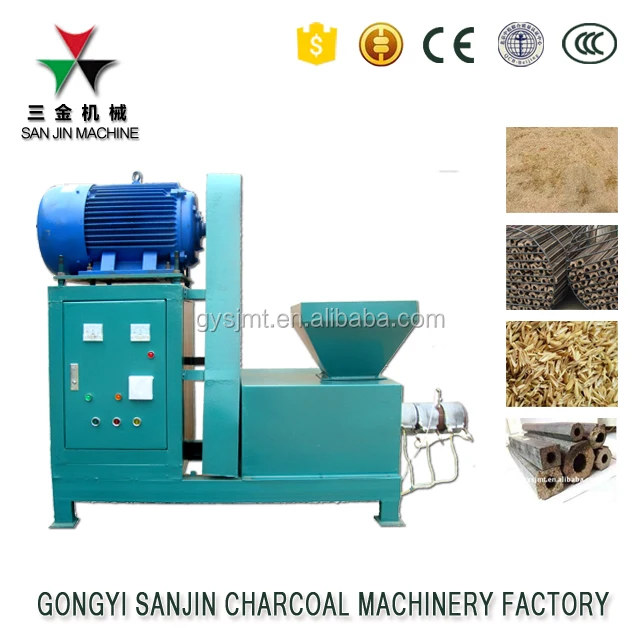

Machine to Make wood briquettes



Product Introduction:



Our wood charcoal making machinery shows the features of high capacity,low energy consumption.

Our wood briquette machine  are awarded 2 patents ( patent number: 200530100650.5, 200520031212.2),and show the featurs of big capacity, low energy consumption, compact and durable. Many performance data such as capacity, coal bar density, eletricity consumption and wearable degree have reached advanced level. Our newly developed wood briquette machine can be used as charcoal powder shaping machine by replacement of some spare parts.



raw  material:

The final bio-fuel briquette is made by the advanced biomass briquetting machine. Almost all type of Agro-Forestry waste can be used, including: wood chips, maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo saw dust, bagasse, etc



Requirment of the raw material :

1.For using material of two or more types, It should be mixed in suitable form.

2.size:samaller than 5mm , if the material can not accheive the reuirment, it should be crush first.

3moisture :8-12%,If raw material has high moisture it should be reduced by Sun drying or using flash drie

4.the feed material should be even

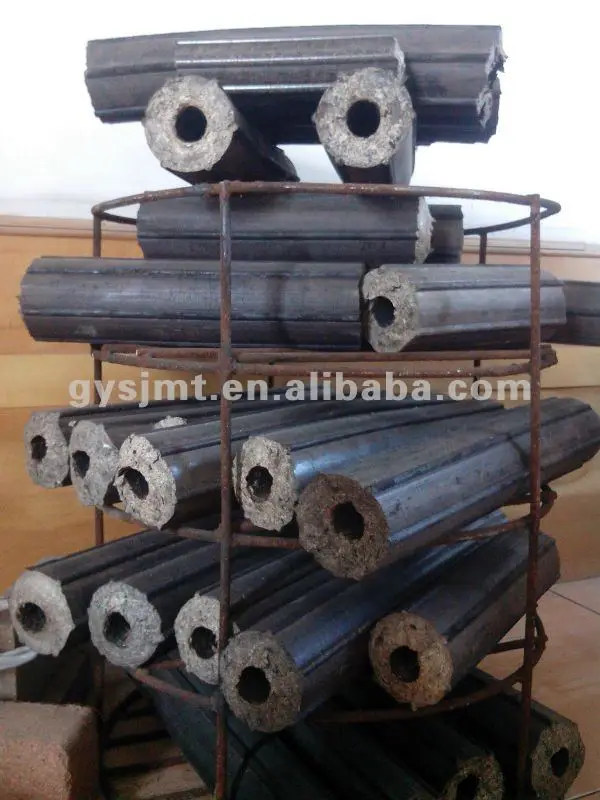

 Finished  product:

After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. This bio-fuel briquette is 40-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder with a 15-20mm hole through the body.

.

Technical Parameter:

Model	Capacity (kg/h)	Motor Power (kw)	Net weight (kg)	Package dimension (m)	Diameter of briquette(mm)
IV	120	15	700	1.65*0.6*1.6	50
V	200	22	800	1.9*0.6*1.8	50
80	300	18.5	700	1.9*0.6*1.8	80

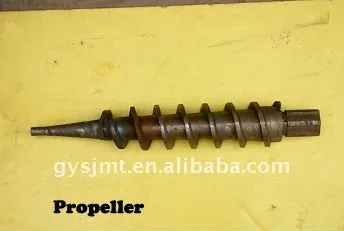

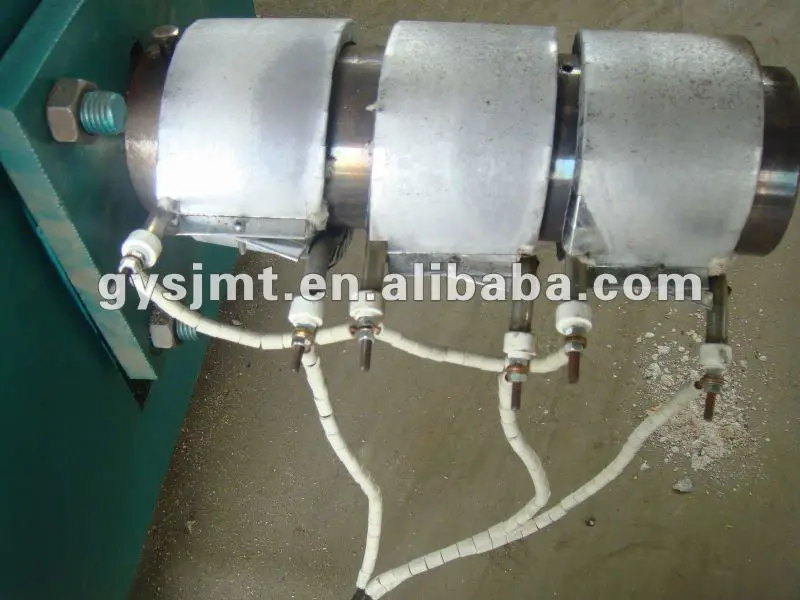

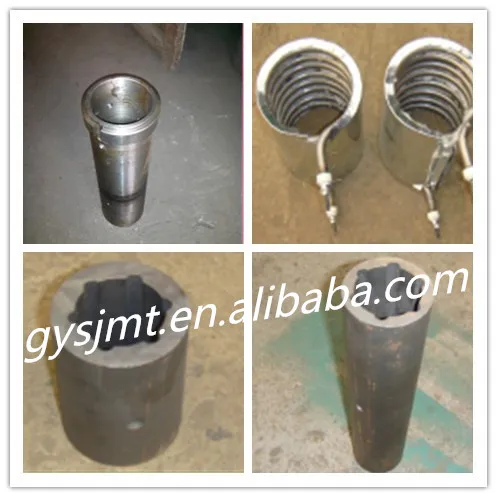

spare parts:





Machine to make wood briquetts:





Wood charcoal production line:
