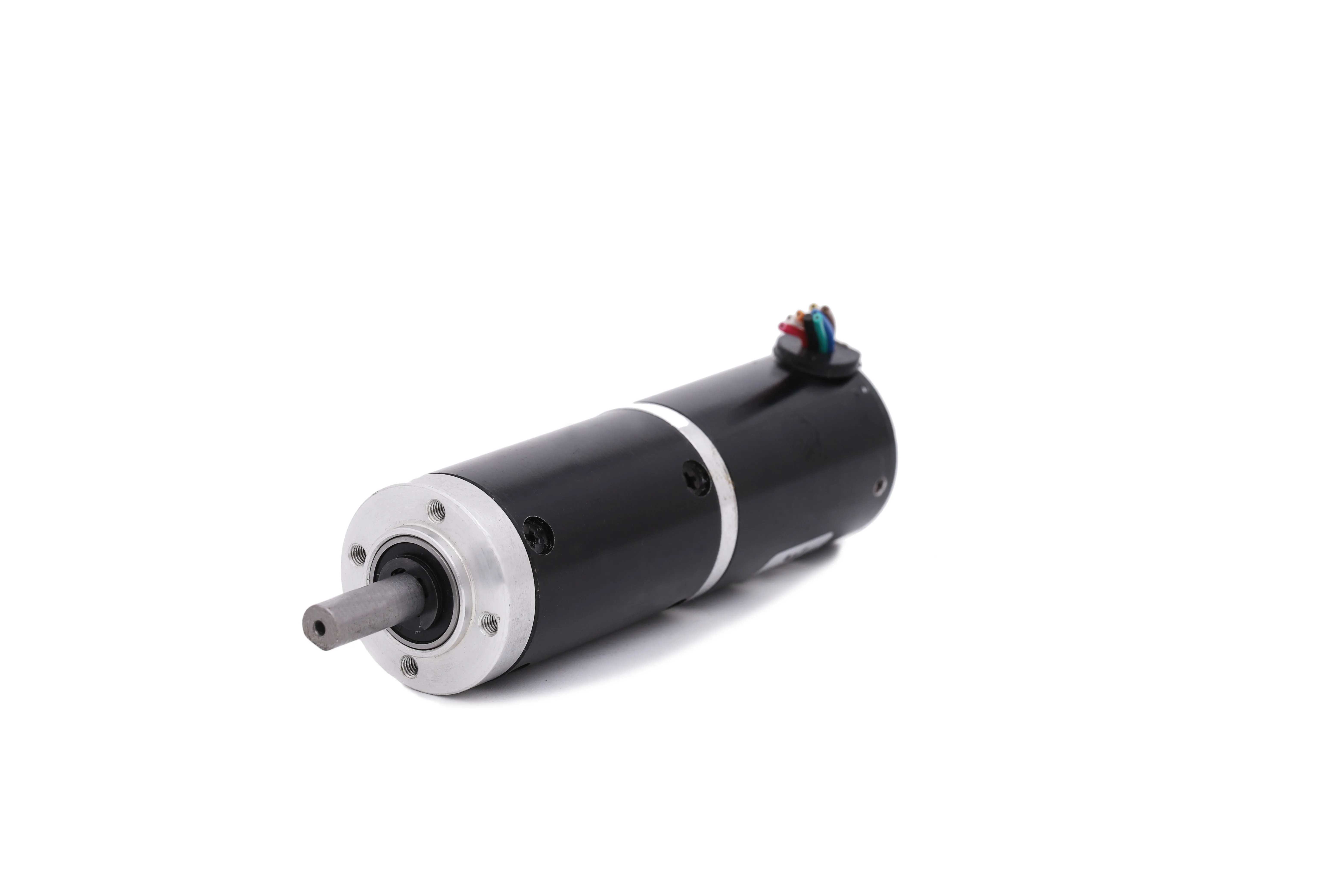

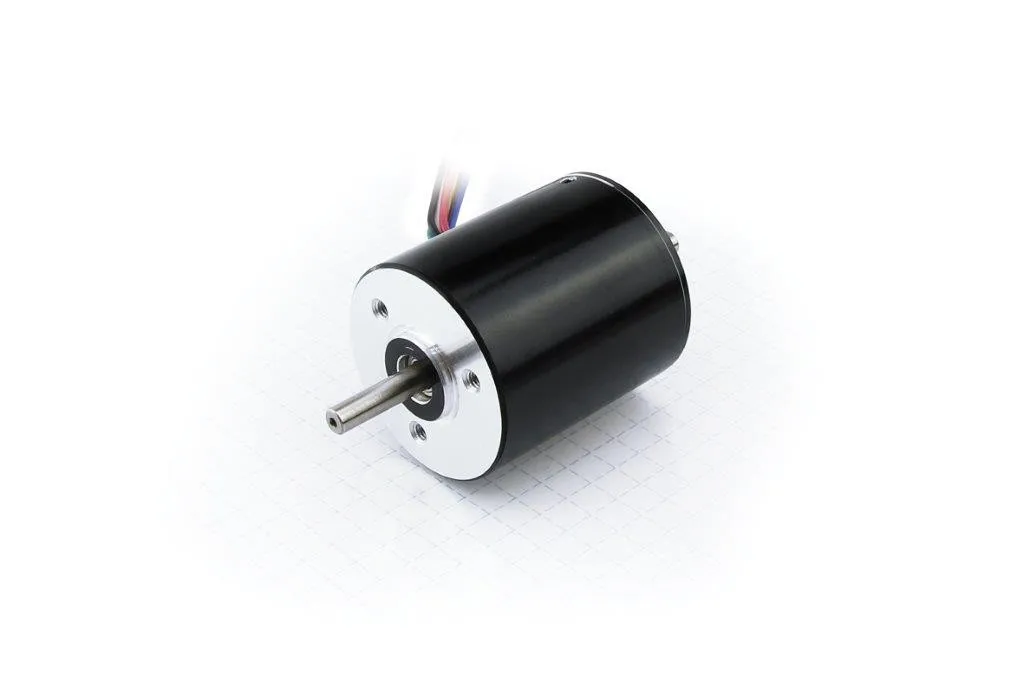

28mm High speed brushless DC Motor for breath pump
- Category: >>>
- Supplier: Changzhou Fulling Motor Company Limited
Share on (635076851):
Product Overview
Description
Product Description
BLDC Motor , brushless motor, magnet motor
FL28BL SERIES
GENERAL SPECIFICATIONS
Winding type | Star |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.02mm@450g |
End play | 0.08mm@450g |
Max. radial force | 15N @ 10mm from the flange |
Max. axial force | 10N |
Insulation class | Class B |
Dielectric strength | 500VDC for one minute |
Insulation resistance | 100MΩMin., 500VDC |
ELECTRICAL SPECIFICATIONS
| Model | FL28BL28 | FL28BL38 | FL28BL77 |
| Number of poles | 4 | 4 | 4 |
Number of phase | 3 | 3 | 3 |
Rated voltage VDC | 15 | 24 | 24 |
Rated speed RPM | 8000 | 10000 | 3700 |
Continuous stall torque mN.m | 8.4 | 17 | 60 |
Rated torque mN.m | 7 | 14.12 | 50 |
Rated power W | 6 | 14.78 | 16 |
Peak torque mN.m | 21 | 42.4 | 150 |
Peak current A | 2.5 | 2.8 | 3 |
Line to line resistance ohms | 8 | 4.63 | 4.67 |
Line to line inductance mH | 2 | 3 | 3.5 |
| Torque constantmNm/A | 13.7 | 16 | 50 |
Rotor inertia g.cm2 | 1.23 | 2.12 | 5.98 |
Body length mm | 26 | 38 | 77 |
Mass Kg | 0.060 | 0.082 | 0.280 |
