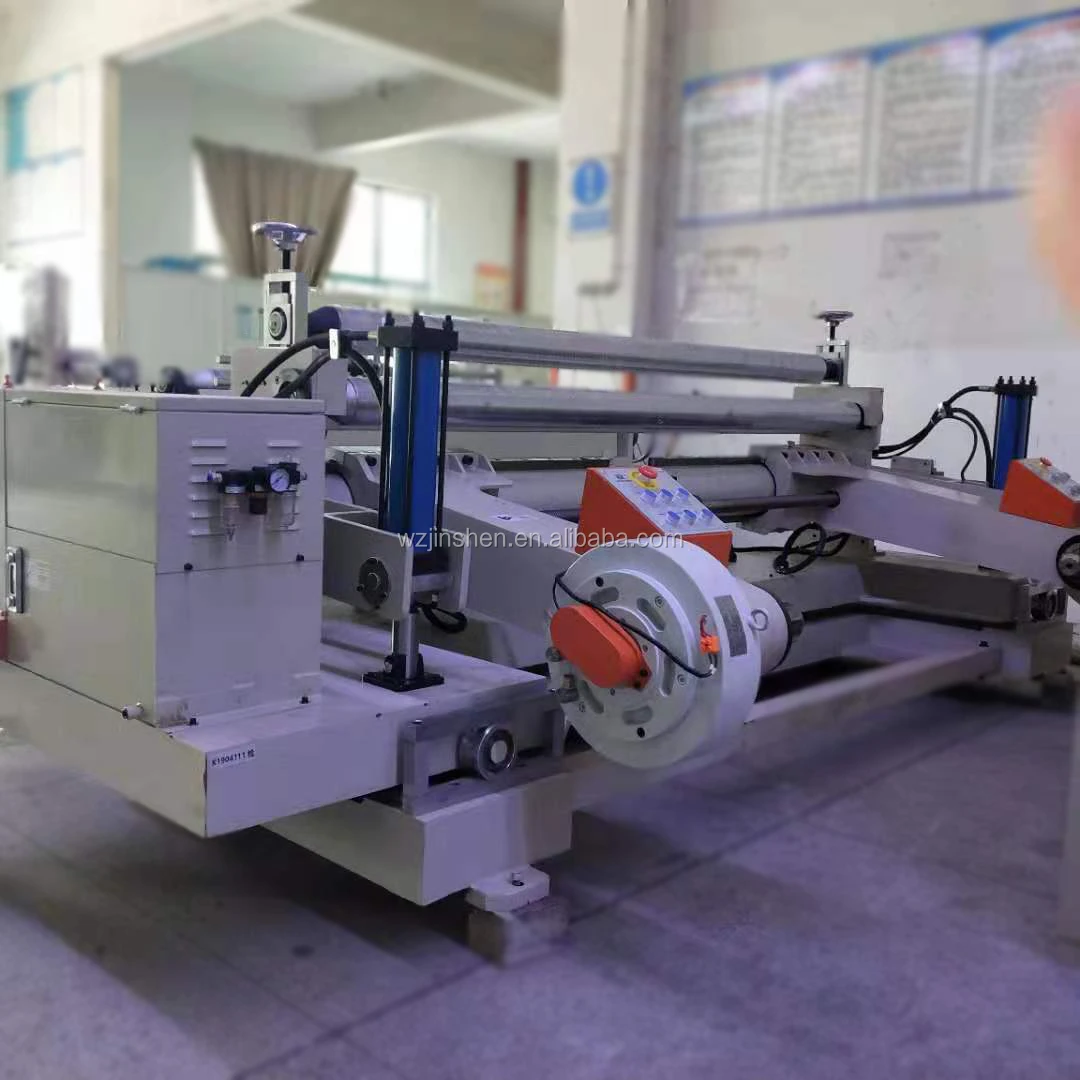

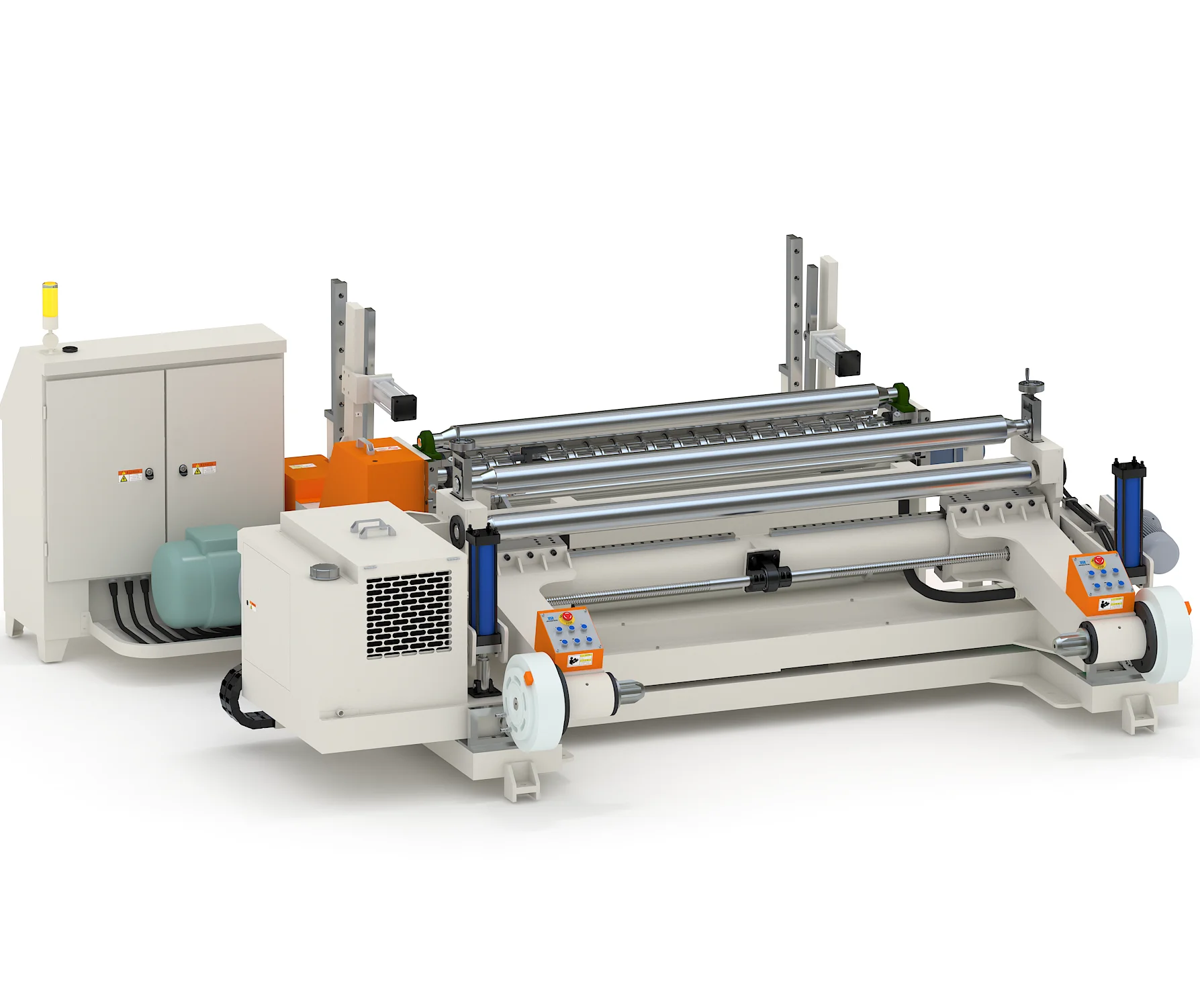

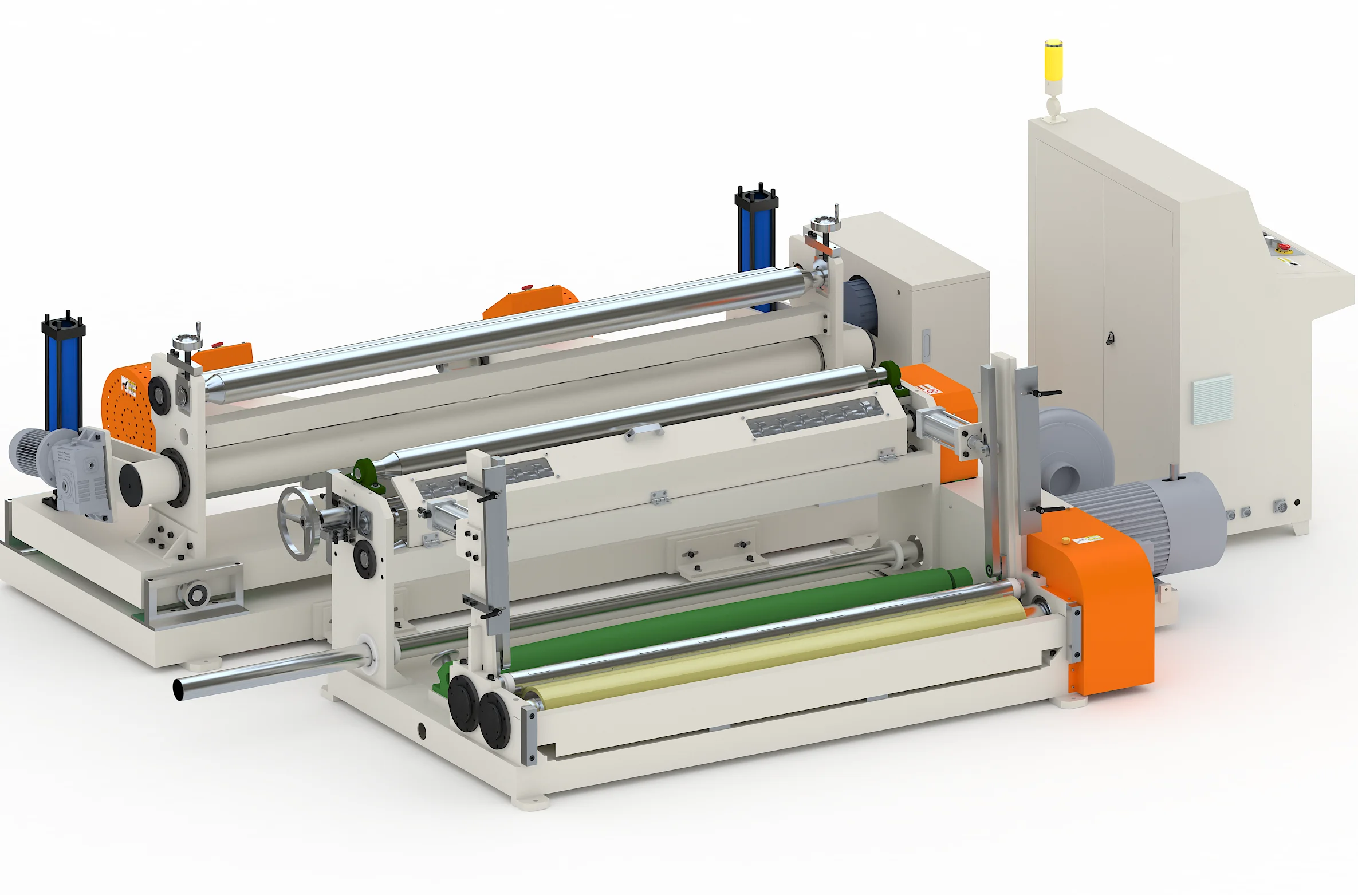

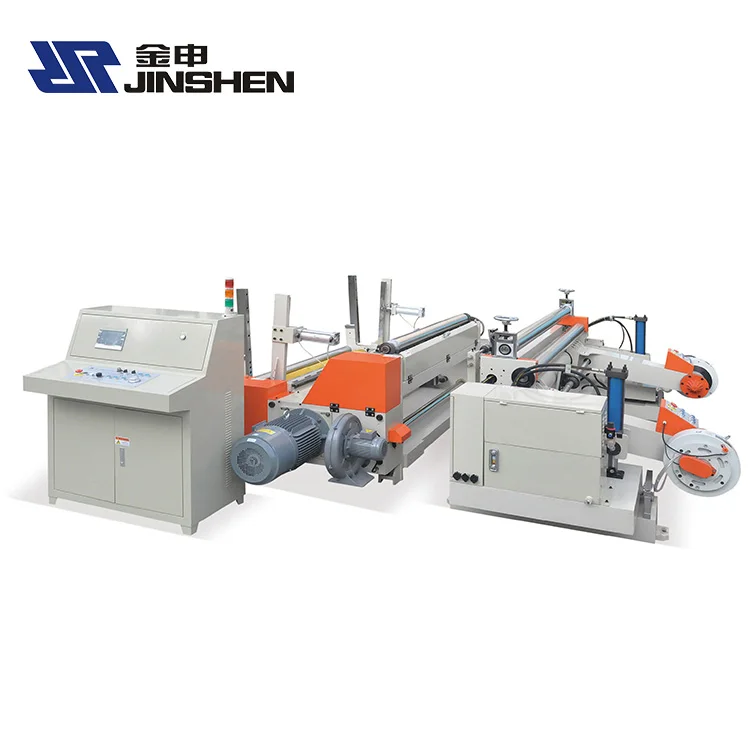

Numerical paper processing machine jumbo paper roll slitting cutting machine
Numerical paper processing machine jumbo paper roll slitting cutting machine
Numerical paper processing machine jumbo paper roll slitting cutting machine
Numerical paper processing machine jumbo paper roll slitting cutting machine
Numerical paper processing machine jumbo paper roll slitting cutting machine
Numerical paper processing machine jumbo paper roll slitting cutting machine
Numerical paper processing machine jumbo paper roll slitting cutting machine

Numerical paper processing machine jumbo paper roll slitting cutting machine

Share on (635608117):


Price:$29,000.00

Quantity:


Product Overview

Description






Suitable for all kinds of craft paper ,tea paperboard,grass paperboard ,calico and art paper.Mother roll width based on your requirement ,like 1600 mm to 2500 mm.


1. Smooth on the both sides of the paper strap after cutting
2. Hydraulic without shaft type feeding device.
3. Tape tension automatic control, since the plate of rewinding tension remained.
4. Equipped with computer system, automatic correction
5.Hydraulic shaftless type feeding device
6.Upper and down cutter initiative transmission.








PRODUCT SPECIFICATIONS


Mother roll max width
1600mm
PLC controller
Delta
Finish roll min width
35mm
Man-machine interface
weinview6070i
Mother roll max diameter
1500mm
Length sensor
Have
Finish roll max diameter
1300mm
Actuator
CHNT
Speed of slitting
0-300m/min
Signal component
Omron
Slitting paper
60-700gsm
Pneumatic component
Airtac
Way of winding
air expansion winding
Program edition
JS-RS2.0
Quantity of knife
21 sets
Inverter
YASKAWA 11 kw
Way of loading paper
 Liquid compression
 Hydraulic system
Dekema
Power input
custom
Speed of control and adjust
Inverter


Loading material
Liquid compression
Mainframe power
11 KW
Unloading material
Automatic
Mainframe rotate speed
960r/min
Way of correct edge
electric edge correcting
Liquid compression motor
1.5kw
Tension control
Air pressure
Way of correcting edge
hydraulic
Rewinding Single airshaft 3”
Bearing
Wangxiang
Unwinding by clapper
driving way
chain driving
double knives for slitting, thickness knife
Pneumatic tension control system


FAQ




Zhejiang Jinshen Machinery Manufacture Co. Ltd. is an innovative paper tubes and paper cores machines manufacturing company based in Zhejiang Province, China, famous with this kind of industry in mainland China. Our company is started his business at 1995 and quickly became a major exporter to all around of world his economic and reliable paper tubes and cores manufacturing machines.
We have various kind of solutions for textile industry, for construction industry, for motor parts industry, for electrical parts
industry, for logistics company, for food packaging industry, for luxury packaging industry by our different type of machines such as paper slitter & rewinder, spiral paper tube winder, paper tube re-cutter, paper reel stand, glue unit, paper tube slitter,paper tube trimmer, paper tube polisher, and paper tube ends rolling machine.
We main focus is always your satisfaction and your confidence that you give us feedback, we know that the main keyword is always our support after sales who makes you always unworried about your future business days. No matter where you located we are flexible to send you our technicians as quickly as possible where and when you need an on-site help.
