Product Overview

Description

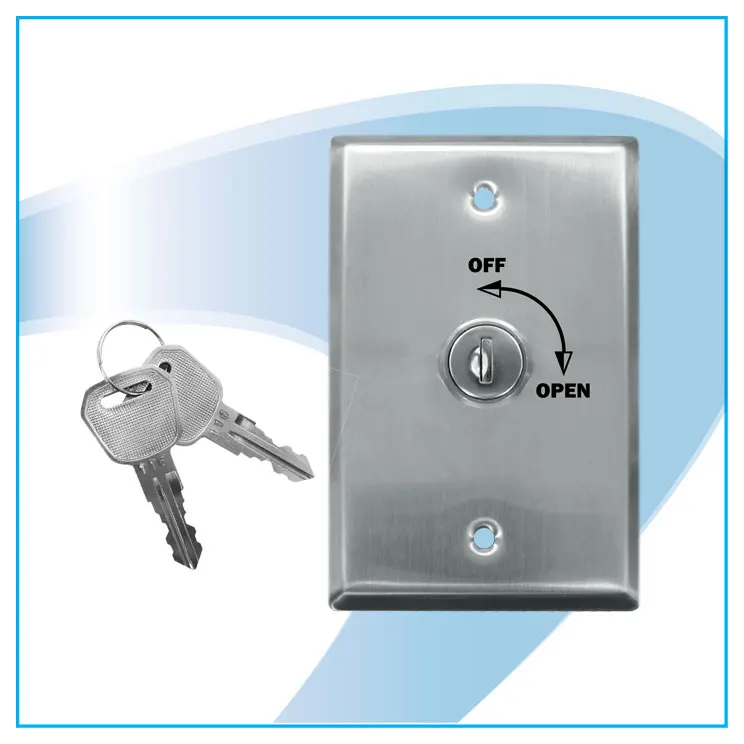

ANSI standard key switch

Product Description

Installation of this product can prevent the access controller failure or other unexpected accidents result in electric lock can not open the door with a key forced to switch N.O. or N.C. contacts to open the door, the product is recommended to install in the secret place to prevent the destruction of. Parallel or series in UPS (uninterruptible power system) and electric lock (Fail-safe / Fail-secured).


Specification

Dimensions

: 5(plate)/34(total depth) x 75(W) x  120(L)mm

Net Weight

: 72g ± 5%

Hole distance

: 84mm

Material

: Face plate: stainless steel (Thickness: 1mm)

 Key switch: zinc alloy

Maximum limit power

: 125VAC / 4A, 250VAC / 2A

Contact resistance

: 10Milli-Ohms Max.

Insulation resistance

: 200 Meg-Ohms Min.(500VDC)

Dielectric strength

: 1000 VAC - 1 Minute

Operating temperature

: -20°C ~ 55°C

Storage Temperature

: <80%RH

Life

: 10,000 cycles

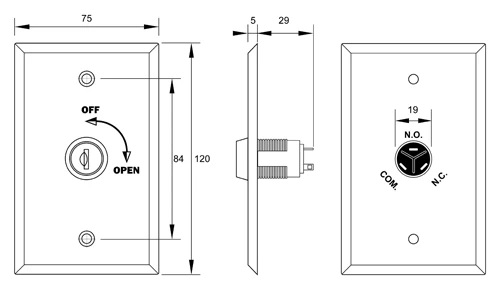

Dimension: Unit(mm)

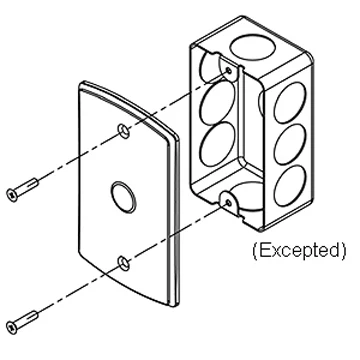

How to assembly

Fingerprint access controller and time attencance recorder   Fingerprint access controller and time attencance recorder

Fingerprint access controller and time attencance recorder   Fingerprint access controller and time attencance recorder

Fingerprint access controller and time attencance recorder   Fingerprint access controller and time attencance recorder

Fingerprint access controller and time attencance recorder   Fingerprint access controller and time attencance recorder

We reserve the right to change the specification without notice or obligation!
