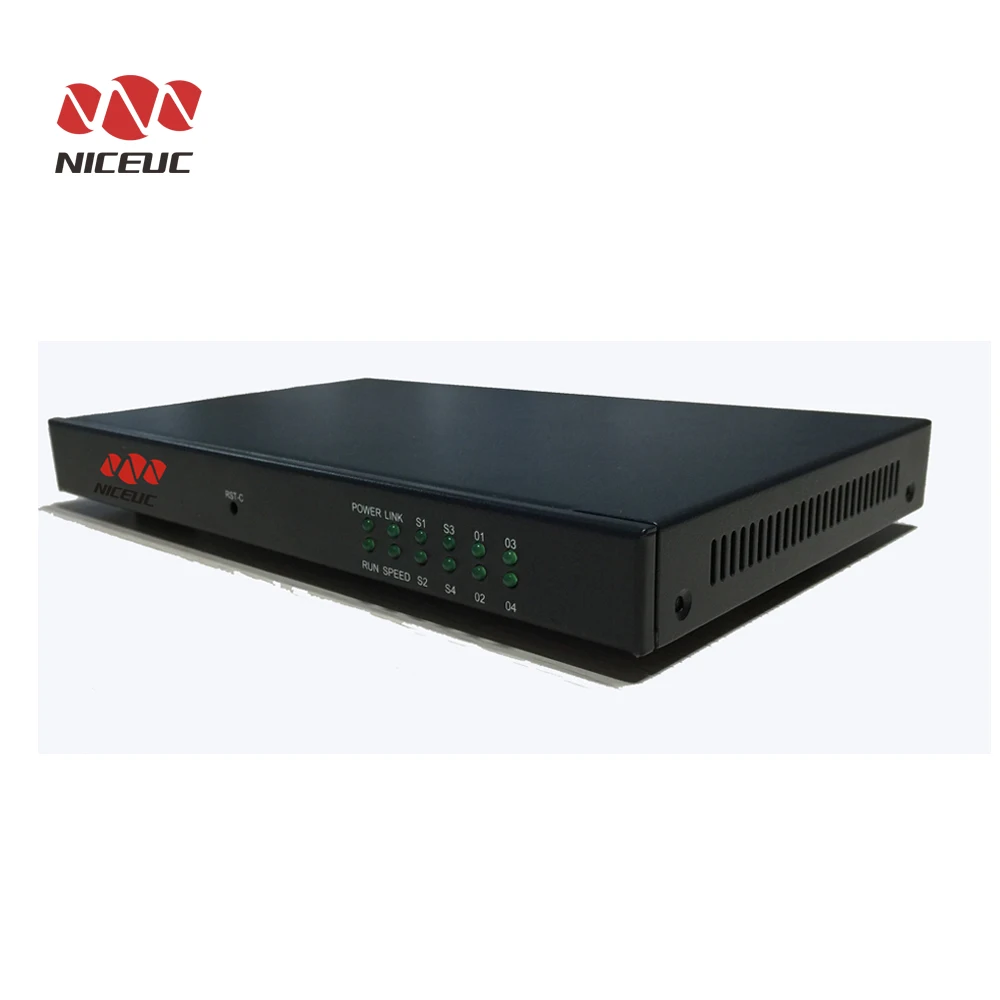

E1 PRI SS7 Gateway which makes connection between SS7, ISDN PRI, R2, V5.2, Q.SIG.
- Category: >>>
- Supplier: Shenzhen Niceuc Communication Tech Co. Ltd.
Share on (636677376):
Product Overview
Description
E1 PRI SS7 Gateway which makes connection between SS7, ISDN PRI, R2, V5.2, Q.SIG.
Product Description
Overview:

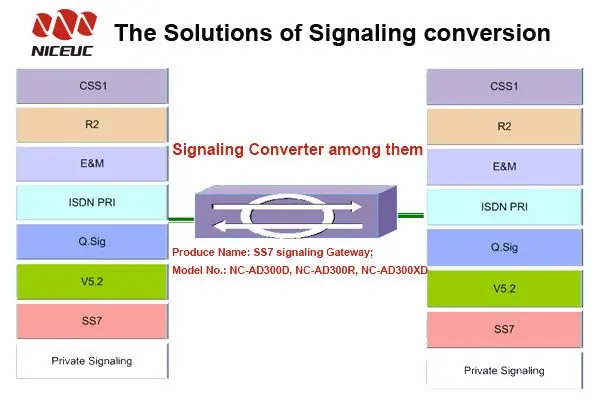

A Signaling Gateway/Converter is a device that enables connectivity between different signaling networks by resolving signaling differences between legacy switches and new network equipment (such as VoIP Gateways).
Signaling Gateway/Converter is from E1 to E1, which Convert any signaling between M3UA, Sigtran, SS7, ISDN PRI, Q.SIG, V5.2, R2.
Application:
·Signaling conversion: Convert SS7 to ISDN PRI, convert ISDN PRI to R2, etc;
·Varieties of call management application solutions: for IP networks, hotels, office buildings, colleges networks, industrial and mining enterprises, organizations and institutions units and military, public security, electricity, coal, petrochemicals, railways, banks and other private network system;
·As a terminal or access device;
·Used for value-added service of telecom by CTI interface, such as for call center.
Specification:
·Signaling support: SS7, ISDN PRI, Q.SIG, V5.2, R2/ACAS, DPNSS;

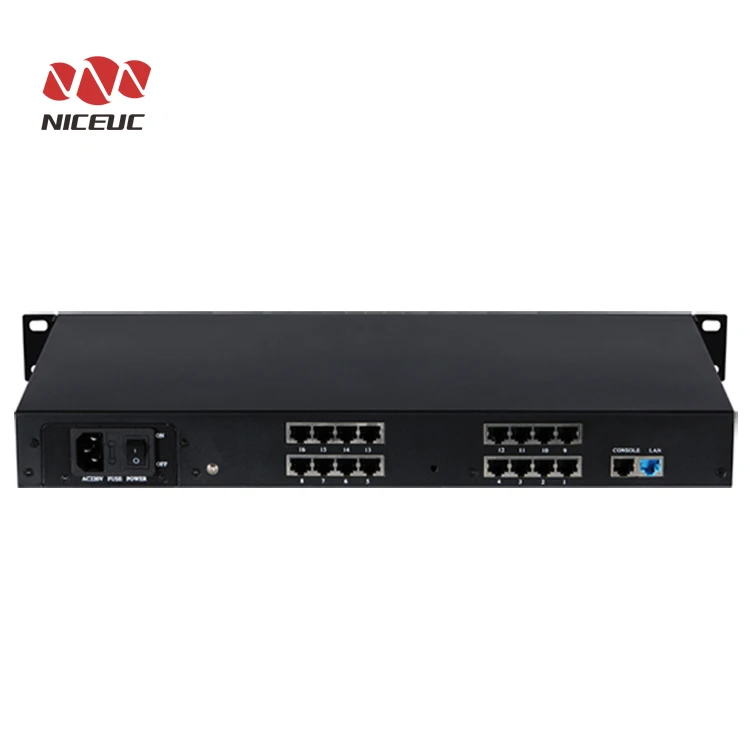

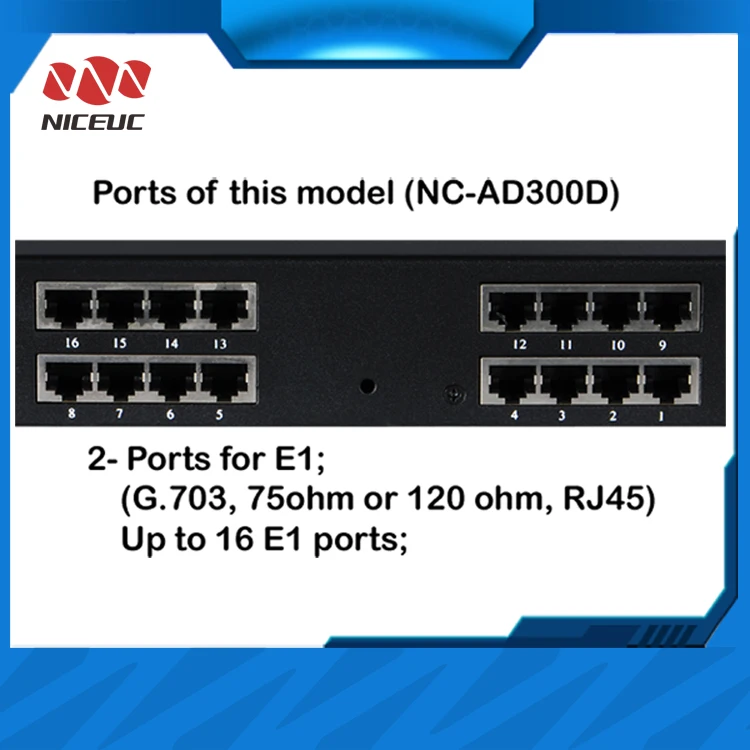

·Interface Connector: 16 E1/T1(Up to 100 E1/T1), 1 10/100M network, 1 RS232 console;
·Switching Volume: 2048*2048;
·Clocking accuracy: stratum 3 Clock;
·Resources: 256 Voice channels, 256 meeting channels, 256 DTMF channels, FSK inspection and delivery;
Function:
·Convert any signaling between SS7, ISDN PRI, Q.SIG, V5.2, R2/ACAS, DPNSS;
·Multi-router, inter-office management, Intelligent route distribute and telephone traffic sharing;
·Grouping switching management;
·User identifier, can provide black and white name list or connect to the database;
·Powerful calling function to provide customize calling mode;
·Voice management function with voice recording and voice play;
·Meeting function;
·Calling number and called number modification;
·Real time telephone traffic monitor and handling;
·Can expand the capacity through multi stack;
·Provide CTI Link API interface for user program control;
Physical Specification:
Item | Specification | ||
Input voltage | -48v DC or 200~240V AC | ||
Power | 30 W | ||

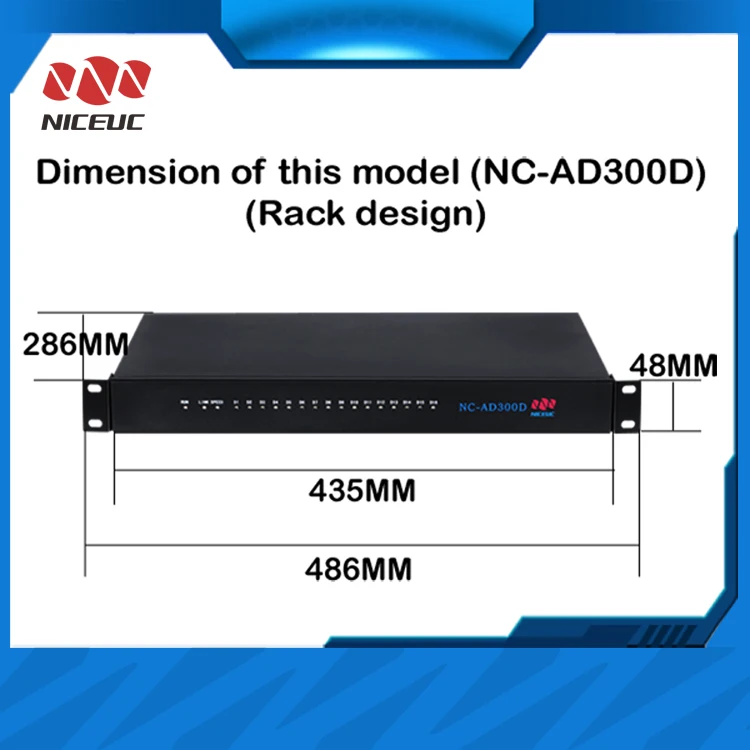

Dimension | width×depth×height | 480mm×290mm×40mm (1U) | |
Weight | 3 kgs | ||
Environment | Temperature | 0-50 | |
Rel Humidity | Less than 80 | ||

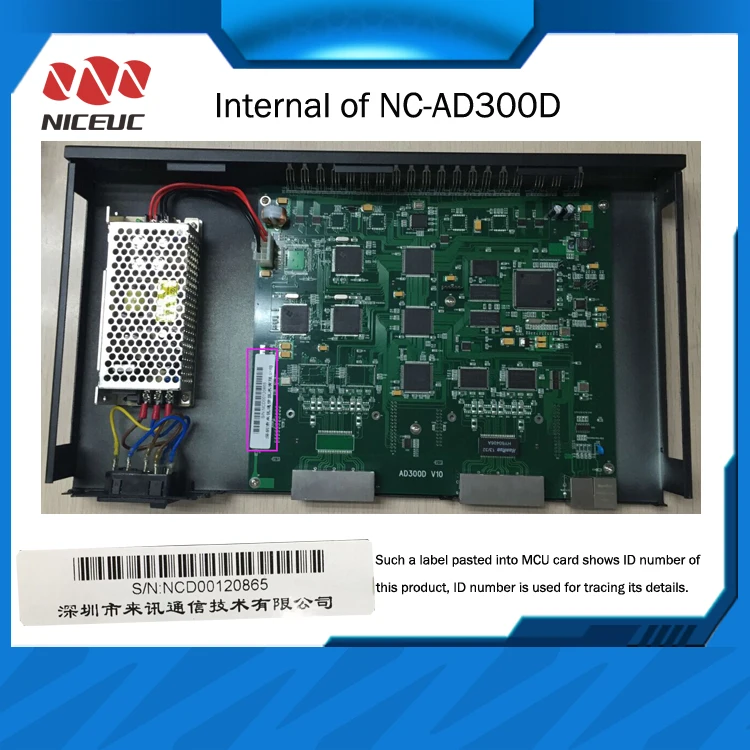

Details Picture

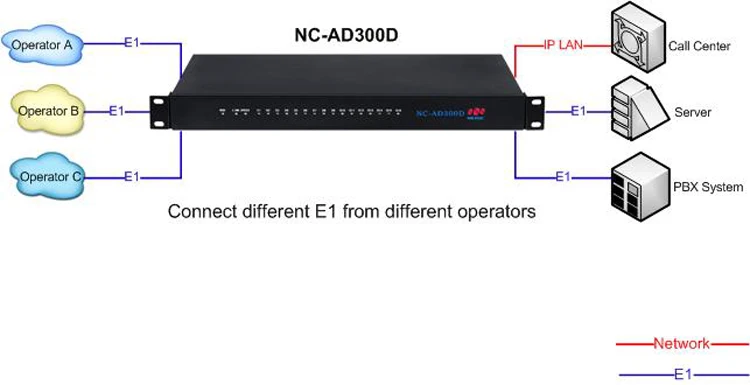

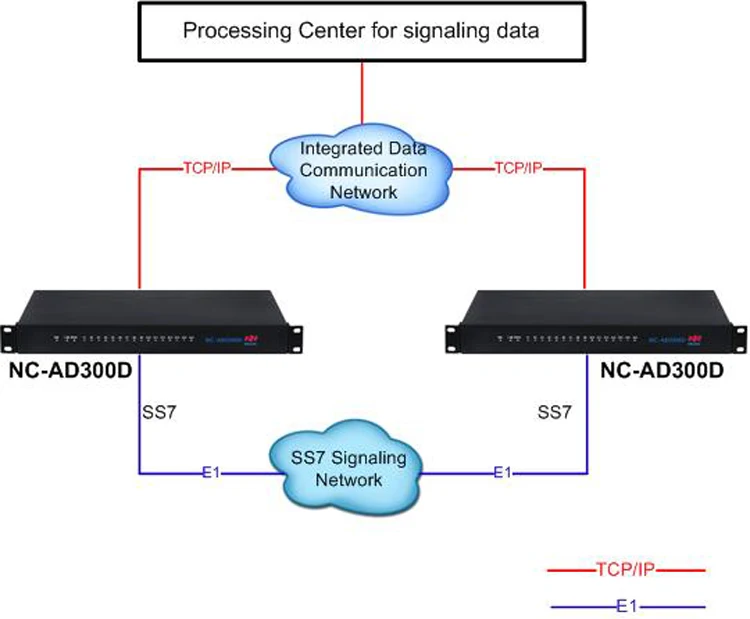

Application&Solution
1.
2.
3.
4.
5.
Factory&Services
Advantages
Modular Design, Easy Expansion
All kinds of our products use modular design, it is very easy to expand capacity by inserting modules. At first, you can place an order with small capacity, after testing, if you want to expand, it is no need to change a device, just need to buy some modules, it is very convenient.
All kinds of signalings on E1 ports
We have been producing E1 products from 2001 year. So we have excellent experience on E1 ports, they support all kinds signaling like ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS, etc. Make connection between different signalings or between PSTN and Ethernet.
All-in one interface on one device
With independent self-development ability, all kinds of interfaces can be supported by one device in our company: E1, FXO/FXS, GSM/CDMA/WCDMA, E&M, Magnet, Radio/VHF/PTT, X86/MIPs. You can install your own software into our gateway by X86 or MIPs card.
Why Choose Us
Be a Manufacturer for 17 Years
We are a professional Manufacturer and national high-tech enterprise in Telecom products from 2000 year.
We can open our registeration number to every customer. Register No.:440301104600108, if you like, you can use this number to trace and check our company and history in Chinese goverment official system.
Self-developed Ability
Independent self-developed ability let us make development according to customer's special request.
So Many Big Customers
So many big customers from all over the world have been buying our products because of stable quality.
Please feel free to contact us: what's APP:+186 82013896; skype:nice_timmy.
