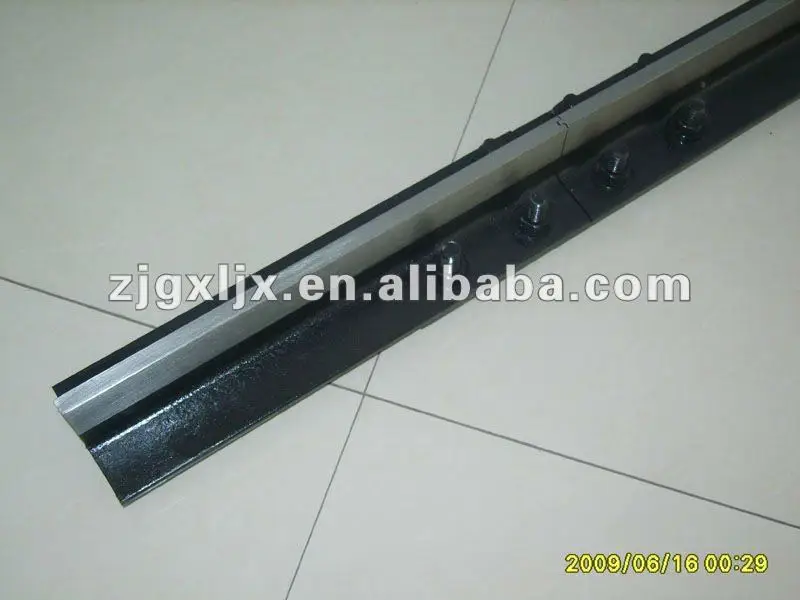

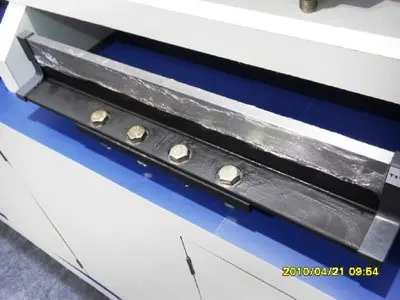

lift spare parts-machined elevator guide rails

elevator guide rails, t-type guide rail T70-1/B is one of our main products,cold drawn. Most of them are exported to the world market, be used with T50/A together normally.



1.specification

1.             All our material quality according to Q235A

2.             We're producing our elevator guide rail under international standard ISO 7465.

3.             The dimension for T70-1/B: 70mm*65mm*9mm

4.             We can produce many types of elevator guide rails:

T45/A       45mm*45mm*5mm

T50/A       50mm*50mm*5mm

T70-1/B    70mm*65mm*9mm

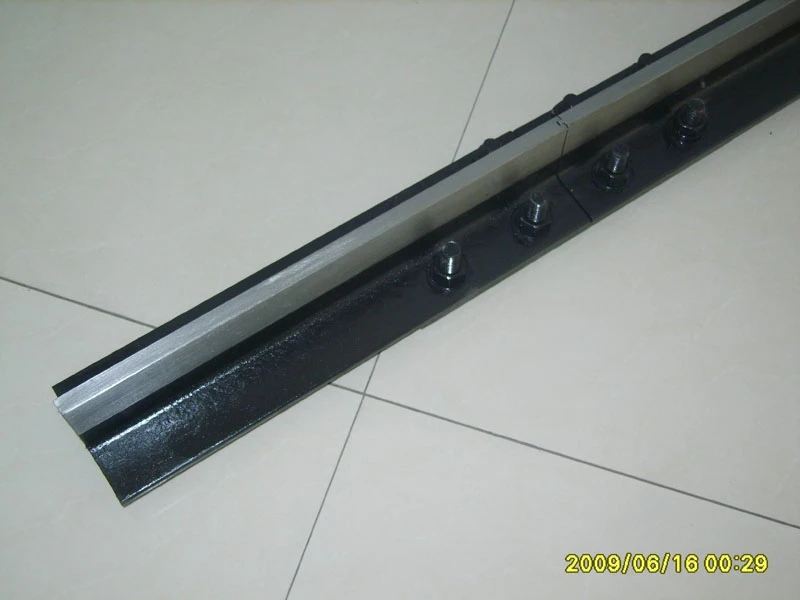

T75-3/B    75mm*62mm*10mm

T89/B       89mm*62mm*16mm

T90/B       90mm*75mm*16mm

T114/B     114mm*89mm*16mm

T127-2/B  127mm*89mm*16mm

Size & Tolerance of Guide rail(mm)				Size & Toerance of Guide rail fishplate(mm)
Type/Tolerance	b1	h1	k	Type/Tolerance	L1	b2	V
T45/A	45	45	5	T45/A	160	50	8
T50/A	50	50	5	T50/A	200	50	8
T70/B	70	65	9	T70/B	250	70	10
T75-3/B	75	62	10	T75-3/B	250	70	10
T78/B	78	56	10	T78/B	250	70	10
T89/A(/B)	89	62	16	T89/B	216	80	10
T90/B	90	75	16	T89/A(/B)	305	90	13
T114/B	114	89	16	T114/B	305	90	13
T127-1/B	127	89	16	T127/B	305	120	18
T127-2/B	127	89	16	T127-1/B(2/B)	305	130	18
TH3	75	55	10	TH3	220	72	2.5
TH5	87	60	16.4	TH5	350	87	4
TH3A	78	60	16.4	TH3A	200	78	4
TH5A	78	60	16.4	TH5A	200	78	4
