Product Overview
Description

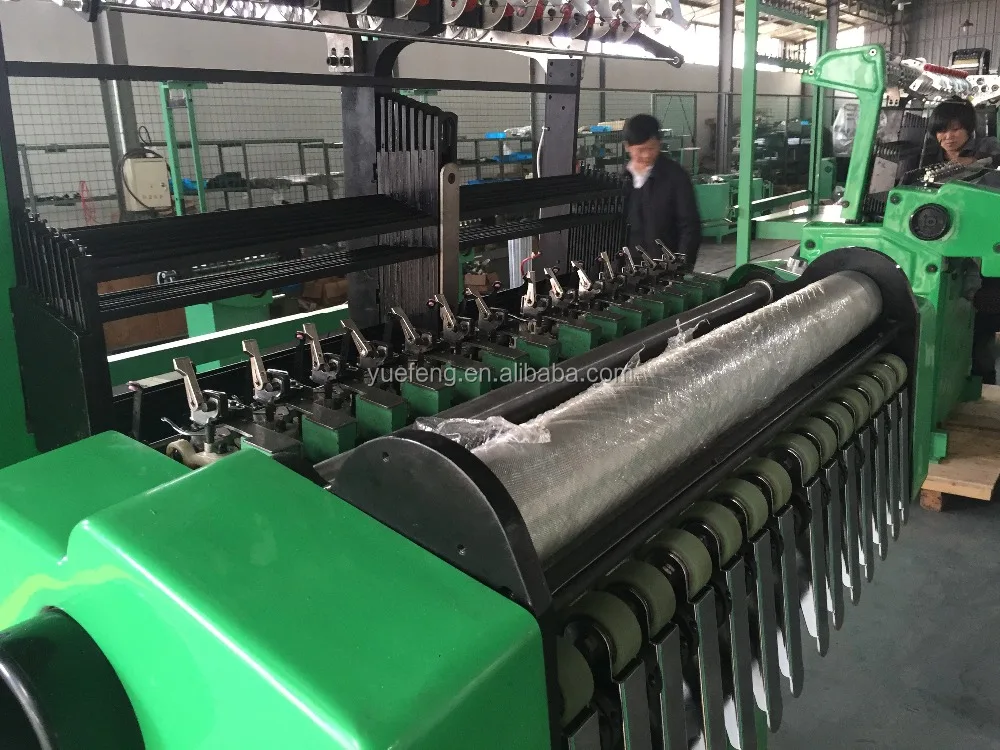

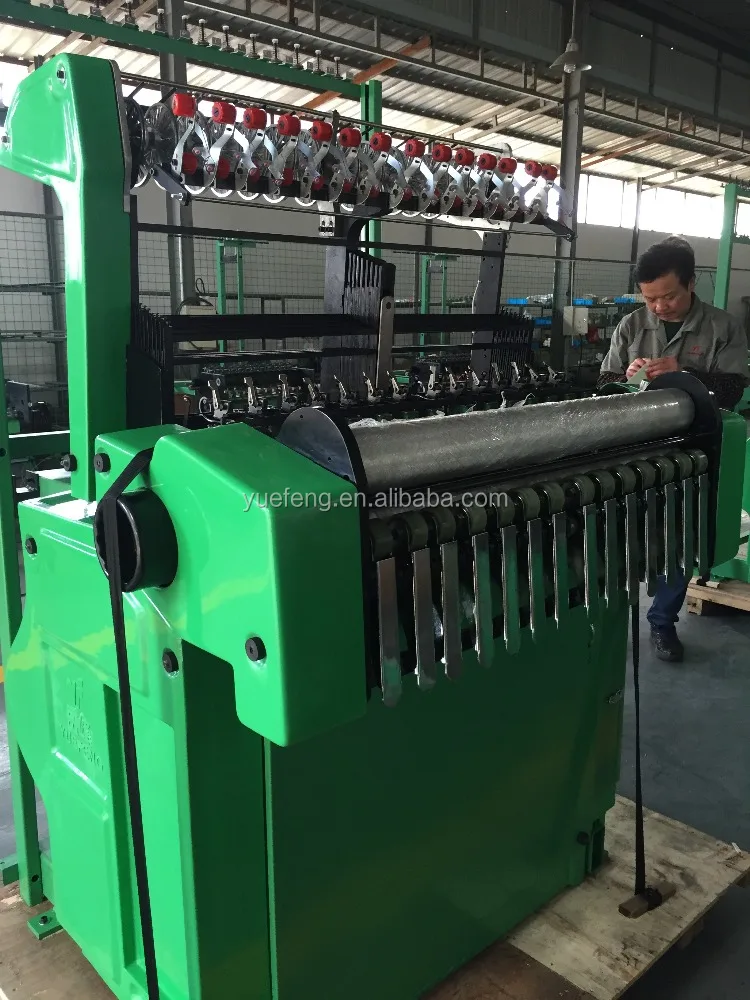

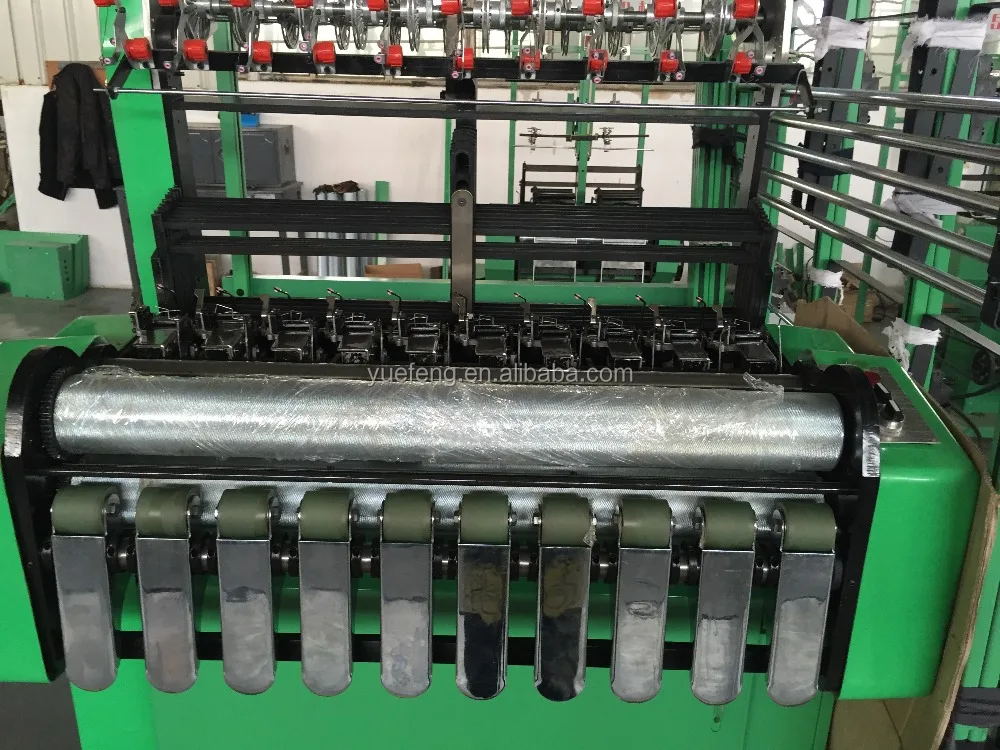

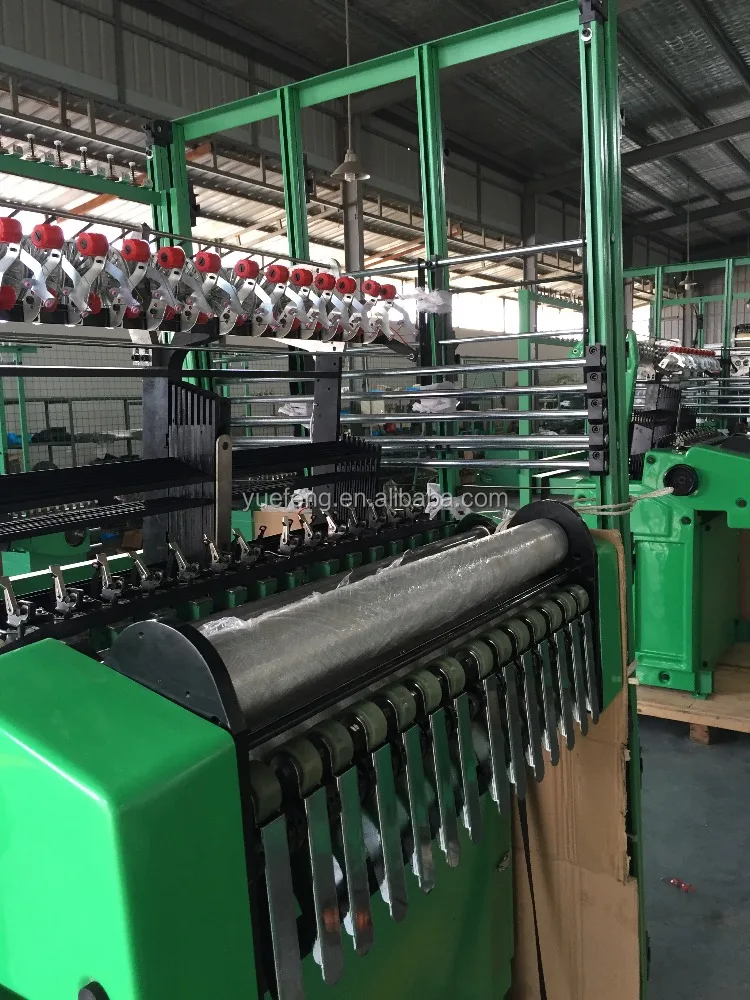

YF heavy machine
This machine is used to weave heavy lifting belt, safety belt, military belt,etc. The belt can be weaved to be 3-5mm thickness, commonly, if the belt has high density and the thickness is very thick, it should to be weaved by this kind heavy machine.
Model | YF HEAVY MODEL | ||
Size | 4 × 65 | 2 × 150 | 1×350 |
NO. of ribbon | 4 | 2 | 1 |
Max.width of reed (for yarn without overhand) | 65 | 150 | 350 |
No.of weft (pieces/cm) | 3-40 | ||
Frame | 10 | ||
NO. of figure | 8 | ||
Motor power | 1.1 | ||
Speed | 910 | ||
Special device (optional) | Ribbon warper,reeling machine ,double-roll mechanism,post-reel mechanism, pattern feed mechanism(8/16-48),thread shelf and warp spoor | ||
Pemarks | Optional above 48 pattern number | ||
