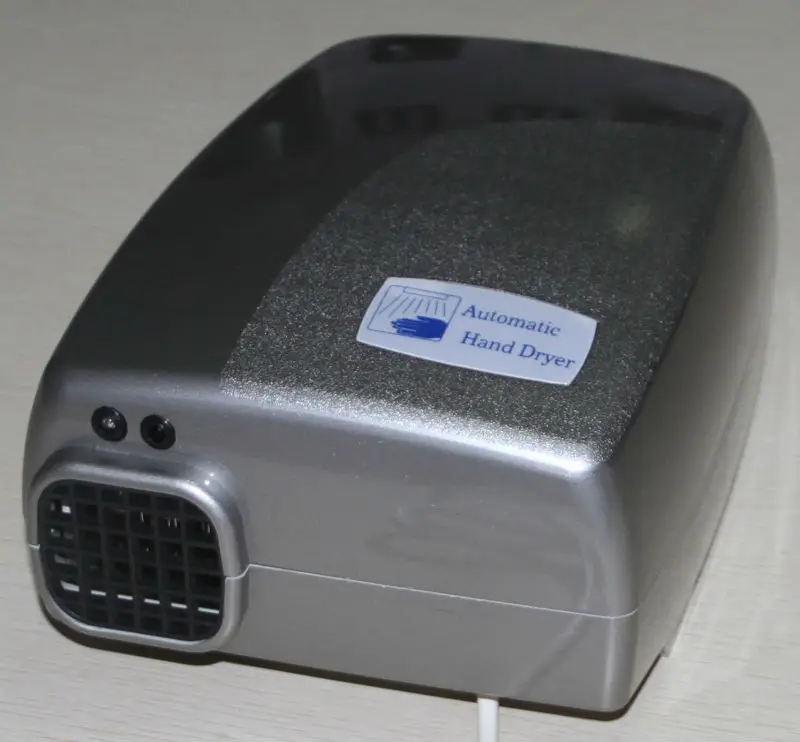

• THIN design with rapid drying, cost effective and most hygienic.
• Using highly efficient motor to create strong winds to sweep the water off from hands. • Dry hands in 7 seconds by super-powered jet air. • 3-point infrared sensor. • Brushless powerful motor and HEPA filter to create clean air without bacteria. • Brightness unique LED indicator. • 25 seconds continuous timer protection. • Clean air by UV sterilization to keep air bacteria free. • No disposal, storage and labor cost compared with paper towel, only clean once a day. • Up to 90% saving compared to paper towel costs. • Intelligent heat element active only ambient temperature is less than 25℃. • ECO-friendly product by power saving clean technology. WARNING
This product is intended for installation by a qualified service person.
Disconnect power at the service breaker before installing or serving.
Failure to properly ground unit could result in severe electrical shock and/or death.
All units must be supplied with a 3-wire service. The ground wire must be connected to the dryer’s backplate.
NOTE
Do not install dryer over washbasin.
If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or similar qualified person in order to avoid a hazard.
Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules
INSTALLATION
1.Installation must be carried out in accordance with the current edition of the local wiring regulations code having jurisdiction. Installation should be performed only by a qualified electrician.
2.Place template against wall at desired height(see mounting height recommendations) and mark locations of 4 mounting holes Dia. 8mm(5/16").

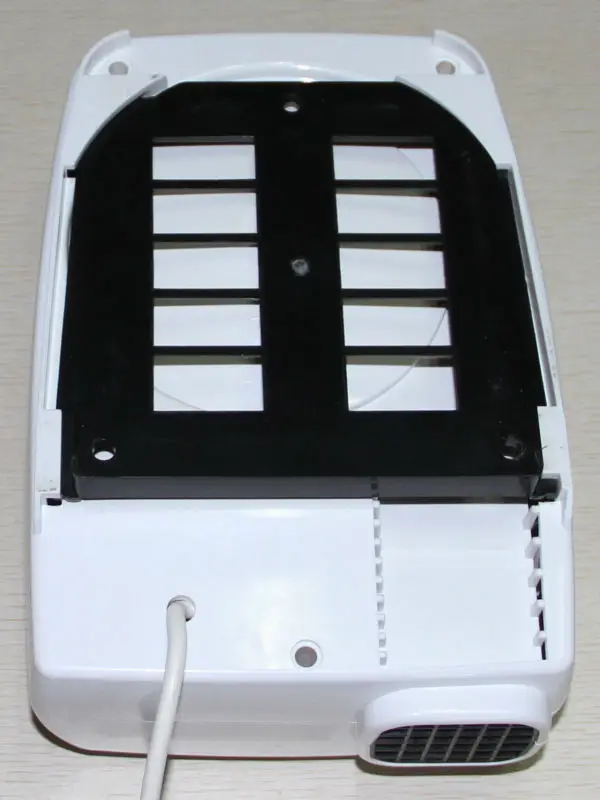

3.Remove and retain 2 side security hex cover screws and cover. Then mount the hand dryer base on the wall.
4.Replace cover. Do not over-tighten screws.
5.Connect the hand dryer plug to the power supply. Connect wire as follows if the dryer is ordered without plug:
A.Connect the live wire to the terminal block marked “L”.
B.Connect the neutral wire to the terminal block marked “N”.
C.Connect the ground wire to the terminal block marked “E”.
MOUNTING HEIGHT
Men 1000mm (40")
Women 960mm (38")
Children 4-7 years 812mm (32")
Children 8-10 years 860mm (34")
Children 11-13 years 910mm (36")
Children 14-16 years 960mm (38")
Handicapped 860mm (34")
OPERATION
No-touch operation.
Shake excess water from hands.
Place hands under the outlet to start operation.
Rub hands lightly and rapidly.
Stops automatically after hands are removed.
MAINTENANCE
Periodic cleaning of the unit is recommended.
Remove cover and clean dryer interior dust lint.
Wipe the cover with a damp cloth and mild cleaning solution. Do not soak.
