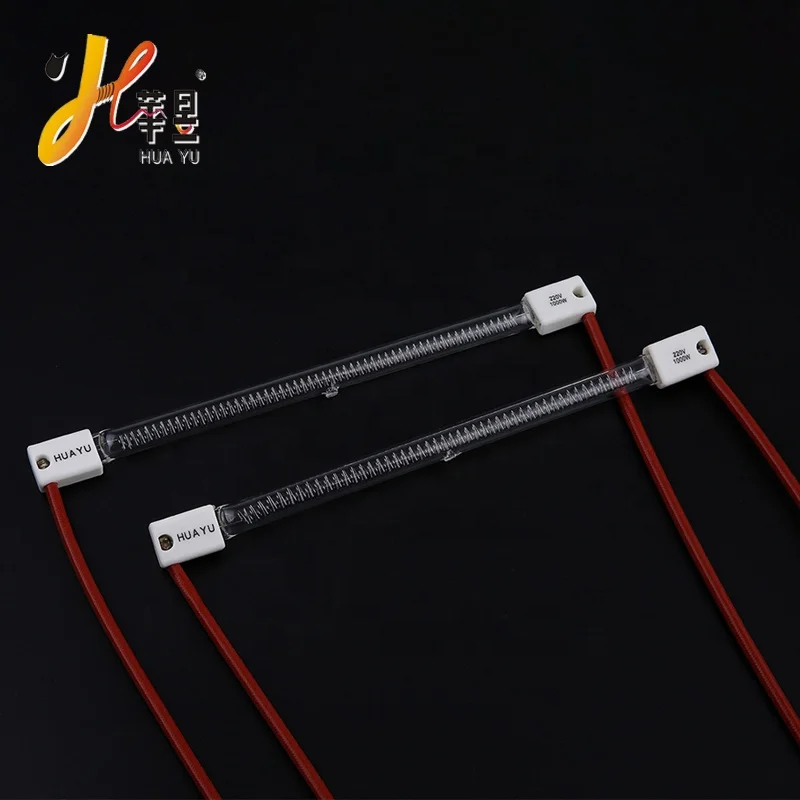

HUAYU Quartz heating lamp for screen printing 1500W 1600W

Product Overview

Description

infrared Quartz heating lamp for screen printing



Benefits VS Features:



1.Versatility of heat source:



Wide range of lamps lengths and power available.



2.Clean:  No byproducts, no pollution.



3.Safe:  Quartz envelope, heat shock resistant.



4.Economical:  More than eighty-five percent of consumed energy transmitted into infrared heat.



5. Long life:    More than 5000 hours.



6.Near infrared heating:



The wave of infrared is from seven hundred fifty nm to one thousand five hundred nm.



Application:



-Home heating:



-Heater,oven,stove,baker,toaster,flooring



-Industrial heating:



Automobile,equipment,machine



The carbon-fiber heater tube employs long fiber as the heating material.



Types::

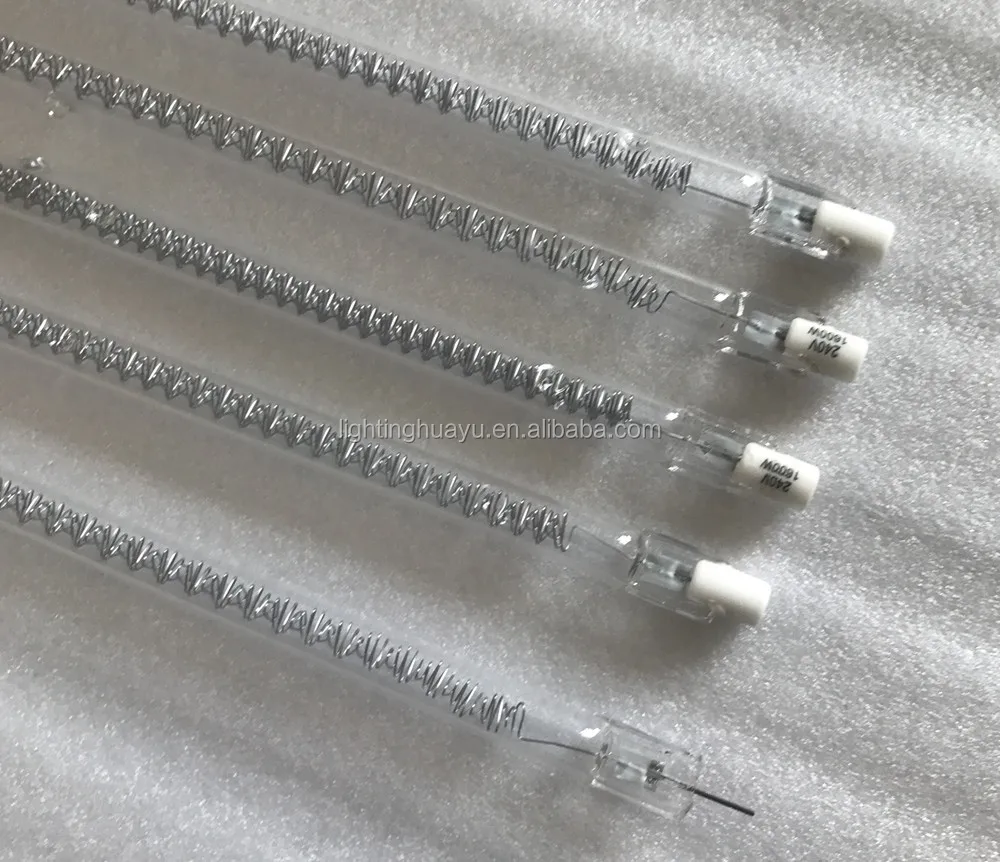

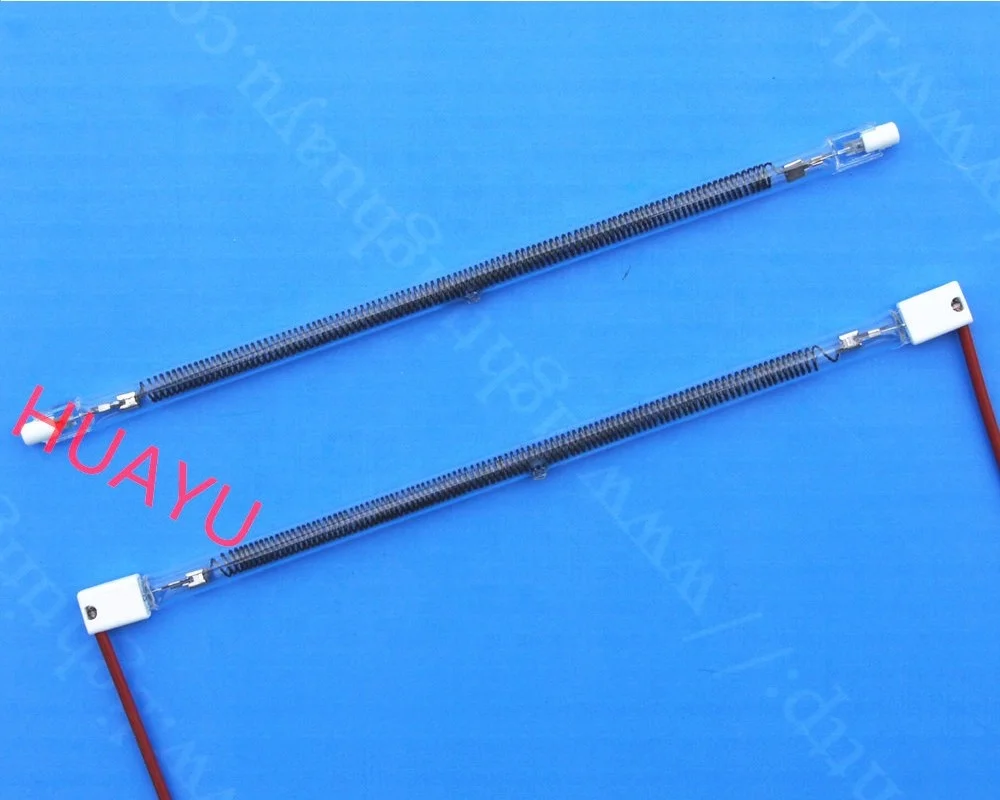

1.Clear infrared halogen lamp 300-3000W  180-1200mm

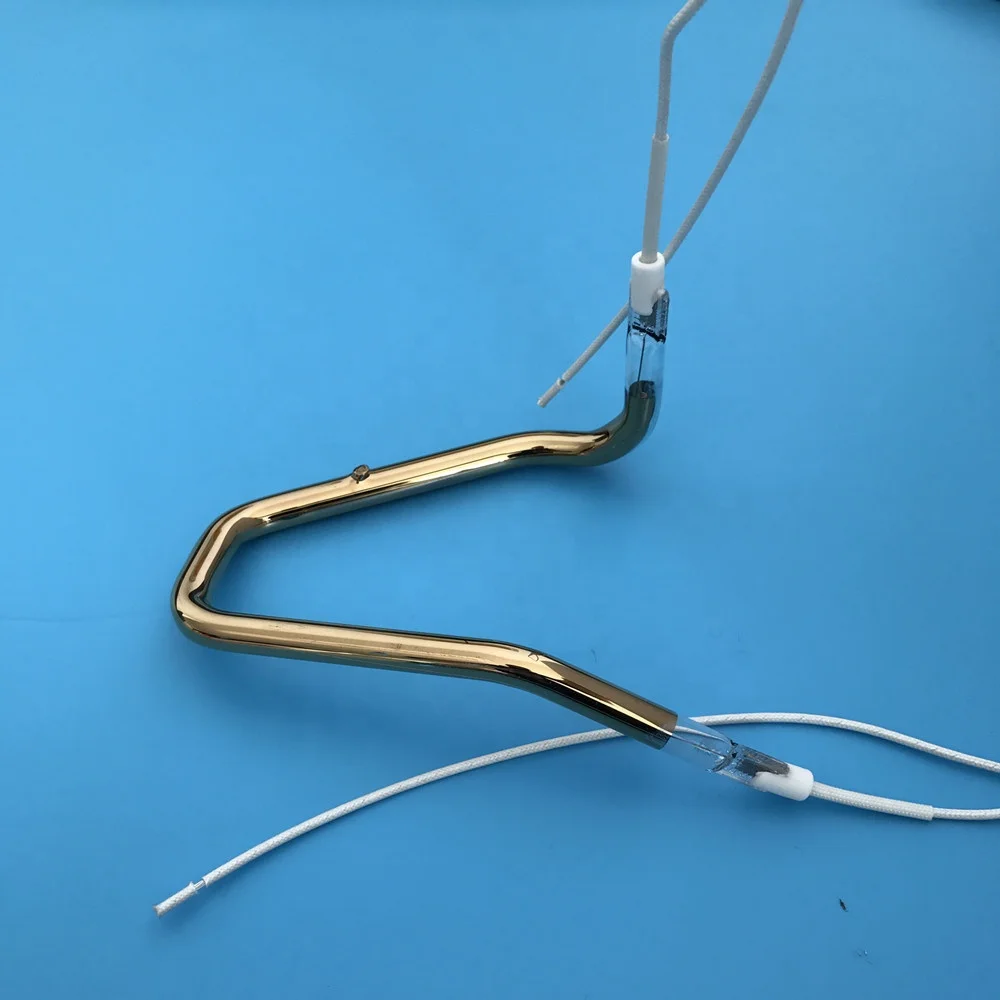

2.Gold coated infrared halogen (carbon )lamp 300-3000W 150-530mm

3.Ruby infrared halogen lamp 300-3000W 180-1000mm

4.White/Gold reflector infrared halogen lamp

5.UV lamp





We also can do the lamp as the customer need, please feel free contact me if you have any question .



IR halogen

Model	Power W	Voltage V	Color temperature K	The peak wavelength um	Life H	Diameter MM	Size MM
IR-1	300	120	980-1380	2.5-4.5	5000	8-10	200-450
IR-1	325	120	980-1380	2.5-4.5	5000	8-10	200-450
IR-1	400	120-240	980-1380	2.5-4.5	5000	8-10	200-450
IR-1	500	120-240	980-1380	2.5-4.5	5000	8-10	200-450
IR-1	600	120-240	980-1380	2.5-4.5	5000	8-10	250-600
IR-1	800	120-240	980-1380	2.5-4.5	5000	8-10	250-800
IR-1	1000	120-240	980-1380	2.5-4.5	5000	10-12	300-1500
IR-1	1200	120-240	980-1380	2.5-4.5	5000	10-12	350-1500
IR-1	1500	120-380	980-1380	2.5-4.5	5000	10-12	350-1500
IR-1	1800	120-380	980-1380	2.5-4.5	5000	10-12	350-1500
IR-1	2000	120-380	980-1380	2.5-4.5	5000	10-12	350-1500
