Surgical head rack for neurosurgery surgery TJ10200

Product Overview

Description

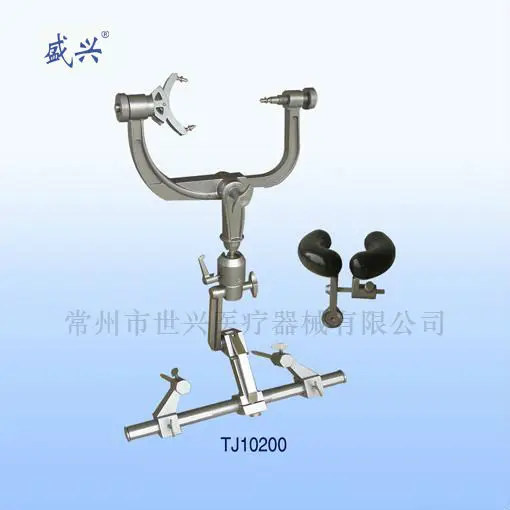

 Surgical head rack for neurosurgery surgery TJ10200



Specifications

• Provides 3-point rigid cranial fixation.

•  flexibility and safety in positioning of skull

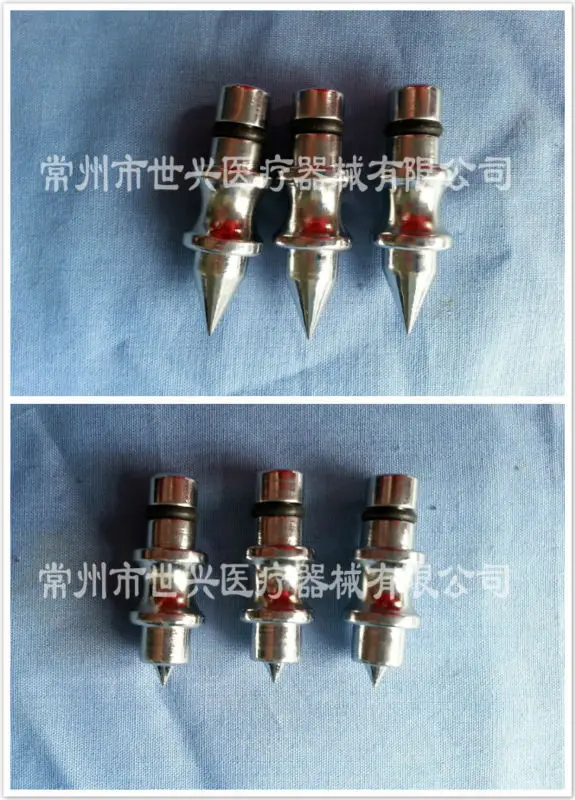

• Provides visual indication of clamping force on all three skull pins
• Ability to adjust the force on all three skull pins
• Equal impingement of pins ensures firm skull positioning and fixation





Back and forth range: 350 mm



Sinistrodextral (swing from side to side) range: 400 mm



Up and down movement range: 350 mm



Rotational tilt angle: ≥75 °



Installation distance between centers adjustment range: 190 ~590 mm

Details:



"Operation Rack" is the instrument produced by our factory according to the special clinical

demands.The technical index meets the product standards issued by YZB(changzhou Jiangsu).The instrument is made of aluminium alloy both by machine and by hand.The instrument has been improved on the similar products both at home and abroad.With the rotation of multi-360°,it is convenient ,safe and flexible for you to operate

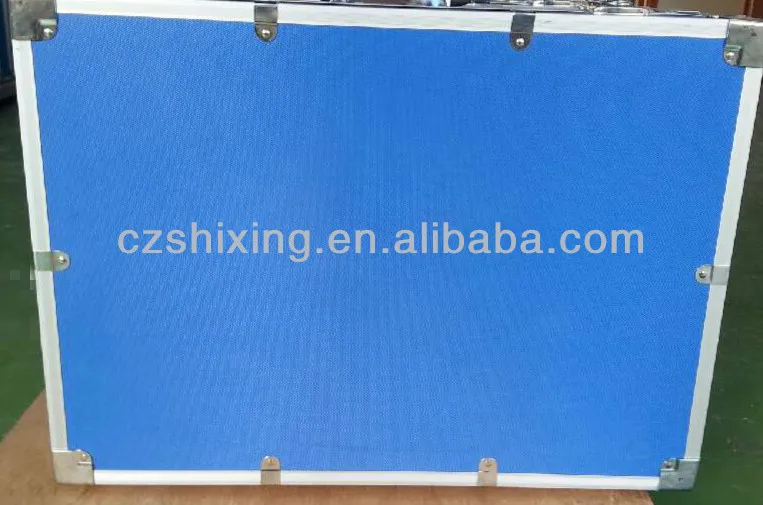

Package

Inside box size(cm)	Outside box size(cm)	Net weight(kg)	Gross weight(kg)
57*17*41	58*21*46	8.22	12.54
