HUABANG DDM30SC Single Phase multi function power Meter UIP measure high accuracy with rs485 modbus rtu
- Category: >>>
- Supplier: Huabang Electric Technology Co. Ltd.
Share on (641118072):
Product Overview
Description
Company Information
DIN-RAIL METER
INTRODUCTION
Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
HUABANG have a complete range of DIN-mounted electricity meters for different applications, together with a wide range of communication options. The meters are quick and easy to install due to their DIN-rail mounting.
It is highly accurate, durable, reliable, lower power consumptive, without reversion, creep proof, anti-tanmpering and bilateral recoring with strong overloading capability. It conforms to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21 also pass EMC and LVD.
SINGLE PHASE TECHNICAL SPECIFICATION
| Voltage AC (Un) | 110/220/230/240V |
| Voltage range | -20% to +20% of Un |
| Base current(Ib) | 5A, 10A |
| Max current(Imax) | 50A, 60A, 80A, 100A |
| Starting current (mA) | 0.4%Ib |
| Power consumption of current | ≤2W / 10VA |
| Frequency (Hz) | 50/60 (±10%) |
| Accuracy | Class 1 |
| Memory back-up | EEprom |
| Operating Temperturer | -25°C to +55°C |
| Storing Temperturer | -30°C to +70°C |
| Meter Case Material | ABS, Polycarbonate |
| Operating humidity | 75% |
| Storing humidity | 95% |
| Protection against dust and water | IP51 |
| Insulating encased meter | II |
| AC voltage withstand | 4KV for 1 minute |
| Impulse voltage withstand | 6KV – 1.2µS waveform |
| Current withstand | 30Imax for 0.01s |
| Pulse output rate ( imp/kWh ) | 1600imp |
THREE PHASE TECHNICAL SPECIFICATION
| Voltage AC (Un) | (3P3W) 3x220V, 3x380V, (3P4W)3x57.7/100V, 3x110/220V, 3x220/380V |
| Voltage range | -20% to +20% of Un |
| Base current(Ib) | 1.5A, 5A; 10A |
| Max current(Imax) | 6A, 100A |
| Starting current (mA) | 0.4%Ib |
| Power consumption of current | ≤2W / 10VA per phase |
| Frequency (Hz) | 50/60 (±10%) |
| Accuracy | Class 1 |
| Memory back-up | EEprom |
| Operating Temperturer | -25°C to +55°C |
| Storing Temperturer | -30°C to +70°C |
| Meter Case Material | ABS, Polycarbonate |
| Operating humidity | 75% |
| Storing humidity | 95% |
| Protection against dust and water | IP51 |
| Insulating encased meter | II |
| AC voltage withstand | 4KV for 1 minute |
| Impulse voltage withstand | 6KV – 1.2µS waveform |
| Current withstand | 30Imax for 0.01s |
| Pulse output rate | 3200imp/kWh, 400imp/kWh |
PACKING LIST FOR ALL KINDS OF DIN RAIL METER
| No. | Quantity/CTN | Size | Weight |
| 1 modular | 100pcs | 47x26x27cm | 11kg |
| 2 modular | 80pcs | 46x23.5x37.5cm | 13.5kg |
| 4 modular | 40pcs | 46x23.5x37.5cm | 13.5kg |
| 7 modular | 24pcs | 46x23.5x37.5cm | 13.5kg |

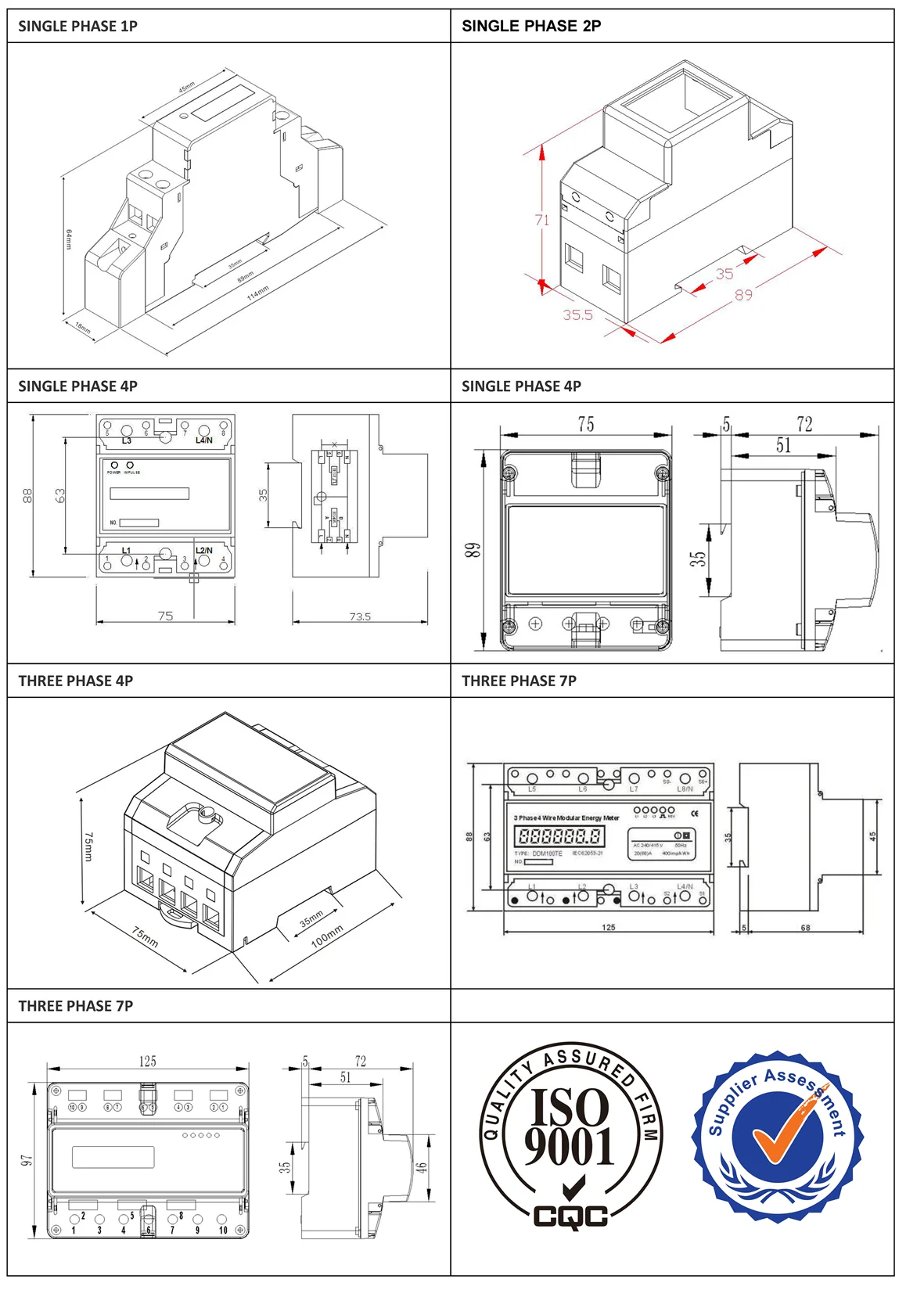

DIMENSION
OPTIONAL FUNCTION
1. Communicate RS485 Modbus RTU protocol, baud rate: 1200~9600bps
2. Voltage (V); Current (A); Frequency ( Hz ); Active Power (KW); Power factor (COS)
3. Reactive power(kVar), Reactive Energy(KVarh)
4. Current transformer use able to set the current ratio, display the final value of energy consumption
5. Remote control: Internal Relay via RS485 cable achieve power on & off
6. Communication optional: ZIGBEE / WIFI / Lora / NB iot
FAQ
1. Q: Why choose us?
A: We are professional energy meter manufacturer since 1992 conform to ISO9001 production procedure, All product has CE ROHS
2. Q: Do you have any certificates
A: We have CE, RoHS, CCC, CQC, ISO9001:2015 Certification.
3. Q: How about your products quality inspection?
A: We have FULL TIME QA and QC person, 100% product need through 2 inspections and 1 spot check, the proportion conforms to the industry standard
4. Q: Can you accept OEM ODM ?
A: we accept OEM production and can make customized product.
5. Q: What’s your quality guarantee?
A: we provide repair or replace service within 18 months if product have quality issue and working improperly. ( hardware damage casued by human damage and misoperation is not supported )
