Landtop Fuan Factory Supply Brush Alternator The Generator of 220 Volts 100% Power 1 Year,1 YEAR 5.4 90.2KW LTP Series Cast Iron
- Category: >>>
- Supplier: Fuzhou Landtop Co. Ltd.
Share on (641467320):
Product Overview
Description
Product Description

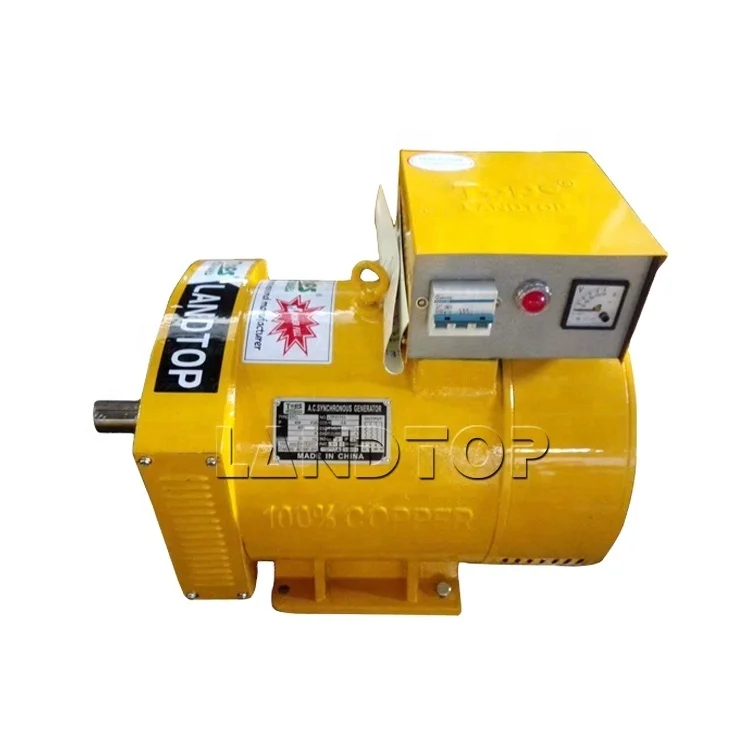

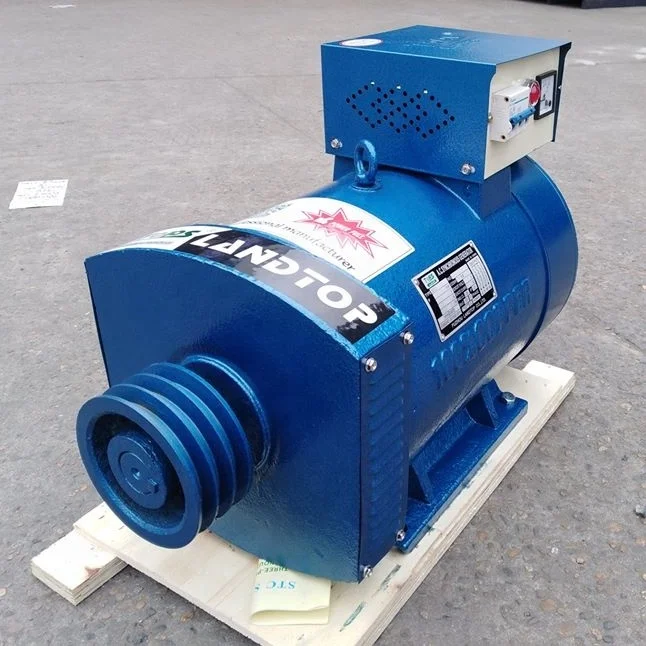

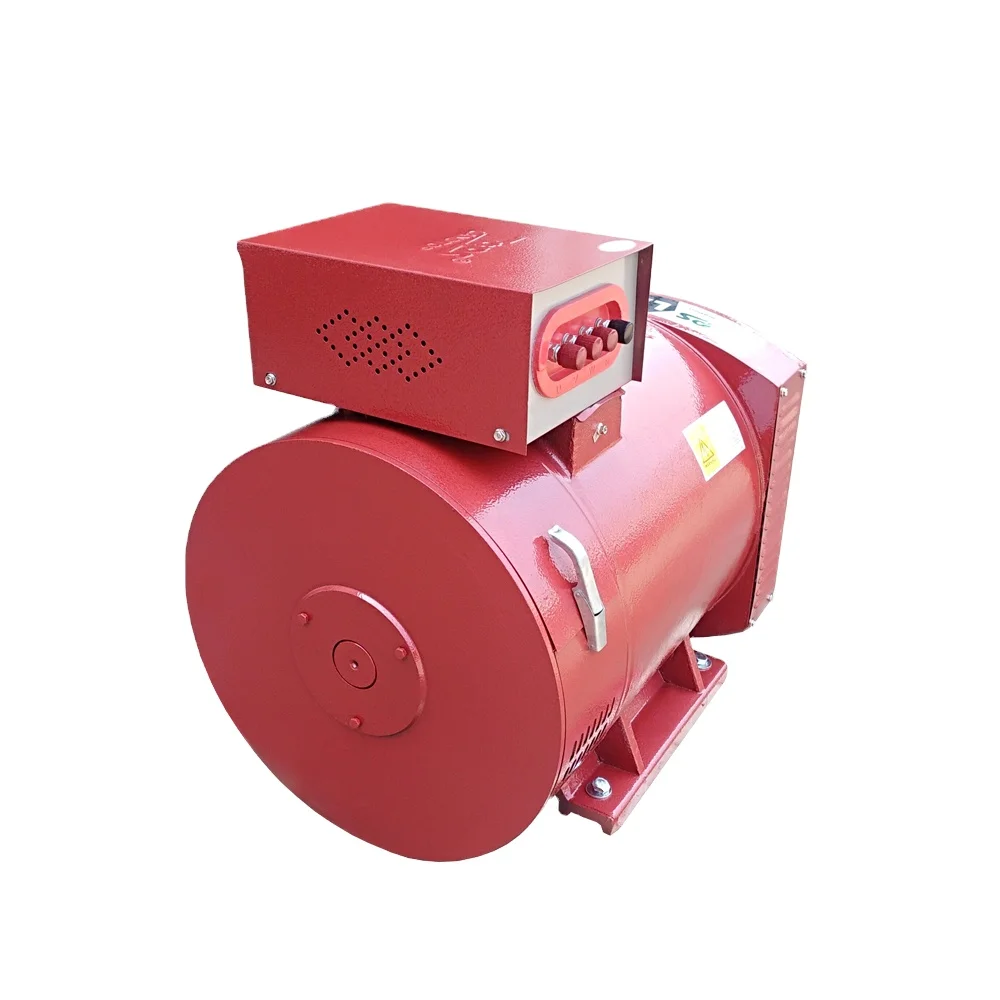

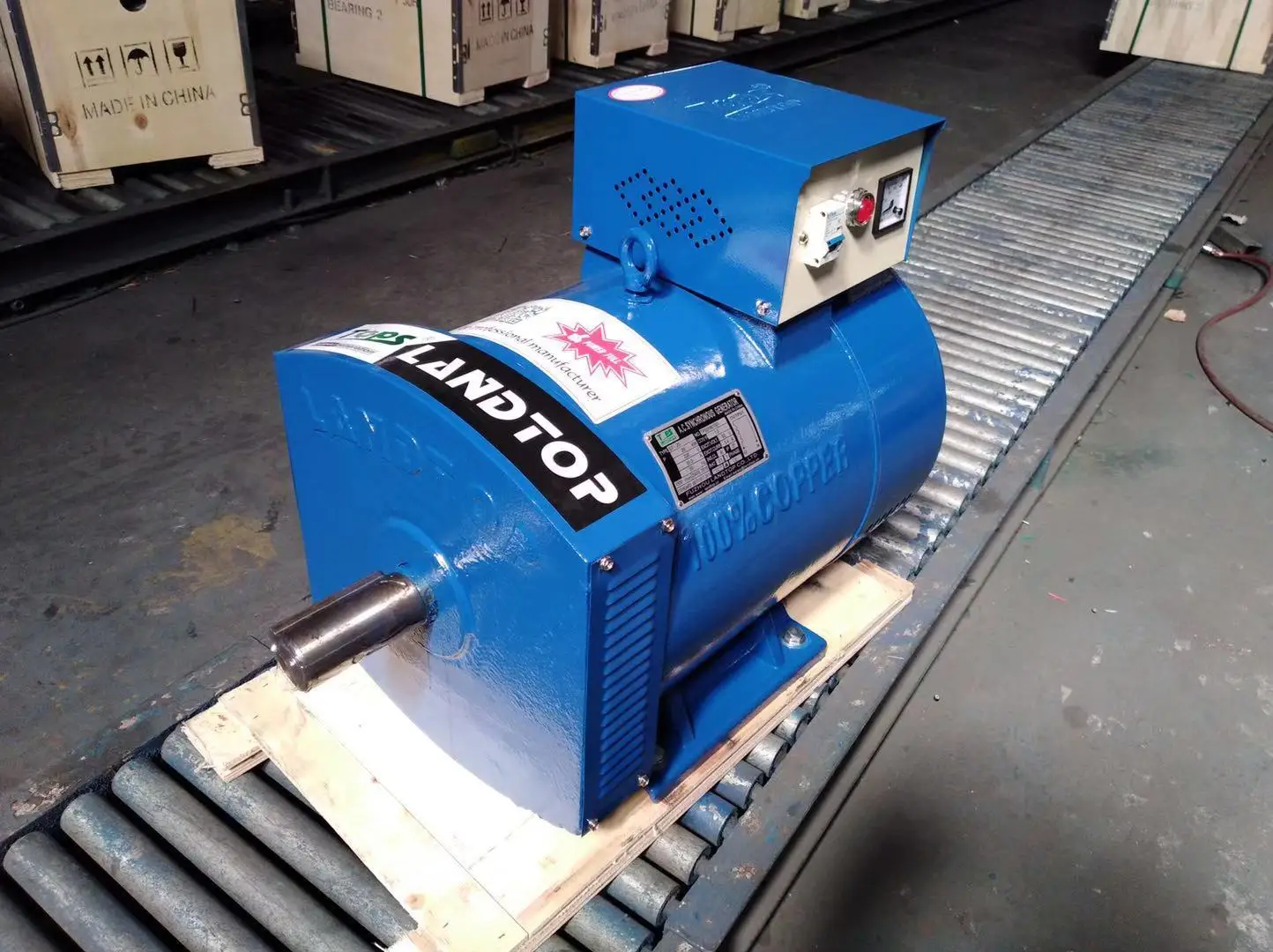

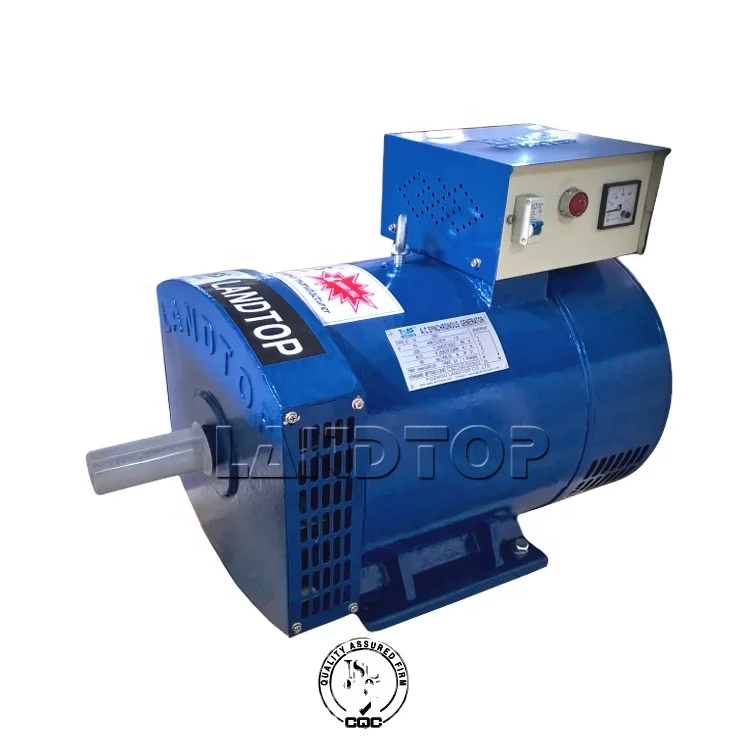

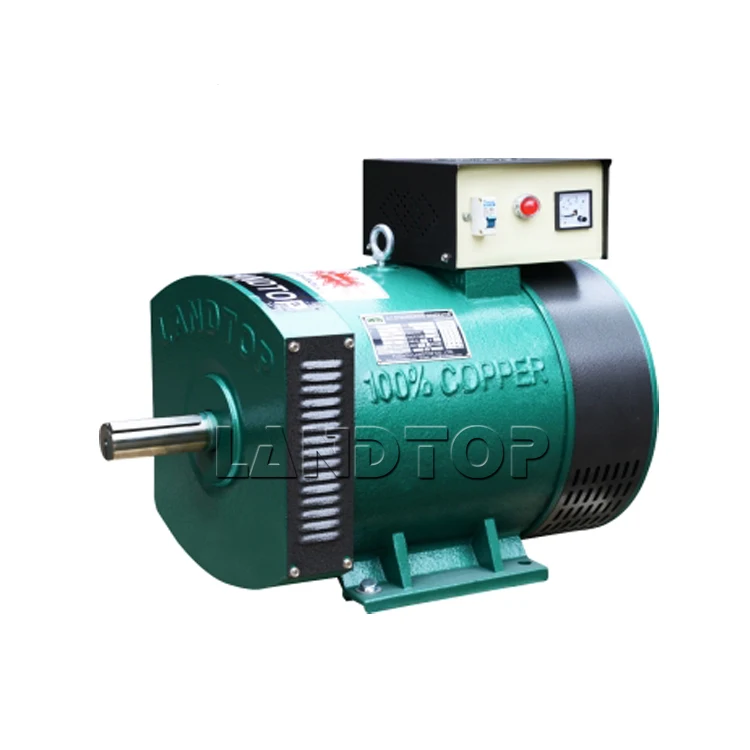

Landtop generator Fuan factory supply brush alternator 220v 7.5kw price
The generator are to be used in town, the countryside, work sites, Mountain and pasture lands as a electric power source for lighting purpose. It can also be used as a reserved power source for emergent case. The generators are of drip-poof with rotary field type and with the tha adoption of harmonic excitation system, that allow your easy operation and simple maintenance.
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase,voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed, when the revolution slip of prime mover is 3% and load varies in the range of 0-100% cos 1.0-0.8 they give food constant voltage. After sudden change(increase or decrease ) of load. the generators will soon return to their normal working state, without any starting devices the generator can directly start an unloaded squirrel cage Induction Motor.
Technical data and product detail images
Type | Rated Output | Rated Capacity | Rated Current | Rated Voltage | Pole Number | Rated Speed |
KW | KVA | A | V | RPM | ||
STC-3 | 3 | 3.8 | 5.4 | 230V/440V | 4 | 1500 |
STC-5 | 5 | 6.3 | 9 | |||
STC-7.5 | 7.5 | 9.4 | 13.5 | |||
STC-10 | 10 | 12.5 | 18.1 | |||
STC-12 | 12 | 15 | 21.7 | |||
STC-15 | 15 | 18.7 | 27.1 | |||
STC-20 | 20 | 25 | 36.1 | |||
STC-24 | 24 | 30 | 43.3 | |||
STC-30 | 30 | 37.5 | 54.1 | |||
STC-40 | 40 | 50 | 72.2 | |||
STC-50 | 50 | 62.5 | 90.2 |
Company introduction
With years of development, LANDTOP has developed into a large-scale, modern,comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services.The curent annual exort production value is over 15 million US dollars.
CERTIFICATION
Product packaging
Recommend Products
Exhibition
FAQ
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
What we do:
1.Stamping of lamination
2.Rotor die-casting
3.Winding and inserting – both manual and semi-automatically
4.Vacuum varnishing
5.Machining shaft, housing, end shields, etc…
6.Rotor balancing
7.Painting – both wet paint and powder coating
8.assembly
9.Packing
10.Inspecting spare parts every processing
11.100% test after each process and final test before packing.
2.Rotor die-casting
3.Winding and inserting – both manual and semi-automatically
4.Vacuum varnishing
5.Machining shaft, housing, end shields, etc…
6.Rotor balancing
7.Painting – both wet paint and powder coating
8.assembly
9.Packing
10.Inspecting spare parts every processing
11.100% test after each process and final test before packing.
