High density light weight Fireproofing Reinforced Fiber Materials 25 75mm thickness Calcium Silicate Board 1000 degree
- Category: >>>
- Supplier: Tangshan Yutong Import And Export Corporation
Share on (642084961):
Product Overview
Description

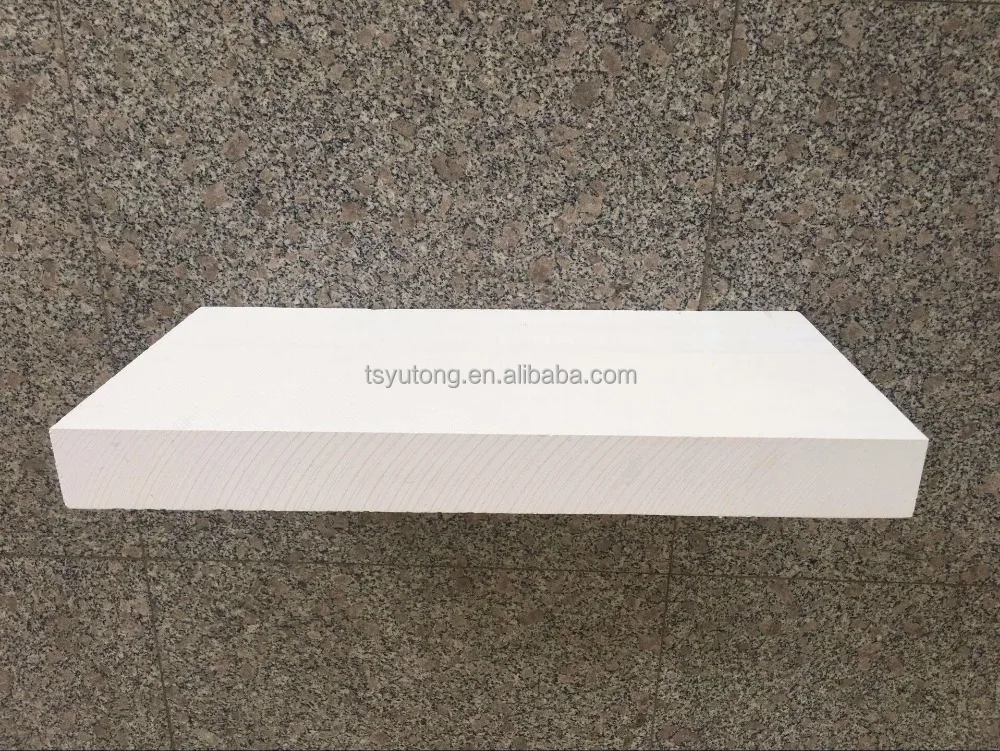

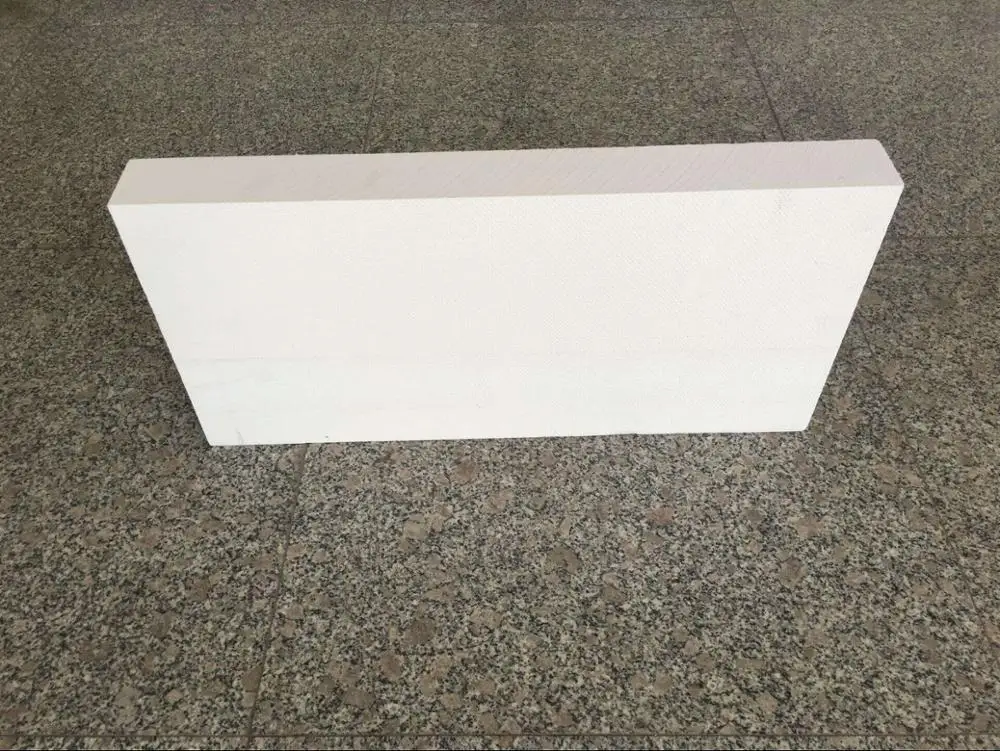

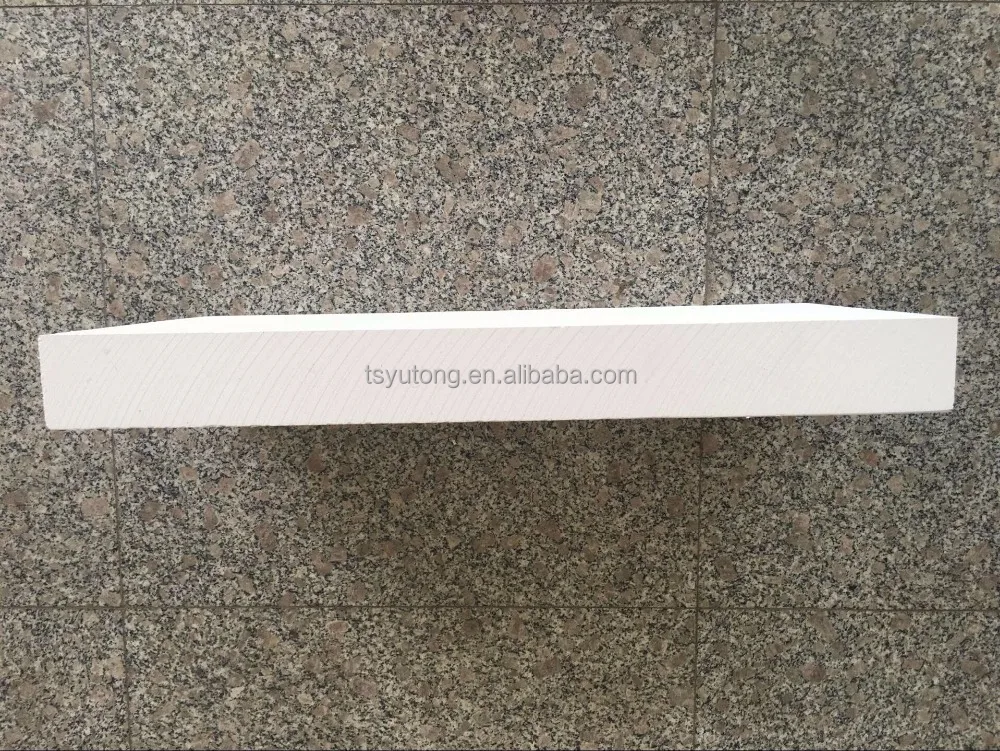

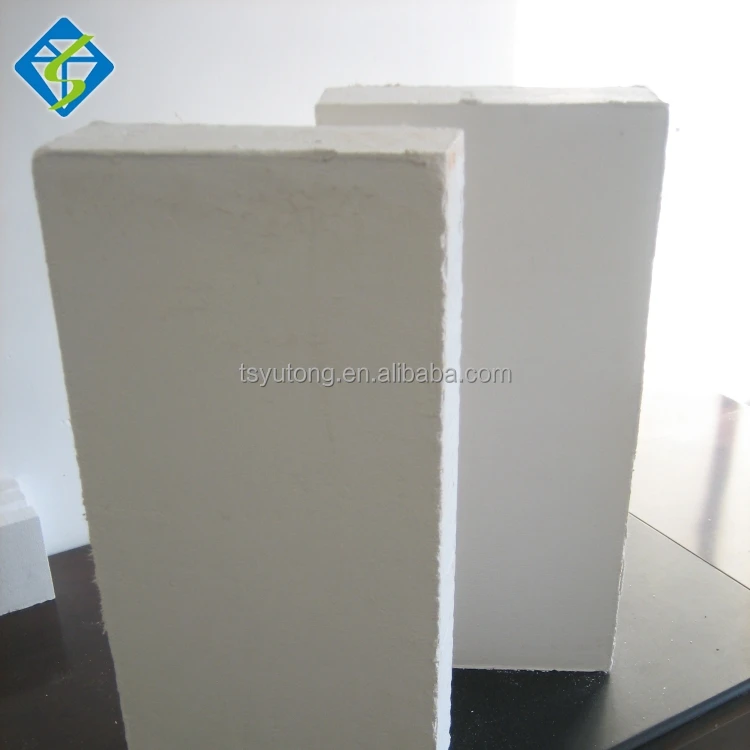

High density light weight Fireproofing Reinforced Fiber Materials 25-75mm thickness Calcium Silicate Board 1000 degree
It is mixed with xonotlite and reinforced glass fibre with high service temp. (1050℃), good heat insulation, low bulk density, high strength, good durability and so on.
Product Characteristics:
l Good durability, can bear high temperature within the limit of continuous heat load.
l Low thermal conductivity, in the whole range is used with unmatched adiabatic performance.
l Light weight, high strength. It is the highest in these hard thermal insulation products.
l Better durability, use for a long time without powder.
l Construction with ordinary carpenter applicability, tools can be optional to cut products.
l Used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances.
l Fear water, but after drying also can be used.
Item | Unit | YT-170
| YT-220
|
Bulk Density (max) | Kg/m3 | 170 | 220 |
Flexural Strength (min) | Mpa | 0.25 | 0.3 |
Compressive Strength (min) at 5% deformation | Mpa | 0.5 | 0.6 |
Linear shrinkage (max) after heating for 16hrs at 650℃ | % | 2 | 2 |
Thermal conductivity (max) Average temperature 70℃ | w/m.k | 0.052 | 0.056 |
Service Temperature (max) | ℃ | 650 | 650 |
Moisture content (max) | % | 7.5 | 7.5 |
Dimension
Board | Length x Width | 610 x 150 mm; 610 x 300 mm; 915 x 305 mm; 1000 x 500 mm | Thickness 25 – 75 mm |
Curved Sheet | Inside diameter 196 – 3560 mm | Thickness 25-75mm | Length 610mm, 915mm |
Piper Cover | nside diameter 16 – 171 mm | Thickness 25-75mm | Length 610mm, 915mm |
