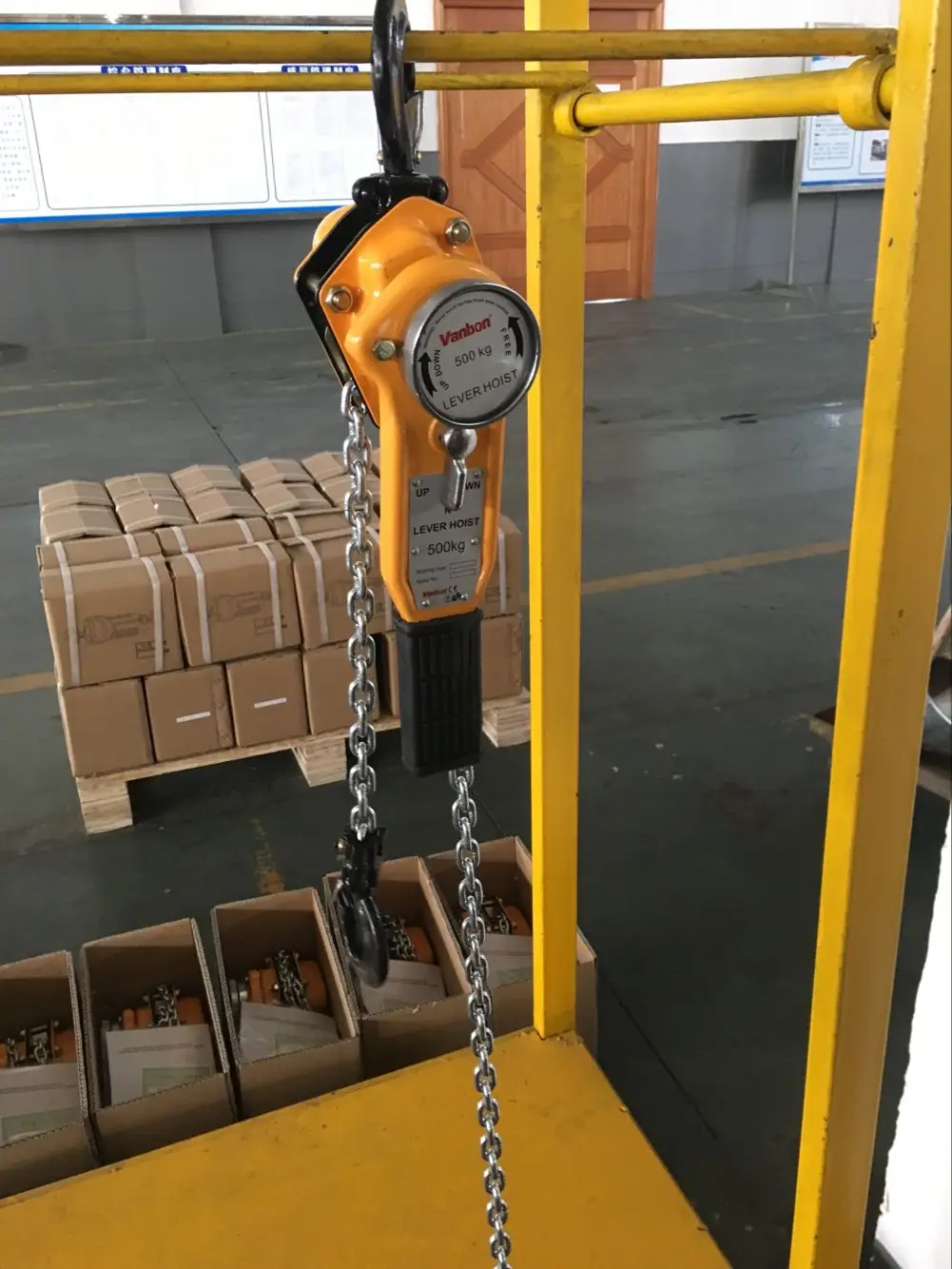

Vanbon good price 1.5ton lever hoist for Japan market

Product Overview

Description

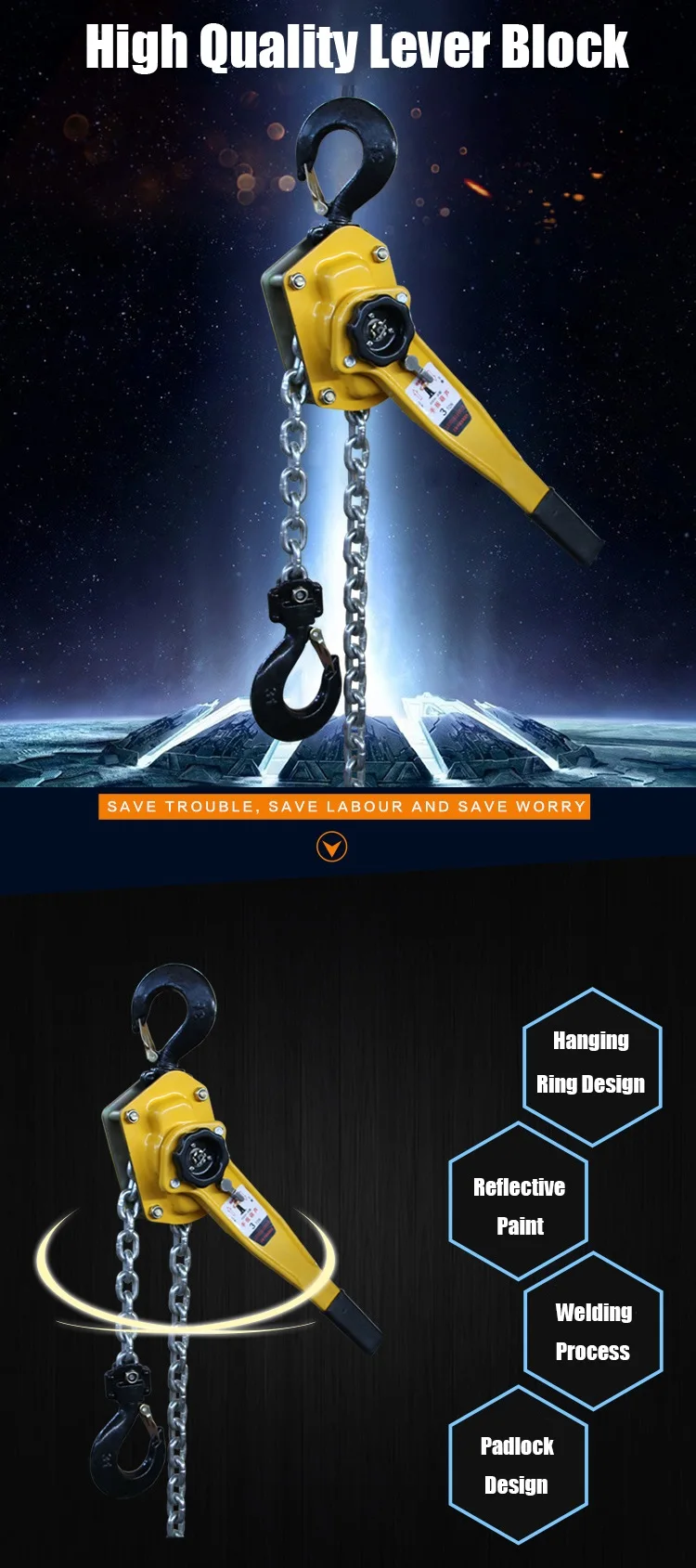

VANBON SB-C LEVER BLOCK



• Light weight structure,strengthened lever handle


• Super strength alloy load chain


• Fully machined lift wheel,cast steel safety latches


• All gears and  shafts running on roller bearings or bushes


• Durable backed enamel paint protection


• According with GB,CE,ANSI and JIS


• Spare parts always available

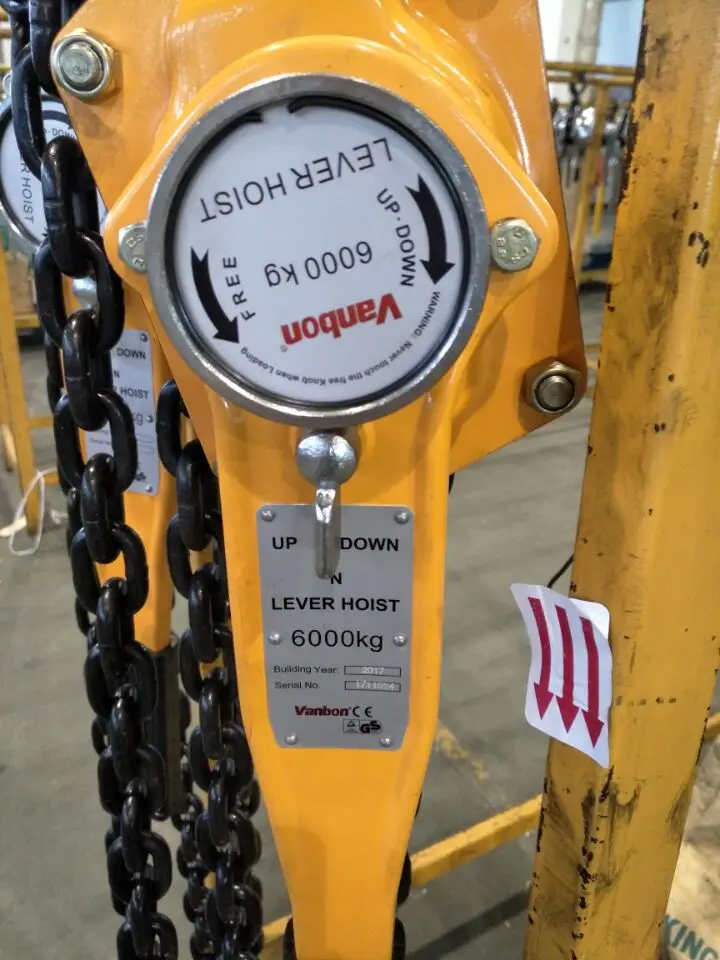

Adjust up&down switch to corresponding position and rotate hand wheel to the right till chain is in tension, then start to work. When the up&down switch is in the middle, the chain can be pulled freely to adjust position of hook.

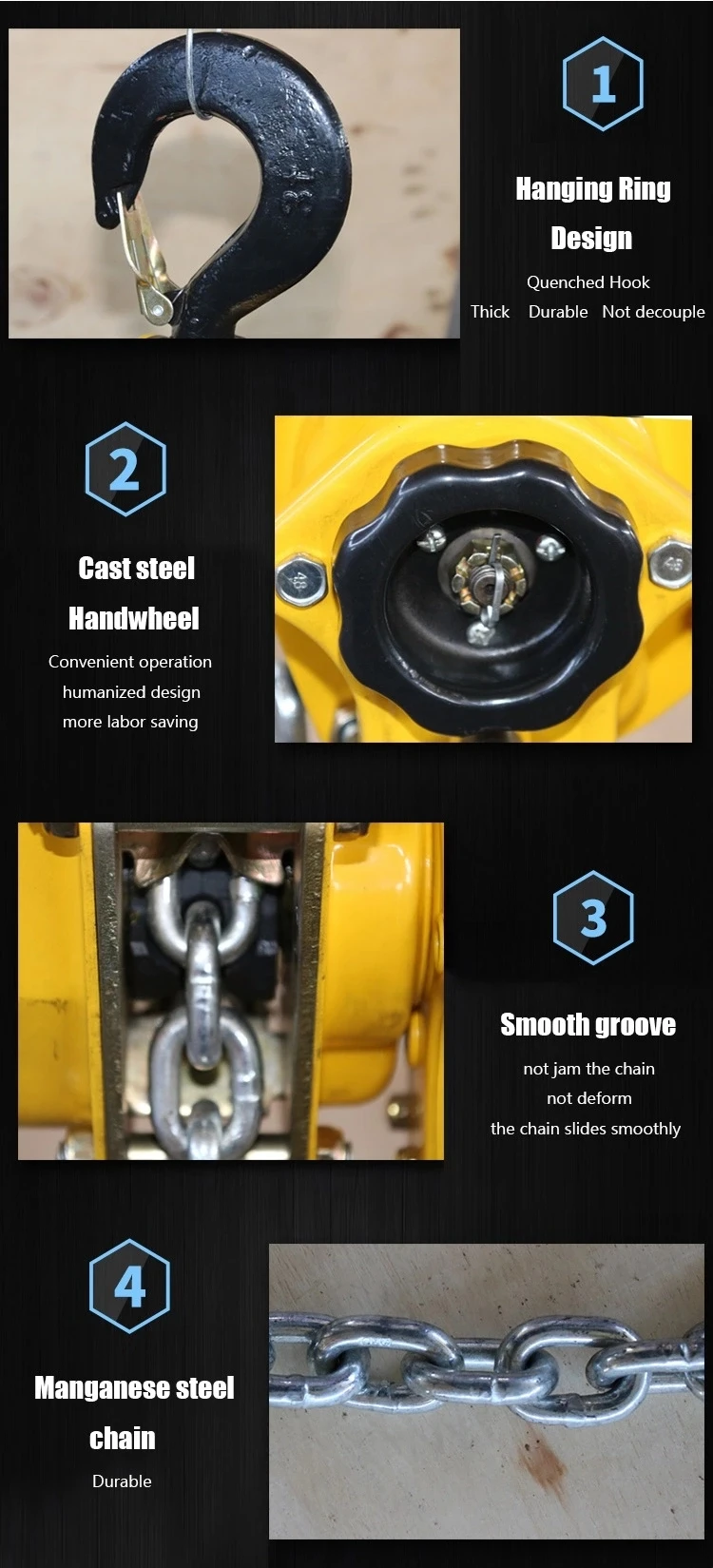

Alloy steel forging hook will not break but deform slowly when it is overloaded, which ensures safety.

Lifting chain is made from G80 galvanized manganese steel with high intensity, high toughness and long service life.

Chain drop-proof ring would prevent the chain from being pulled out when pulling chain freely to adjust position of hook.

The cover on handle provides a comfortable grip feeling and prevent your hand from injury.

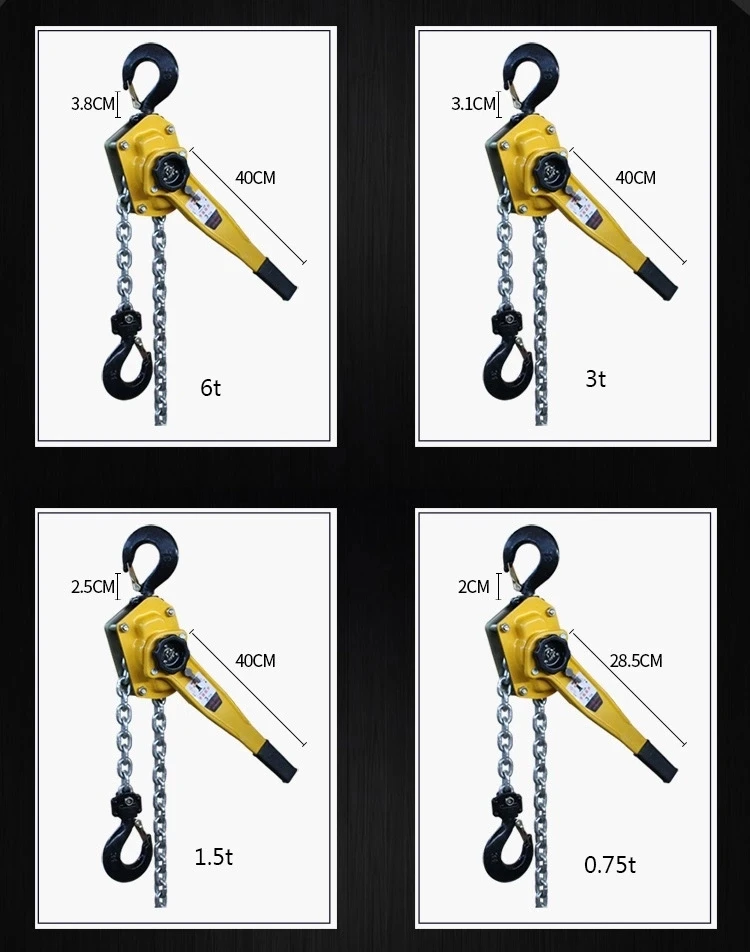

Model	Capacity(t)	Standard Lift(m)	Running Test Load(kn)	Headroom(draw close up)h/min	Full Load Hand Force N	Load Chain Dia.(mm)	N.W(Kg)	Packing(L*W*H)(mm)
0.75T	0.75	1.5	0.937	325	140	6	7	340*125*195
1T	1	1.5	1.25	325	140	6	7.5	340*125*195
1.5T	1.5	1.5	1.875	380	220	8	11	520*160*210
2T	2	1.5	2.5	380	220	8	12	520*160*210
3T	3	1.5	3.75	480	320	10	19	550*185*230
6T	6	1.5	7.5	480	320	10	21	550*185*230
9T	9	1.5	11.25	690	350	10	42
