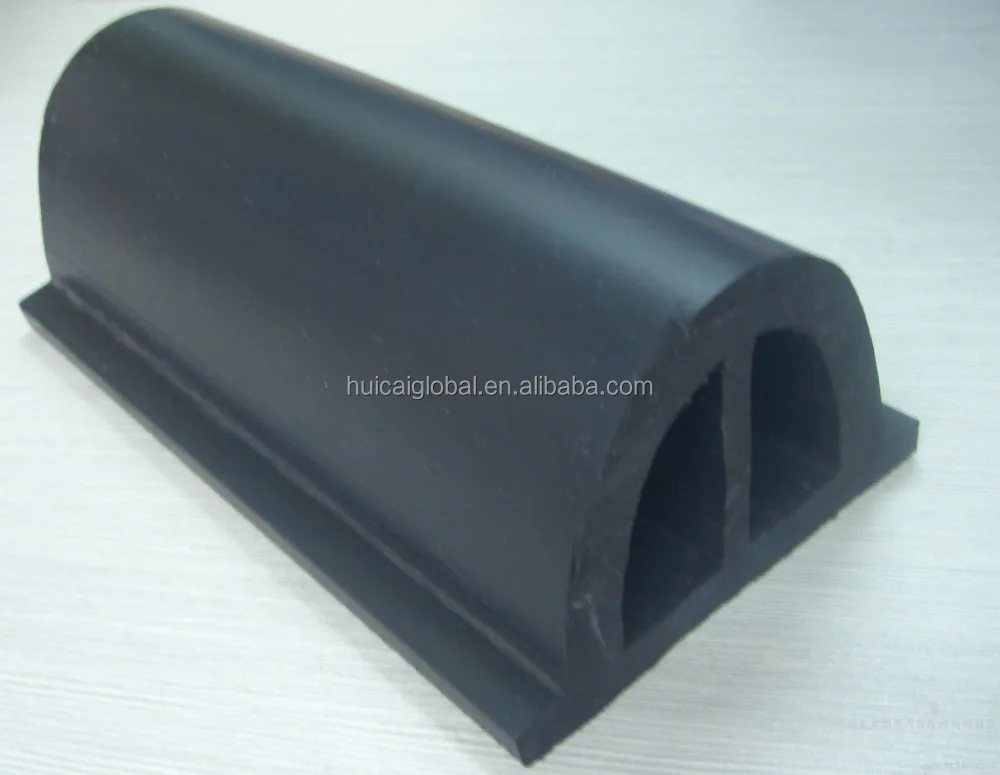

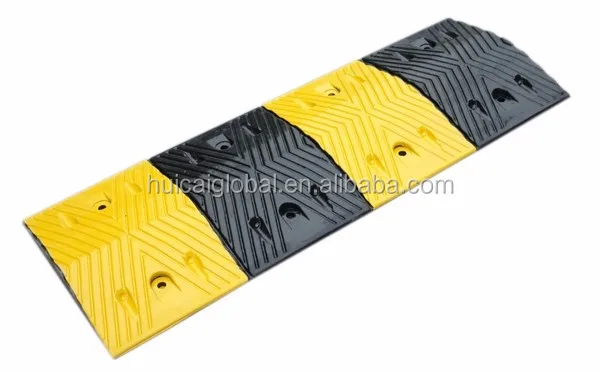

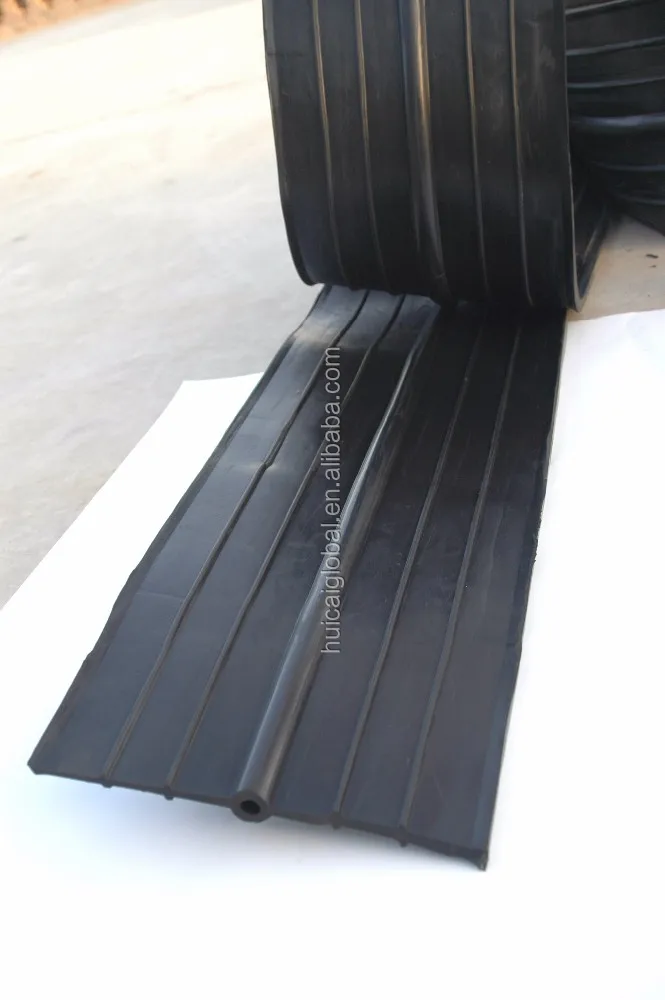

Tire rubber speed bump rubber fender rubber water seal

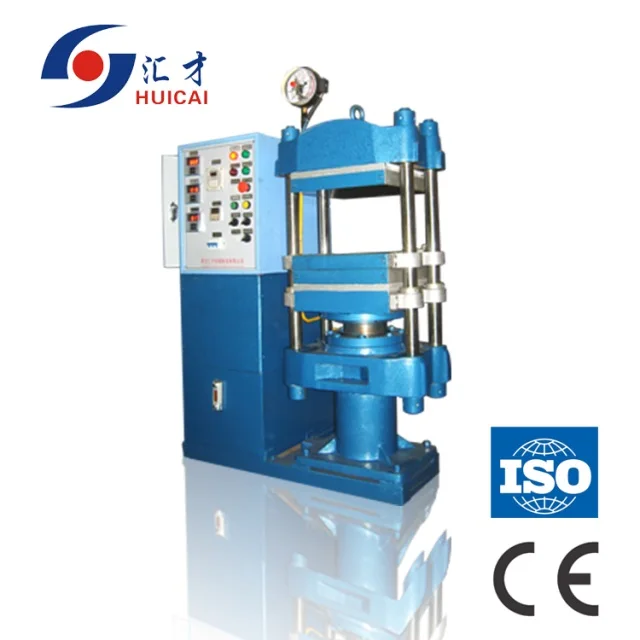

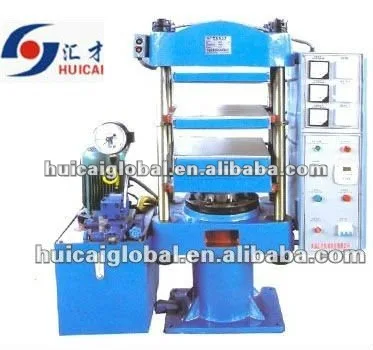

Silica Gel Patch Vulcanizing Machine rubber molding hydraulic press by rubber mach group
- Category: >>>
- Supplier: Qingdao Huicai Machine Manufacture Co. Ltd.
Share on (643141687):
Product Overview
Description
1. High speed open/close mold, high production efficiency, low mold-locking speed, protect mold.
2. Adopt new sealing material, excellent seal and long life.
3. Matching-advanced oil way reduces energy consumption.
4. Structure is simple; application is wide and easy to be operated
Type | XLB-D(Y)350x350x2 XLB-D 300*300 | XLB-D(Y)400x400x2 | XLB-D(Y)500x500x2 |
(MN)Nominal mounding power | 0.25 | 0.5 | 0.6,0.8 |
Working layer number | 2 | 2 | 2 |
(mm)Piston stoke | 250 | 250 | 250 |
(Mpa)Plate pressure | 2.04 | 3.13 | 3.2 |
(KW)Main moter power | 1.5 | 2.2 | 2.2 |
(mm)Plate chearanle | 125-200 | 125-200 | 125-200 |
Calefaction manner | Electricity (Oil) | Electricity (Oil) | Electricity (Oil) |
Configuration | Column, Frame | Column, Frame | Column, Frame |
(KW)Electric pipe heating power | 1.8 | 2.7 | 3.0 |
(V)Voltage | 220or as requirement | 220or as requirement | 220or as requirement |
Control mode | Manually or automatically | Manually or automatically | Manually or automatically |
|
Type | XLB-D(Y)450x450x2 XLB-D 600*600*2/4 | XLB-D(Y)500x1000x2 XLB-D 600*800*1 | XLB-D(Y)750x850x1 XLB-D 800*800*1 |
(MN)Nominal mounding power | 1.00 | 1.00 | 1.60 |
Working layer number | 2 | 2/4 | 2 |
(mm)Piston stoke | 300 | 300 | 300 |
(Mpa)Plate pressure | 4.94/2.78 | 2.00/2.08 | 2.51/2.50 |
(KW)Main moter power | 2.2 | 2.2 | 2.2 |
(mm)Plate chearanle | 125-250 | 125-250 | 125-250 |
Calefaction manner | Electricity (Oil) | Electricity (Oil) | Electricity (Oil) |
Configuration | Column, Frame | Column, Frame | Column, Frame |
KW | 2.7/3.6 | 5.4/4.8 | 4.8/4.8 |
We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time
More details will be send if you need.
Uses of rubber

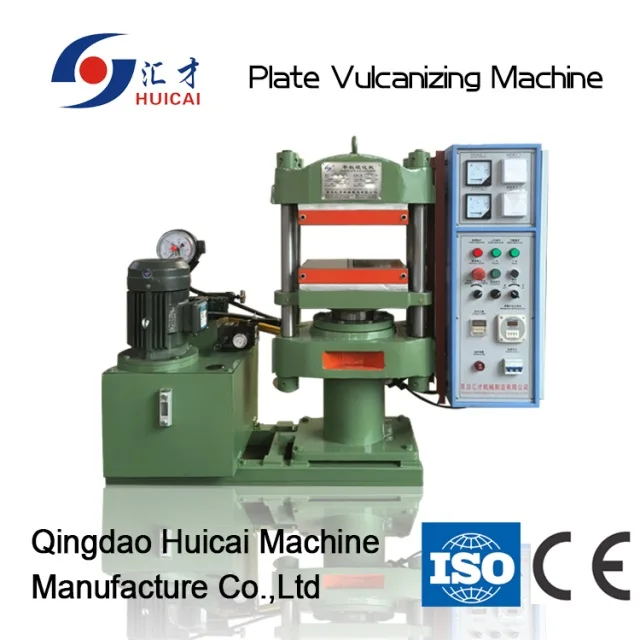

Vulcanizing machine:

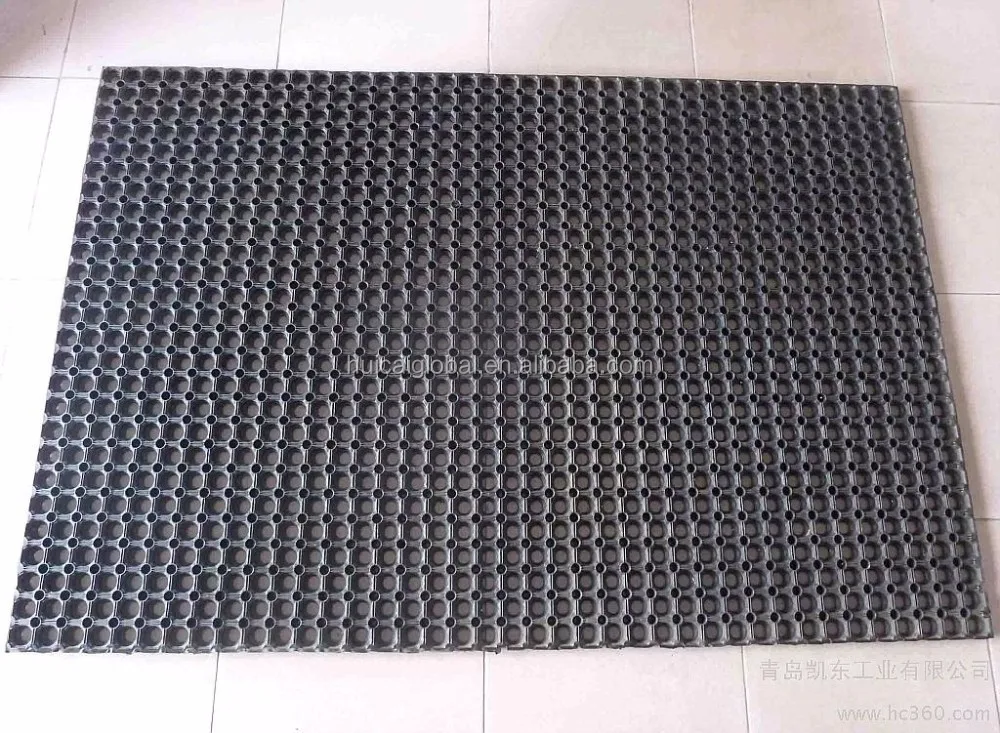

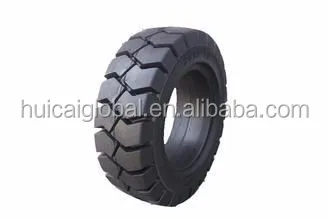

Generally, this machine line and frame type are mainly used for the production of various rubber products, such as rubber tires, soles, rubber shingles, rubber sheets, rubber MATS, rubber washers, rubber wheels, rubber belts, rubber tread...

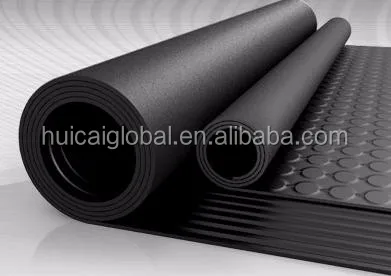

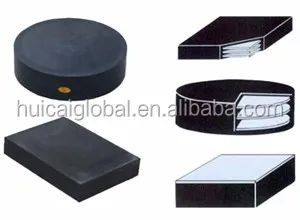

Rubber plate rubber pad rubber seal

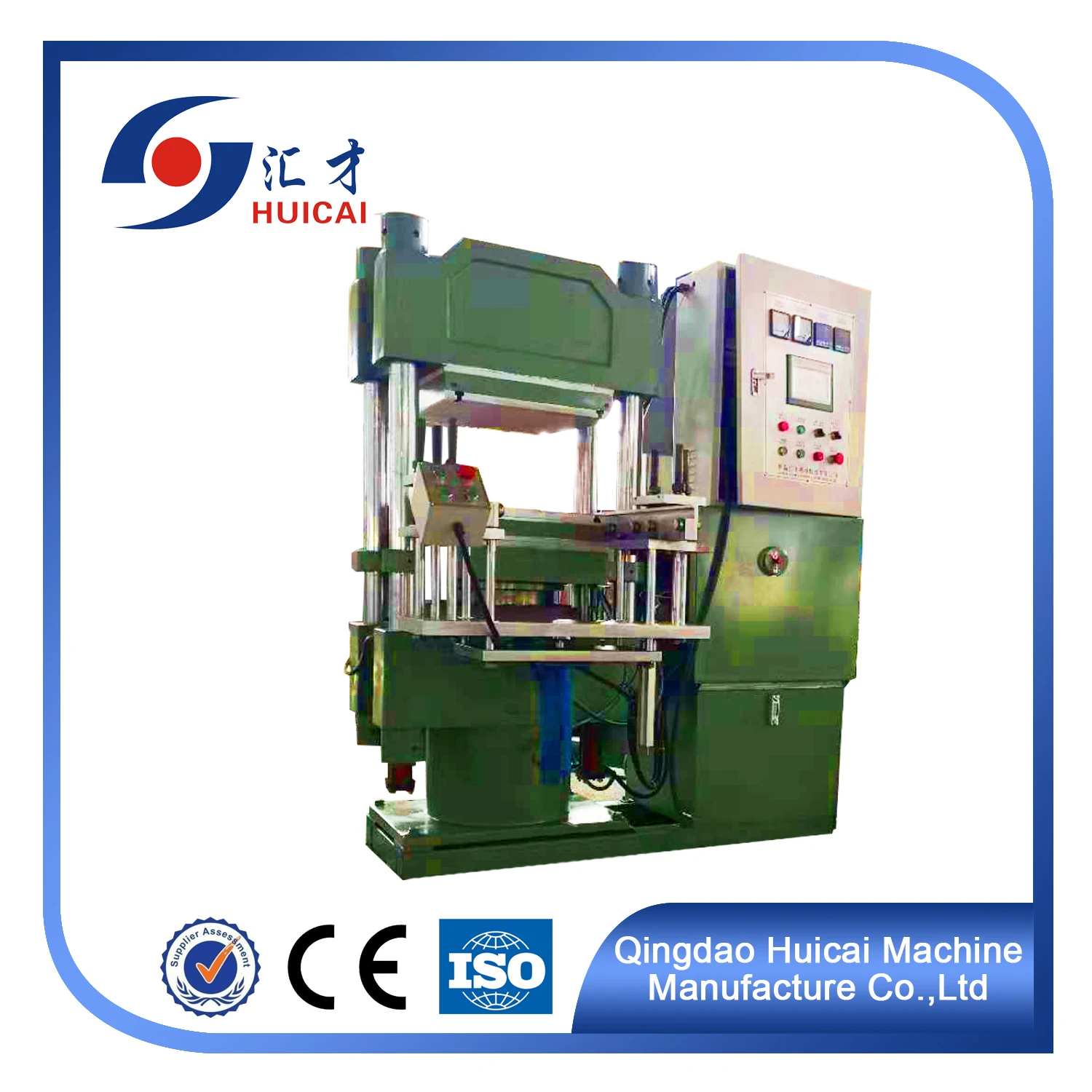

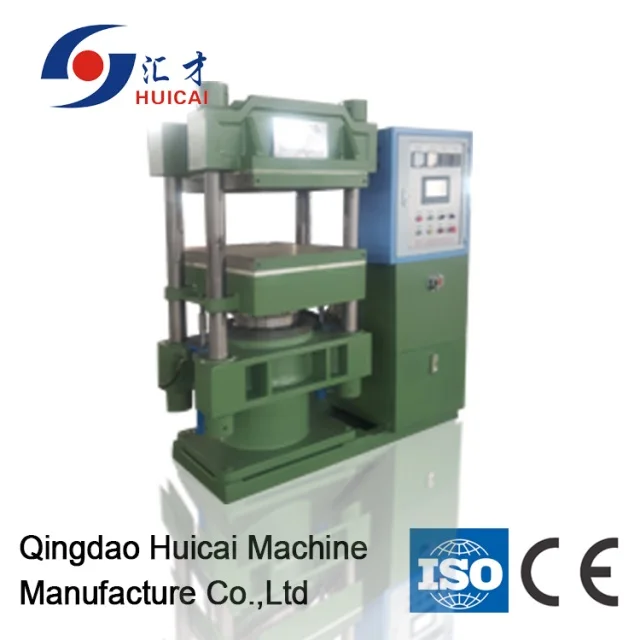

Detailed Images
We are looking forward to cooperating with you!
