Винтовой цилиндр для экструдера выдувной пленки, детали для выдувного формования, штампованная головка, LDPE LLDPE HDPE пленка, пузырчатая пленка Stellite BIMETALLIC
- Category: Plastic & Rubber Machinery Parts >>>
- Supplier: Zhoushan OSD Plastic Machinery Co. Ltd.
Share on (643275667):
Product Overview
Description

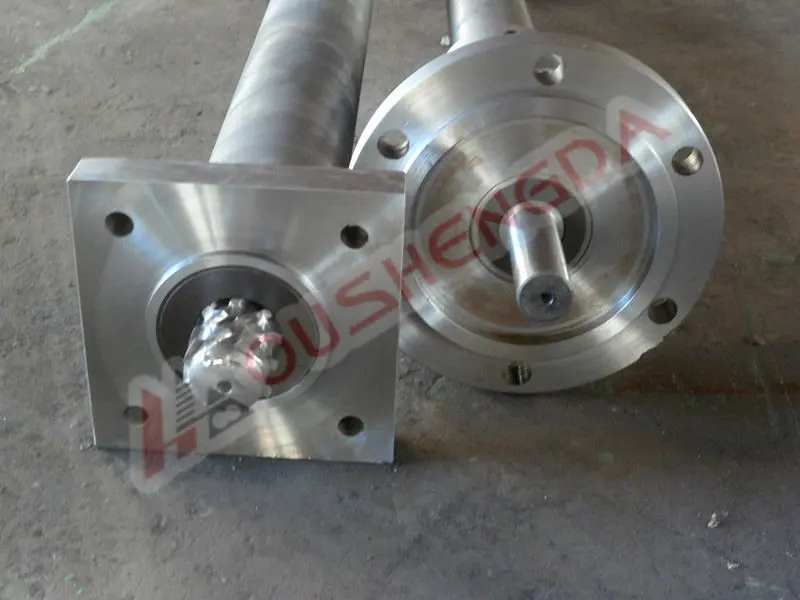

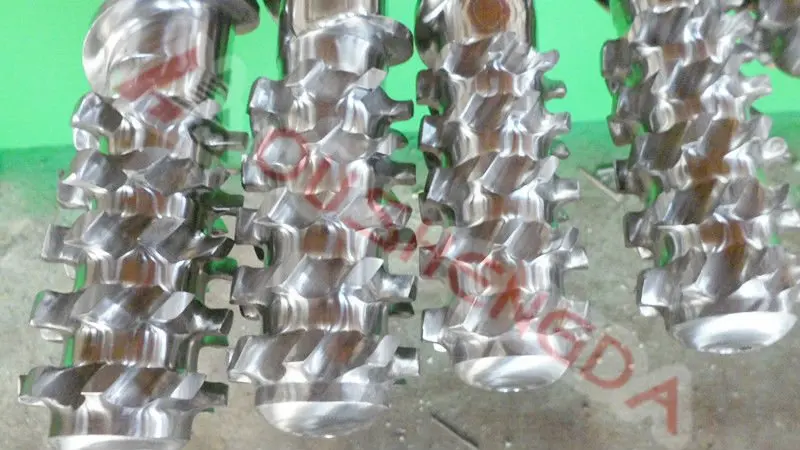

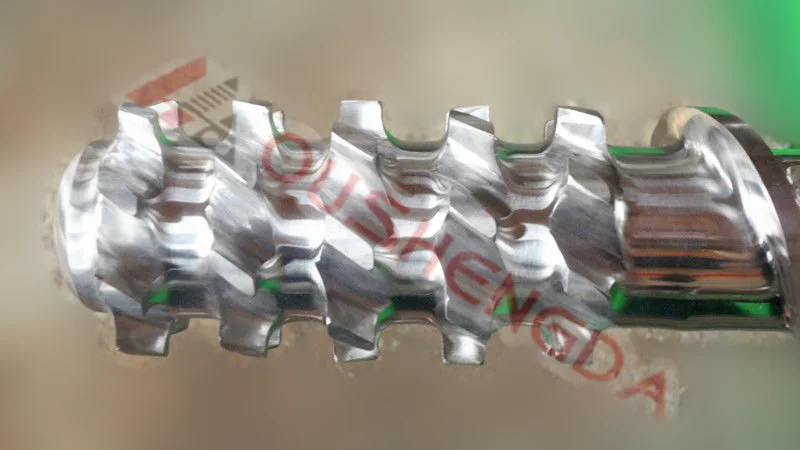

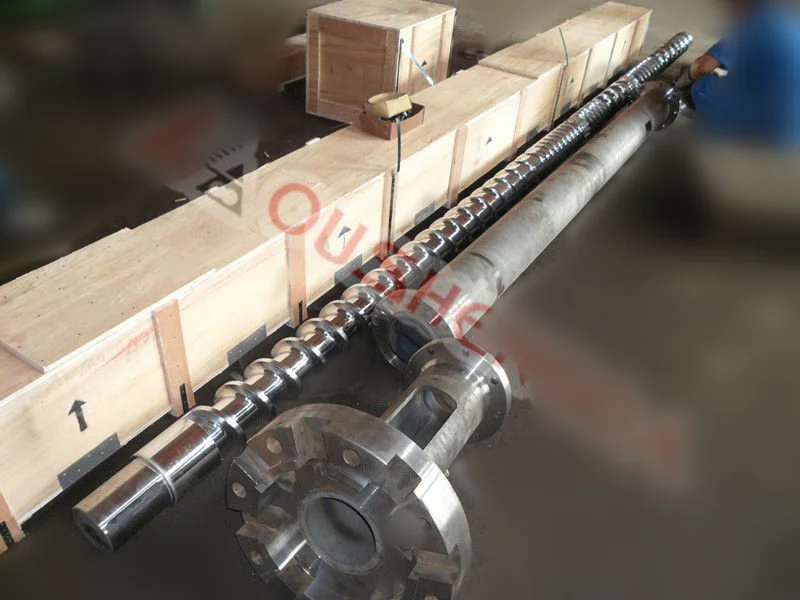

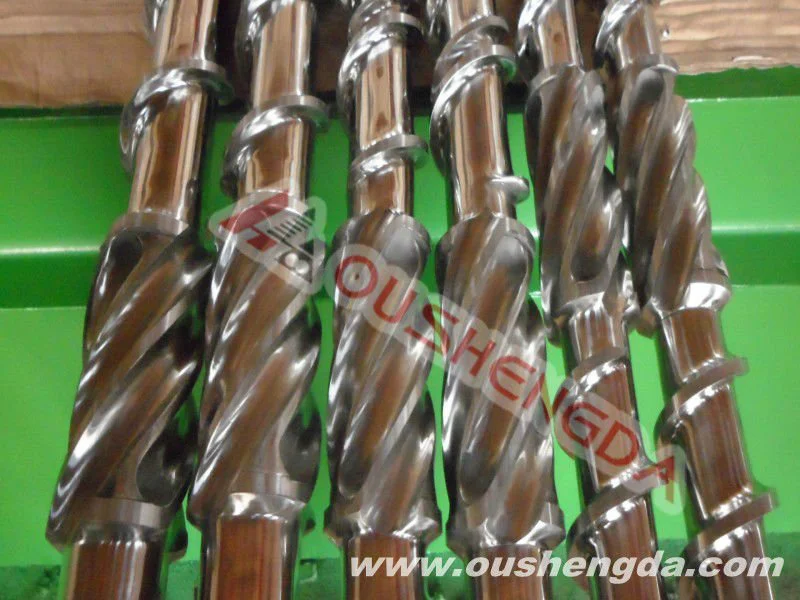

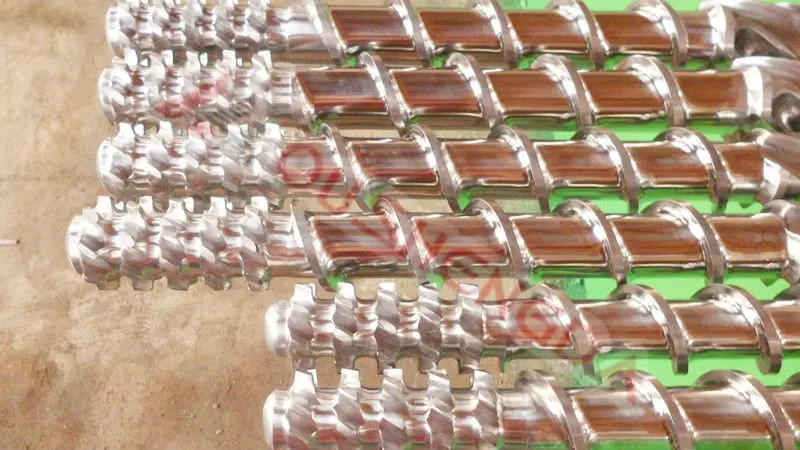

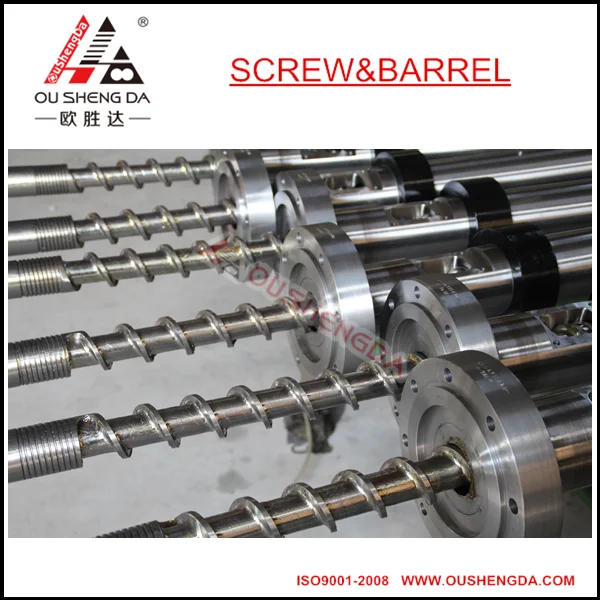

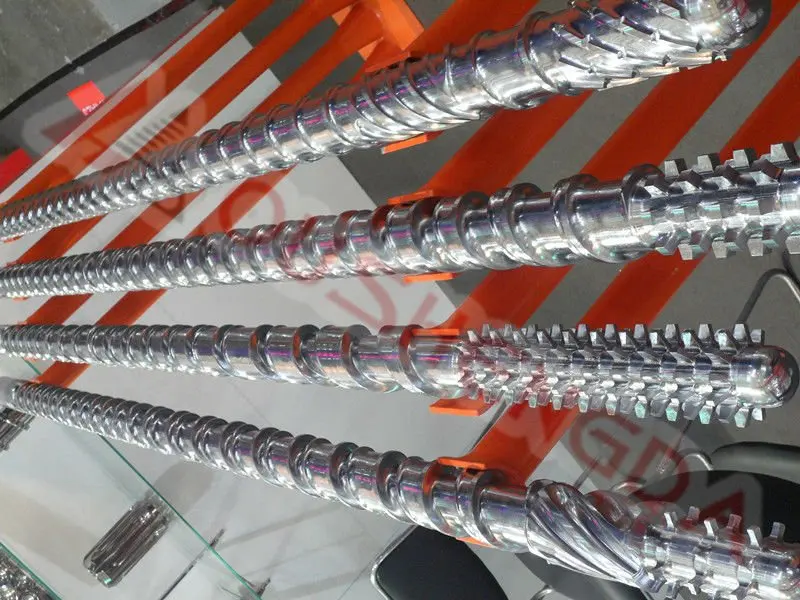

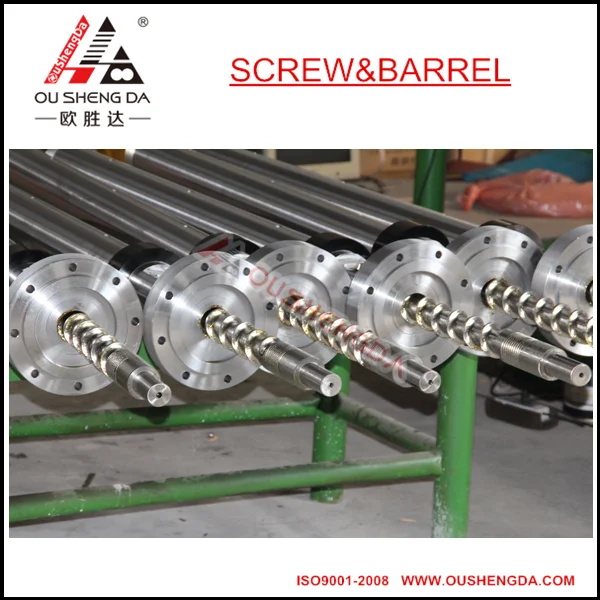

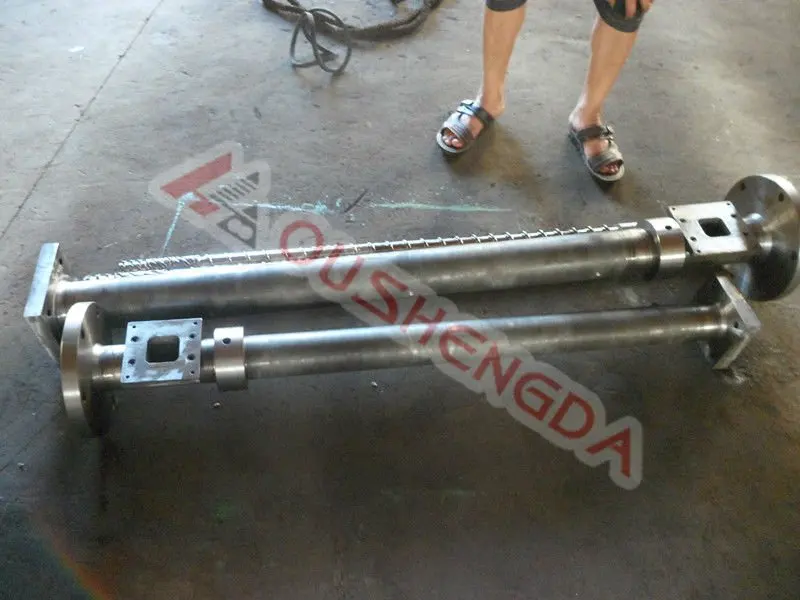

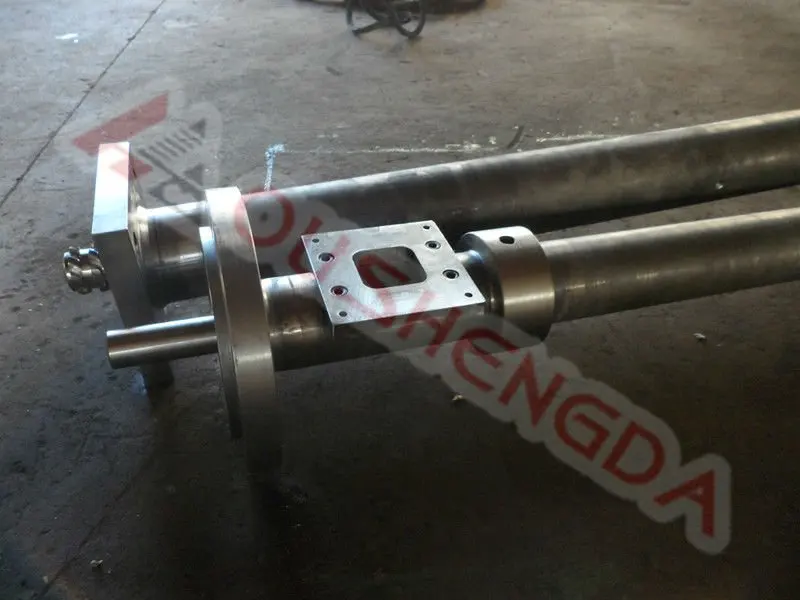

SCREW AND BARREL for blown film extruder blow molding parts | |||
Diameter | Φ15mm-350mm |
Designing
| Screw structure and compression ratio can be designed according to different products & different output requirement.
|

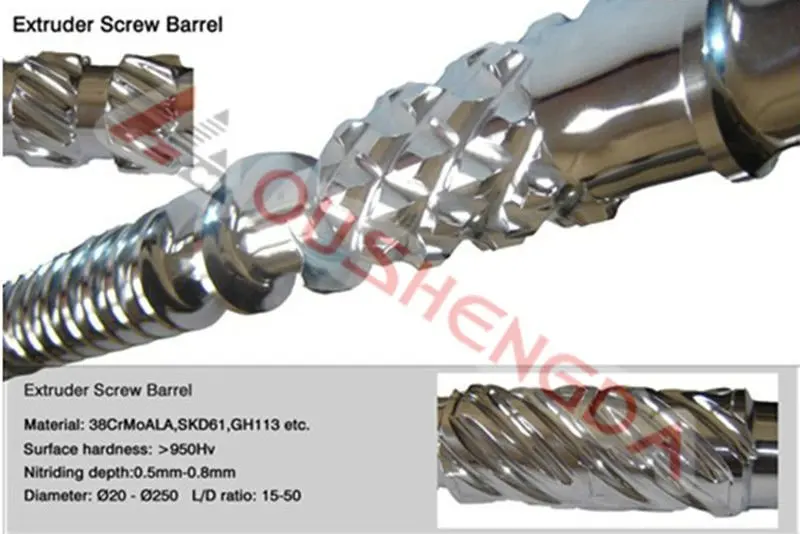

Materials | 38CrMoAlA (JIS SACM645) SKD61 | Application | pe, hdpe, ldpe, lldpe and etc |
Nitride Case Depth | 0.5mm-0.8mm | Technology | 1)Longer time Gas Nitriding treatment 2)special anti-wear & abrasion alloy (bimetallic) 3)tungsten carbide 4)cobalt base alloy 5)stainless steel 6)Gh113 nickel based alloy |
Compared to other supplier, OSD advantages
|

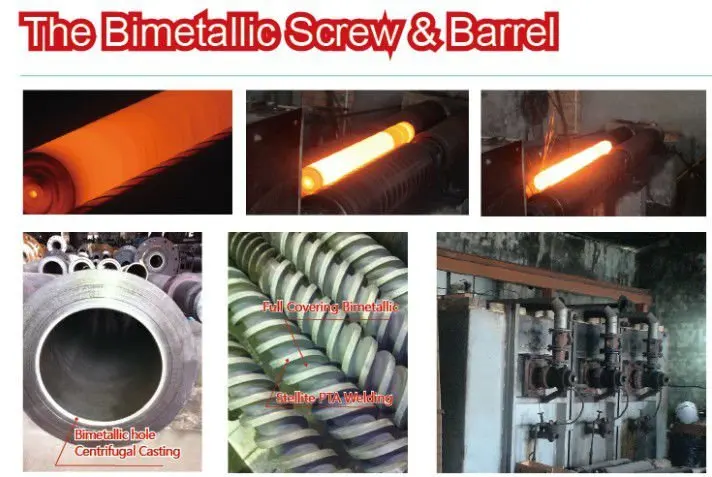

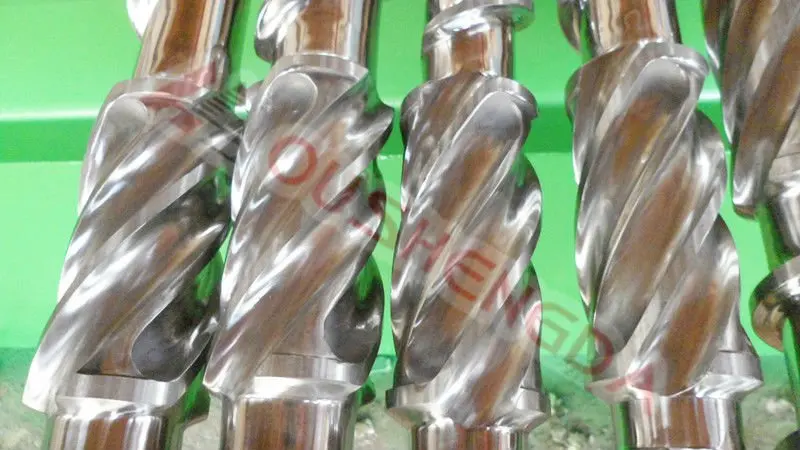

1.Advanced Nitriding Technology 3. we uses special alloy powders being sprayed and welded on the screw's ridge,and uses different alloy and welding methods for the screw of different functions. 4.Fast and on time delivery . 5.Longer lifetime for the screw barrel.
| ||
Nitride Hardness | 950-1020HV | Packing | Wrapped up by film in wooden |
Nitride Brittleness | ≤Grade One | Payment Term | T/T , L/C |
Surface Roughness | Ra0.4um | Delivery Term | 25 working days |
Screw Straightness | 0.015mm | Port Departure | Shanghai/Ningbo |
Alloy Hardness | HRC58-62 | Min. Order | 1 set |
Alloy Depth | 0.5mm-0.8mm | Common Nitrided:2.5-4years Bimetallic: much longer lifetime. | |
Guarantee | |||
If the screw diameter or l/d ratio is not fixed, please feel free to inform the products and output you need, we canselect & design the matching cylinder screw
by your requirement.
About O.S.D :
- Our Strength: We have an experience of more than 20 year of manufacturing and designing Plastic machines, varied Screws and Barrels and spares. We concentrate on improving quality, updating design and enhancing service.

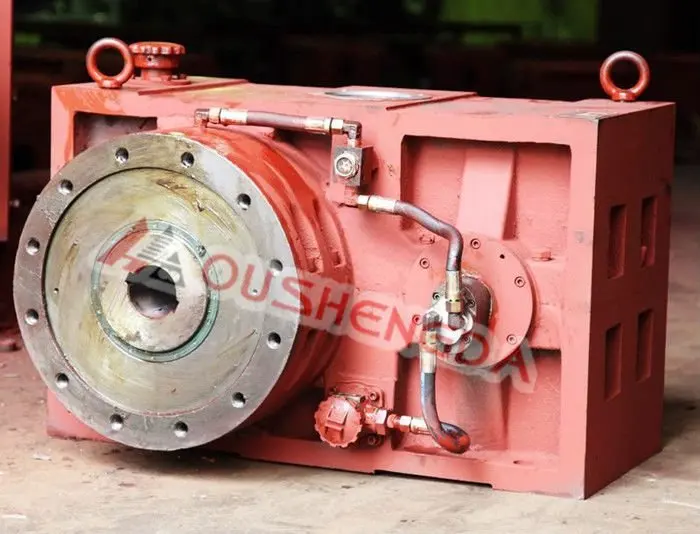

- Our products: Screws Barrels for Injection, Extrusion, and Blow Molding applications; relevant accessories(such as die head, gearbox, filter screen changer and so on); plastic processing machinery.
- Location advantage: located in China's Screw Town - Jintang Town in Zhoushan City, near to Ningbo Port and Shanghai Port.
- Market areas: global sales network reaching South America, Eastern Europe, Southeast Asia, Africa, Oceania and the Middle East.
- We promise: We assure the customer benefits, We provide competitive price, We Emphasis On Cooperation.
Our Services
Our company, ZHOUSHAN OSD MACHINERY COMPANY, provides professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.
- We can make any specification of extruder screw barrel and injection screw barrel for Engel, Krauss-maffei, Milacron, Demag, Arburg, Haitian, JSW, Toshiba, Nissei, Sumitomo, Nippon Steel, Mitsubishi, Fanuc, Chenhsong, Haitai, Yizumi, Cincinnati, Battenfeld, Weber, Theysohn, Bausano, Maris, Jwell, Jinhu, Liansu, Windsor, etc.
- We also can supply all types of screw and barrel according to your different requirements.
- Our screw barrel can ensure the well performance and low energy consumption of extruder and Injection molding machine. We insist on the principle of quality first, honest to customers, the quickest service for customers” to improving us, our goal is to satisfy our customers.
Contact us
| Company name: | ZHOUSHAN OSD MACHINERY CO.,LTD. |
| Address: | ADD: NO.22 XINGONG ROAD, LIGANG, JINTANG TOWN,DINGHAI DISTRICT, ZHOUSHAN CITY, ZHEJIANG PROVINCE, CHINA |
| Post code: | 316031 |
| Contact: | Ms Jessie Chan |
| Telephone: | +0580-8053003 |
| Fax: | +0580-8052186 |
| Whatsapp: | +86-198 2280 7019 |
| Wechat: | osdscrews |
| Skype: | sales3(at)oushengda.com |
| Website: | www.oushengda.com |
| mail address: | sales3(at)oushengda.com |
