Name: Insulation Material Insulation Electrical Crepe Paper For Transformer
SKU: 643612465
Availability: InStock

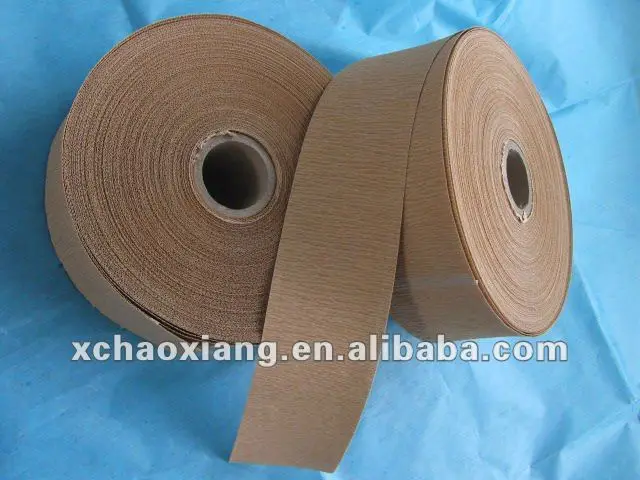

Insulation Material Insulation Electrical Crepe Paper For Transformer

electrical crepe paper

Product Description

S.N.	ITEM		UNIT	ORIGINAL PAPER THICKNESS
				0.05mm	0.075mm	0.08mm	0.13mm
1	Crepe paper thickness		mm	0.35±0.05	0.38±0.08	0.40-0.60	0.70-0.90
2	Ash content		less%	0.7	0.7	0.8	0.8
3	Moisture		less%	7.0	7.0	8.0	8.0
4	Ether extract		less%	0.3	0.3
5	Water extract PH			6.0-8.0	6.0-8.0	6.0-8.0	6.0-8.0
6	Pollution oil		less%	0.1
7	Tensile strength	Longitudinal	N	30	40	45	50
		Transversal	N	20	30	35	40
8	Flexibility of crepe paper		%	50
9	Breakdown voltage		V / layer	≥950	≥1000	≥1000	≥1000
10	Conductivity		ms/m			≤9.0	≤10
11	GSM		g/m2	60±10%	110±10%	110±10%	120-150

Production

Crepe papers are made from base paper weighing 25 - 180 g/m2 (15 -111 lbs/ream) .

Features

1. Insulation class A (105 °C)

2. Color : natural brown, beige

3. High purity and high oil-absorption

4. Good dielectric strength

5. Excellent compatibility with insulating liquids (mineral oils, silicon oils and ascerol oils). 6. Free from conductive particles

Applications:

Creped Papers are suitable for irregular shapes and surfaces where normal insulation materials failes to reach, used in magnet wire, layer, current transformers, RIP bushings or as shielding material.
